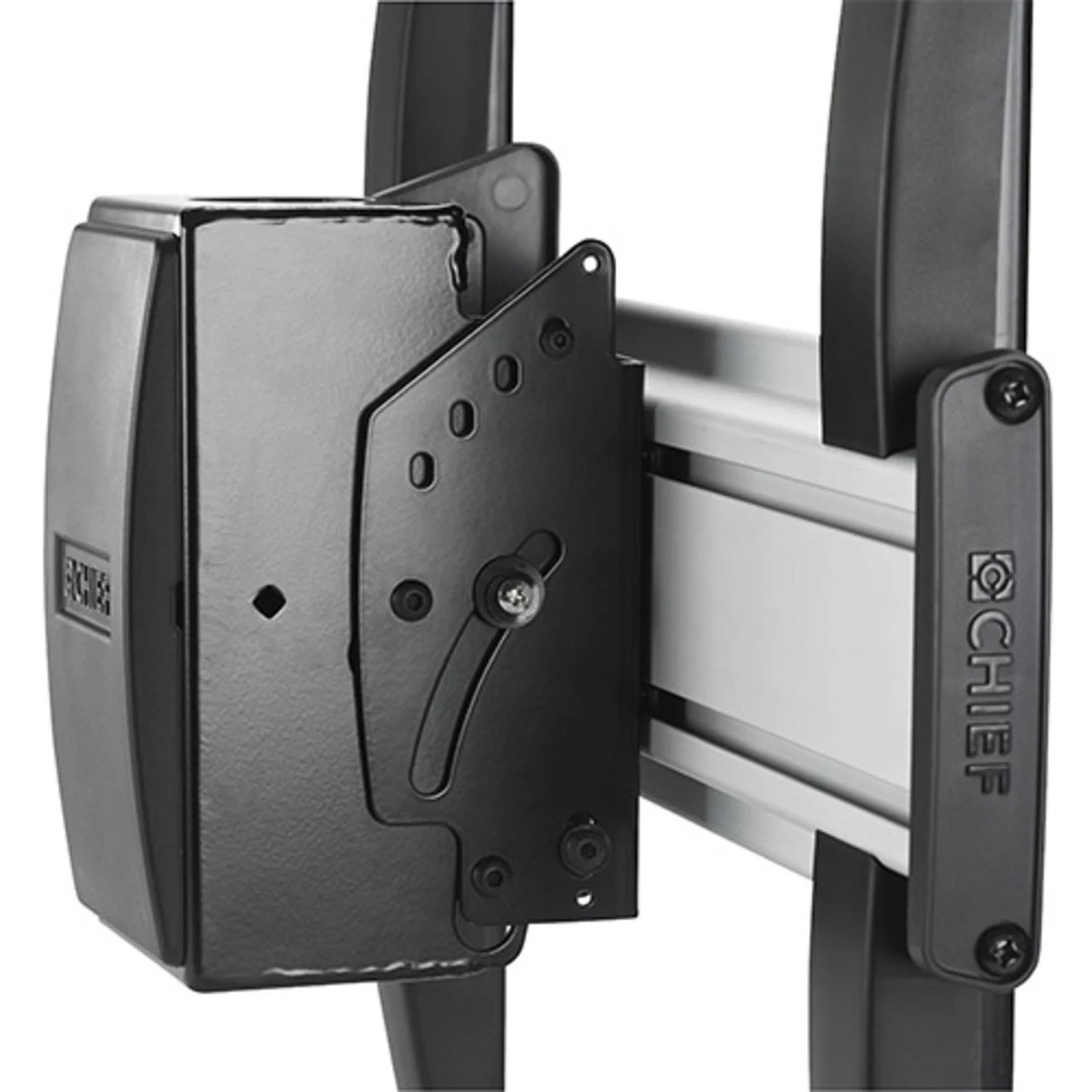

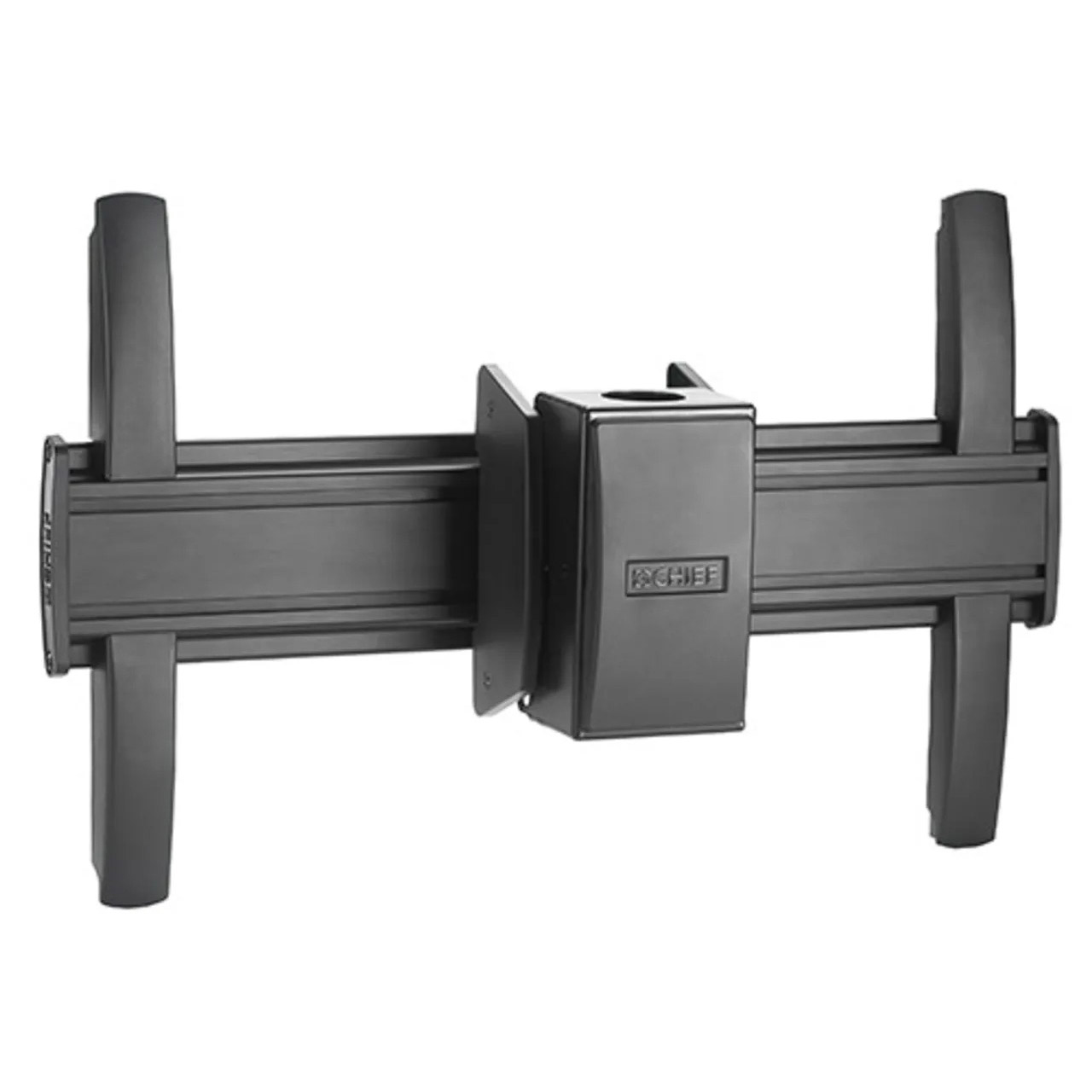

Chief LCM1U Fusion Large Flat Panel Ceiling Mount - 125 Pound Weight Capacity - Black

LCM1U - Overview

• Features:

  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
  • See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
  • See CPA ceiling plates and CPA columns for pin connection compatibility
  • Stackable on a single pole when used with CPA columns
  • Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
  • Simple on/off connection for ease of installation and service.
  • Effortlessly adjust display using Centris fingertip tilt technology.
  • Tool free screen engagement with optional padlock security.
  • Mount swivels to any preferred viewing angle. Set screws lock in desired angle.
  • Stackable on a single pole when used with CPA columns


• Specifications:

  • Shipping Weight: 18.87lbs (8.6kg)
  • Typical Screen Size: 42" - 75" (1067mm - 1905mm)
  • Weight Capacity: 125lbs (56.7kg)
  • Adjustability: Tilt
  • Adjustments: Roll: 3°
  • Application: Ceiling
  • Color: Black
  • Number of Displays: 1
  • Orientation: Landscape
  • Tilt: +5° and - 20°
  • VESA Mounting Pattern: 200mm x 100mm - 616mm x 400mm
  • Certifications: UL Listed


• Item Includes:

  • 1x Interface Bracket Hardware Kit
  • 2x 10-24 x 5/8" Screw
  • 1x 3/32" Hex Wrench
  • 1x 1/8" Hex Wrench
  • 1x 5/32" Hex Wrench
  • 1x 10-24 x 1/4" Screw
  • 2x 5/16" x 1" Bolt
  • 2x 5/16" Flat Washer
  • 4x 10-24" x 1/2" Bolt
  • 3x 5/16" x 3/4" Bolt
  • 2x 10-24 x 1/2" Screw
  • 2x 10-24 Fastener
  • 1x Bottom Stop Collar
  • 1x Bottom Coupling
  • 1x Ceiling Mount
  • 1x Back Cover
  • 2x Side Cover
  • 2x Interface Bracket
  • 4x Interface Bracket Cover


• Warranty:

  • 10 Year Warranty


• GTIN:

  0841872156170
