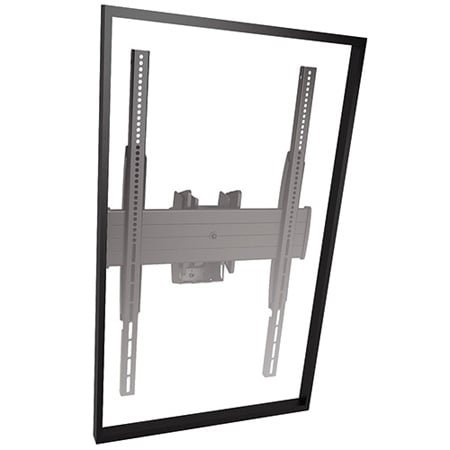

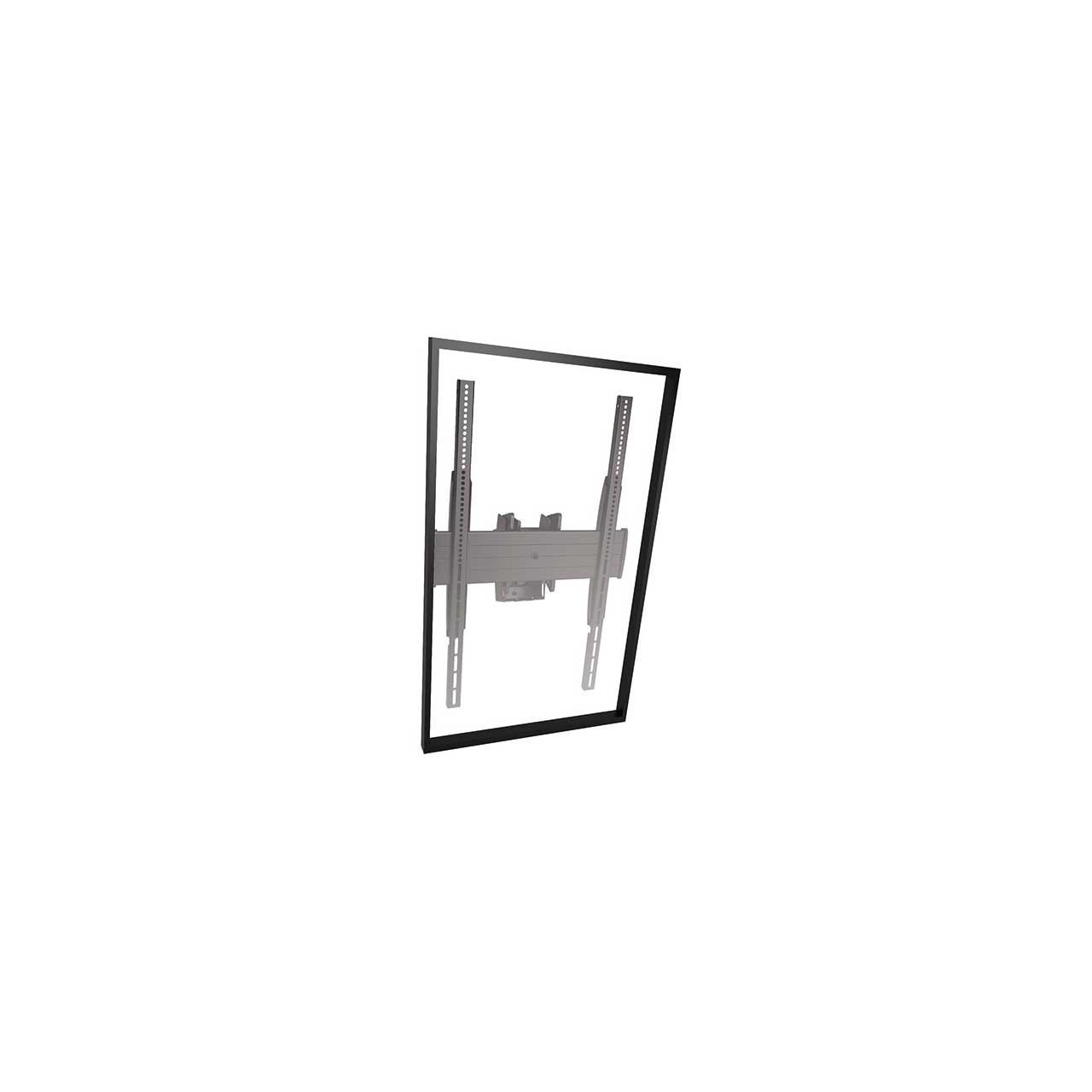

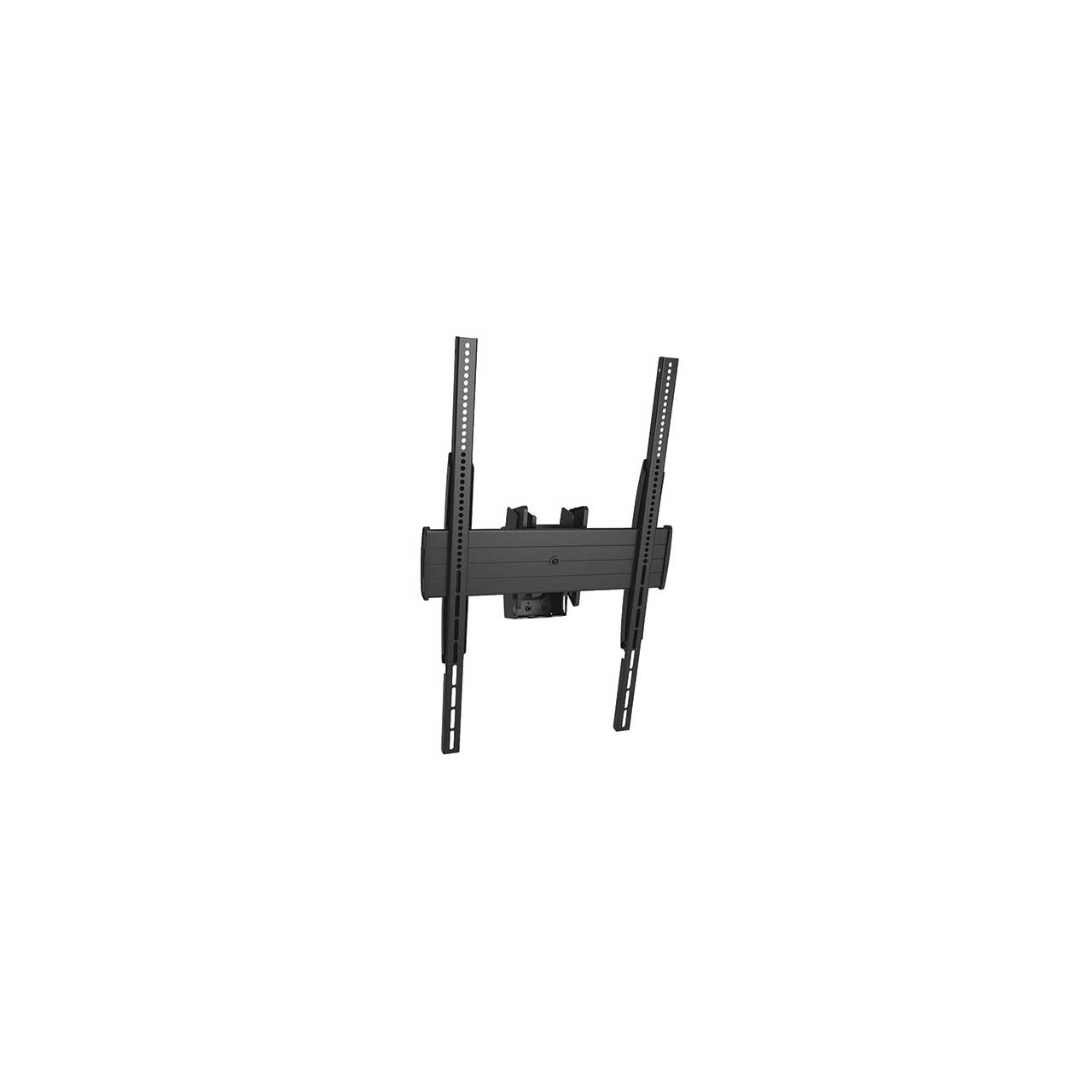

Chief Fusion Large Flat Panel Ceiling Display Mount - Black

LCM1UP - Overview

• Features:

  • Ceiling Plate and extension column are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
  • REPEATABILITY: Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
  • ACCESSIBILITY: Simple on/off connection for ease of installation and service.
  • CENTRIS FINGERTIP TILT: Effortlessly adjust display using Centris fingertip tilt technology.
  • SIMPLE & SECURE: Tool free screen engagement with optional padlock security.
  • FLEXIBILITY: Mount swivels to any preferred viewing angle.
  • PORTRAIT FUSION: rail is 400mm wide and the TV uprights reach patterns up to 800mm tall.


• Specifications:

  • Adjustments: Roll, +/- 3°
  • Certifications: UL Listed
  • Color: Black
  • Equipment Weight Capacity: 125 lbs (56.7 kg)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 400 x 800mm
  • Orientation: Portrait
  • Shipping Weight: 26.00 lbs
  • Tilt: + 5° , - 20°


• GTIN:

  0841872159096
