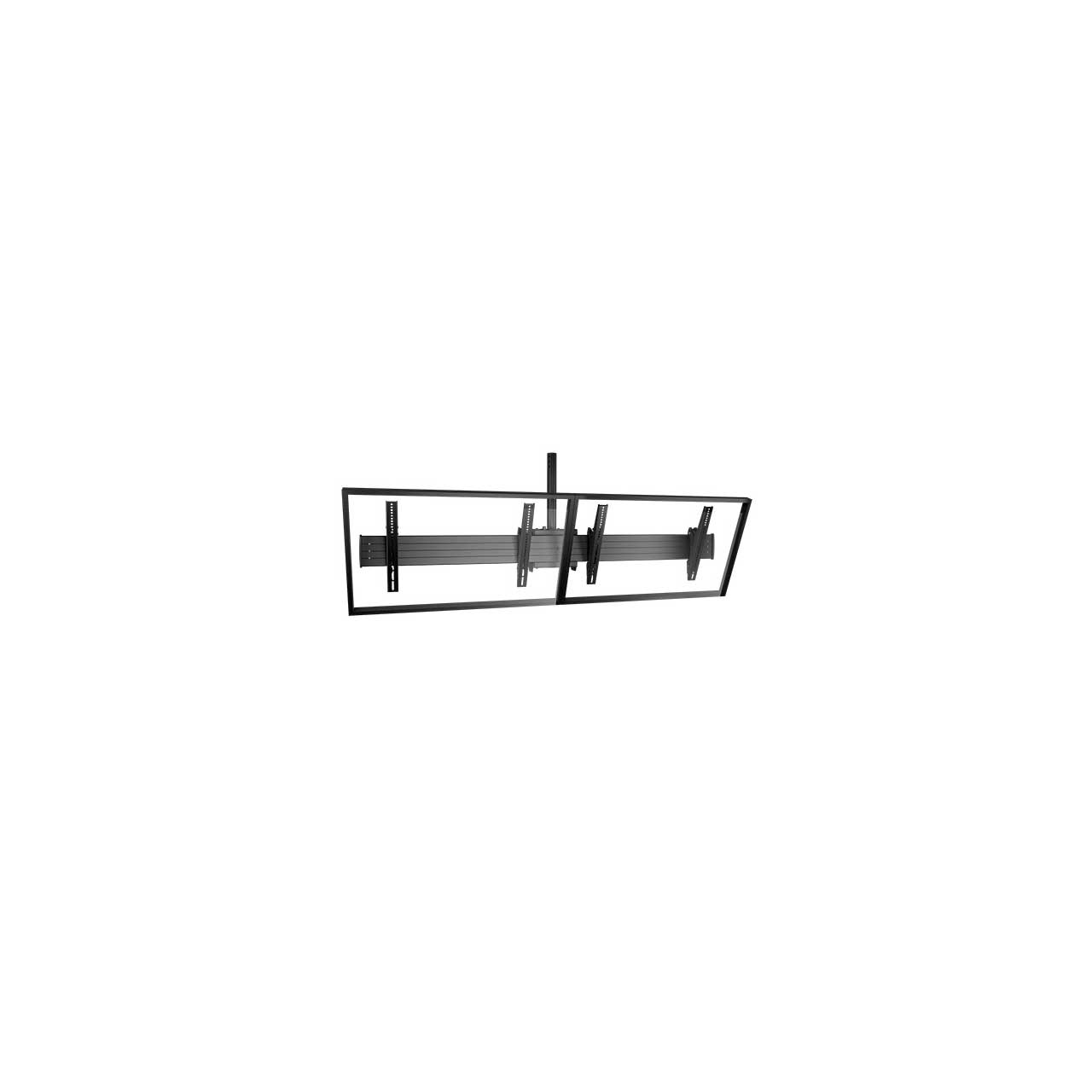

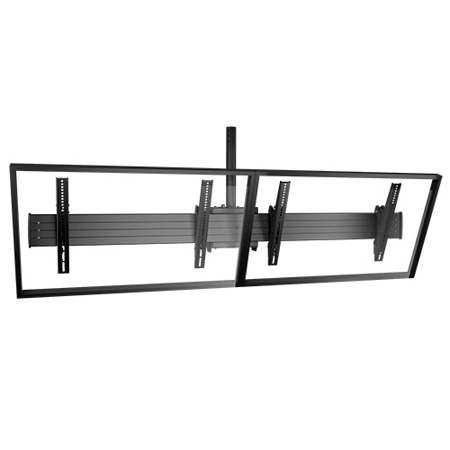

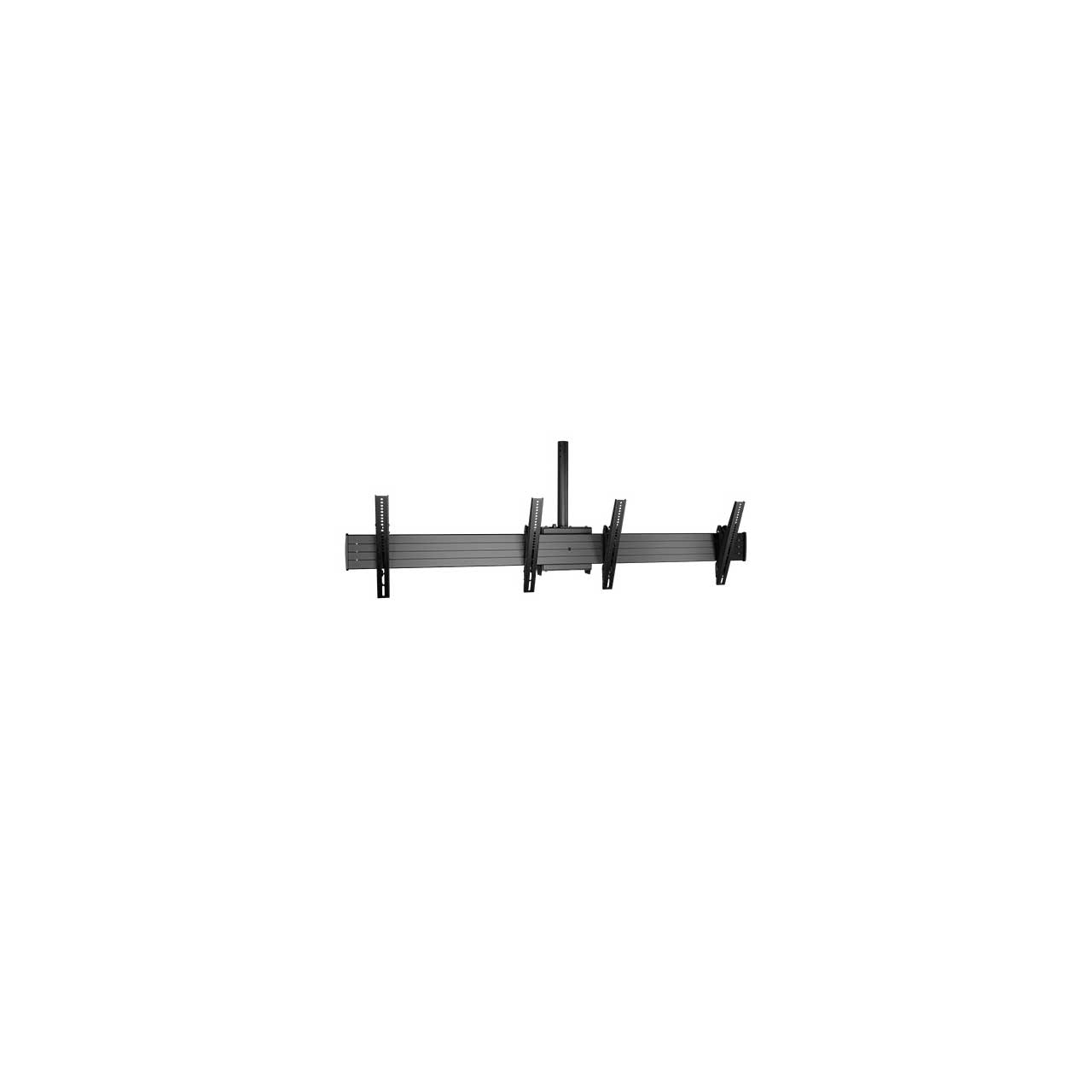

Chief Fusion Large Ceiling 2x1 Menu Board Display Mount - Black

LCM2X1U - Overview

• Features:

  • Single drop for fast installation
  • Micro adjustable roll for perfect leveling +/- 3 degrees
  • 360 degree swivel for optimal viewing angles
  • Single horizontal extrusion keeps screens aligned
  • Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
  • Tool-free screen engagement
  • Secure displays with optional pad-lock security
  • Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
  • CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 400 mm
  • Post-Installation Leveling (Roll): + / - 3°
  • Screen Array Configuration: 2 x 1
  • Shipping Weight: 50.00 lbs
  • Solution Type: Universal
  • Tilt: + 5° , - 20°
  • Typical Screen Sizes: 40 - 55" (up to 65" with FCAX extension brackets)
  • Weight Capacity: 125 lbs. (56.7 kg) per display


• GTIN:

  0841872158778
