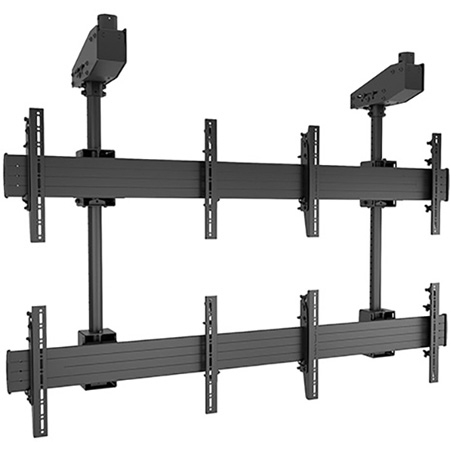

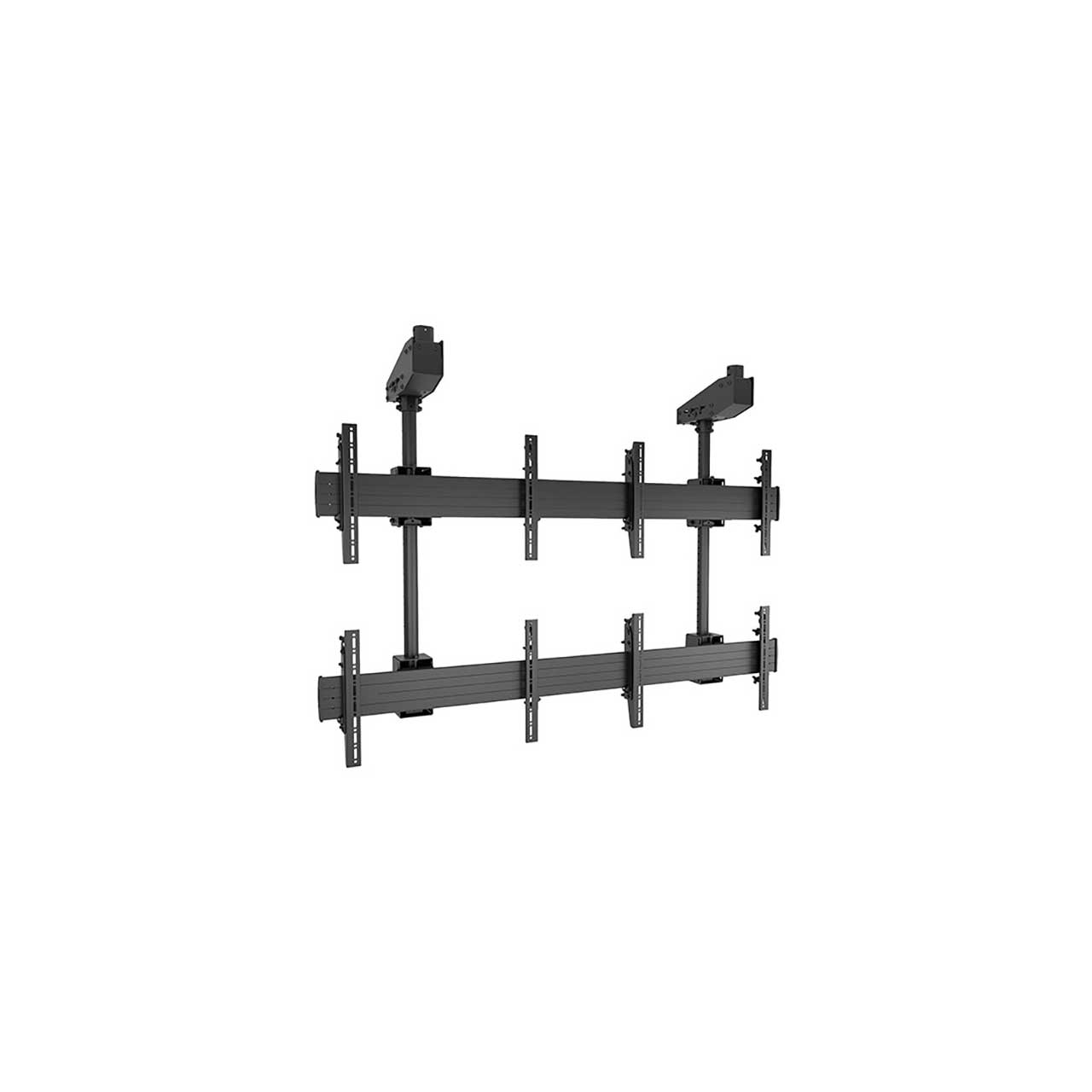

Chief Fusion Micro-Adjustable 2x2 Ceiling Video Wall Display Mount - Black

LCM2X2U - Overview

• Features:

  • Screen array configuration: screens wide x screens high.
  • Easily align displays with independent knobs for height and plumb adjustments, no tools required.
  • Micro-height and leveling adjustment at all column intersection points.
  • Infinite vertical and lateral adjustments provide tight display rows and columns.
  • Solid construction supports displays up to 55" and 125 lbs. (56.7 kg) per screen.
  • Add configurations side by side to create any video wall arrangements up to 3 screens tall.
  • Ceiling plate and extension column are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.
  • See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility.
  • See CPA ceiling plates and CPA columns for pin connection compatibility.
  • Recommended ceiling plates for multi-display ceiling mounts (PDF).


• Specifications:

  • Adjustments: Micro-Adjustments of 2" at structural intersection points
  • Certifications: UL Listed
  • Color: Black
  • Manual Height Adjustment: 1" (25 mm) increments at structural intersections
  • Mounting Pattern Compatibility (Universal Versions): any width x 100 mm - 400 mm
  • Notes: Weight capacity is per display
  • Number of Monitors: 4
  • Orientation: Landscape
  • Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
  • Screen Array Configuration: 2 x 2
  • Shipping Weight: 152 lbs (68.95 kg)
  • Solution Type: Universal
  • Typical Screen Sizes: 42" - 50" (102 - 127 cm)
  • Weight Capacity: 125 lbs (56.7 kg)


• GTIN:

  0841872155012
