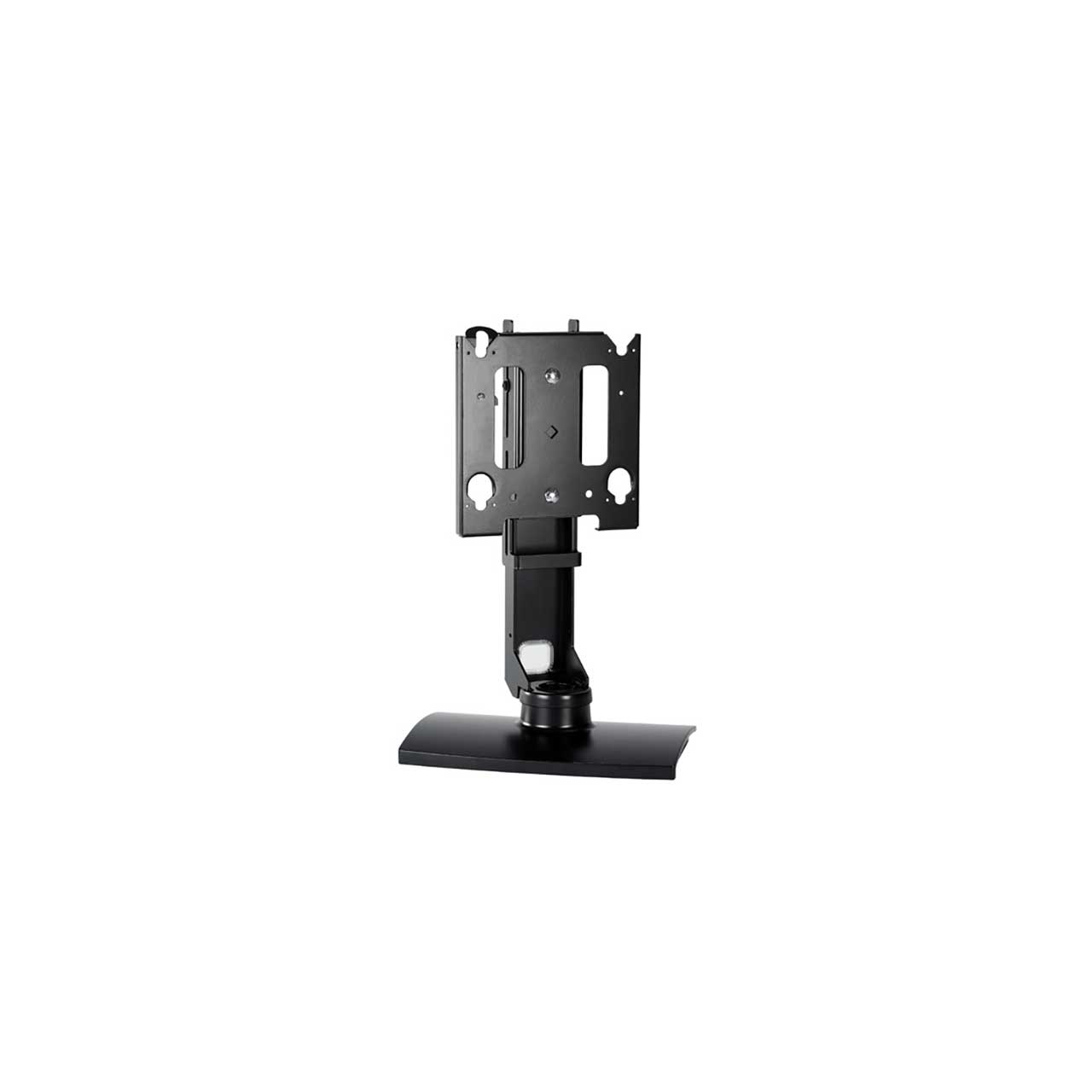

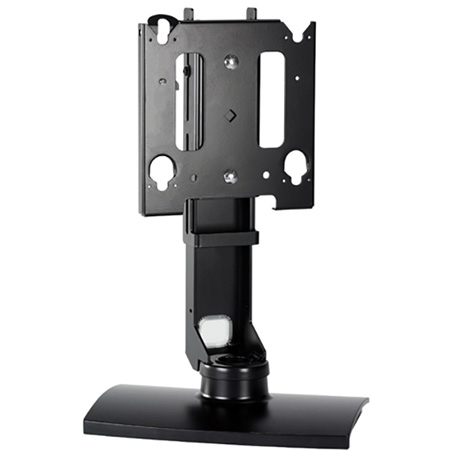

Chief Medium Flat Panel Swivel Table Stand

MSSVB - Overview

• Features:

  • Telescoping height adjustment
  • ClickConnect Technology provides an audible click to confirm that your flat panel is locked in place
  • Easy to connect/disconnect with no tools necessary
  • Bolt-down capability for permanent installation
  • Smooth swivel up to 45° in either direction with optional stops at 15°, 25° and 35°
  • Integrated cable management conceals cables
  • MSSUB universal version available which includes universal MSBUB interface. MSS6000B is available but must order MSS6000B and MSBXXXX custom or universal interface separately.


• Specifications:

  • Color: Black
  • Manual Height Adjustment: 5.25" (133 mm)
  • Mounting Method: Free Standing and Bolt-down
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm
  • Orientation: Landscape
  • Pivot Numerical ValueYes, up to 45° in either direction with optional stops at 15°, 25° and 35°
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 42 lbs (19.05 kg)
  • Solution Type: Universal
  • TV Height Range: 15 - 32" (381 - 813mm)
  • Typical Screen Sizes: 30 - 50"
  • Weight Capacity: 150 lbs (68 kg)


• GTIN:

  0841872067834
