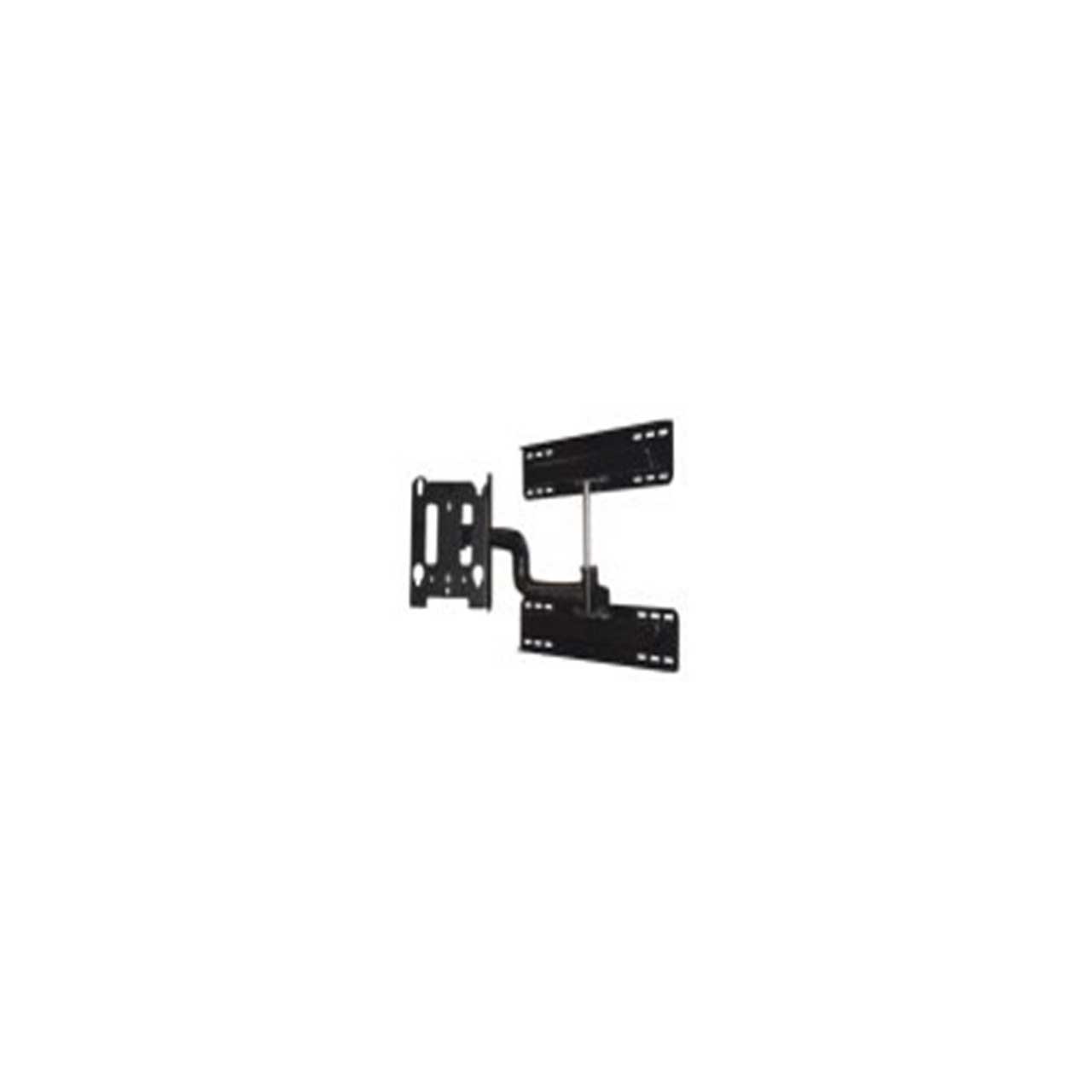

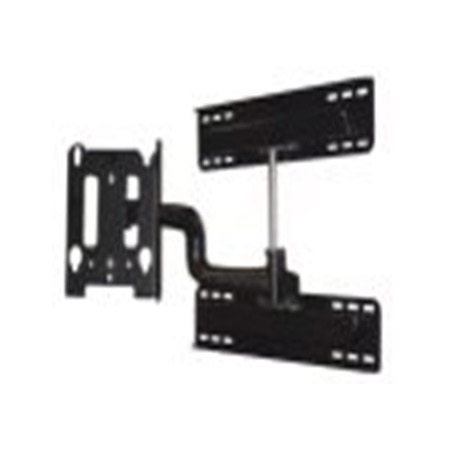

Chief MWRSKUB Medium Flat Panel Swing Arm Wall Mount (Metal Studs) - 25 Inch

MWRSKUB - Overview

• Features:

  • Provides full extension while remaining low profile in the home position
  • Centris Technolgoy provides fingertip tilt adjustments
  • CableTrac System provides a fast and effective way to route cables
  • Swivel up to 90° left or right (depending upon screen size)
  • Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
  • Mounting guides provided for a hassle-free installation
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 12" (304.8mm)
  • Maximum Extension: 24.88" (632.mm)
  • Minimum Depth: 3.38" (85.9mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm
  • Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation: Landscape, Portrait
  • Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
  • Post-Installation Leveling (Roll): Yes
  • Solution Type: Universal
  • Tilt: + 5° , - 15°
  • Typical Screen Sizes: 30 - 55"
  • Wall Stud Compatibility (inches): Metal Studs,16, 24
  • Weight Capacity: 100 lbs (45.4kg)


• GTIN:

  0841872103952
