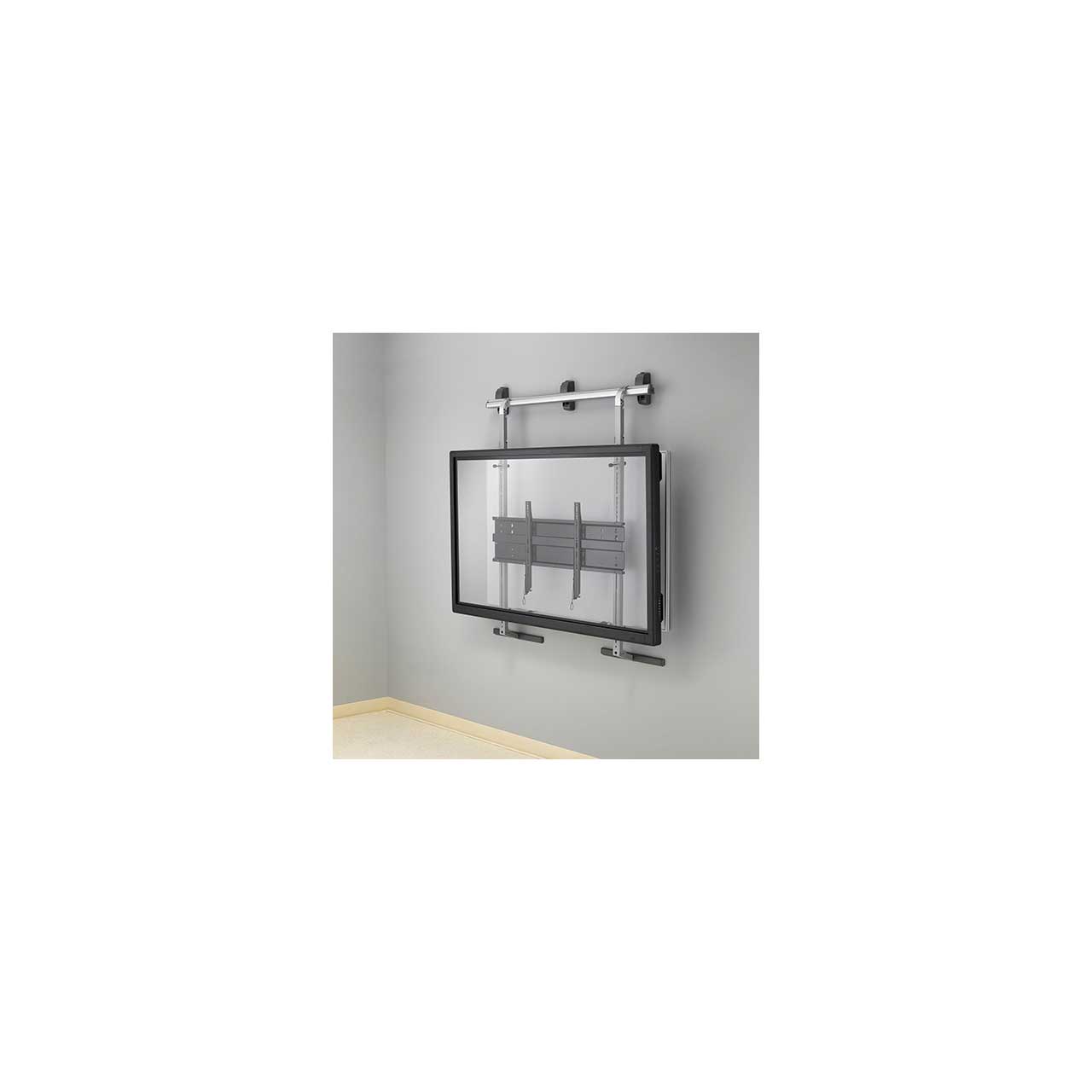

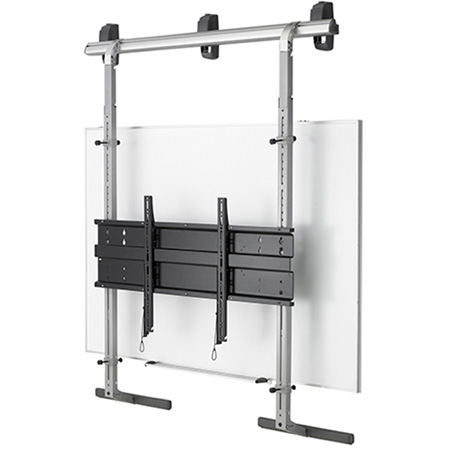

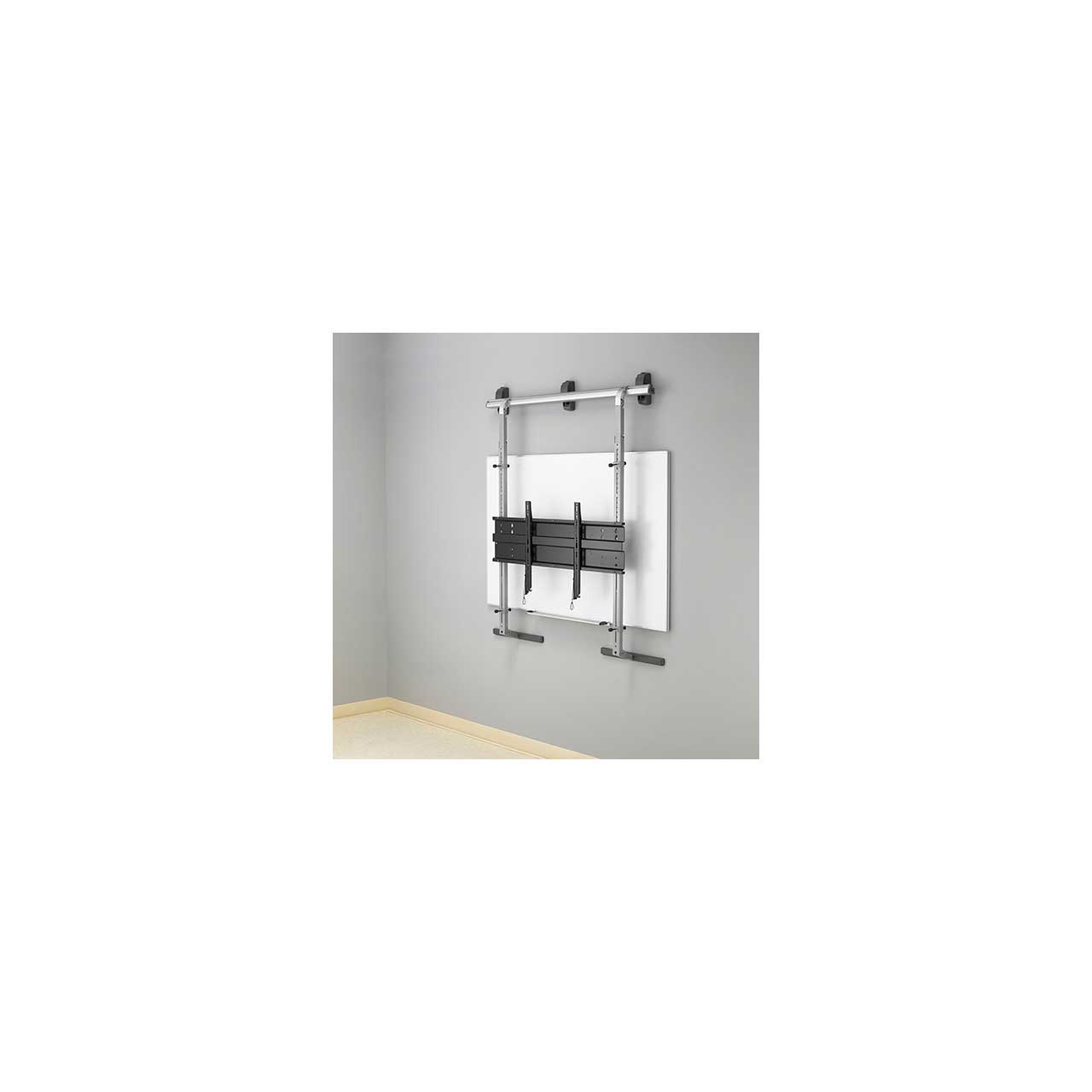

Chief Over-the-Whiteboard Interactive Display Mount - Black

OB1U - Overview

• Features:

  • Accommodates typical large displays between 50-80" andVESA® up to 1020 - 500 mm, specify FHB7037 bracket to
    extend to VESA® 1020 - 600 mm
  • Heavy-duty weight capacity of 310 lbs (140.6 kg)
  • Display height adjustment range of 26" (660 mm)
  • Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to
    remove display from box prior to installation
  • Installs into various wall types (wood, concrete, steel, cinder-block)
  • Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16" on-center
    studs, or two brackets for 24" on-center studs are included
  • Integrated lateral shift allows for easy adjustment left or right
  • When installed, mount allows for a minimum of 4" (102mm) clearance from wall
  • Plumb adjustment up to 1.5° to compensate for uneven walls
  • Telescoping legs allow mount to be adjusted easily around classroom obstacles


• Specifications:

  • Color: Silver
  • Lateral Shift: 6-5/8" MIN to 10-5/8" MAX (168 - 269 mm)
  • Mounting Pattern Compatibility (Universal Versions): 400 x 100 - 1020 x 500 mm (Specify FHB7036
    bracket to extend to VESA®1020-600mm)
  • Notes: Display height range: 26" (660.4 mm)
  • Overall Dimensions (HxWxD): 61.1-75.1 x 55.25 x 6.3" (155.2 - 190.8 x 140.3 x 16 cm)
  • Solution Type: Universal
  • Typical Screen Sizes: 42 - 100"
  • Weight Capacity: 310 lbs (140.6 kg)


• GTIN:

  0841872172026
