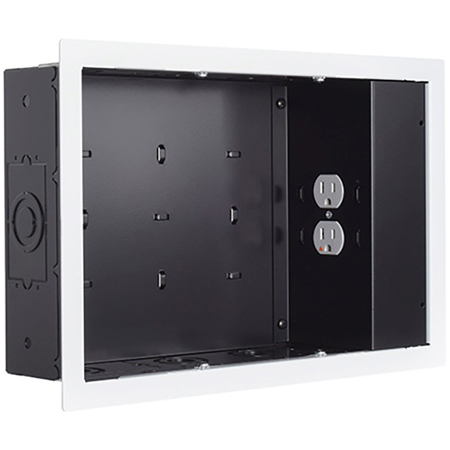

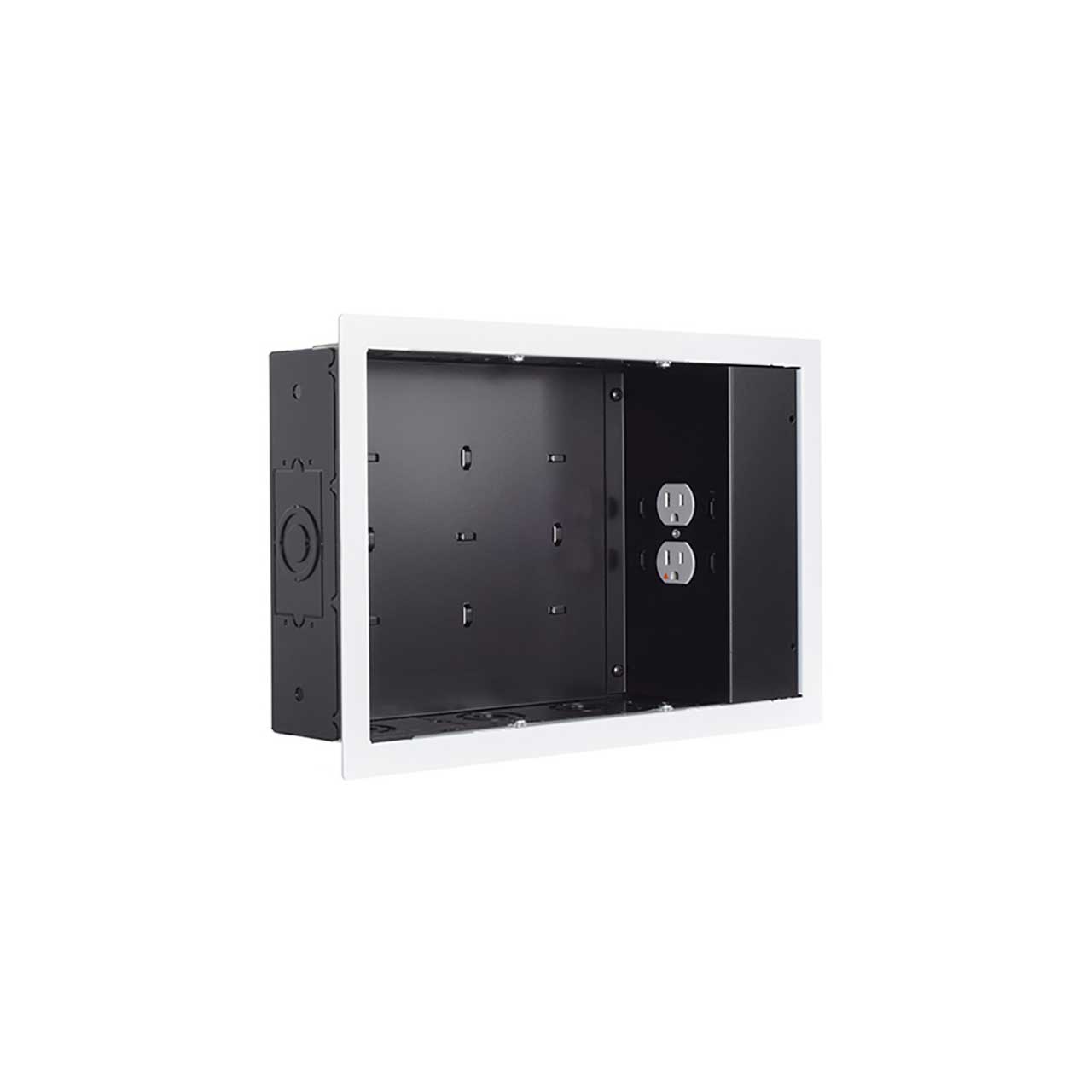

Chief PAC525FWP2 In-Wall Storage Box with 2 Receptacle Filter & Surge

PAC525FWP2 - Overview

• Features:

  • Pre and post construction installation options
  • Drywall and stud mountable
  • Knockouts for single gang outlets and 1-1/4" - 1" - & ½" conduit
  • Integrated universal zip tie anchor points
  • Landscape/Portrait installation
  • Stores a large variety of AV components
  • Paintable flange to blend in any environment
  • Black & white color options
  • Enclosure UL 2416 Listed for installation of AV, IT & Communication Technology Equipment

    Surge and Filter Module
  • Non-volatile spike protection with LED power indicator
  • Non-sacrificial multi-stage technology
  • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
  • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
  • Line filter reduces common and differential mode noise by up to 40 dB
  • Rated for 125V~, 60Hz, 15 A
  • 1875 watt maximum
  • Ferrite toroid based EMI Filter
  • Withstand rating of 240 VAC continuous without damage or loss of protection


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • NotesOutput: 15A, 1875 W continuous
  • Overall Dimensions (H x W x D): 10.26 x 15.4 x 3.88” (261 x 391 x 98 mm)
  • Power Consumption: <0.5 watt Type 3 Surge Protective Device (SPD)
  • Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
  • Maximum Continuous Operating Voltage (MCOV): 240V
  • Nominal Discharge Current (In): 3kA
  • Short Circuit Current Rating (SCCR): 5kA
  • Ambient Temperature Max: 40 degrees C
  • Weight Capacity: 10 lbs


• GTIN:

  0841872167046
