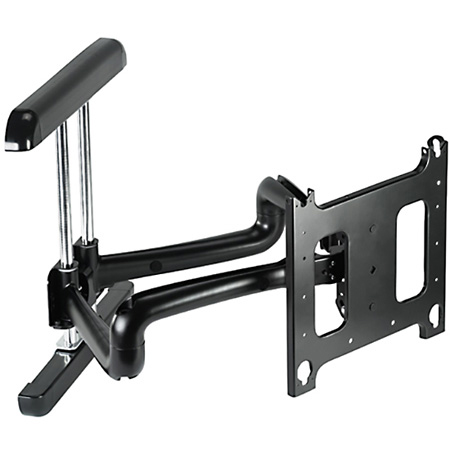

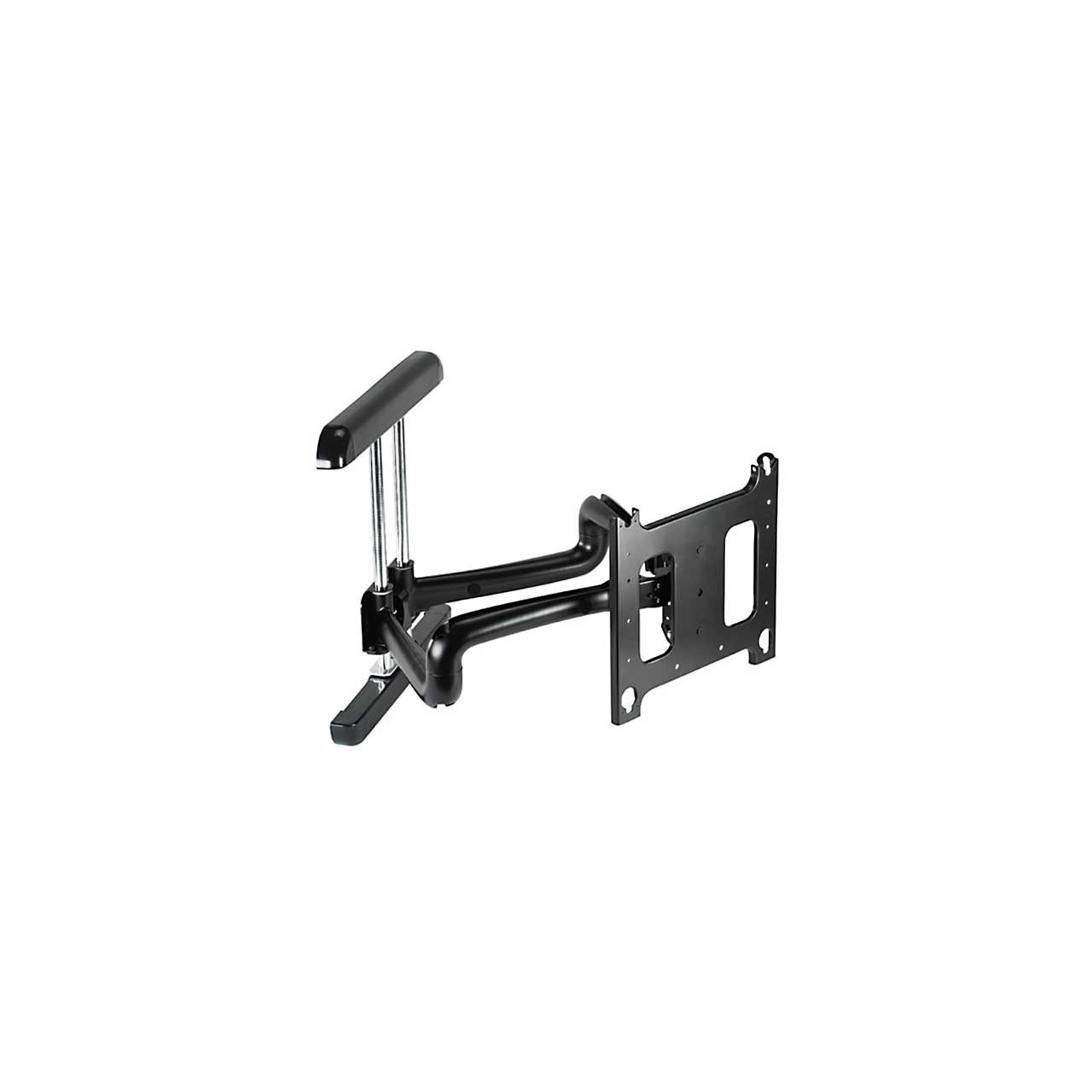

Chief 37 Inch Extension Monitor Arm Wall Mount - Black

PDR2000B - Overview

• Features:

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)


• Specifications:

  • Depth From Wall*: 3.4" (86 mm)
  • Extension: 37" (940 mm)
  • Tilt/Roll: +5°, -17° / ±2.5°
  • Swivel: up to 90° left/right
  • Height Adjustment: 1" (25 mm)
  • Lateral Shift: up to 9" (229 mm)
  • Mounts on Studs: 16" (406 mm) on-center with 4.5" (114 mm) left/right lateral shift
  • Dimensions (HxWxD): 22.04" x 39.5" x 3.4" (56 x 100.3 x 8.6 cm)
  • Color: Black or Silver
  • Weight Capacity: 200 lbs (90.7 kg)
  • Channel Size Width Each Arm: 0.63" (16 mm)
    *Note: Depth does not include screen interface (will add 0.5"-2")


• GTIN:

  0841872045368
