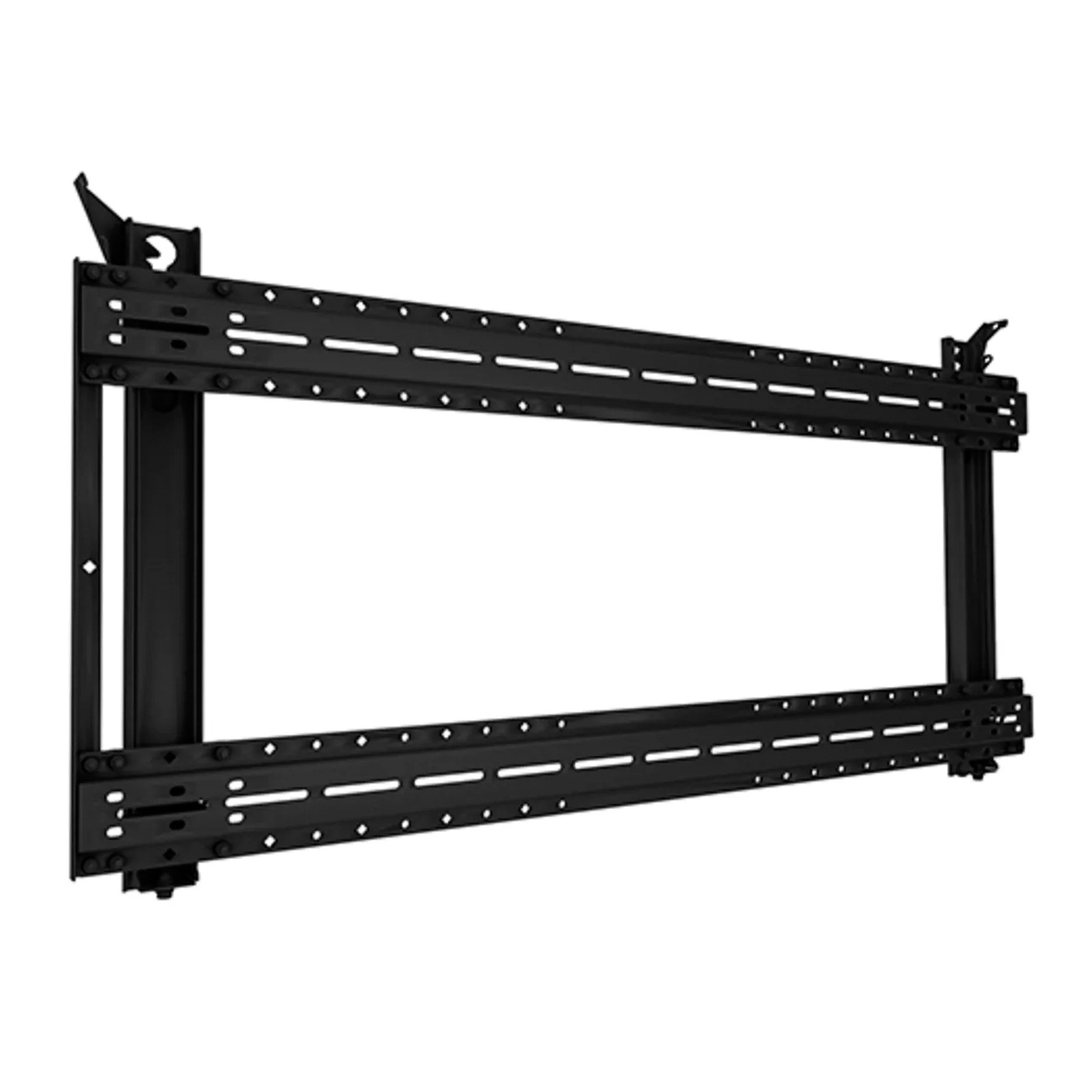

Chief PSMH2079 Heavy Duty Large Flat Panel Wall Mount - 350 Pound Maximum Load

PSMH2079 - Overview

• Features:

  • Custom TV specific bracket design
  • Plumb adjustment to help vertically align the panel
  • Exclusive Q-Latch Mounting System secures the TV to the wall
  • High weight capacity and rugged design
  • Offers quick installation and quick release
  • Display installs in landscape view only


• Specifications:

  • Adjustability: Fixed
  • Application: Wall
  • Color: Black
  • Number of Displays: 1
  • Orientation: Landscape
  • Solution Type: Universal
  • VESA Mounting Pattern: 1200x600 or 400mm, 1100x600 or 400mm, 1000x600 or 400mm, 900x600 or 400mm, 800x600 or 400mm, 700x600 or 400mm, 600x600 or 400mm, 500x600 or 400mm, 400x600 or 400mm
  • Depth: 2.64" (6.7cm)
  • Height: 26" (66cm)
  • Minimum Depth: Varies per Product
  • Overall Dimensions: 26.0" x 54.36" x 2.64" (660mm x 1380mm x 67mm)
  • Plumb Adjustment: +1.6°
  • Typical Screen Size: Varies per Product
  • Wall Stud Compatibility In: 16" and 24" (406mm and 610mm)
  • Weight Capacity: 350lbs (158.8kg)
  • Width: 54.36" (138.1cm)
  • Certifications: UL Listed
