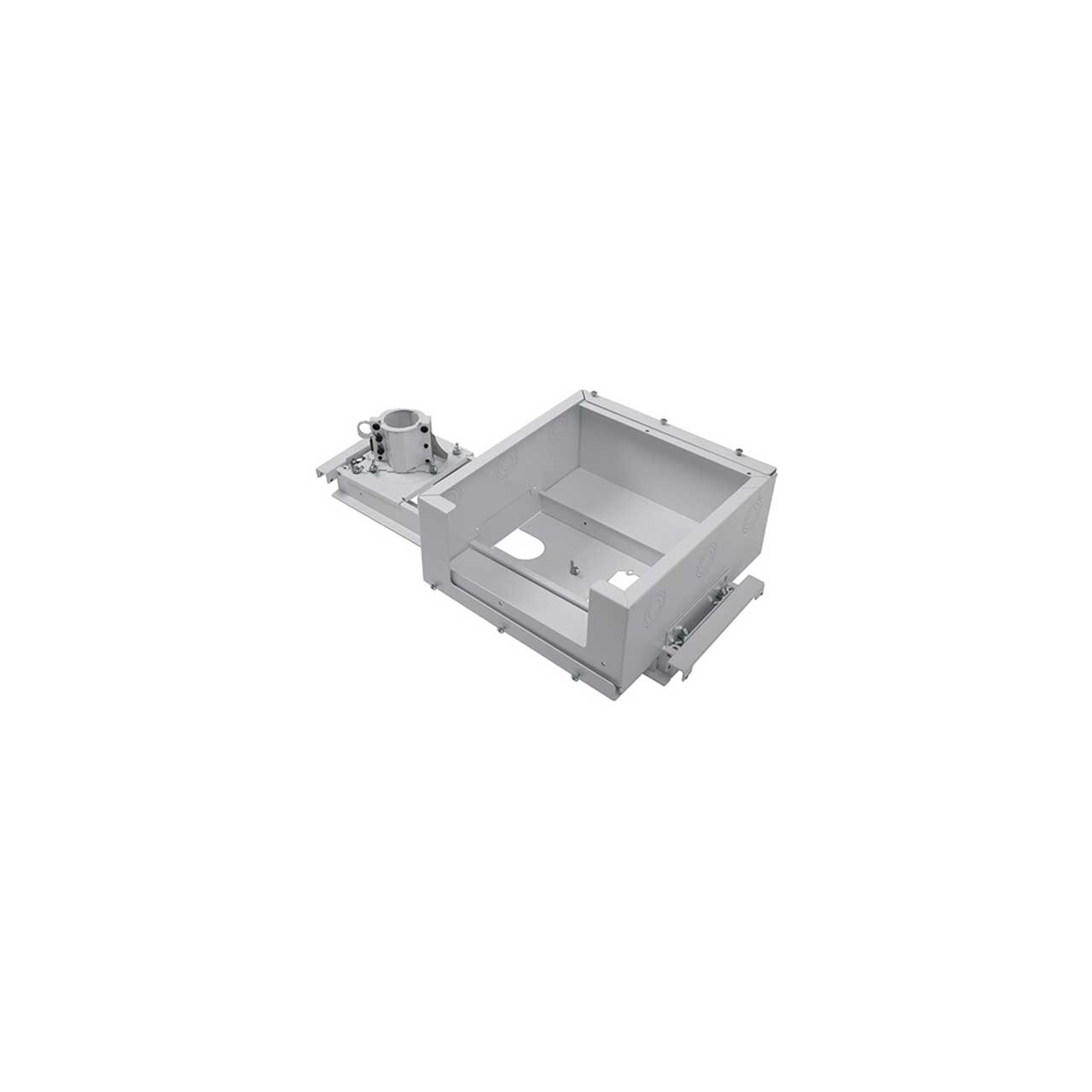

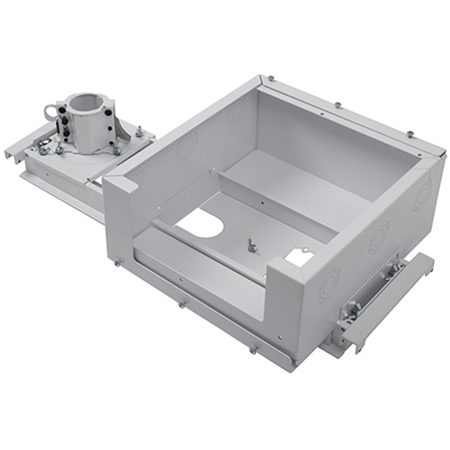

Chief Suspended Ceiling Projector System with Storage - Black

SYS474UB - Overview

• Features:

  • System comes out of box in the order needed with mount and column preassembled
  • Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
  • Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
  • Detachable electric plate for pre-wiring
  • Compatible with popular 2 gang adjustable mud rings
  • Tool-Free Microzone adjustment eliminates the need for set screws
  • Centris Technology enables effortless fingertip positioning with new tool-free lockdown
  • Adjustable 0-12" column with dual inlay channels for high and low voltage cables
  • Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
  • Improved universal interface for easier lock/unlock at projector connection
  • Plenum-rated enclosure is scalable to fit AV equipment
  • Shift enclosure along tile bridge to avoid plenum interferences
  • Removable covers enable side access in shallow plenum spaces and full access from above
  • Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)
  • Flexible conduit knockouts allow high voltage conduit to pass through plenum box when the power is facing into the room below.


• Specifications:

  • Adjustments: Roll, Pitch, Yaw (3°, 10°, 360°)
  • Certifications: UL Listed
  • Color: Black
  • Extension: 0 - 12" (0 - 304.8 mm)
  • Max Equip Size H x W x D: 5 x 17 x 12.5" (127 x 432 x 317 mm)
  • Storage: Collapsed Width 12" (305 mm); Expanded Dimensions 5.38 x 22 x 13" (137 x 559 x 330 mm)
  • Overall Dimensions (H x W x D): 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
  • Shipping Weight: 40.80 lbs (18.51 kg)
  • Solution Type: Universal
  • Weight Capacity: 35 lbs (15.9 kg)


• GTIN:

  0841872167534
