Chief Universal Suspended Ceiling Projector System with 2-Gang Filter and Surge - White

ITEM #: CHF-SYSAUWP2 MFG #: SYSAUWP2

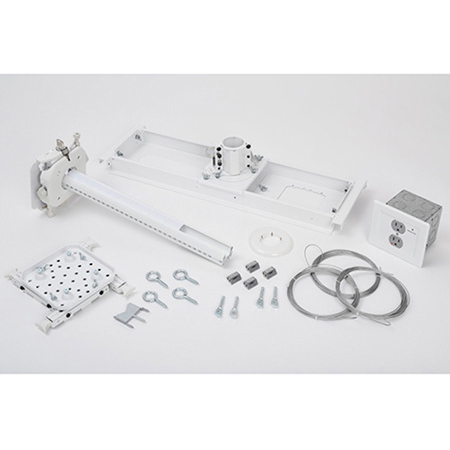

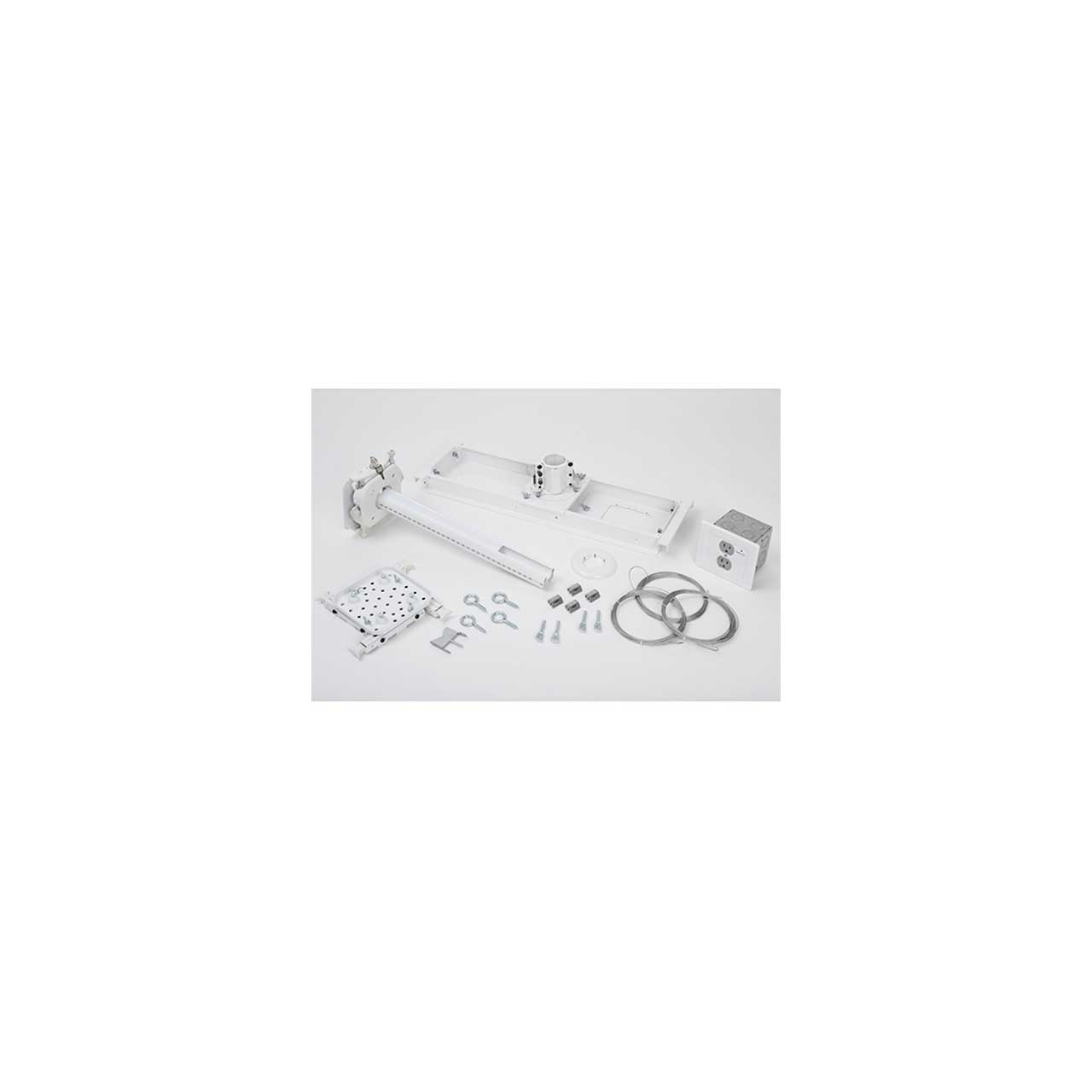

Primary Image
Chief Mounts
Free Shipping with $49 Minimum Order

List Price:

$888.00

Our Price:

$710.40

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SYSAUWP2 - Overview

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAUWP2 Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations. Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK Electronic Systems Protection.

  • Features:

    • System comes out of box in the order needed with mount and column preassembled
    • Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
    • Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
    • Detachable electric plate for pre-wiring
    • Compatible with popular 2 gang adjustable mud rings
    • Tool-Free Microzone adjustment eliminates the need for set screws
    • Centris Technology enables effortless fingertip positioning with new tool-free lockdown
    • Adjustable 0-12" column with dual inlay channels for high and low voltage cables
    • Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
    • Improved universal interface for easier lock/unlock at projector connection
      Non-volatile spike protection with LED power indicator
    • Non-sacrificial multi-stage technology
    • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
    • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
    • Line filter reduces common and differential mode noise by up to 40 dB
    • Rated for 125V~, 60Hz, 15 A
    • 1800 watt maximum
    • Ferrite toroid based EMI Filter
    • Withstand rating of 240 VAC continuous without damage or loss of protection


  • Specifications:

    • Adjustments: Roll, Pitch, Yaw (3°, 10°, 360°)
    • Certifications: UL Listed
    • Color: White
    • Extension:0 - 12" (0 - 304.8 mm)
    • Notes Output: 15A, 1875 W continuous
    • Overall Dimensions (H x W x D): 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
    • Power Consumption: <0.5 watt
    • Type 3 Surge Protective Device: (SPD)
    • Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
    • Maximum Continuous Operating Voltage: (MCOV): 240V
    • Nominal Discharge Current (In): 3kA
    • Short Circuit Current Rating (SCCR): 5kA
    • Ambient Temperature Max: 40 degrees C
    • Shipping Weight: 25.00 lbs (11.34 kg)
    • Solution Type: Universal
    • Weight Capacity: 35 lbs (15.9 kg)


  • GTIN:

    0841872167169
