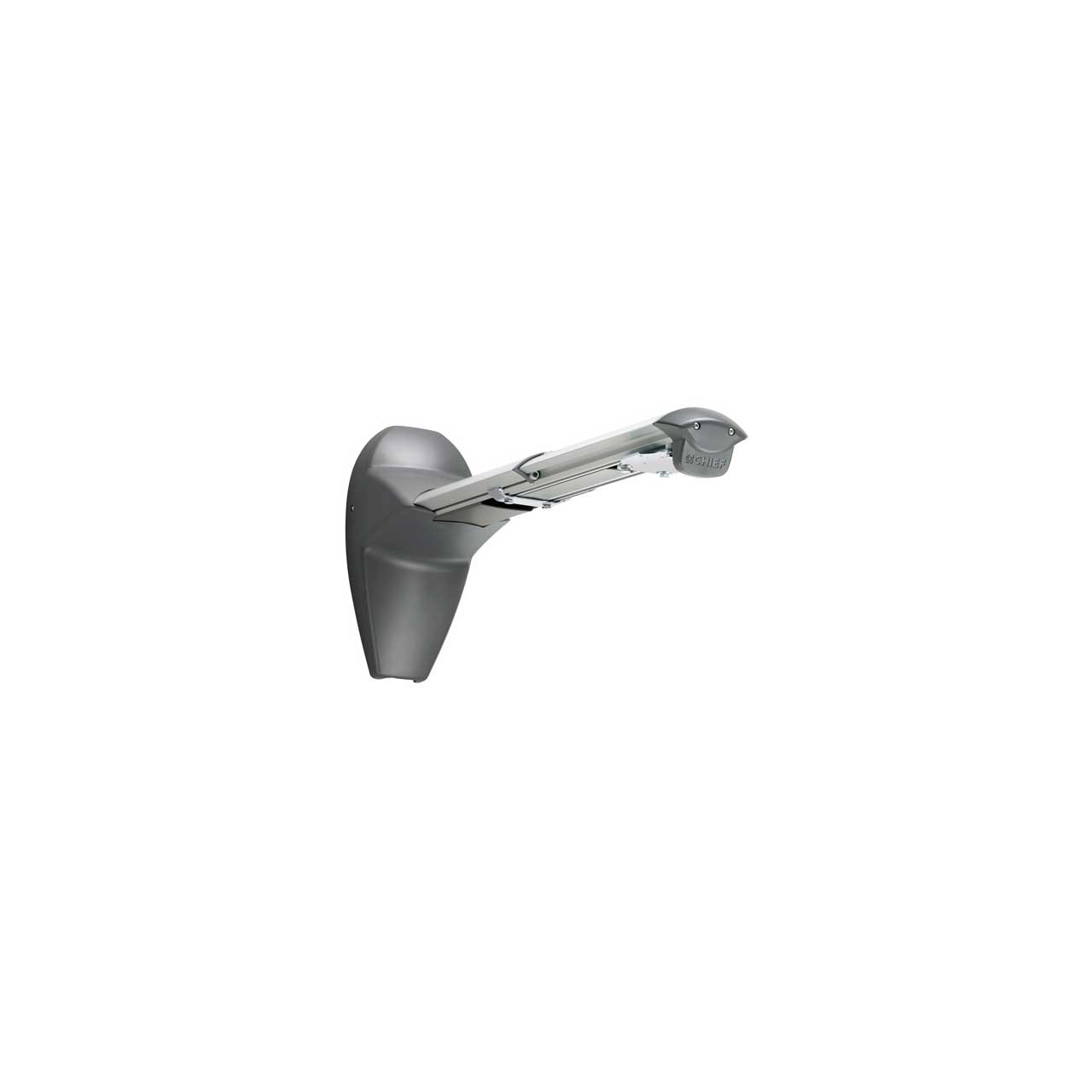

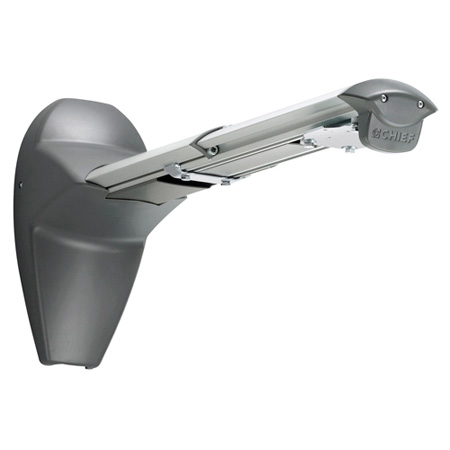

Chief WM120S Medium Short Throw Wall Mount

WM120S - Overview

• Features:

  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Extension from wall, 16-28.50" (406-724 mm)
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
  • Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
  • Includes short throw arm only, projector mount must be ordered separately
  • Includes hardware for wood stud, steel stud and concrete wall construction


• Specifications:

  • Adjustments:
  • Roll: 0°
  • Pitch: 3°
  • Yaw: 0°
  • Certifications: UL Listed
  • Color: Silver
  • Extension: 16.0" - 29"
  • Overall Dimensions (H x W x D): 14.2" x 7.3" x 34.2" (360 x 185 x 869 mm)
  • Shipping Weight: 19.15 lbs
  • Weight Capacity: 50 lbs (22.6 kg)


• GTIN:

  0841872122854
