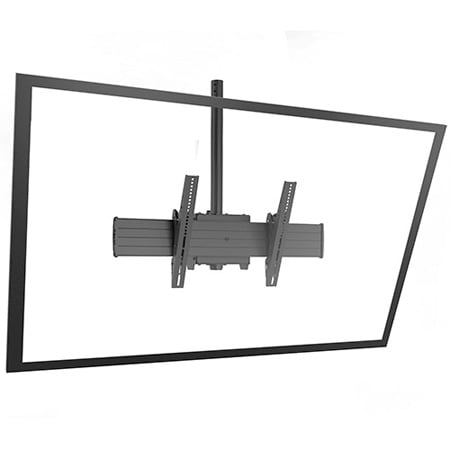

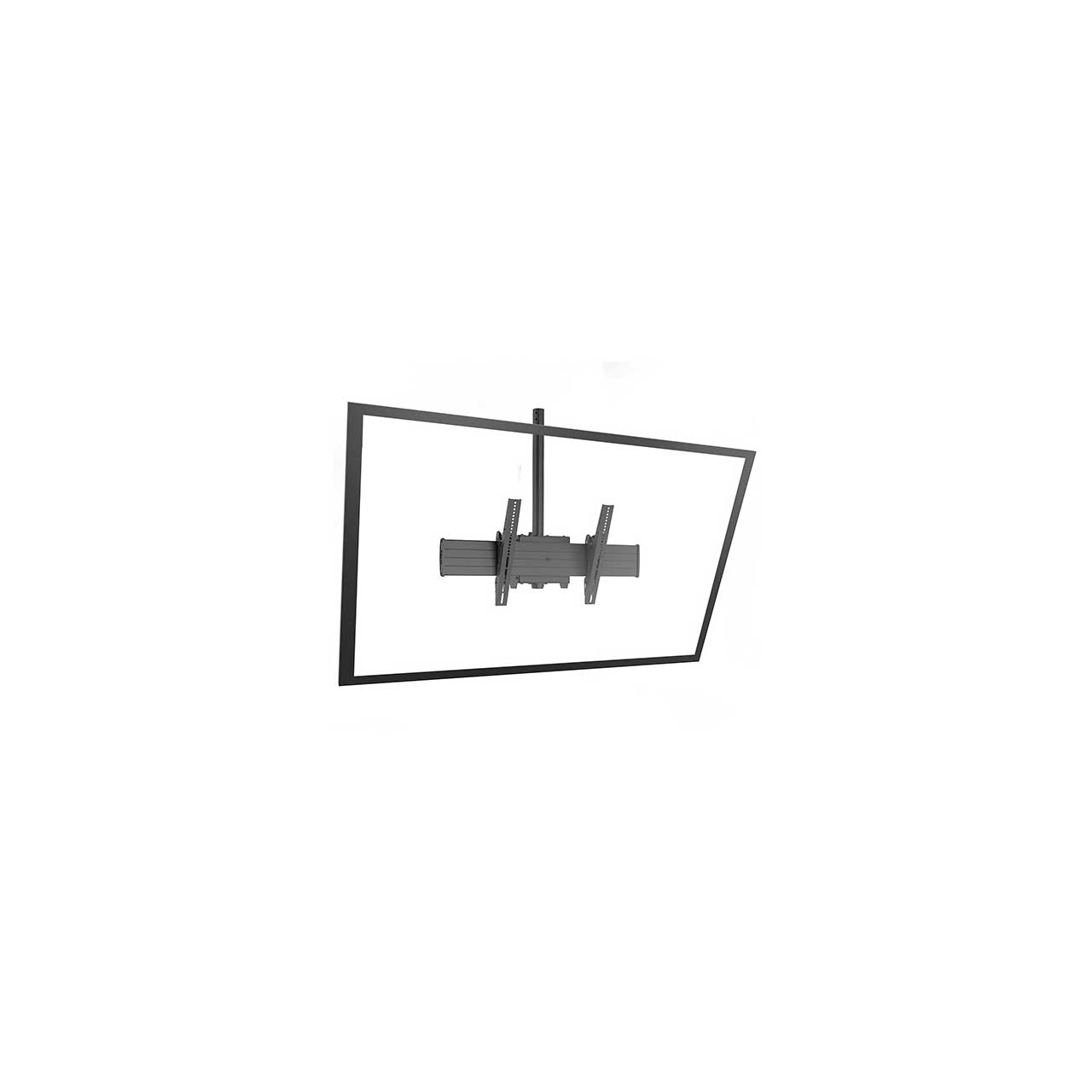

Chief Fusion X-Large SIngle Pole Ceiling Display Mount - Black

Name: Chief Fusion X-Large SIngle Pole Ceiling Display Mount - Black
Brand: Chief Mounts
SKU: CHF-XCM1U
Price: 560.00 USD
Availability: PreSale

ITEM #: CHF-XCM1U MFG #: XCM1U

Chief Mounts

List Price:

$842.00

Our Price:

$560.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

XCM1U - Overview

Chiefs FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.

The XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.

Ceiling Plate and extension column are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
See CPA ceiling plates and CPA columns for pin connection compatibility

Features:
- REPEATABILITY Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
- ACCESSIBILITY Simple on/off connection for ease of installation and service.
- CENTRIS FINGERTIP TILT Effortlessly adjust display using Centris fingertip tilt technology.
- SIMPLE & SECURE Tool free screen engagement with optional padlock security.
- FLEXIBILITY Mount swivels to any preferred viewing angle.
Specifications:
- Certifications: UL Listed
- Color: Black
- Mounting Pattern Compatibility (Universal Versions): 200 x 100 mm - 800 x 400 mm
- Overall Dimensions (H x W x D): 16.8" x 34.8" x 7.9" (423 x 885 x 200mm)
- Post-Installation Leveling (Roll): Yes
- Tilt: + 5° , - 20°
- Typical Screen Sizes: 60 - 90"
- Weight Capacity: 250 lbs (113 kg)
GTIN:
0841872159393
