Chauvet Ovation H-55FC Small Silent Convection Cooled LED Houselight with Full-color Output - White

ITEM #: CHVT-OVAH55FFCW2 MFG #: OVATIONH55FCWHT2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,060.15

Our Price:

$940.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    OVATIONH55FCWHT2 - Overview

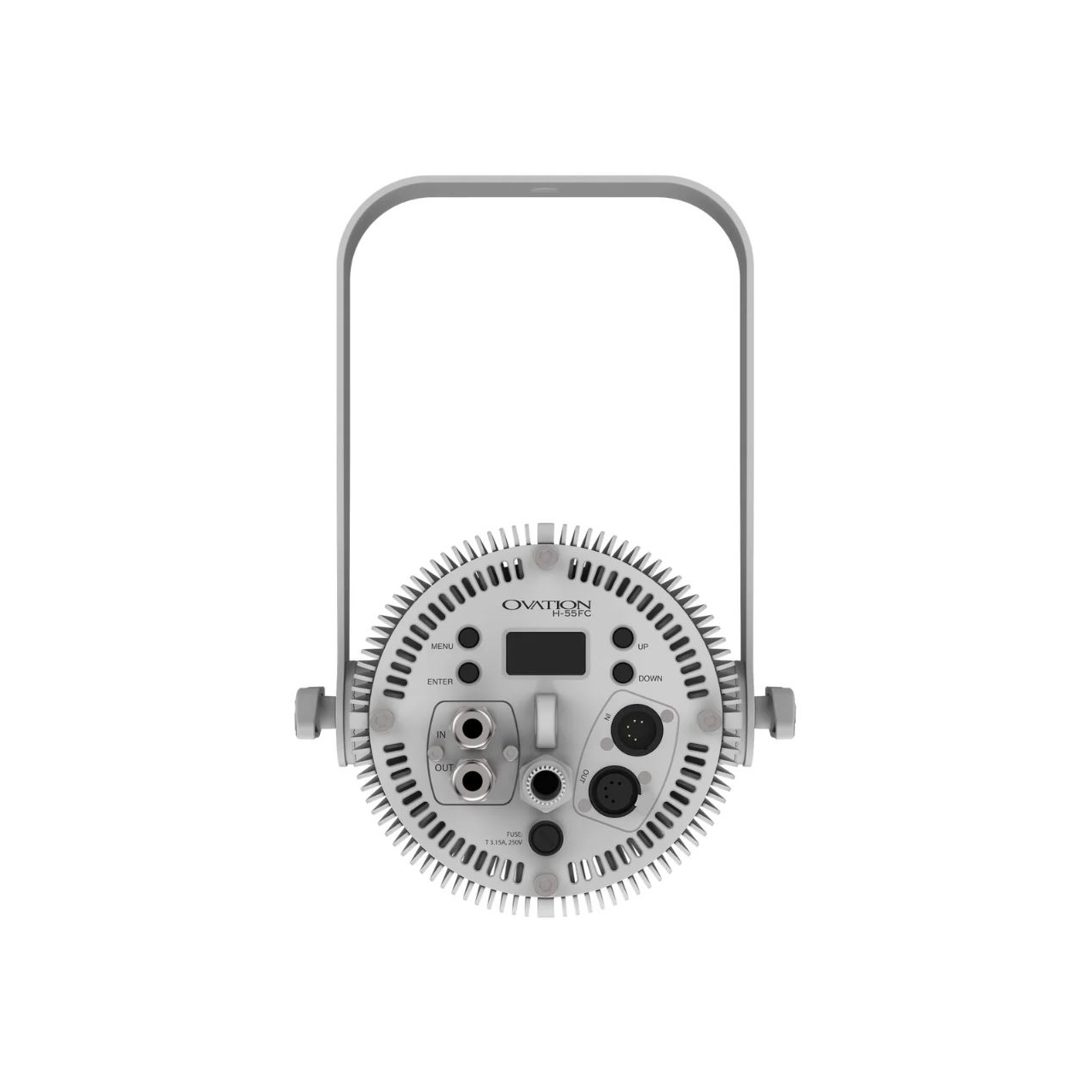

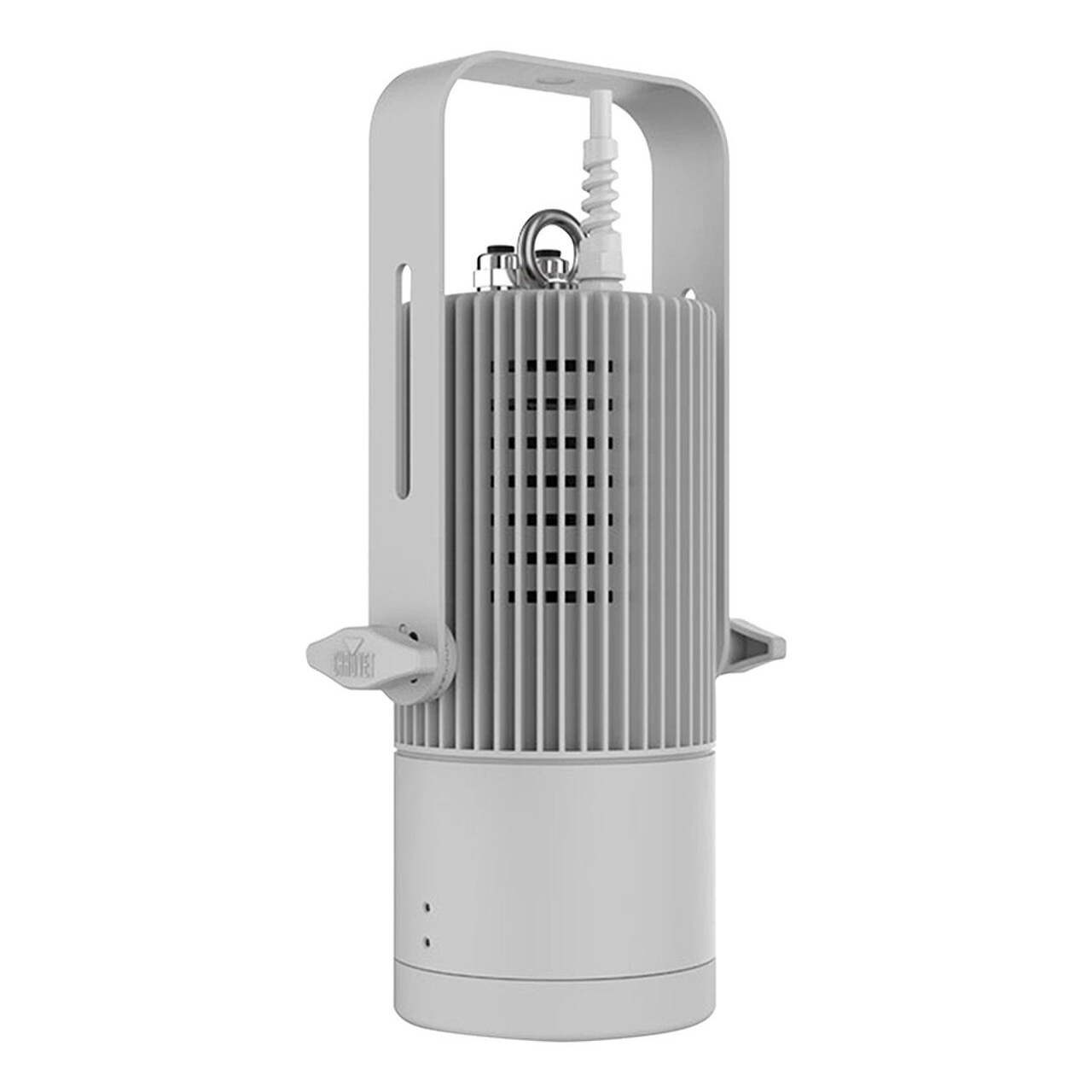

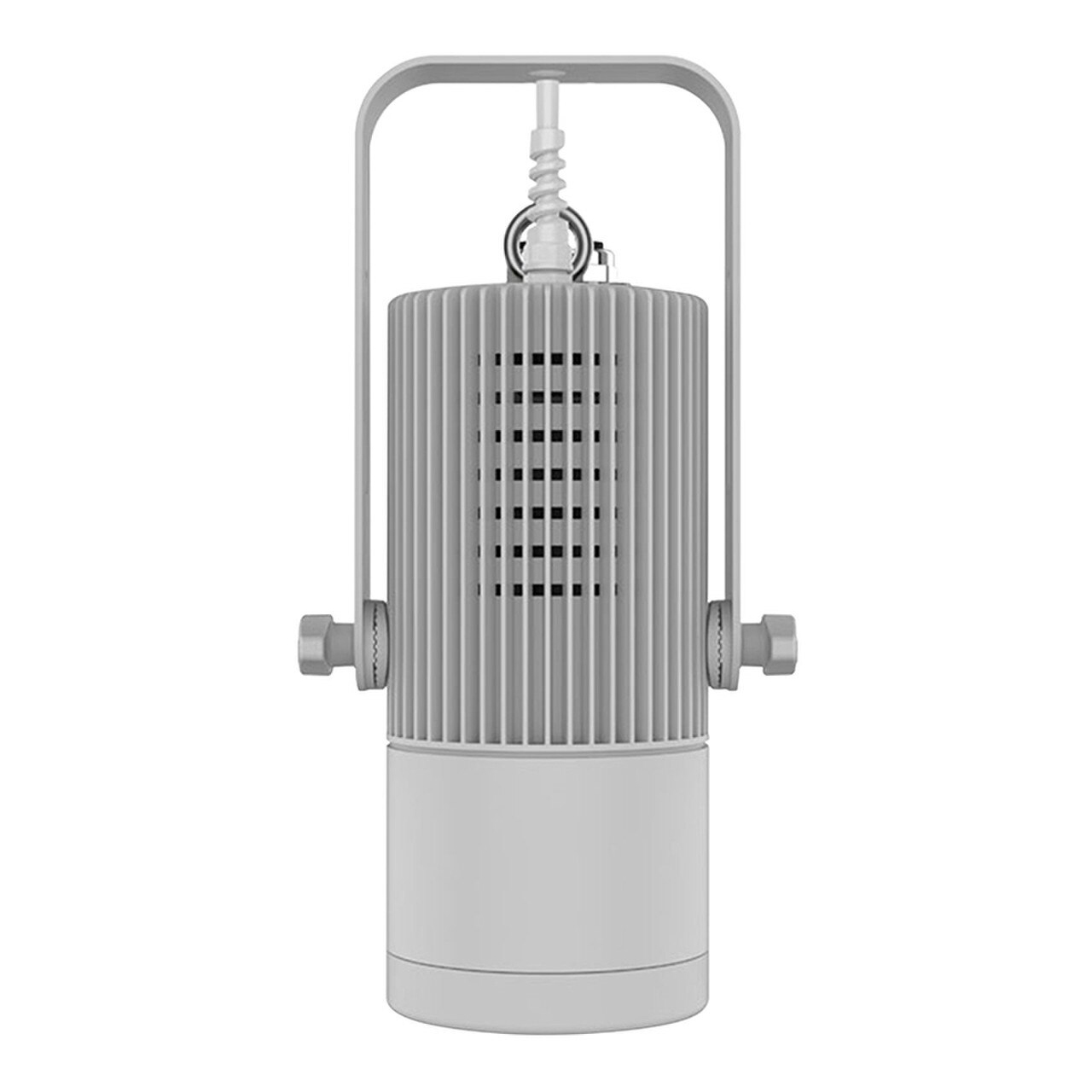

    The Chauvet Professional Ovation H-55FC is a small, silent, convection cooled LED houselight with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height. The compact unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. The interchangeable lenses are a must-have feature in theatrical and house of worship applications. The compact houselight also includes multiple mounting options with removable fixture yoke, a recess mounting, and a sconce mounting kit.

    • Features:

      • Compact, full color (RGBAL), convection cooled houselight
      • Interchangeable lens plates to adapt to different mounting heights
      • 5-pin XLR and terminal blocks for DMX connections
      • Use included yoke for mounting, or suspend from integrated loop-eye
      • Included recess and sconce mounting kits
      • 16-bit dimming for ultra-smooth fades
      • DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
      • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

    • Specifications:

      • Connections
      • Power Connection: Bare-wired
      • Power Input: Hard-wired
      • Data Connectors: 5-pin XLR, Phoenix connector
      • Cable Length (power): 15ft (4.5m)

        Control
      • Control Protocol: DMX, W-DMX, RDM
      • DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
      • Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

        Electrical
      • Input Voltage: 100 - 240 VAC, 50/60Hz (auto-ranging)
      • Power and Current: 62W, 0.541A @ 120V, 60Hz
      • Power and Current: 64W, 0.308A @ 208V, 60Hz
      • Power and Current: 64W, 0.278A @ 230V, 50Hz

        Certifications/Qualifications
      • CE, MET
      • IP Rating: IP20, dry location
      • Temperature (Ambient): -4°F - 113°F (-10°C - 45°C)

      • Dynamic Effects
      • Dimmer: Electronic
      • Shutter/Strobe: Electronic
      • Strobe Rate: 0Hz - 30Hz
      • Color Temperature Presets: Yes/No
      • Dim Modes: 4
      • Built-in Automated Programs: Yes

        Physical
      • Dimensions: 13.14" x 6.92" x 4.52" (334mm x 176mm x 115mm)
      • Weight: 7.4lbs (3.4kg)

    • Item Includes:

      • 1x Ovation H-55FC65°, 40° and 25° Lens
      • 1x 80° Filter
      • 1x Egg Crate
      • 1x Recess and Sconce Mounting Kits
