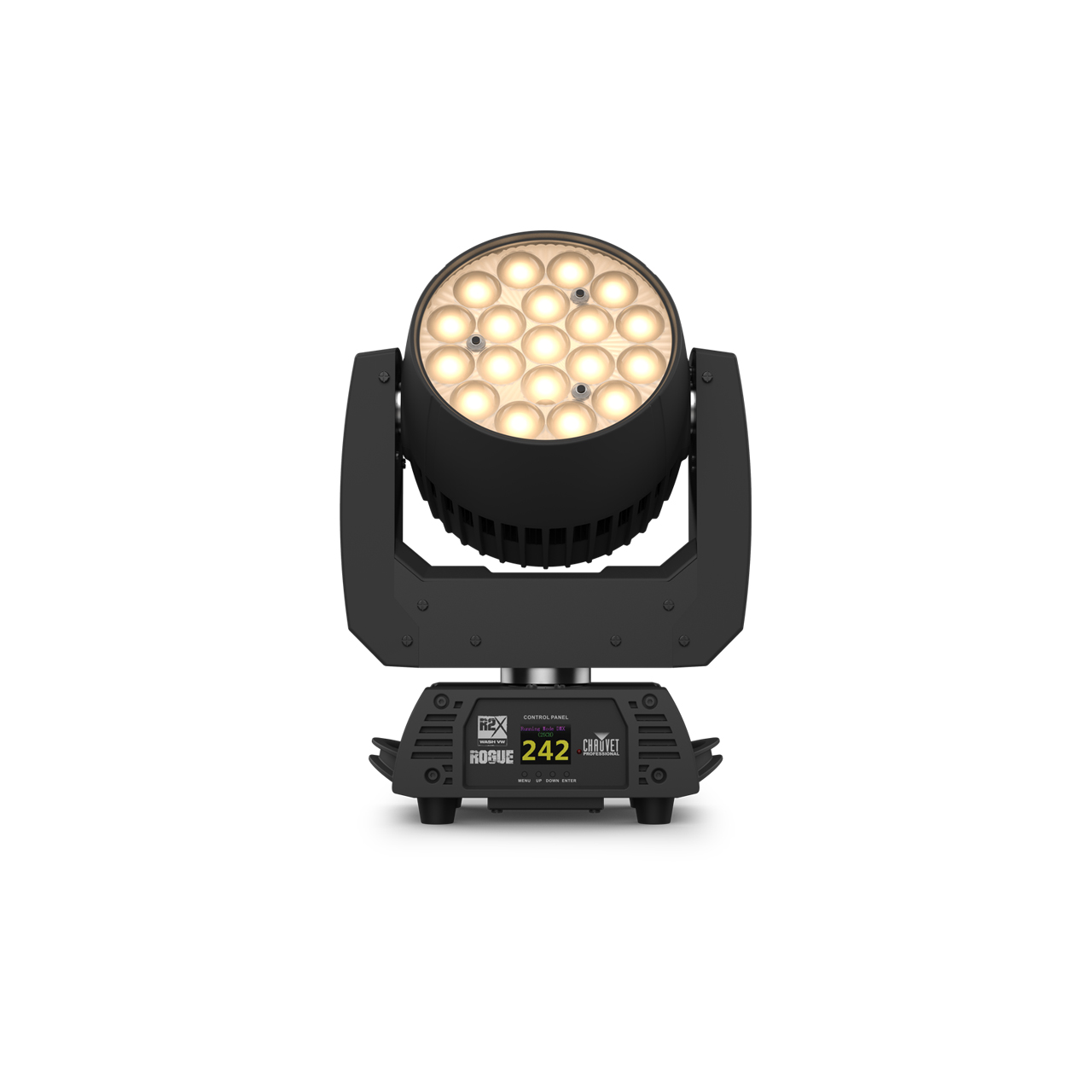

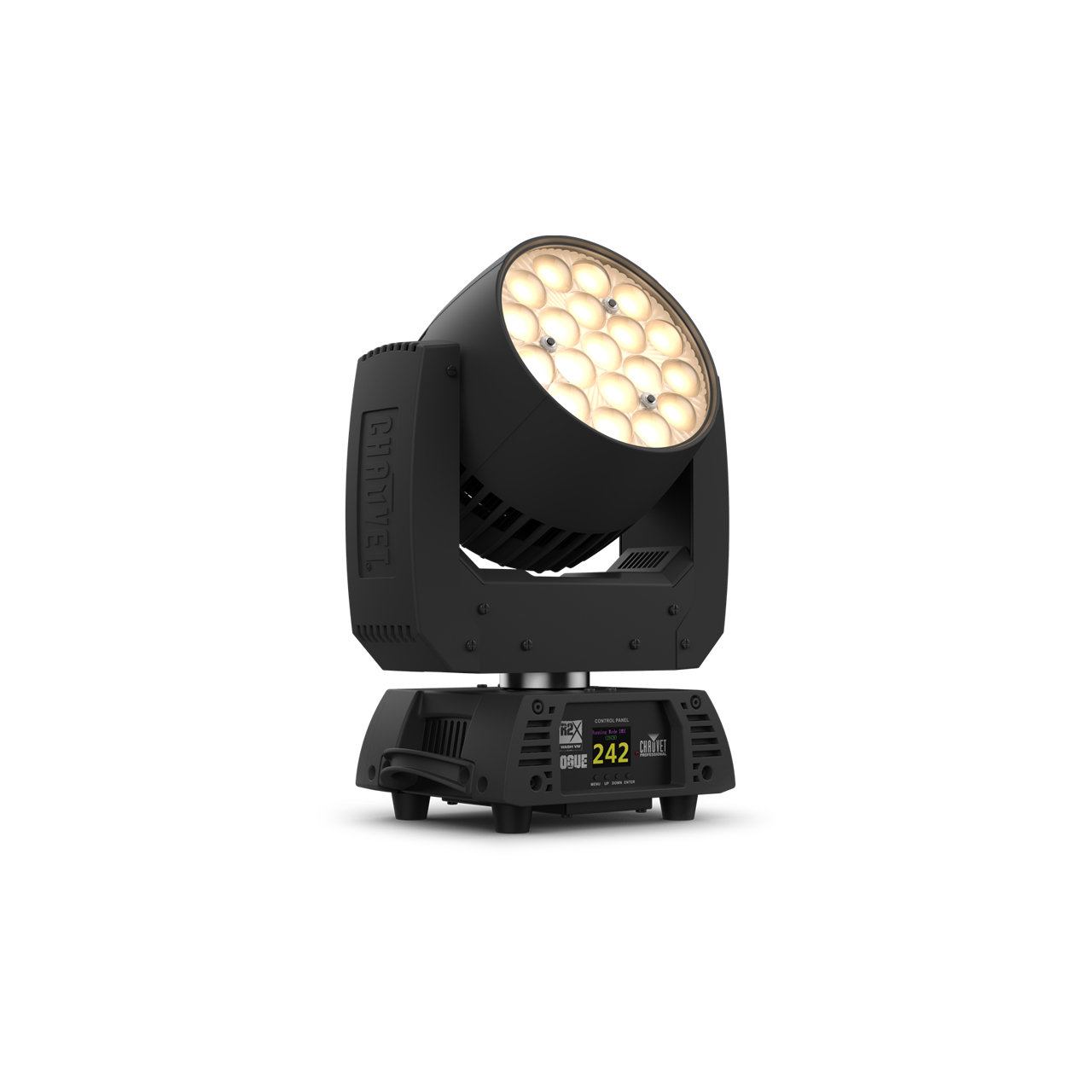

Chauvet ROGUE R2X WASH VW Compact Wash Mover with 19 25-Watt LEDs and 8.2 - 63 Degree Zoom Range - Variable White

ROGUE R2X WASH VW - Overview

• Features:

  • Fully featured variable white LED yoke wash fixture with LED zone control and zoom
  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades 19 variable white LEDs, 25 W each
  • 3- and 5-pin DMX input/output connections
  • 5 zones of LED control for pixel mapping control
  • Unique lens design for excellent blending
  • Fast, smooth pan and tilt movement
  • Built in color temp presets from 2800 K to 6000 K
  • RDM enabled for remote addressing and trouble shooting
  • 6 distinct dimming modes for advanced control

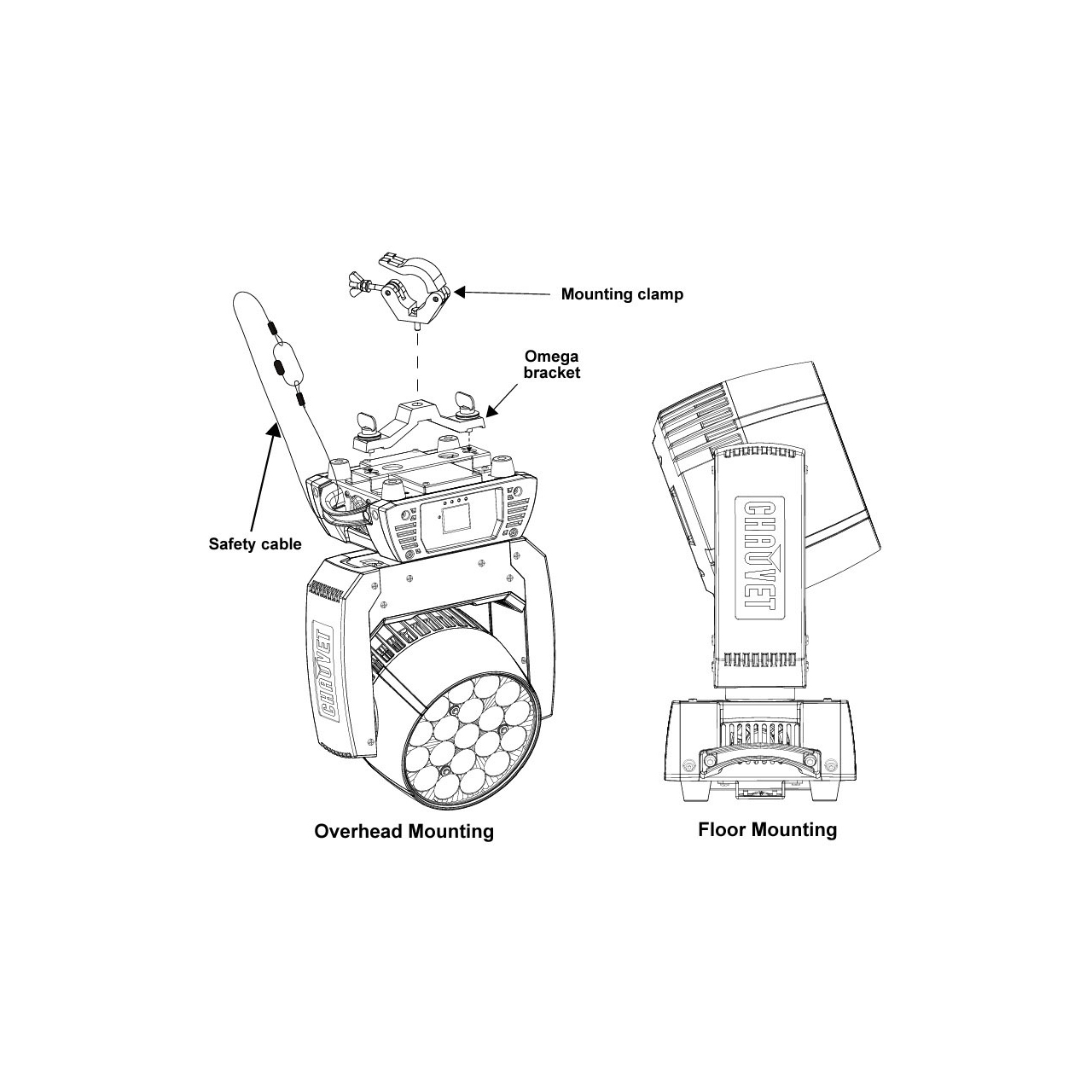

  • Omega mounting bracket, fits all Rogue and Maverick fixtures

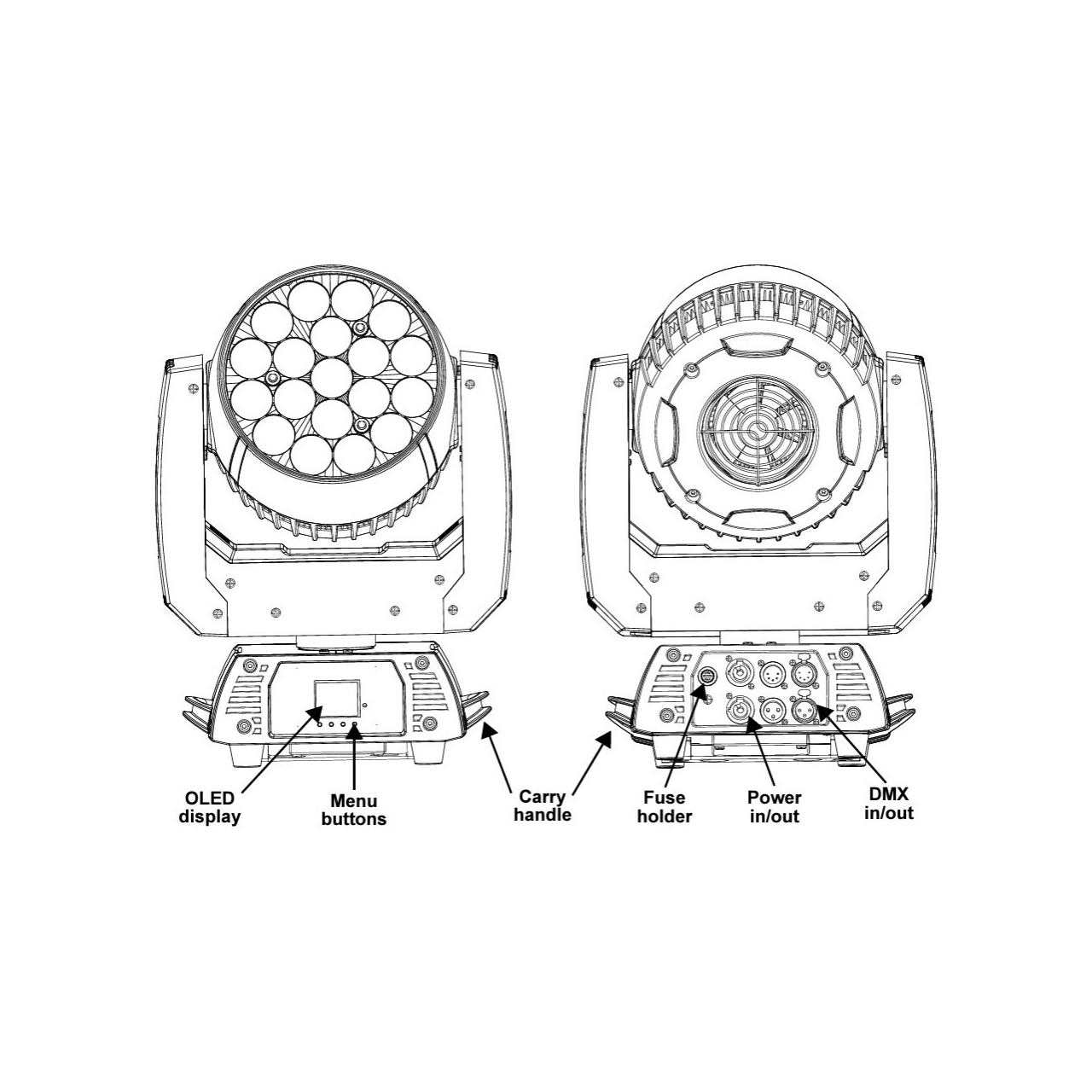

  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility


• Specifications:

  • Optical
  • Light Source: 19 LEDs (CW and WW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2600 to 6075 K
  • Beam Angle: 8° to 34.4°
  • Field Angle: 11.3° to 50.4°
  • Cutoff Angle: 17.1° to 63°
  • Zoom Range: 8.2° to 63°
  • Lumens - Source: 10,700 lm
  • Lumens - Output: 10,918 lm
  • Illuminance (11.3°): 14,499 lux @ 5 m
  • Illuminance (50.4°): 1,266 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

    Dynamic Effects
  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Temperature Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

    Construction / Physical
  • Dimensions: 8.58" x 12.05" x 15.67" (218mm x 306mm x 398mm)
  • Weight: 22.8 lb (10.3 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

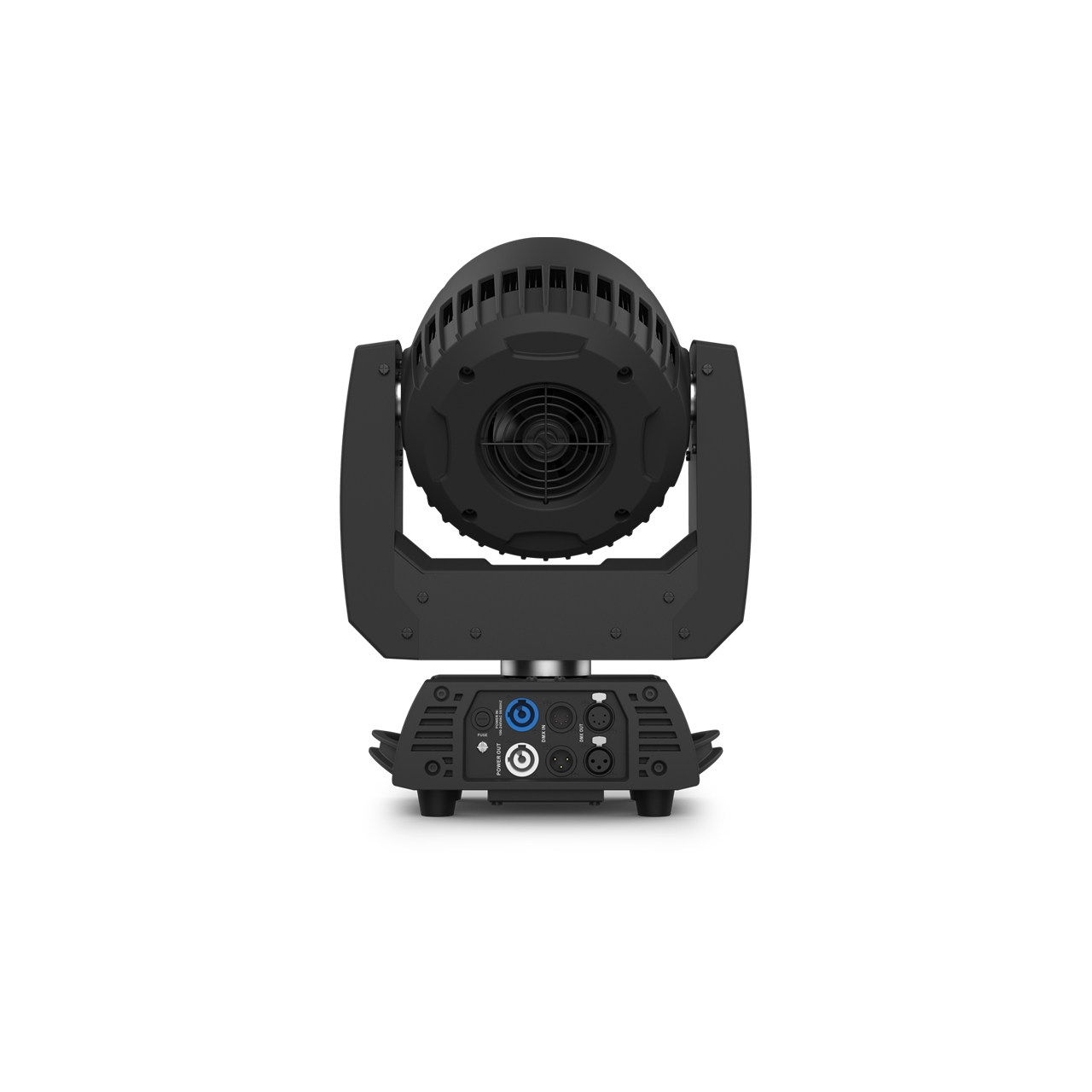

    Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 18, 23, 34 or 36
  • Modes/Personalities: 7 personalities (15CH, 18CH, 23CH, 23CH MS, 34CH, 36CH or 36CH MS)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Power and Current: 336 W, 2.825 A @ 120 V, 60 Hz
  • Power and Current: 335 W, 1.620 A @ 208 V, 60 Hz
  • Power and Current: 339 W, 1.467 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location


• Item Includes:

  • 1x Rogue R2X Wash VW
  • 1x Neutrik powerCON power cord
  • 1x Omega bracket with mounting hardware
  • 1x Quick Reference Guide


• Warranty:

  • Limited 1-Year Warranty
