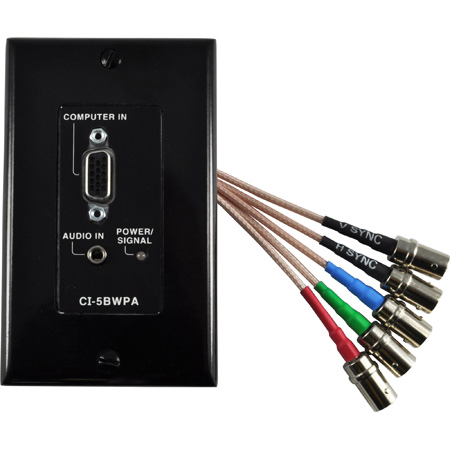

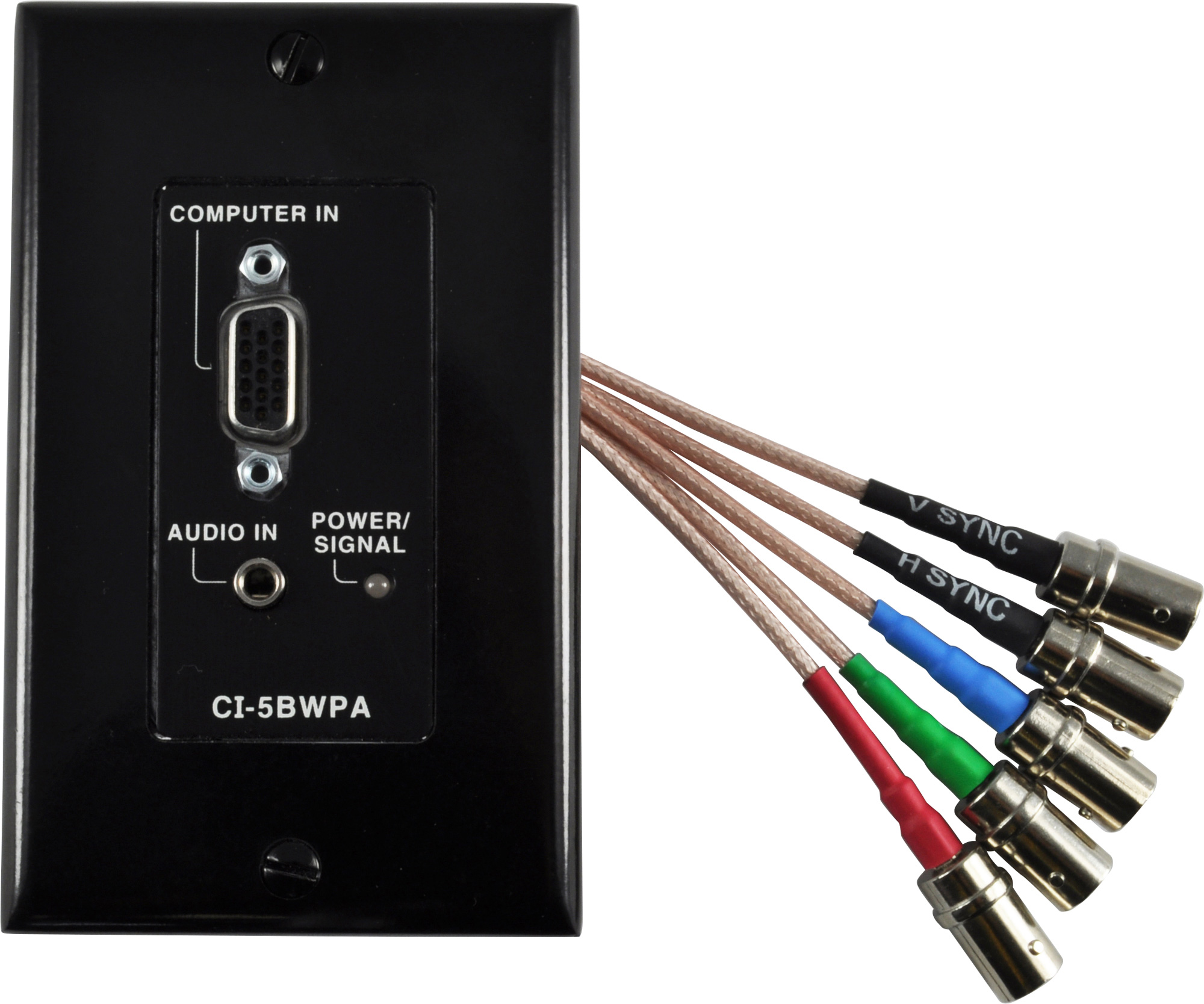

Computer / Stereo Audio Decora Wall Plate Interface - Black

CI-5BWPA-BLK - Overview

• Features:

  • Power/Signal LED Indicator CI-5BWPA, CI-5LB
  • Colors in Black, White or Ivory
  • Balanced Audio
  • Fit Standard Single Gang Openings
  • Low Profile
  • Adjustable Gain on CI-5BWPA and CI-5LB
  • Fits in FSR IPS and Smart Fit Enclosures


• Specifications:

  • Video Input
  • Number/Type: 1 VGA/SVGA/XGA/SXGA/UXGA/RGBHV/RGBS/RGsB/RsGsBs
  • Connectors: One 15 pin HD female
  • Level (Nominal): Analog 0.7v p-p
  • Level (Maximum): 2v p-p
  • Impedance: 75 ohms

    Video Output
  • Number/Type: 1 VGA / SVGA / XGA / SXGA / UXGA / RGBHV / RGBS / RsGsBs
  • Connectors: 4" Pig-tail of 5 female BNC's ( RGBHV )
  • Bandwidth:
    700MHz @ -3.0dB (5 BNC output)
    400MHz @ -3.0dB (HD-15 loopback output)
  • Level (Nominal): Unity / User adjustable via DIP switch settings
  • Gain:
    OFF = 0' to 75' LOW = 75' to 125'
    Medium = 125' TO 175 HI = 175' to +200'
  • Impedance: 75 ohms

    Audio
  • Bandwidth: 20 Hz to 20 kHz (±0.05dB)
  • THD+Noise: 0.01% @ 20 kHz at rated Max Output S/N >98dB
  • Noise Floor: Better than 98dB
  • Stereo Separation: -90dB @ 1 kHz
  • Audio Gain: +6dB

    Audio Input
  • Number/Type: 1 stereo unbalanced
  • Connectors: 1/8" mini connector
  • Impedance: 10K ohms DC coupled unbalanced
  • Max Level: +6dBm

    Audio Output
  • Number/Type: 1 Balanced / Unbalanced Stereo
  • Connector: 5 Position Captive screw terminal
  • Impedance: 50 ohm
  • Maximum Level: 600 ohms: +12dBm Balanced / +6dBm Unbalanced
  • Hi-Z: +14dBm Balanced / +8dBm Unbalanced

    Sync
  • Input Level: 2.0V to 5.0V p-p
  • Output Level: TTL to 5.0V p-p
  • Input Impedance: 475 ohms
  • Output Impedance: 75 ohms
  • Polarity: Positive or negative
  • Horizontal Frequency: 15 kHz - 200 kHz
  • Vertical Frequency: 30Hz - 150Hz

    General
  • Power: CI-5 model: 12 VDC @ 0.09 A (included)
  • CI-5LB Model: 12 VDC @ 0.125 A (included)
  • Mounting: Single - Gang Decora Wallplate ( Included )
  • Colors: Black, White, Ivory
  • Enclosure Type: Metal
  • Dimensions (HxWxD): 4.094 x 1.706 x 0.65"
  • Approvals: UL / CE


• Applications:

  • Boardrooms
  • Education
  • Training Rooms
  • Rentals
  • Staging Events
  • Conference Centers
  • Videoconferencing
