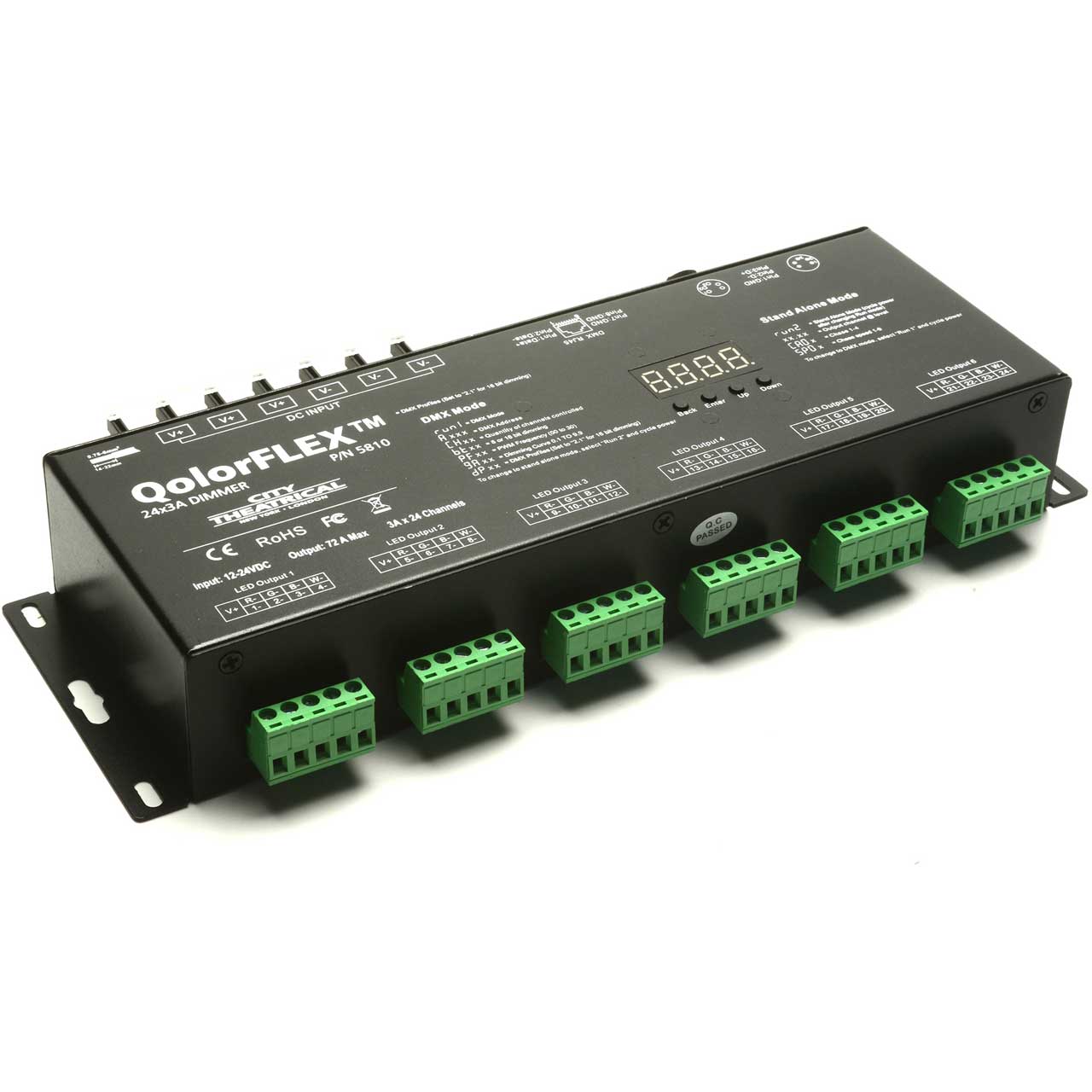

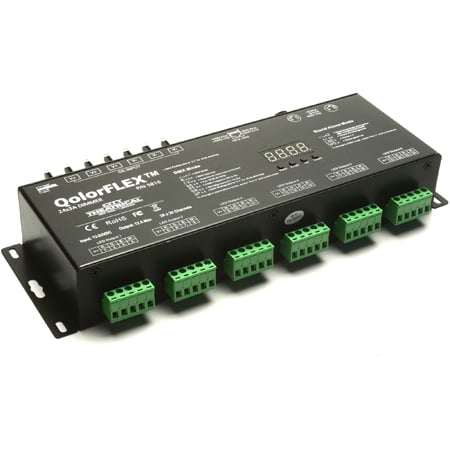

City Theatrical QolorFLEX 5810 24x3A Dimmer - DMX and RDM Compatible

ITEM #: CITYTH-5810 MFG #: 5810

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$429.27

Our Price:

$364.88

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


5810 - Overview

City Theatrical's QolorFLEX® 24x3A Dimmer (P/N 5810) is a low voltage, constant voltage, dimmer that is ideal for applications such as retail displays, signage, and general architectural work. It features 24 channels of control and is ideal for one-, two-, three- or four-color LED tape installations. This dimmer is fully DMX and RDM compatible and offers standalone functions.

The QolorFLEX 24x3A Dimmer's maximum current load per channel is 3A with a Maximum Device Input of 72A. It requires an external power supply to suit the LED tape you are using. For indoor use.

  • Specifications:

    • Electrical Specifications

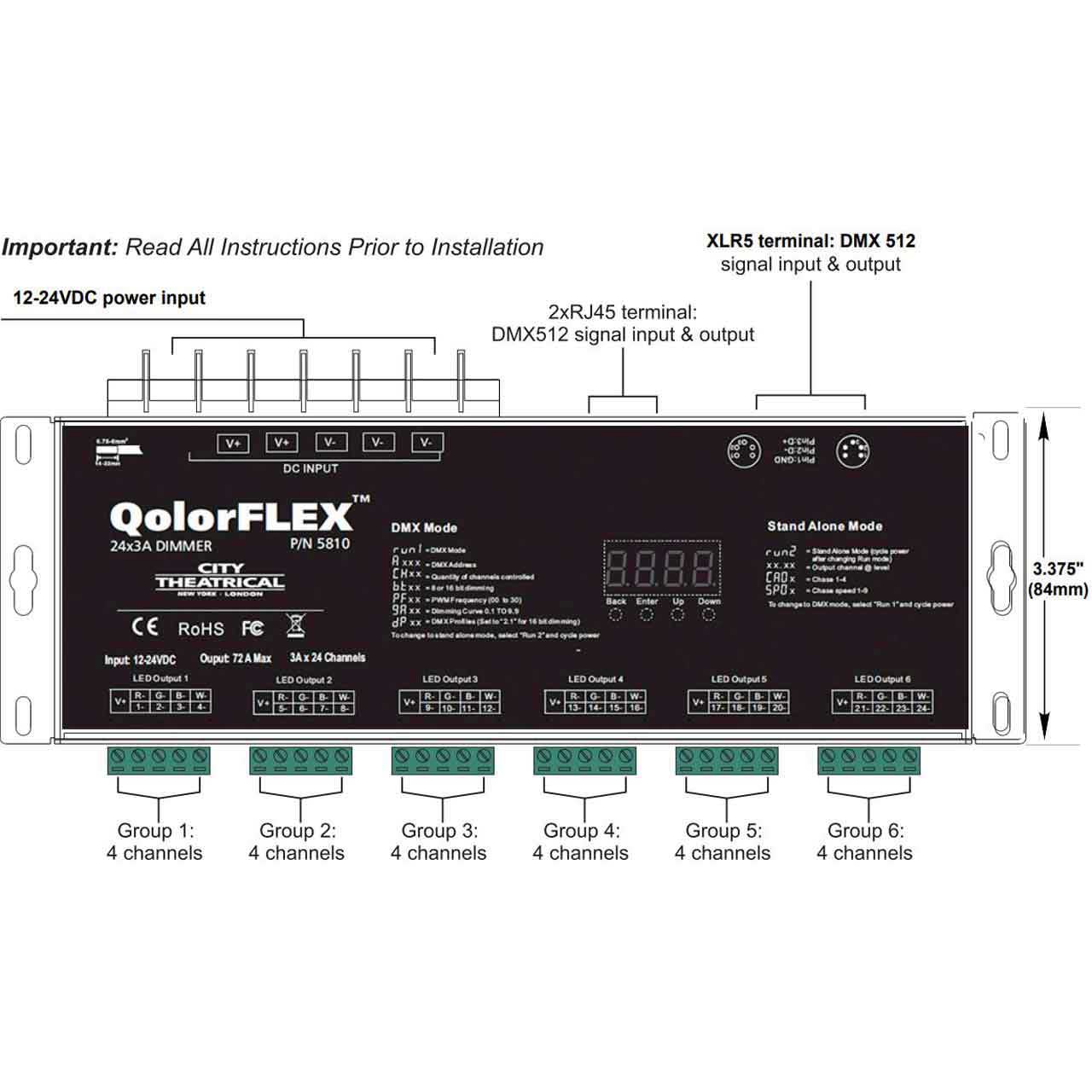

    • Output Channels: 24
    • Input Voltage: 12~24VDC
    • Max Output per Channel: 3A
    • Max Device Input: 72A
    • Power Connections: Screw Terminals
    • Output Connections: Screw Terminals
    • DMX Connections: 5 Pin XLR, and RJ45
    • 0-10 Connections: No
    • DMX Address: Yes
    • Curve Selection: Yes - 99
    • Film & Video Modes: Yes - 18
    • DMX Termination: No
    • SHoW ID: N/A
    • Bump Buttons: No
    • Pilot Lights: Yes
    • Smoothing Settings: No
    • Standalone Levels: Yes
    • RDM: Yes

      Product Information
    • Use Environment: Indoor
    • Operating Temperature: -29° to 65° C
    • Warranty: One yea
    • Compliance: CE, RoHS

      Physical Specifications:
    • Size L x W x H: 10.24" x 4.72" x 1.57"
    • Weight: 24 oz
    • Construction: Steel

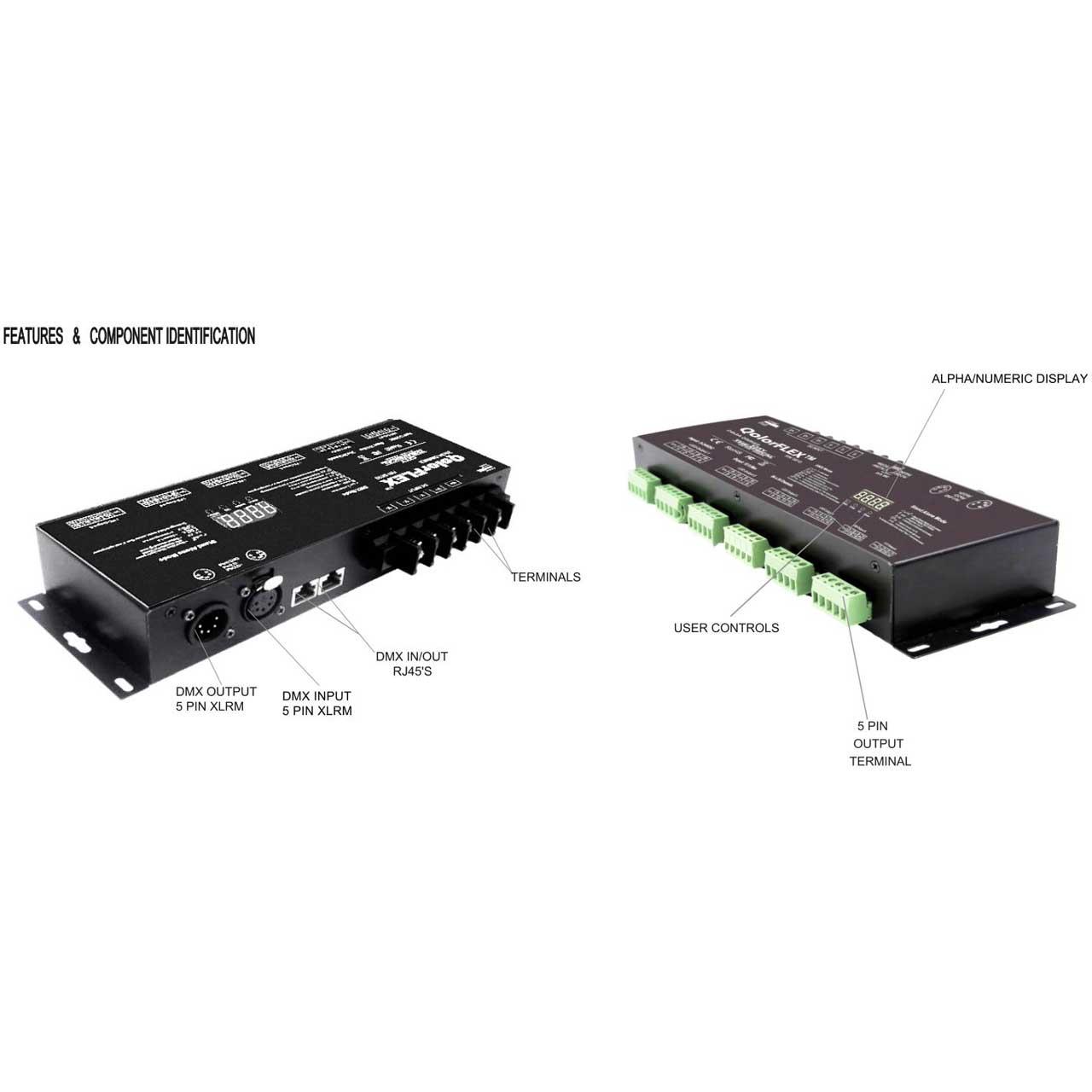

    • User Interface: 4 button, plus alpha/ numeric display

  • Item Includes:

    • 1x City Theatrical QolorFLEX 24x3A Dimmer - DMX and RDM Compatible
