Clear-Com BP410 2-Channel 2.4GHz Wireless Intercom Belt Pack for DX410 Intercom Base Station

ITEM #: CLCM-BP410 MFG #: CZ-BP410

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,185.00

Availability: In Stock


CZ-BP410 - Overview

The Clear-Com BP410 is a rugged, light-weight, ergonomically designed beltback to be used with the BS410 base station. Single-channel operation allows any four beltpack and/or all-in-one wireless headset uses to engage in simultaneous, full-duplex communication. In dual-channel operation, three users may be in full-duplex with up to 13 additional users in listen-only mode. The BP410 has a rugged, over-mold, reinforced casing and long-lasting keypads with no mechanical switch. Using the BAT50 Li-Ion battery, the BP410 has up to 12 hours of battery life.

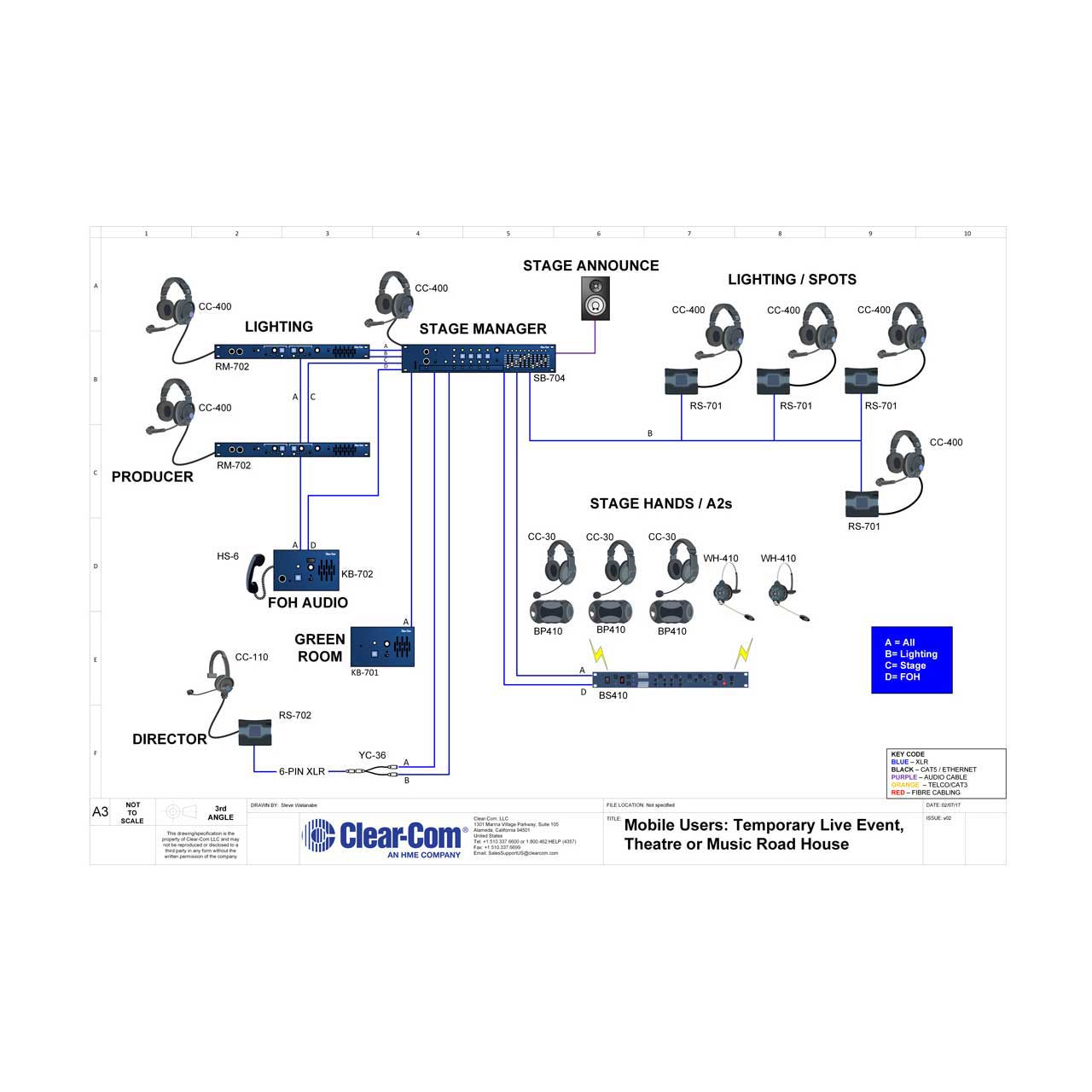

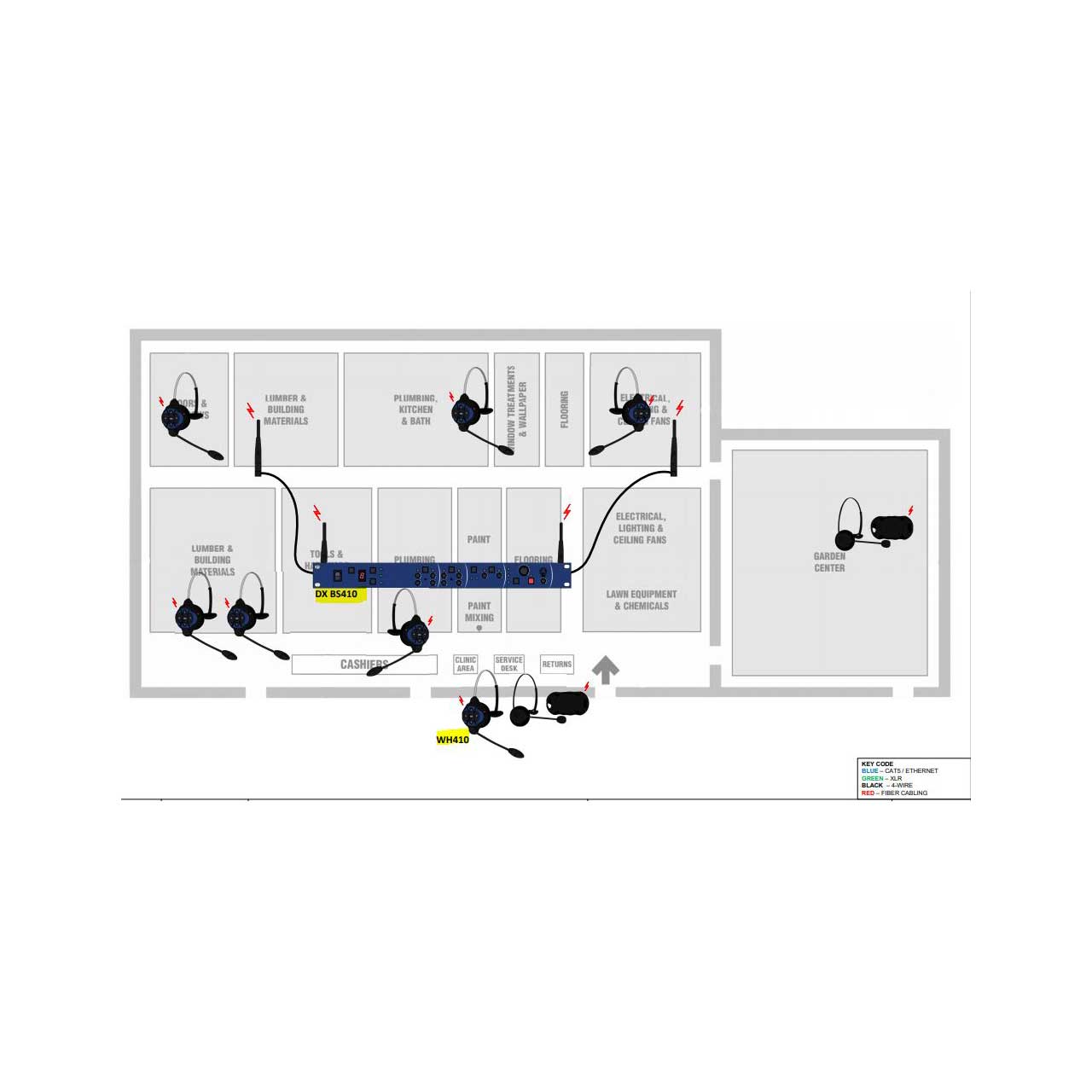

Please Note! This item is just one component of a larger intercom system. Please refer to the diagrams for ideas and recommendations on how to build a Clear-Com intercom system to suit your needs.

  • Features:

    • 2-Channel 2.4GHz Wireless Beltpack
    • Two-channel operation
    • 2.4GHz license-free operation
    • Up to 15 beltpacks and/or all-in-one handsets on a single system
    • 7kHz wideband audio
    • Single or dual-channel operation
    • Up to 12 hours of battery life
    • Light-weight, compact design, ergonomic design
    • Rugged and reliable

  • Specifications:

    • Audio
    • Channels: 2 audio channels
    • Frequency Range: 2400 MHz - 2483.5 MHz
    • Frequency Response: 200 Hz - 7 kHz
    • Antenna: Internal, horizontal/vertical diversity
    • Headset Connector: 4-pin, mini-DIN
    • Microphone: Electret
    • Headset Output: 160mW into 32 Ohms
    • Communication Security: 64-bit encryption
    • System Distortion: <2%
    • Controls: Power, Volume-Up, Volume-Down, A, B, ISO
    • Indicators: Dual-color LED (red/green)
    • Battery Requirements: 3.6V lithium-ion
    • Battery Life: Up to 12 hours

    • Antenna
    • Internal, Horizontal/Vertical diversity

    • Transmitter
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • Transmit Power: 100mW burst
    • Modes: Momentary or Latch
    • Type: Gaussian filtered FSK, TDMA
    • Frequency Stability: 13 ppm
    • Harmonics/Spurious: Exceeds FCC and ETSI specifications

    • Receiver
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • RF Sensitivity: <-90dBm w 10-3 BER
    • Frequency Stability: 13 ppm
    • Distortion: <2%

    • Environmental
    • 32°F to +122°F (0°C to +50°C)
    • Dimensions: 2.25 x 4.5 x 1 in (57.2 x 114.3 x 25.4 mm) (HxWxD)
    • Weight: 7.4 oz (0.21 kg) including battery and pouch

  • Item Includes:

    • BP410 Belt Pack
    • 2 BAT50 Li-Ion Batteries
    • Pouch

  • GTIN:

    0609385858994
