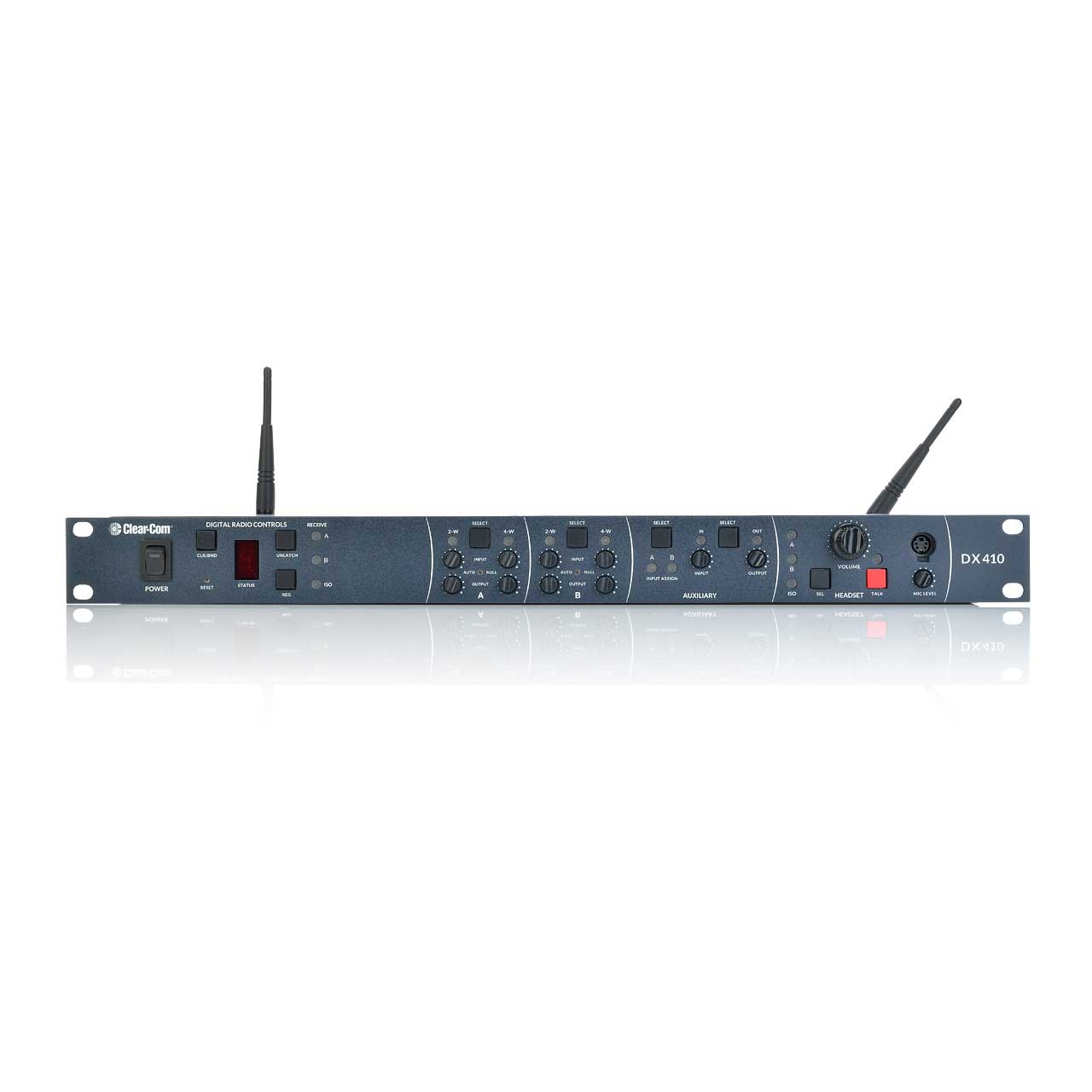

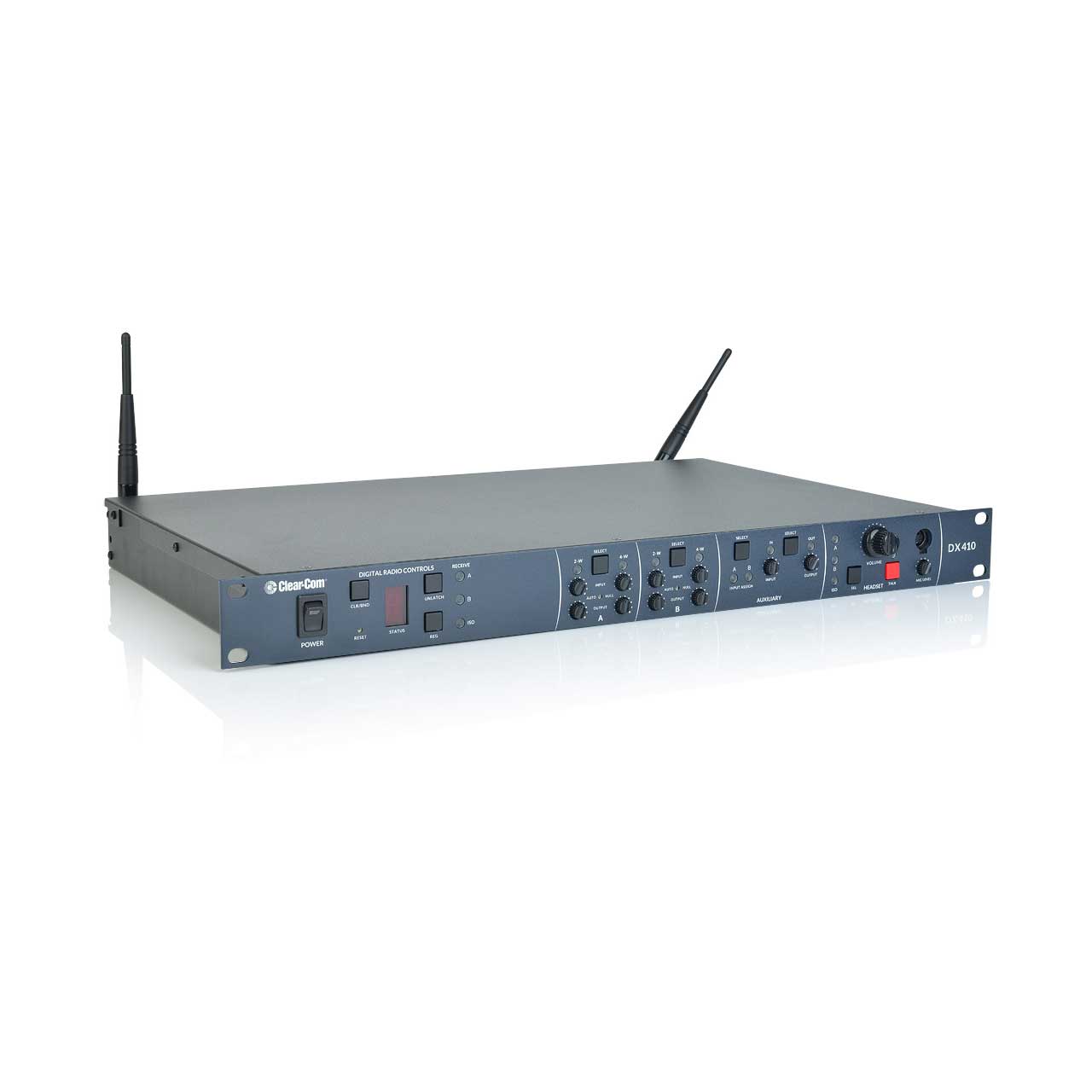

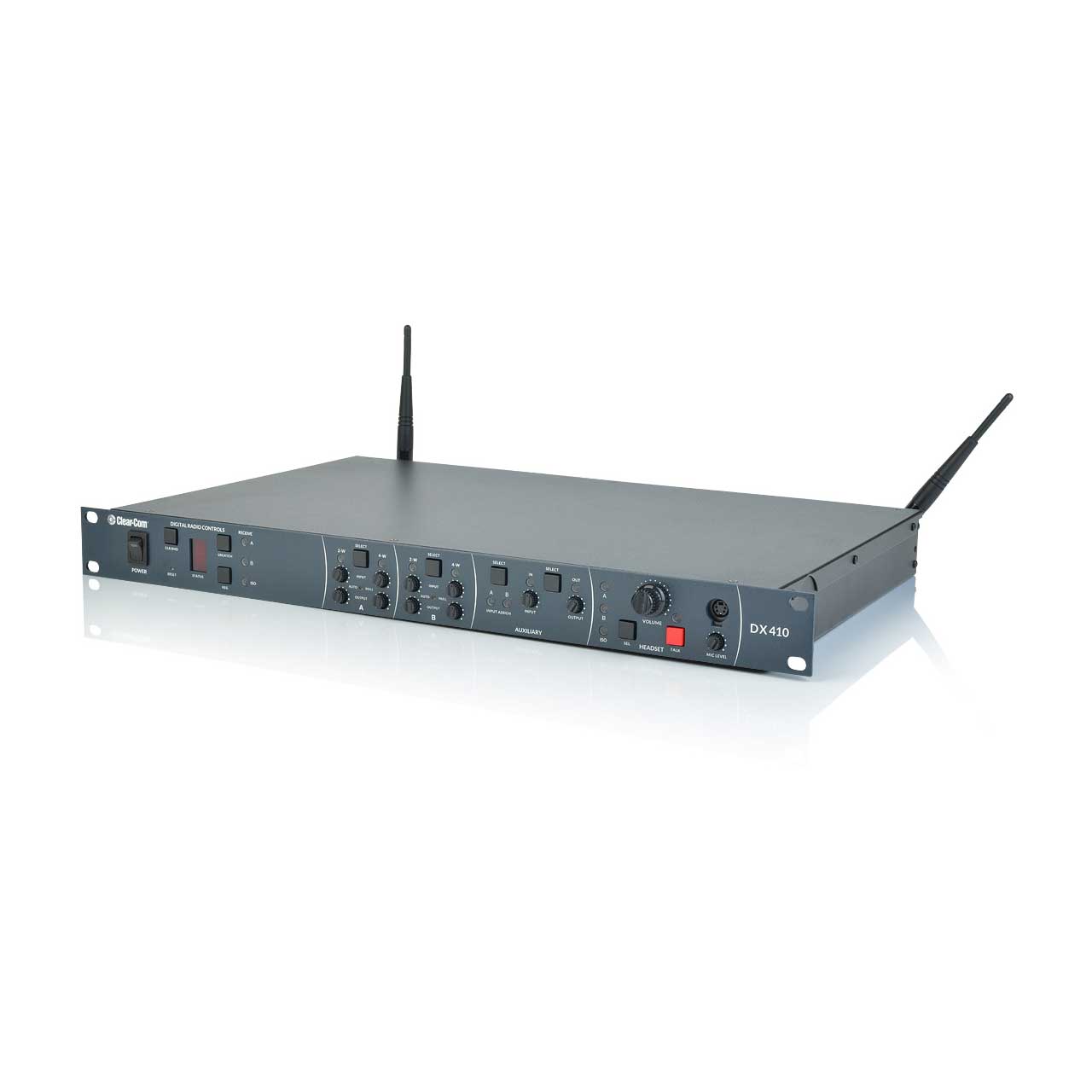

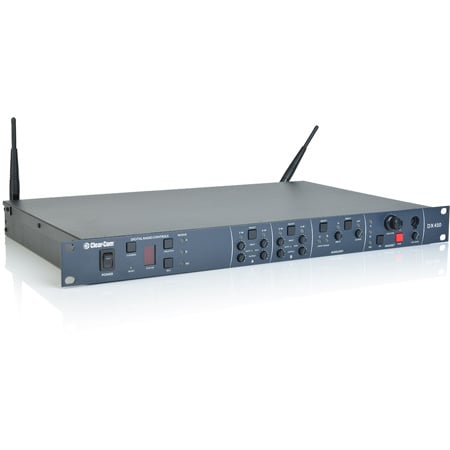

The ClearCom BS410 is the base station for the DX410 wireless system. Designed to be used with wireless BP410 beltpacks (sold separately) a single DX410 base station supports up to 15 registered BP410 beltpacks and/or WH410 all-in-one wireless headsets. Two-wire auto-nulling enables fast and accurate integration with Clear-Com and RTS wired partyline systems.
Control

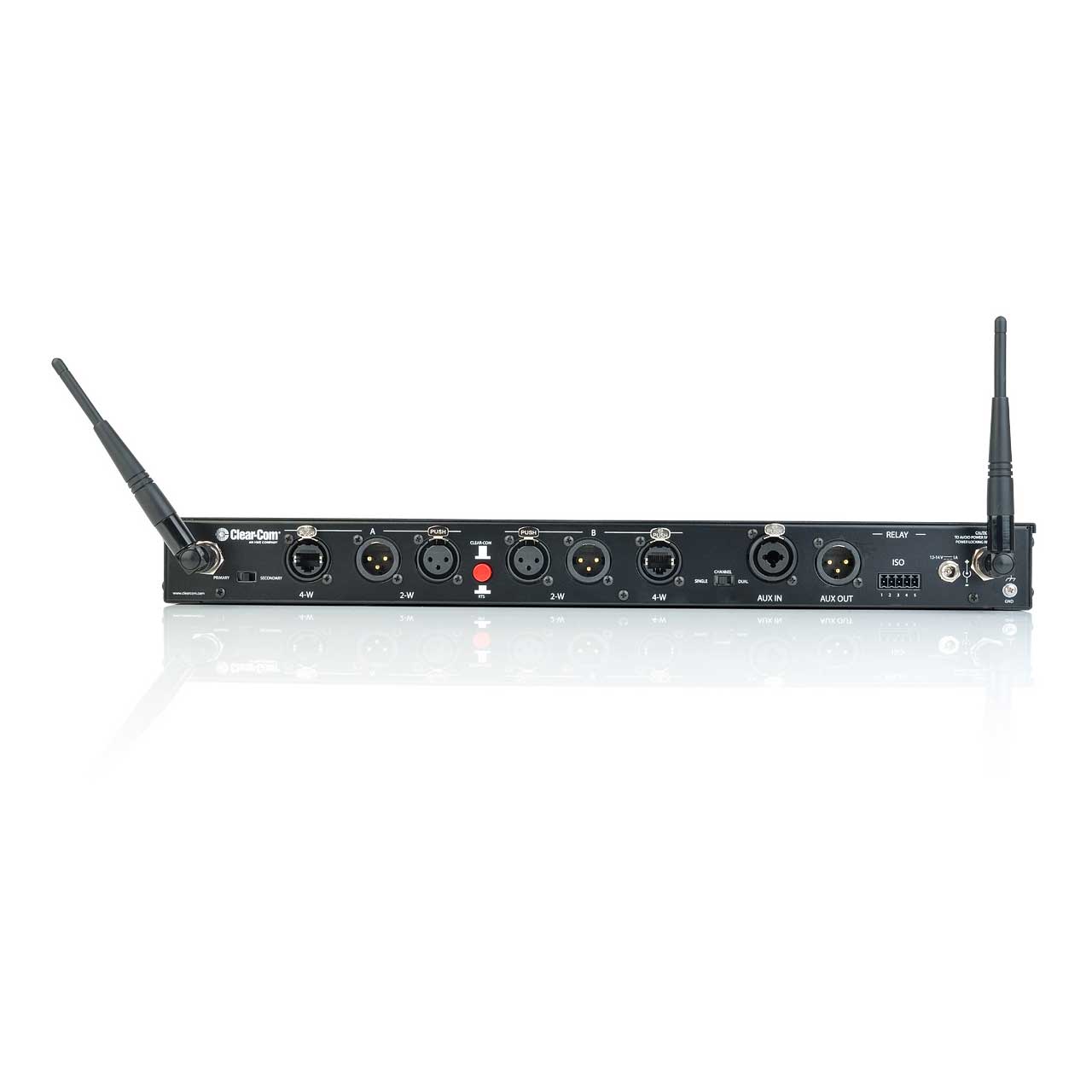

The BS410 is a 1RU 2-channel base station with local headset, 2- and 4-wire audio connections, auxiliary in out, and assignable relays. 2-wire connections can be set to RTS or Clear-Com and have auto-nulling. The built in 2.4GHz transceiver transmits RF via two dipole antennas with reverse TNC connectors.
Audio Bridging
The BS410 allows the option for combining 2-wire and 4-wire audio together on A or B channels. When daisy-chaining multiple bases together you can bridge a 4-wire, allowing the use of the 4-wire out to send the audio to a mixer, matrix or other audio source.
Clear Audio
The DX410 system features 7KHz wideband audio. The high-quality audio expands audio range and increases intelligibility in high RF environments so even soft whispers can be heard clearly.
2-Wire Auto-Nulling
Auto-nulling provides echo cancellation on unbalanced 2-wire intercom systems for fast and accurate integration with RTS and Clear-Com wired partyline systems

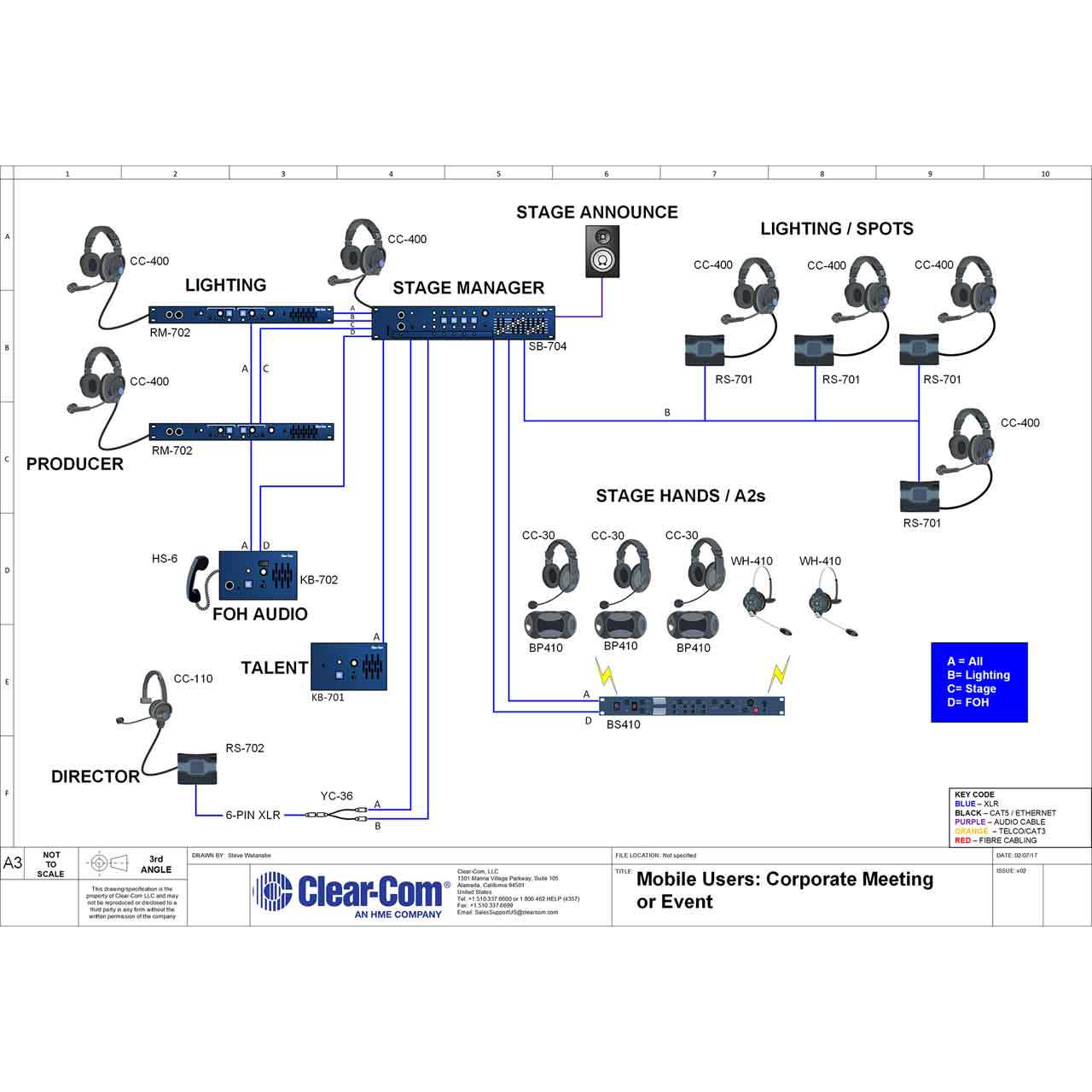

Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system
