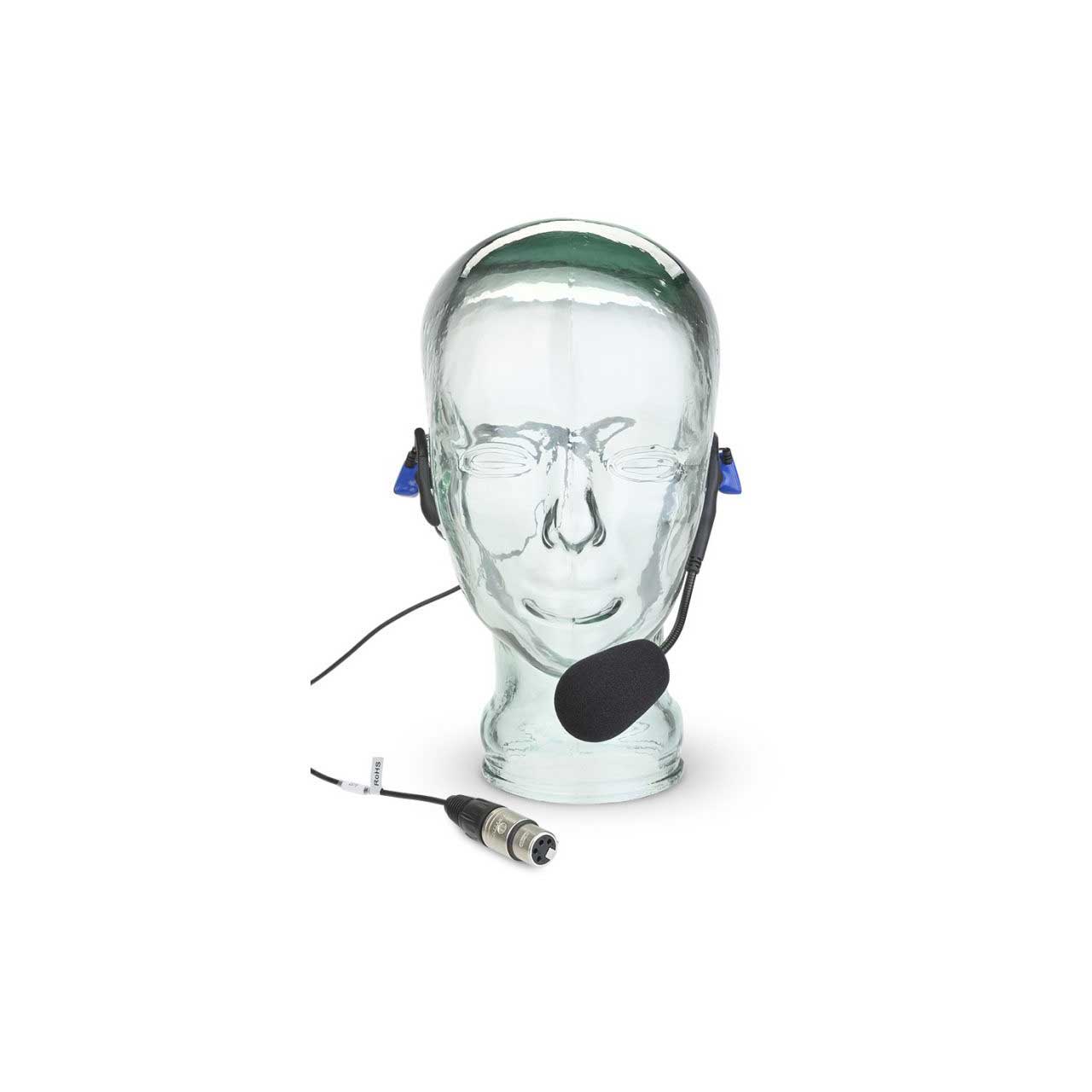

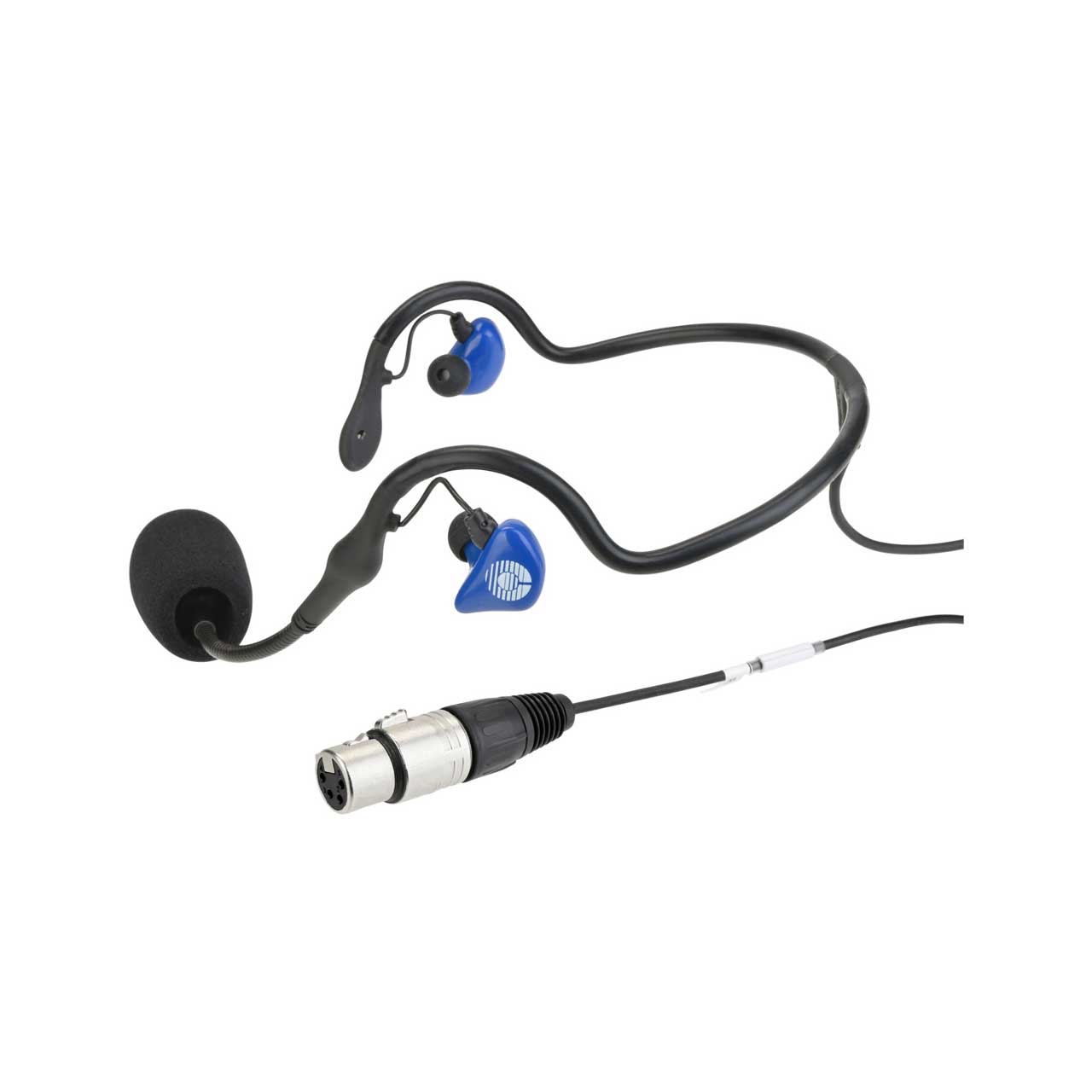

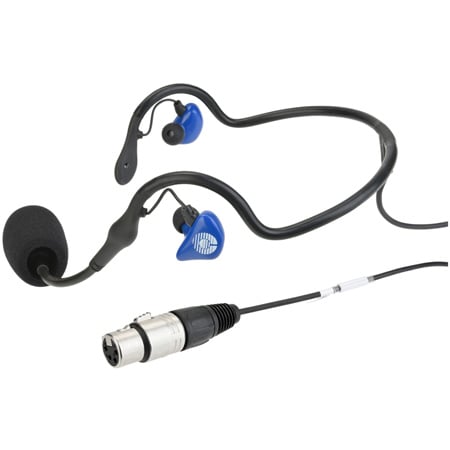

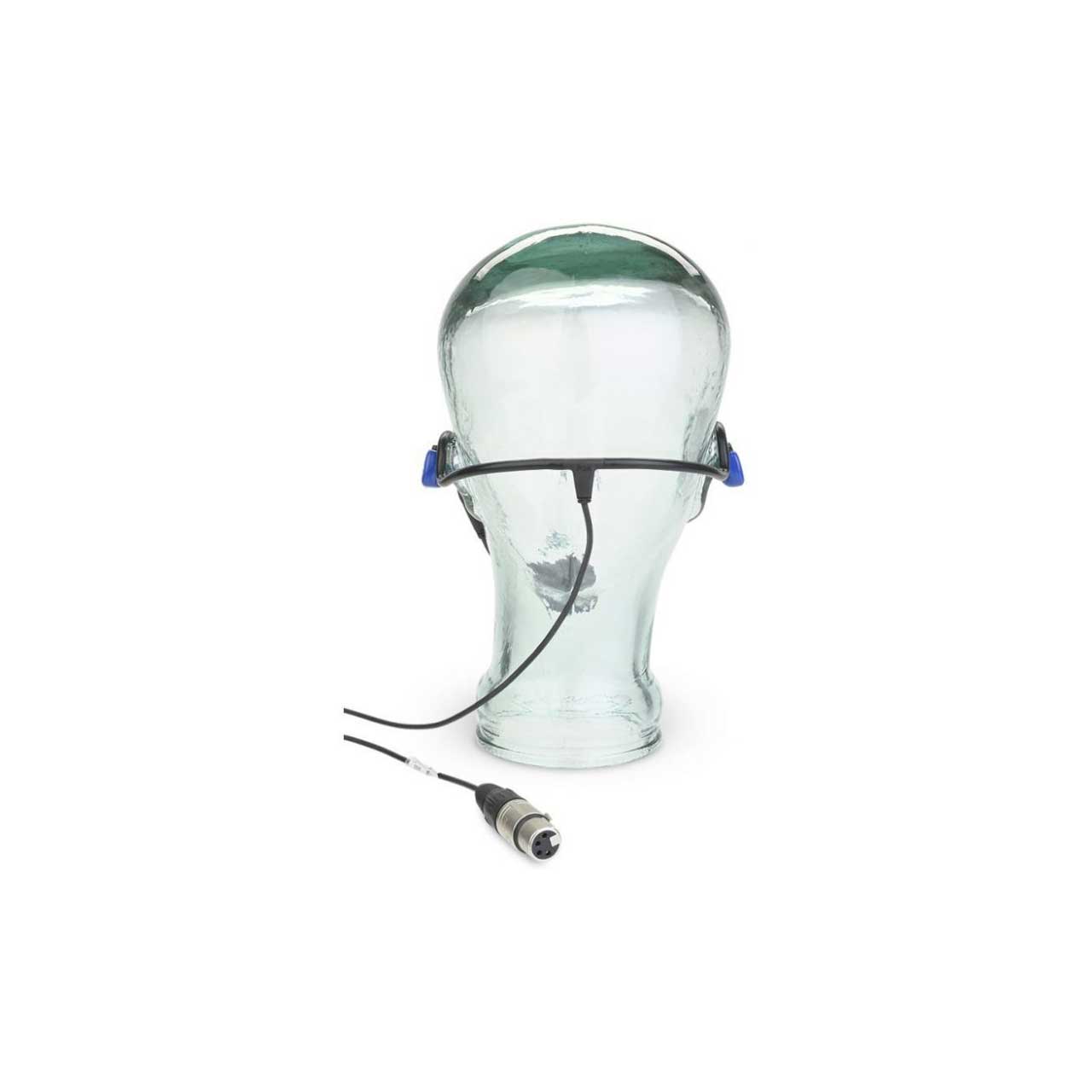

Clear Com CC-70-X4 Lightweight Wrap Around Dual Ear XLR4 Pin Female Headset Mic - 100Hz-14kHz

ITEM #: CLCM-CC-70-X4 MFG #: CC-70-X4

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$535.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CC-70-X4 - Overview

The ClearCom CC-70-X4 is a premium lightweight wrap around dual ear intercom headset with a 4 pin female XLR connector designed for excellent audio quality, comfort, and ease of use. Small and lightweight the CC-70 was created to be worn with a helmet or hat making it perfect for live performance workers such as stagehands, carpenters, electricians, anyone required to wear a hard-hat during set up and tear down.

The CC-70 headset easily interfaces with Clear-Com HelixNet® Beltpacks and Main stations, FreeSpeak® II Beltpacks, FreeSpeak Edge™ Beltpacks, V-Series & V-Series Iris Panels , RS-700 Beltpacks and Encore® Remote & Main stations.

  • Features:

    • Wrap around dual ear headset can be worn under helmet or hat
    • Noise attention design with both in-ear buds
    • 2 oz lightweight headset comfortable to wear for long periods of time
    • Flexible gooseneck microphone for correct positioning
    • Choice of ear tips, Small, Medium & Large; one pair of each included
    • 12 dB off-axis noise microphone rejection

  • Specifications:

    • Headphone
    • Type: Single driver
    • Frequency Response: 100Hz - 14kHz
    • Sensitivity: 96dB SPL@1VRMS at 1kHz
    • Impedance: 16Ω
    • Input Power: 3mW

      Microphone
    • Element: Dynamic
    • Polar Pattern: Cardioid noise cancelling
    • Frequency Response: 200Hz - 10kHz
    • Sensitivity: -83 dB 1V/Pa at 1kHz typical
    • Impedance: 200Ω

      Connector
    • XLR 4-pin female (Neutrik) Clear-Com wiring
    • Cabling: Screened and separately shielded microphone wires, cable not coiled
    • Cable length: 4ft (1.2m)

      Environmental
    • Temperature: -10 ±3°C (14° to 37°F) to 55 ±5°C (131° to 41°F) for 48 hours
    • Humidity: 40 ±5°C (104° to 41°F) to 90-95°C (194° to 203°F) relative humidity for 48 hours

      Dimensions
    • Dimensions Packaging: 6.3 x 8 x 2.4in (WxHxD) (160 x 205 x 60mm)
    • Weight 2.3oz (65g)

  • Item Includes:

    • 1x Clear Com CC-70-X4 Lightweight Wrap Around Dual Ear XLR4 Headset Mic - 100Hz-14kHz

  • GTIN:

    0752516203085
