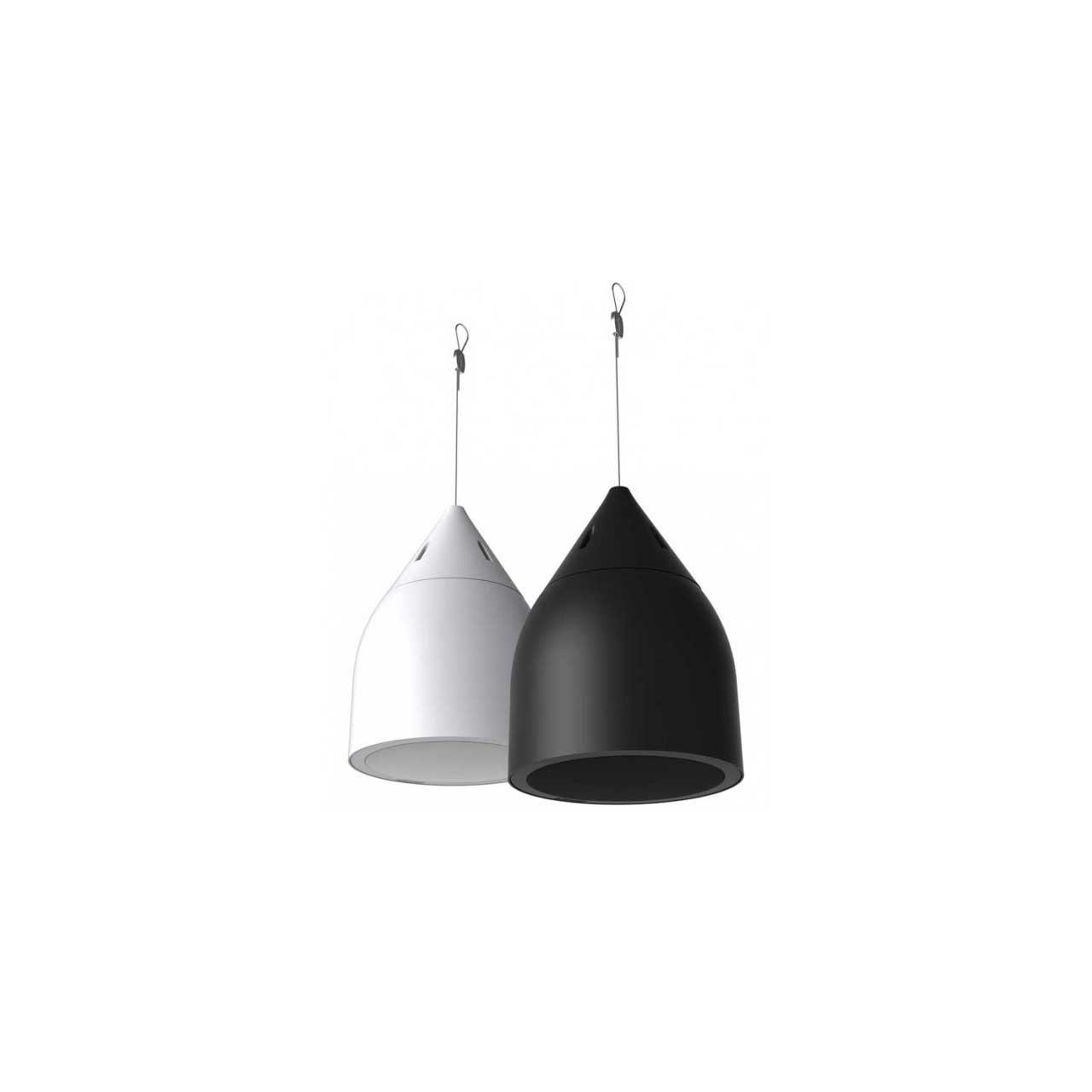

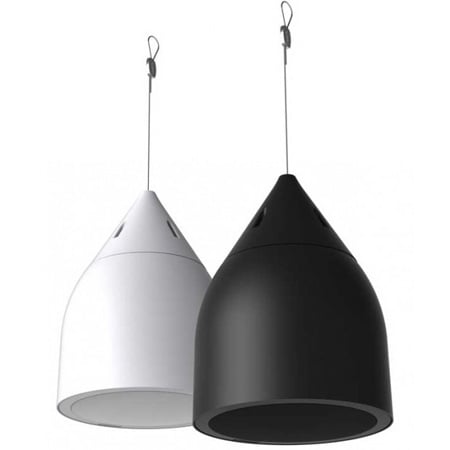

Community DP8-B Distributed Design Pendant Mount Loudspeaker - 8-Inch - Black

ITEM #: CMTY-DP8-B MFG #: DP8-B

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$616.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DP8-B - Overview

The Community Pro DP8-B is a high performance 8-inch pendant loudspeakers designed for open architecture spaces or any location where a stylish pendant form factor is desired. Featuring high power handling, higher sensitivity and realistic sound reproduction, the DP8 is the more focused big brother to the DP6. D SERIES pendant loudspeakers can be used in a wide variety of speech and music applications. They are equipped with a built-in autoformer, supporting low impedance or 70V/100V operation. Uniform voicing means that the DP8 can be combined with other ceiling and surface mount models in the C or D SERIES family without compromising consistency from zone to zone. The genuine coaxial design uses separate magnets for the LF and HF drivers for reduced distortion and industry-leading sensitivity, thereby permitting 3 dB to 6 dB greater output level while requiring half the amplification power of competing products. An easy-access selector switch is conveniently located on the face of the loudspeaker for selectable 8 ohm or 70V/100V operation, while an integrated rear cover hides all wiring and hanging hardware for an aesthetically pleasing installation.

  • Features:

    • High intelligibility with wide dispersion, uniform voicing
    • Stylish contemporary design
    • Outdoor ready

  • Specifications:

    • Transducers: LF -1 x 8 Inch, HF - 1 x 1.25 Inch exit compression driver
    • Operating Range: 60Hz - 22 kHz
    • Sensitivity (1W/1m): 95 dB
    • Power Handling: 150W continuous @ 8 ohms
    • Continuous Max Output: 117 dB (123 dB Peak)
    • 70V/100V Autoformer: 120W, 60W, 30W, 15W (@70V only)
    • Nominal Beamwidth (H x V): 115° Conical
    • Finish: Black or white paintable ABS matte plastic, dual-layer powder-coated steel grille
    • Dimensions (H x Dia): 17.7" x 13.4" (450 x 341 mm)
