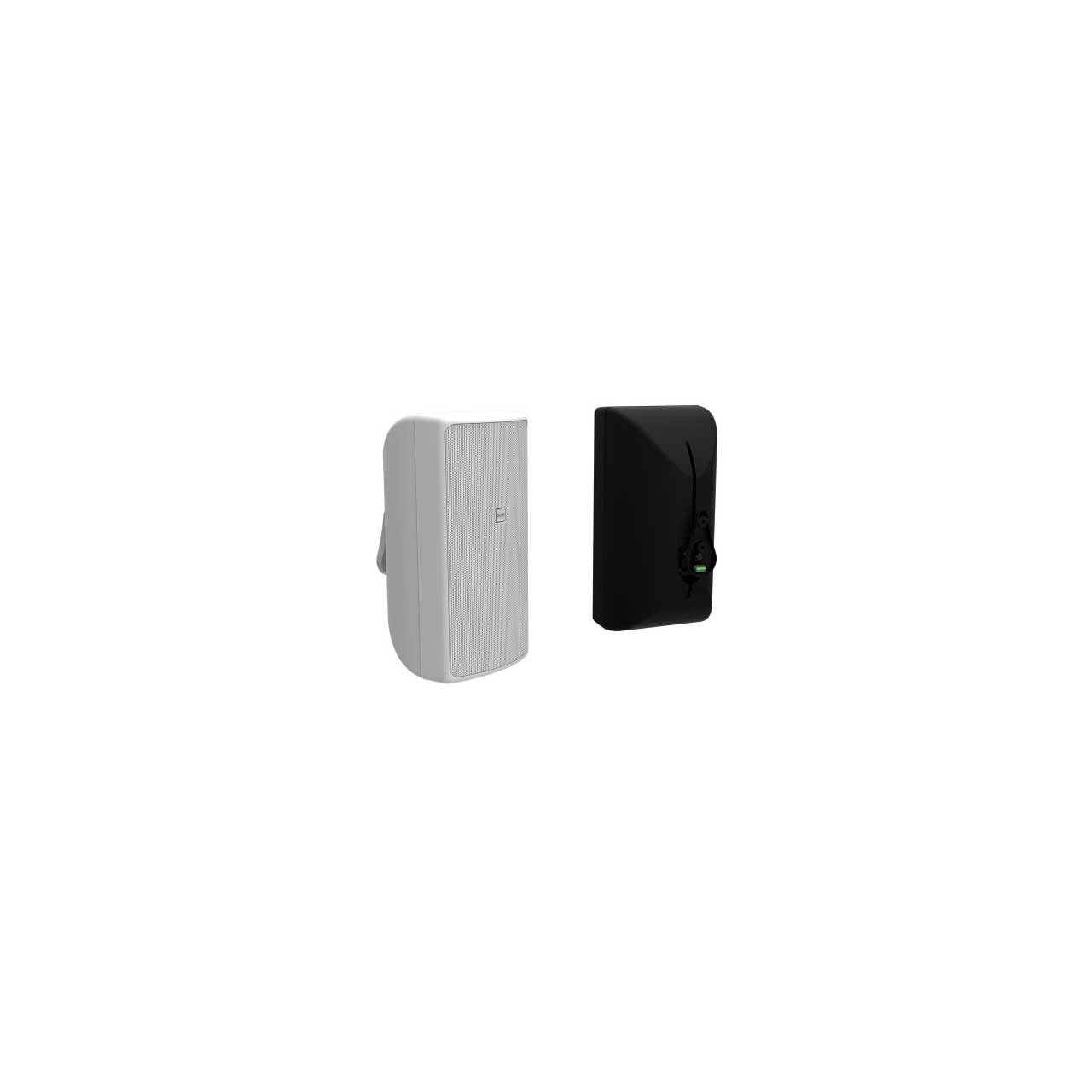

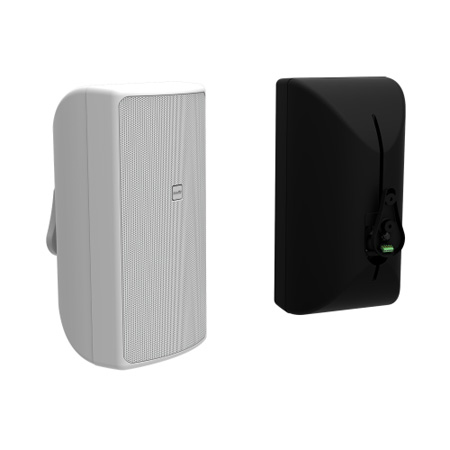

Community Pro DS5 5-Inch 2-Way Surface Mount Loudspeaker - White - Pair

ITEM #: CMTY-DS5-W MFG #: CMTY-DS5-W

Primary Image
Community Pro Loudspeakers
Free Shipping with $49 Minimum Order

Our Price:

$580.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

CMTY-DS5-W - Overview

It Takes A Community To Deliver This Kind of Sound!

The Distributed Design Series DS5 from Community Pro is a full-range, compact, two-way system, ideal for installations where space is a premium. Easily outperforming loudspeakers of a larger size format, the DS5 provides high power handling, high sensitivity and realistic sound reproduction. With a modern architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for indirect outdoor use, the DS5 can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines.

A convenient front-accessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included Infin-A-Ball multi-angle wall mounting bracket which allows low profile mounting and precise positioning of the enclosure over a broad tiltswivel range.

APPLICATIONS:

  • Swimming pools
  • Sport facilities
  • Health and fitness clubs
  • Houses of worship
  • Retail environments
  • Cruise ships
  • Corporate training rooms
  • Bars and restaurants

    • Features:

      • Modern architectural design
      • Same components and voicing as the Distributed Design ceiling loudspeaker family
      • High efficiency, high output, high intelligibility, low distortion
      • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
      • Front-accessible power tap switch for selectable 8 ohm or 70V/100V operation
      • Infin-A-Ball low profile mounting bracket included
      • Weather-resistant construction with treated drivers, two-layer powder coated grilles and protected wiring ingress


    • Specifications:

      • Loudspeaker Type: Two-way, full-range, coaxial surface mount loudspeaker, 8 ohm or 70V/100V operation
      • Operating Range: 65 Hz - 22 kHz
      • Frequency Response: 80 Hz - 20 kHz (±5.2 dB)
      • Max Input Ratings (8 ohm): 100W continuous, 250W program
      • 28 volts RMS, 63 volts momentary peak
      • Transformer Taps-70V: 60W, 30W, 15W, 7.5W and low impedance
      • 100V: 60W, 30W, 15W
      • Sensitivity (1W/1m)1: 93 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands)
      • 91 dB SPL (250 Hz to 4 kHz speech range)
      • Maximum Output1: 113 dB SPL / 120 dB SPL (peak 8 ohm)
      • Nominal Impedance: 8 ohms
      • Minimum Impedance: 7.5 ohms @ 280 Hz
      • Nominal Coverage: 130§ conical (+47° / -70°, 500 Hz to 6 kHz)
      • Axial Q / DI: 4.5 / 6.5, 500 Hz to 6 kHz
      • Crossover Frequency: 1.6 kHz
      • Recommended Signal Processing: 65 Hz, 24 dB/Oct high pass filter
      • Drivers: LF 1 x 5-inch cone
      • HF 1 x 1-inch exit compression driver
      • Driver Protection: Self-resetting solid state circuit breaker
      • Input Connection: 4-screw Euroblock connector for two pair of 2-wire leads (uninterrupted whether the loudspeaker is connected or not) concealed in the base of the mounting bracket; and a 2-pin Euroblock connector on the loudspeaker enclosure
      • Controls: Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo


    • GTIN:

      0617174015084
