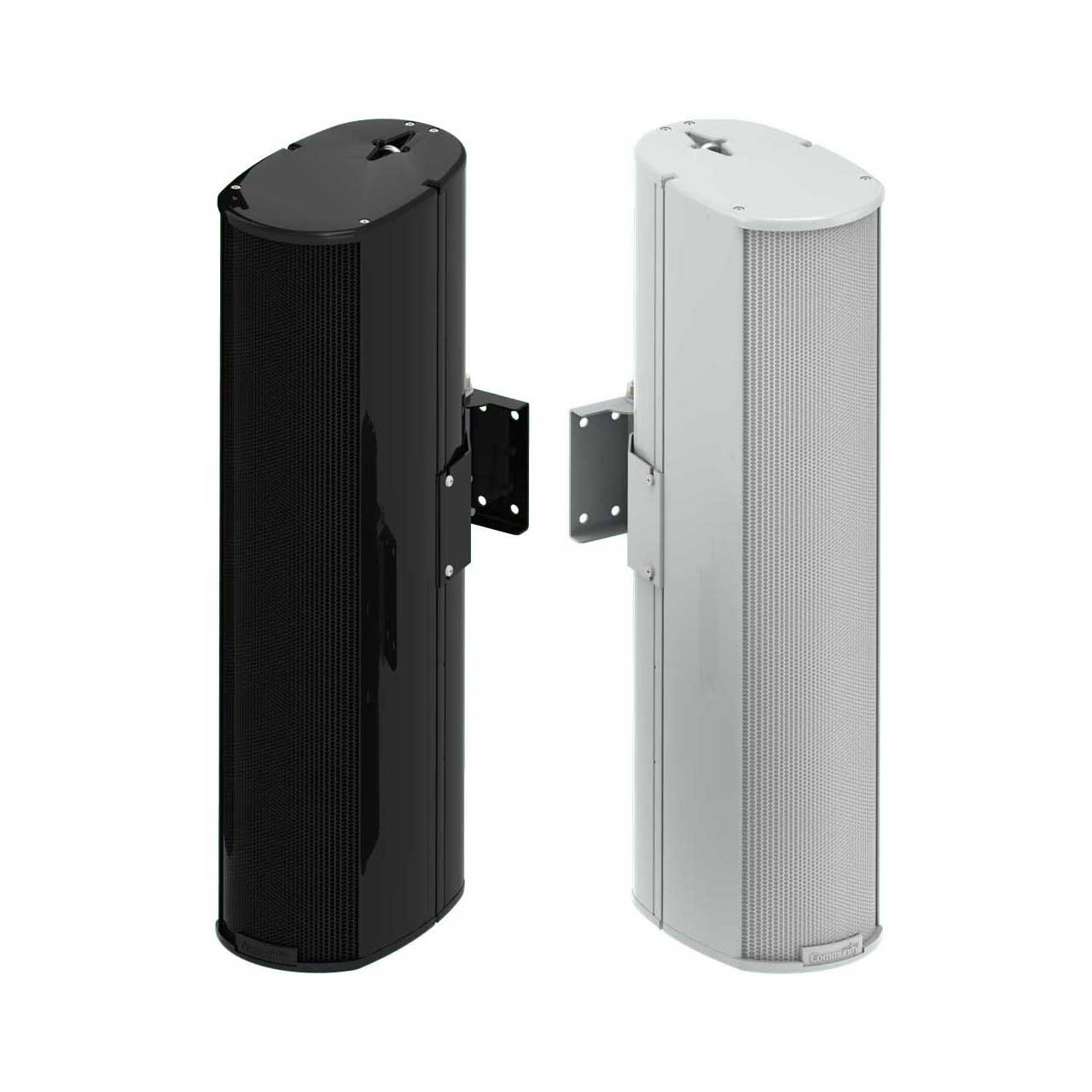

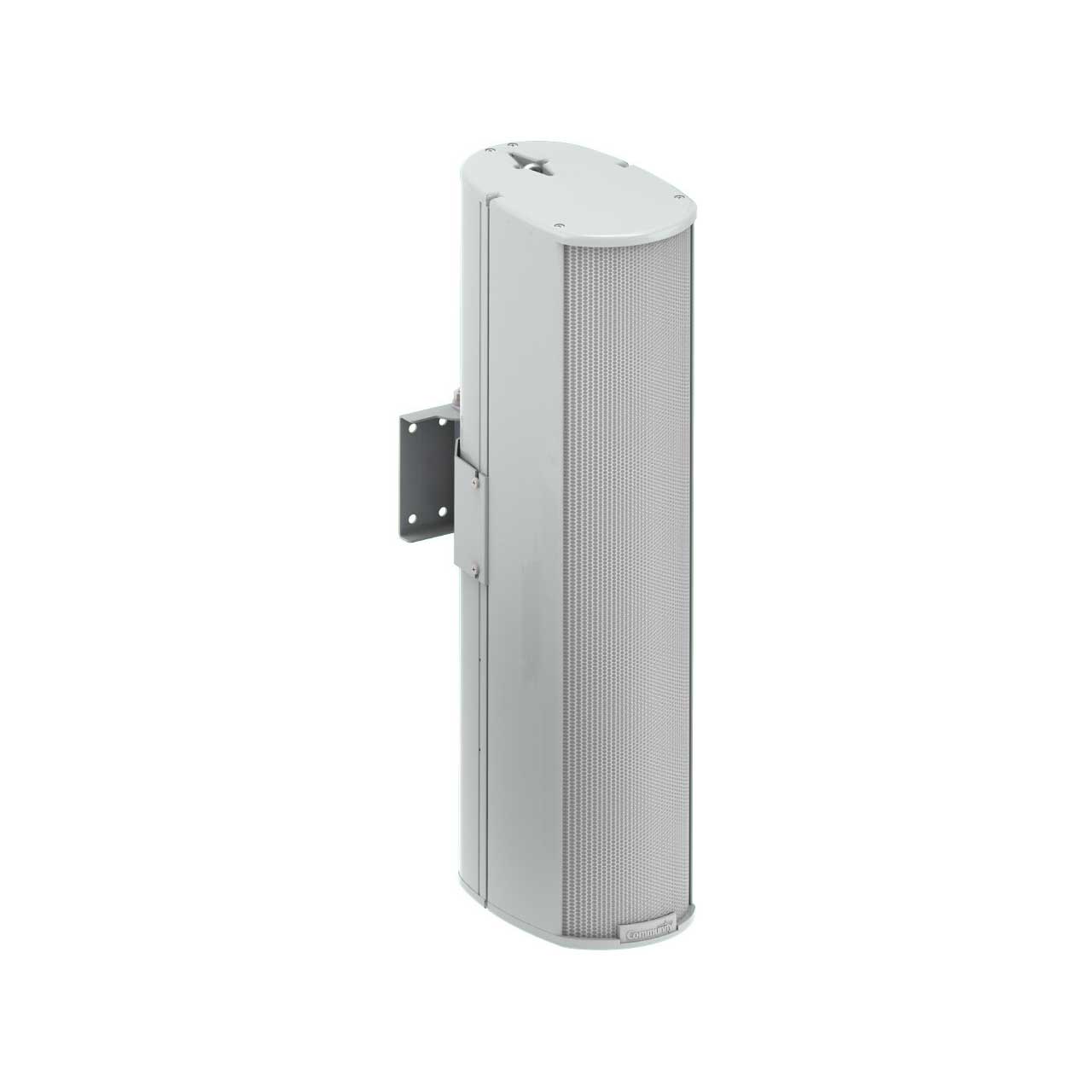

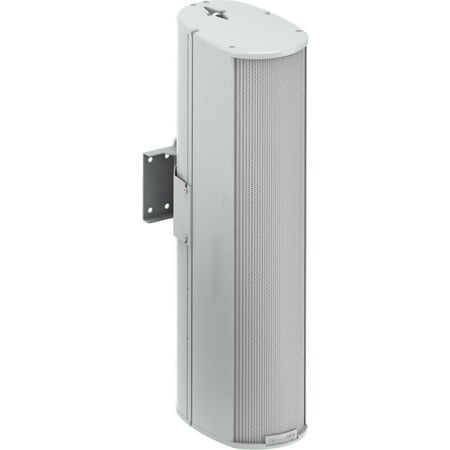

Community ENT206W 2-way Compact Column Array Loudspeaker - 8 ohm / 70V/100V - White

ITEM #: CMTY-ENT206W MFG #: ENT206W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$740.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ENT206W - Overview

The Community Pro ENT206 is an all-weather, column array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. Double the height of the smaller ENT203, the ENT206 provides directional control at significantly lower frequencies than the ENT203, along with enough power to effectively cover much larger areas while still remaining unobtrusive. Ideally suited to applications such as music and speech reinforcement for reverberant houses of worship, hotel lobbies, assembly rooms, transit stations, indoor/outdoor swimming pools, outdoor smoking areas, bowling alleys, and much more, the ENT206 is a solid performer that belies its small size. Like the ENT203, the ENT206 also can be utilized to support larger systems for delay and area fill. The ENT206 employs six high-power LF cone drivers and two Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a two-way, single-amped configuration.

ENTASYS 200 column loudspeakers are innovative products offering entirely new possibilities for solving difficult acoustical problems with ease, both indoors and outdoors. Available in four sizes, the ENTASYS 200 models have been expertly engineered to serve the wide range of applications routinely encountered by professional sound contractors. Possessing advanced features, highly-focused dispersion patterns, weather resistant construction, and most importantly sonic excellence, ENTASYS 200 columns make installations not only fast and simple, but as functionally effective as
possible.

The modern, unobtrusive appearance of ENTASYS 200 columns means they will blend into virtually any room d‚cor without calling undue attention to the technology behind the sound. All models can be ordered in either medium gloss black or medium-gloss white finishes. They may also be field-painted to match a specific color scheme or room finishes.

Each ENTASYS 200 model includes an appropriately-sized mounting bracket, a built-in 70V/100V autoformer for constant voltage applications, and an integral safety rigging point. Accessories include a universal mounting kit for use with third-party mounting brackets, and a stand adapter kit with an attachable tripod-stand mount that serves double duty as a handle for portable usage.

The ENTASYS 200 family begins with two small column loudspeakers, the ENT203 and ENT206. Powerful and unobtrusive, these models are intended for use as foreground and background music, fill loudspeakers, `delay' support of larger systems, and as the primary PA in small environments. The two larger models, the ENT212 and ENT220, are designed for use in medium to medium-large spaces. Highly effective when used as the main system, they can also be matched up with conventional point source loudspeakers, such as the I SERIES and V SERIES models. Their very narrow vertical dispersion precisely directs sound to specific room regions, thereby complementing the inherently broader dispersion of trapezoidal full-range loudspeakers. The ENTASYS 200 models provide a modern solution to the age old problem of directing sound where it is needed - and nowhere else. By reducing room reflections, musical clarity and speech intelligibility are greatly improved.

All ENTASYS 200 models provide an industry-standard NL4 Speakon type locking connector and a screw-type barrier strip for connections to the amplifier. Inputs are located on the bottom of each model.

Applications:

  • Houses of worship
  • Bars and restaurants
  • Meeting rooms, conference rooms, court rooms
  • Auditoriums, live theaters, museums
  • Airports, train stations
  • Stadium concourses
  • Multipurpose outdoor and indoor venues
  • Delay fill in larger venues
    • Features:

      • Advanced passive crossover technology
      • Dynamic protection circuitry
      • Compact Ribbon Emulator high frequency technology
      • for narrow, well-behaved vertical directivity control
      • All-weather construction for indoor/outdoor usage
      • Selectable low impedance or 70V/100V operation
      • Simple installation using the included pan-tilt mounting bracket
      • Tightly controlled vertical dispersion reduces harmful room reflections
      • Wide horizontal dispersion means fewer units cover a given area
      • Clean, clear and powerful sonic output without the cost
      • of bi-amplification
      • Available in standard black or white finishes, may also be painted to match room decor

    • Specifications:

      • Operating Range: 120 Hz to 22 kHz (-10 dB)
      • Frequency Response: 180 Hz to 20 kHz (-3 dB)
      • Max Input Ratings (8 ohm): 150W continuous, 375W program
      • 35 volts RMS, 69 volts momentary peak
      • Autoformer Taps-70V: 60W, 30W, 15W, 7.5W, 3.75W
      • 100V: 60W, 30W, 15W, 7.5W
      • Sensitivity (1W/1m): 93dB (180 Hz - 20 kHz)
      • Maximum Output: 115 dB SPL / 121 dB SPL (peak)
      • Nominal Impedance: 8 ohms
      • Minimum Impedance: 8.1 ohms @ 12500 Hz
      • Vertical Coverage: 20° (2 kHz to 16 kHz ±10°) @ 13m

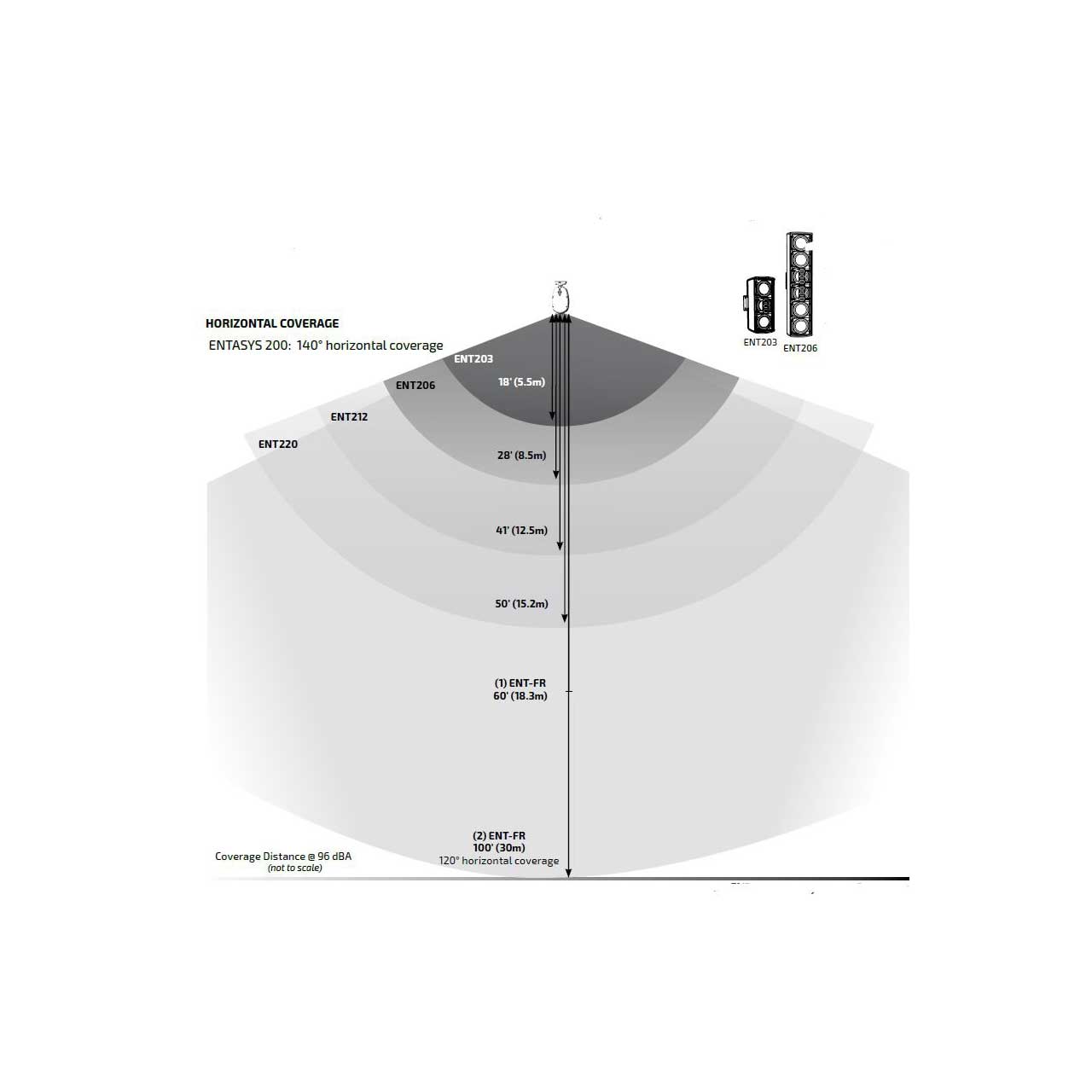

      • Horizontal Coverage: 140° average (1 kHz - 10 kHz ±20°)
      • Crossover Frequency: 5000 Hz
      • Recommended Signal
      • Processing: 120 Hz, 24 dB/Oct high pass filter
      • Drivers: LF 6 x 80mm long excursion mylar driver
      • HF 2 x 3-element Compact Ribbon Emulator
      • Driver Protection: Dynamic protection circuitry
      • Input Connection: NL4 Speakon-type connector for low
      • impedance operation; and 8-position terminal
      • strip for low impedance or constant voltage
      • operation
      • Controls: None
      • Enclosure: Extruded, high gloss paintable PVC
      • Finish: Black or white
      • Grille: Dual-layer powder coated steel, black or white
      • finish
      • Safety Features: Built-in safety eyebolt
      • Environmental:
      • Outdoor Direct Exposure Certified
      • IP54W per IEC529 for UV, moisture and salt
      • spray
      • Required Accessories: High pass filter
      • Supplied Accessories:
      • Pan-tilt bracket accommodating zero to 22.5°
      • down-tilt and +/- 55° panning; and ABS plastic
      • rain cover with integrated cable inlet and
      • 1" (25.4mm) knockout for conduit ingress
      • Optional Accessories: E200-UMK universal mounting kit
      • E200-SAK stand adapter kit
      • Dimensions-Height: 19.9 inches (506 mm)
      • Width: 4.62 inches (117 mm)
      • Depth: 7.47 inches (189 mm)
      • Weight (without bracket): 15 lbs (6.8 kg)
      • Shipping Weight: 17.3 lbs (7.8 kg)

    • GTIN:

      0617174015725
