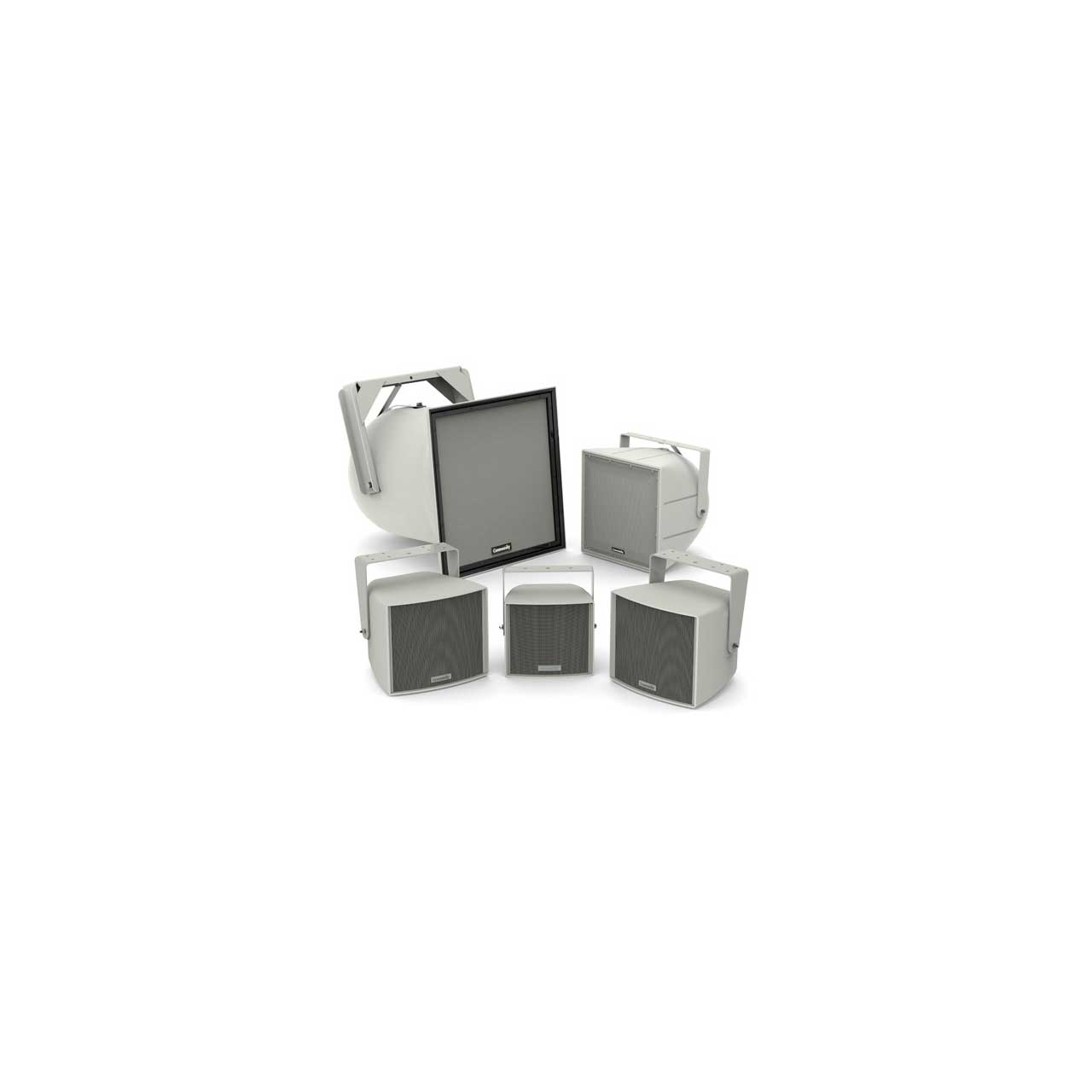

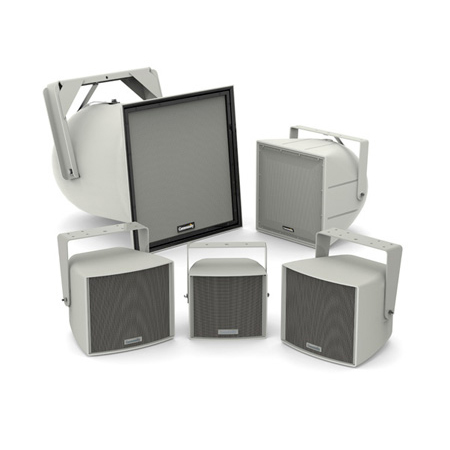

Community R.15COAX Full-Range 2-Way 6.5 Inch Coax Grey

Name: Community R.15COAX Full-Range 2-Way 6.5 Inch Coax Grey
Brand: Community Pro Loudspeakers
SKU: CMTY-R-15COAX
Price: 560.00 USD
Availability: InStock

ITEM #: CMTY-R-15COAX MFG #: R.15COAX

Community Pro Loudspeakers

Our Price:

$560.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

R.15COAX - Overview

Deep bass, flat musical response, compression driver clarity. Weather/UV-resistant paintable ABS plastic enclosure, two M8 rigging points, integral safety cable mounting point, selectable 8 ohm or 70V/100V operation, NL4-type connector and 2-position terminal strip, Music/Speech switch, three-layer Weather-Stop grille featuring NeverWet* protection, zinc-rich epoxy dual-layer powder-coated yoke mounting bracket included. Available in standard light grey, black, or white finish.

Specifications:
- Operating Range: 90 Hz to 16 kHz (-10 dB)
- Frequency Response: 125 Hz to 12.5 kHz (-3 dB)
- Max Input Ratings: 150W RMS, 300W Program 35 volts RMS, 69 volts momentary peak
- Autoformer Taps - 70V: 120W, 60W, 30W, 15W and low impedance
- Maximum Output: 116 dB (122 dB peak)
- Sensitivity (1W / 1m) 94 dB (125 Hz - 10 kHz)
- Crossover Frequency: 1.3 kHz
- Recommended High Pass: 90 Hz 24 dB / Octave
- Recommended Amplifier: 300W to 450W at 8 ohms
- Mounting/Rigging Provisions: Two M8 rigging points, zinc-rich epoxy dual-layer powder-coated yoke, included integral safety cable mounting point
Item Includes:
- Yoke Bracket
GTIN:
0617174017217
