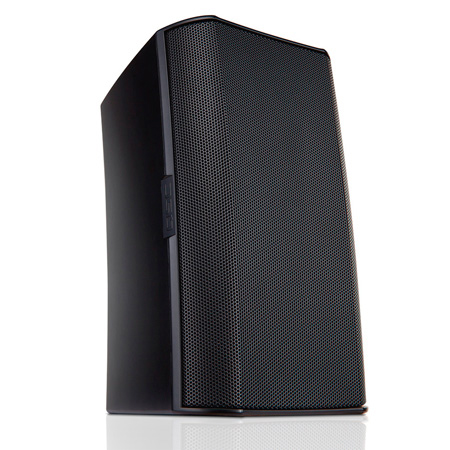

QSC AD-S6T-BK Two-way 6.5 Inch Surface Mount Weather-resistant Loudspeaker- Black - Pair

QSC-AD-S6T-BK - Overview

• Features:

  • 6” weather treated woofer; 1” silk dome tweeter
  • 105Ý Axisymmetric (conical) coverage
  • 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
  • Maximum peak SPL 116 dB (8 ohm bypass)
  • DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Advanced voicing filter sets using QSC Intrinsic Correction, available through either Q-Sys processing or CXD amplifier platforms
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance.
  • Zoom Rooms Compatible.


• Specifications:

  • Effective frequency range: 60 Hz to 20 kHz
  • Rated noise power / voltage: 150 watts / 35 volts (rms)
  • Broadband sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 105°
  • Directivity factor (Q): 5
  • Directivity Index: 7 dB
  • Maximum continuous SPL: 110 dB
  • Maximum peak SPL: 116 dB
  • Rated impedance: 8 ohms
  • Recommended amplifier power (loudspeaker "program" power): 300 watts
  • Transformer taps: 70 V: 60, 30, 15, 7.5 W and 8Ω bypass
  • 100V: 60, 30, 15 W and 8Ω bypass

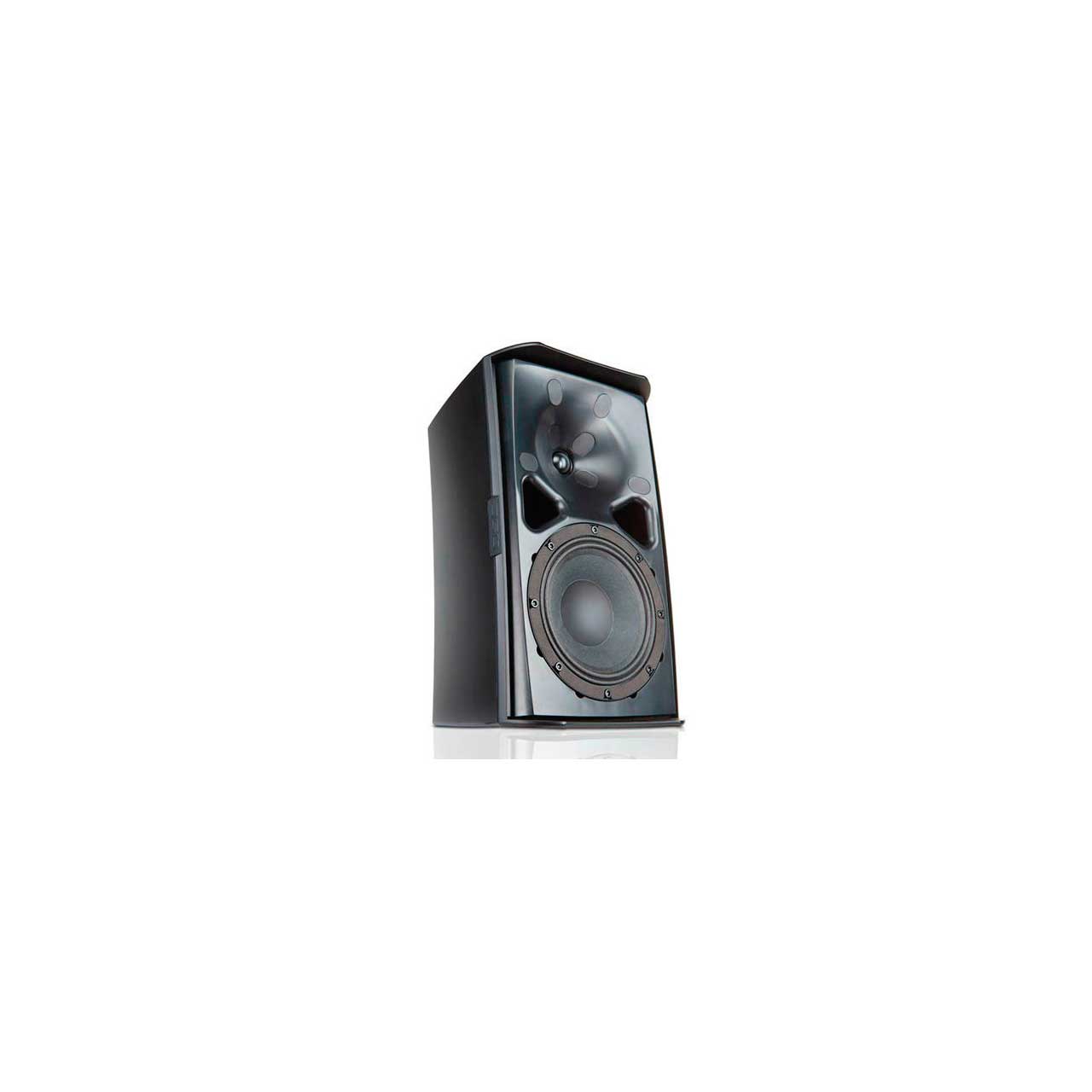

  • HF transducer: 1” silk dome tweeter / 1” voice coil, horn loaded
  • LF transducer: 6” weather resistant paper cone woofer
  • 1.5” / 38 mm voice coil

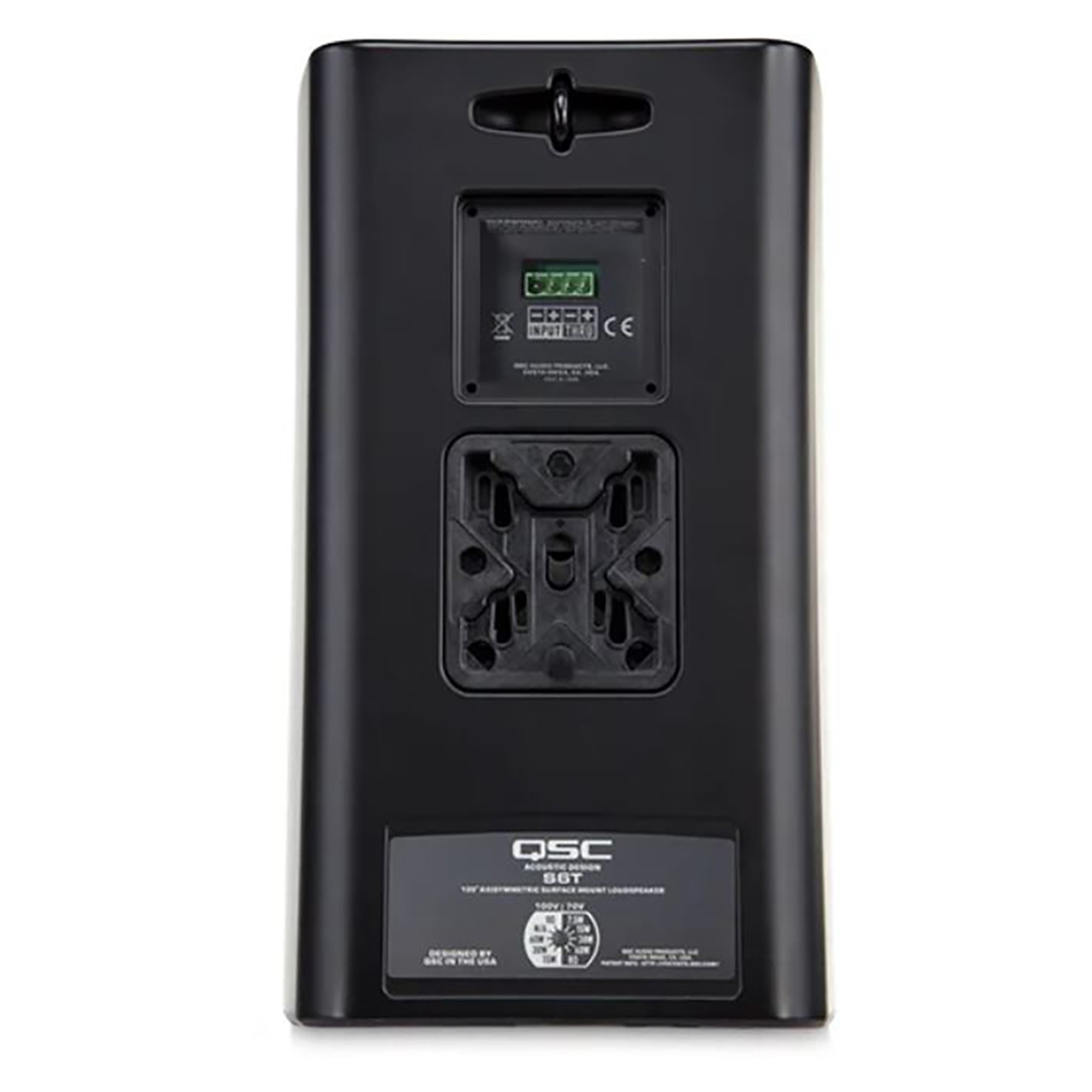

  • Input connector type: Euroblock connector with parallel output
  • Enclosure material: Painted ABS polymer
  • Grille material: Powder coated aluminum
  • X-Mount material: Powder coated aluminum


• GTIN:

  0684284059451
