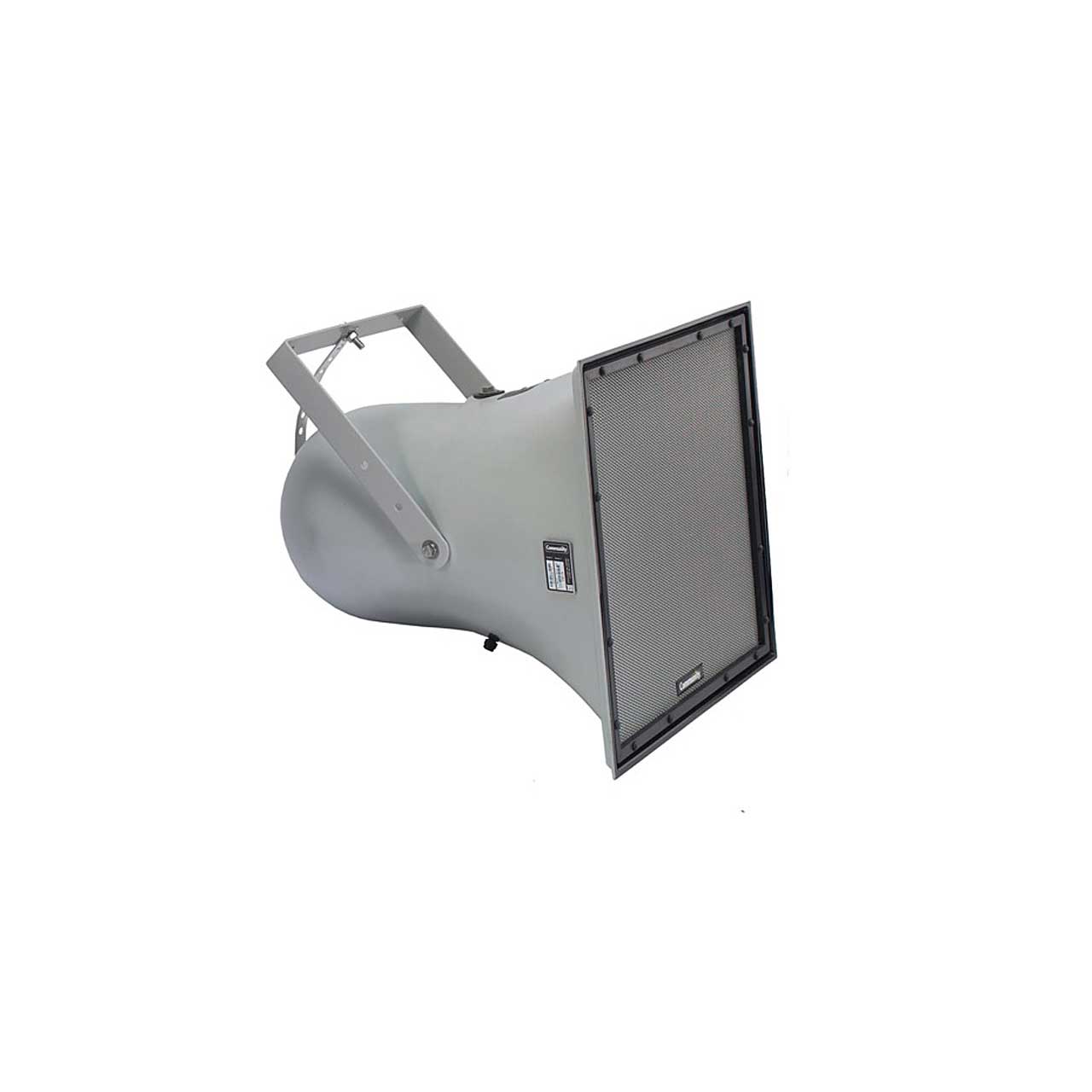

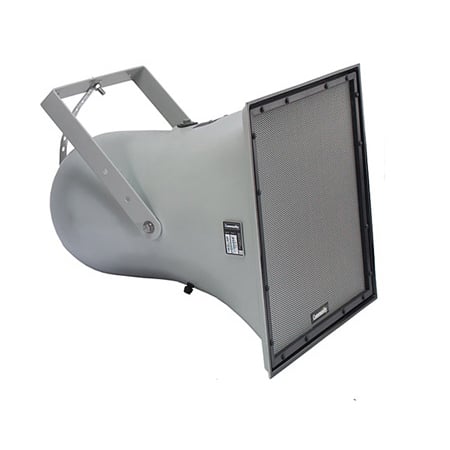

Community R1-66Z Full Range 2-Way 12 Inch Grey 60 x 60 All Weather Loudspeaker

ITEM #: CMTY-R1-66Z MFG #: R1-66Z

Primary Image
Community Pro Loudspeakers
Free Shipping with $49 Minimum Order

Our Price:

$2,862.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

R1-66Z - Overview

The R1-66Z two-way full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensures both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. The R1 loudspeakers are available in two versions. The standard version is weather-ready, with a WeatherStop grille and light grey finish. The BNG version, with black exterior and no grille, is more suitable for indoor applications. A weather-resistant mounting yoke is included.

Applications:
Convention centers, ballrooms, arenas, malls
Athletic fields, small arenas, athletic field houses
Theme and amusement parks
Fairgrounds, rodeos, air shows
Racing tracks, skating rinks, swimming pools
Electronic carillons
Cruise ships
Portable sound systems

  • Features:

    • Weather-resistant, all-fiberglass enclosure
    • Weather-treated drivers and crossovers
    • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
    • Pattern control to below 500 Hz
    • High efficiency
    • Integral mounting points
    • High power passive crossover
    • High-fidelity, full-range reproduction of music and speech
    • Application-specific coverage pattern
    • Optional “indoor” version available with a black enclosure and no grille (model R1-64BNG)


  • Specifications:

    • Loudspeaker Type: 2-way horn loaded coaxial, weather-resistant
    • Operating Range: 90 Hz to 16 kHz, 110 Hz to 10 kHz (±4 dB)
    • Max Input Ratings: 200W continuous, 500W program 40 volts RMS, 89 volts momentary peak
    • Recommended Power Amplifier: 420W to 600W @ 8 ohms
    • Sensitivity (1W/1m): 105 dB SPL (100 Hz to 16 kHz 1/3 octave bands), 106 dB SPL (250 Hz to 4 kHz speech range)
    • Maximum Output: 128 dB SPL / 135 dB SPL (peak)
    • Nominal Impedance: 8 ohms
    • Minimum Impedance: 5.7 ohms @ 230 Hz
    • Nominal –6dB Beamwidth: 60° H (+18° / -20°, 1 kHz to 16 kHz), 60° V (+13° / -16°, 1 kHz to 16 kHz), 100° H x 100° V (400 Hz)
    • Axial Q / DI: 20.3 / 13.1, 1 kHz to 16 kHz
    • Crossover Frequency: 1.2 kHz
    • Recommended Signal Processing: 90 Hz high pass filter
    • Drivers: LF 1 x 12” weather-treated, Ferrofluid-cooled, HF 1 x 1” exit, titanium diaphragm
    • Driver Protection: PowerSense DDP
    • Input Connection: 12 foot (4 m) SJOW #16 gauge
    • Controls: None
    • Enclosure: Hand-laminated fiberglass, light grey gelcoat
    • Mounting/Rigging Provisions: (5) 1/2-13 rigging points
    • Grille: 3-layer WeatherStop, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
    • Required Accessories: 90 Hz high pass filter
    • Dimensions—
    • Height: 24.75 inches
    • Width: 24.75 inches
    • Depth: 29.75 inches
    • Weight (without yoke): 47.5 lbs
    • Weight (with yoke): 55.5 lbs
    • Shipping Weight: 75 lbs


  • Item Includes:

    • 1x - R1-66z Full-Range Loudspeaker System
    • 1/2—13 x 1” stainless steel mounting bolts, each with a lock, flat, and rubber washer (already installed on the enclosure)
    • 1x - Mounting Yoke
    • 1x - Installation/Operation Manual
    • 1x - Warranty Card


  • Warranty:

    • 5 Years
