Community R2-474Z Full-Range 3-Way Dual 12-Inch 40-70 X 40 All-Weather - Grey

ITEM #: CMTY-R2-474Z MFG #: R2-474Z

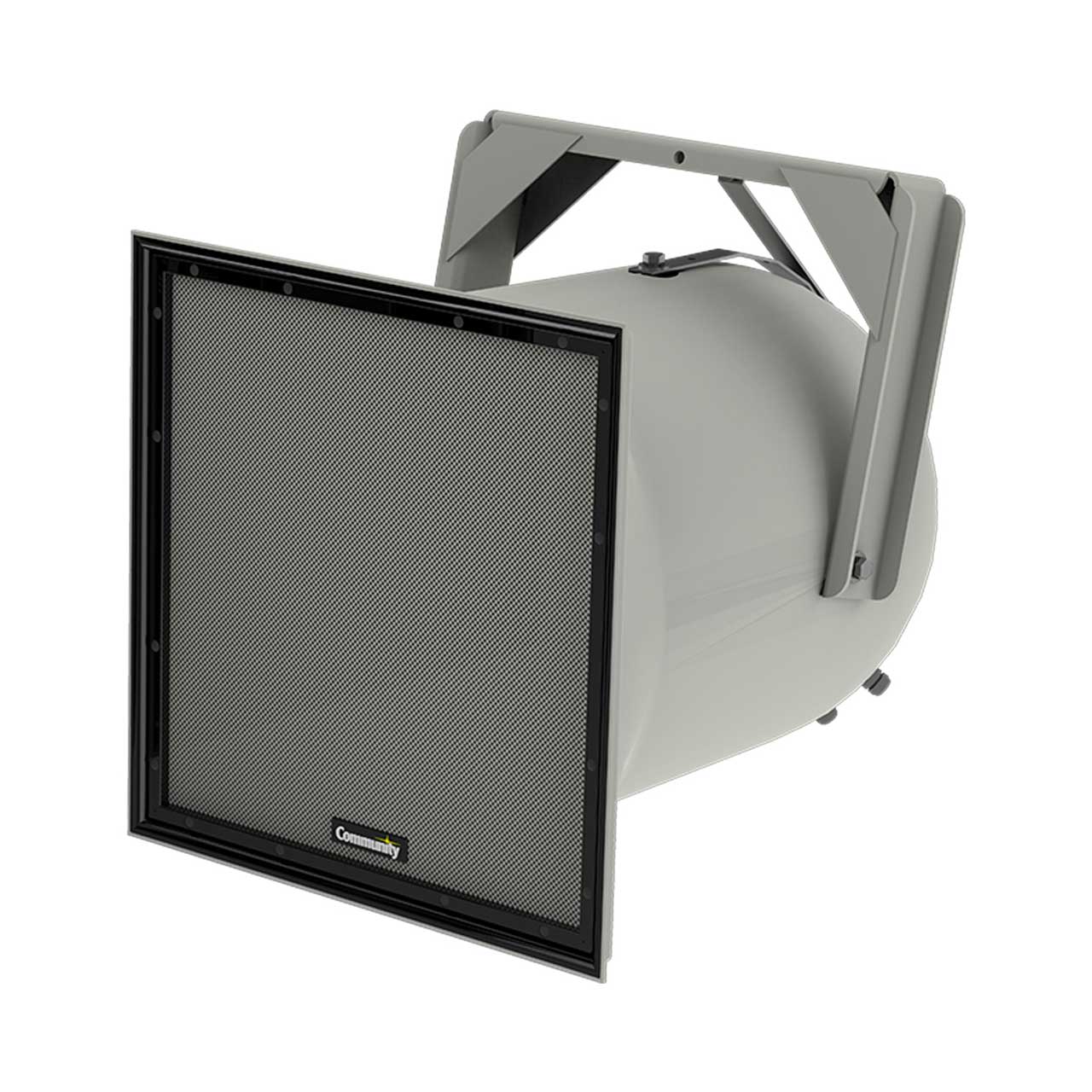

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$4,180.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


R2-474Z - Overview

The powerful three-way R2 system features exceptional pattern control and vocal projection, delivering very high sensitivity and output levels. Community's M200 midrange compression driver and the deep, low flare rate midrange horn produce legendary long distance vocal projection with vocal clarity and extremely low distortion. Wide bandwidth directivity control makes it the ideal choice for taming difficult acoustic environments or achieving precision coverage over long distances. The R2 is available in three symmetric and two asymmetric coverage patterns.

  • Features:

    • Included weather-resistant mounting yoke for easy mounting and aim
    • High-efficiency horn loading
    • Application-specific coverage pattern
    • Weather-treated drivers and crossovers
    • High-fidelity, full-range reproduction of music and speech
    • EN54-24 Certified Models

  • Specifications:

    • Transducers: LF 2 x 12" weather-treated cone; MF 1 x M200; HF - 1 x 1" exit titanium
    • Operating Range: 70 Hz - 16 kHz
    • Sensitivity (1W/1m): 106 dB
    • Power Handling: 400 W continuous @ 4 ohms
    • Continuous Max Output: 132 dB (138 dB Peak)
    • Nominal Beamwidth (H x V): -52 (50° x 20°), -77 (70° x 70°), -94 (90° x 40°), -474 (40-70° x 40°), -694 (60-90° x 40°)
    • Finish: Hand-laminated multilayer fiberglass with paintable, light grey gelcoat and dual-layer powder-coated steel grille
    • Dimensions (H x W x D): 24.8" x 24.8" x 30.8" (629 x 629 x 781 mm)
    • R2-474Z Information shown; R2-52z has 2 x M200 drivers

  • GTIN:

    0617174011598
