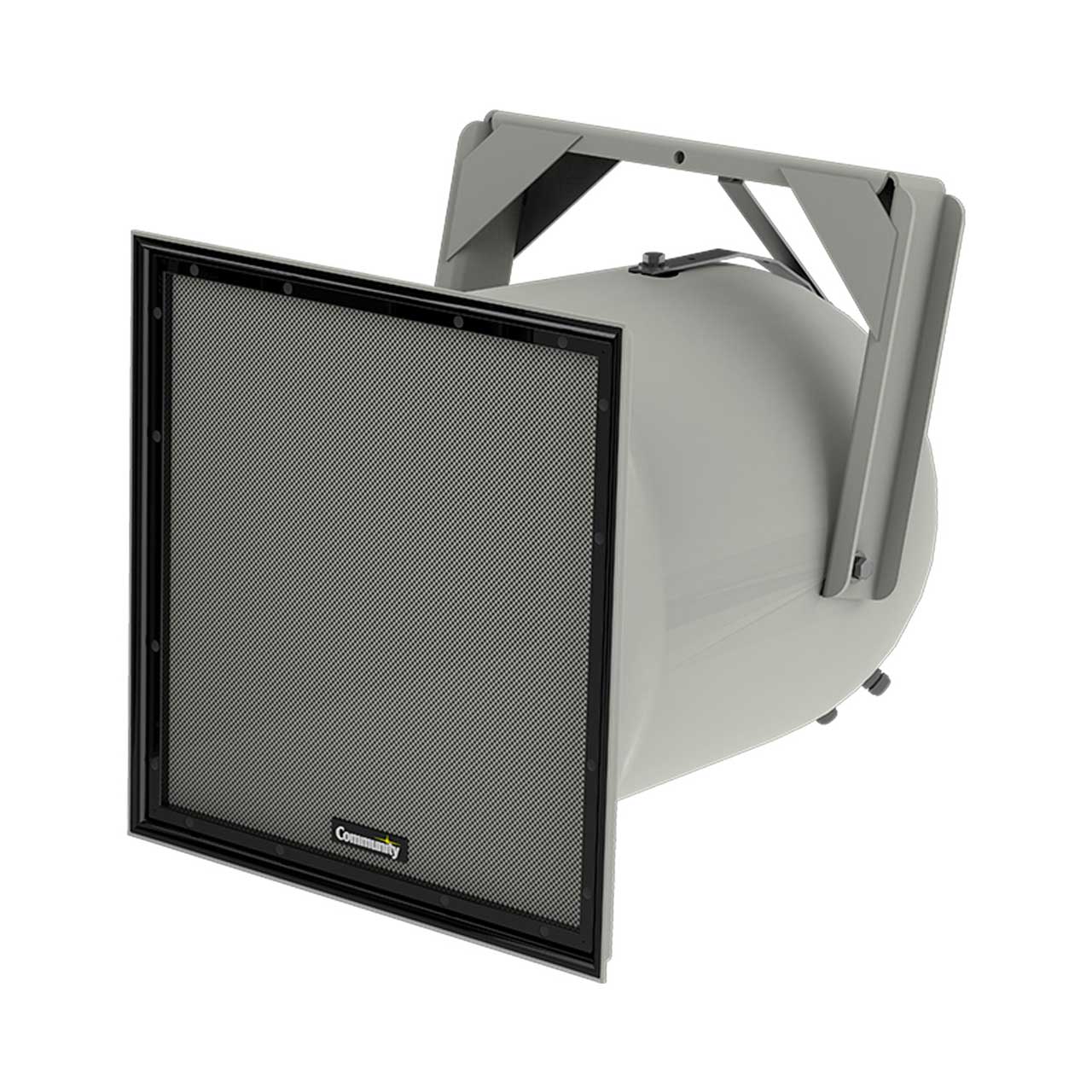

Community R2-66MAX Full-Range 3-Way Dual 12 Inch Grey 60 X 60 High Broadband Output

ITEM #: CMTY-R2-66MAX MFG #: R2-66MAX

Primary Image
Community Pro Loudspeakers
Free Shipping with $49 Minimum Order

Our Price:

$6,052.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

R2-66MAX - Overview

Premium musical performance and extremely high broadband output with a flat passive frequency response. Two-way, 70 Hz - 20 kHz; drivers: LF 1 x 12", HF 1 x 1.4" exit. Weather/UV-resistant rotomolded LLDPE plastic enclosure, 12ft (3.6m) SJOW #16 gauge input cable, five 3/8-16 rigging points, three-layer Weather-Stop grille, steel zinc-rich epoxy dual-layer powder-coated yoke mounting bracket included. Available in standard light grey, black, or white finish. Horn pattern is noted in the model name H° x V°.

  • Specifications:

    • Operating Mode: Biamp
    • Operating Range: 70 Hz to 22 kHz (-10 dB)
    • Frequency Response: 85 Hz to 20 kHz (-3 dB)
    • Maximum Output without EQ3:133 dB (139 dB Peak)
    • Recommended Processing: DSP with CONEQ power response correction
    • Maximum Input Ratings LF:1200W Continuous (98V) / 4800W Peak (196V) MF/HF:150W Continuous (35V) / 300W Peak (70V)
    • Sensitivity LF:103 dB (100 Hz - 500 Hz) MF/HF:108 dB (400 Hz - 18 kHz)
    • Maximum Output (without EQ)3 LF: 134 dB (140 dB peak) MF/HF:130 dB (136 dB peak)
    • Mounting/Rigging Provisions: (5) 1/2"-13 rigging points
    • Steel zinc-rich epoxy dual-layer powder-coated bracket
    • (2) Aluminum aiming straps to secure angle


  • Item Includes:

    • Yoke Bracket


  • GTIN:

    0617174029913
