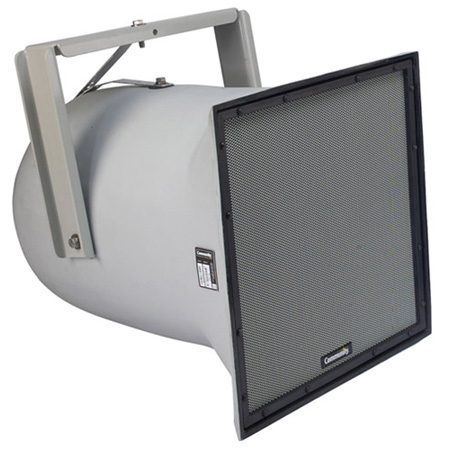

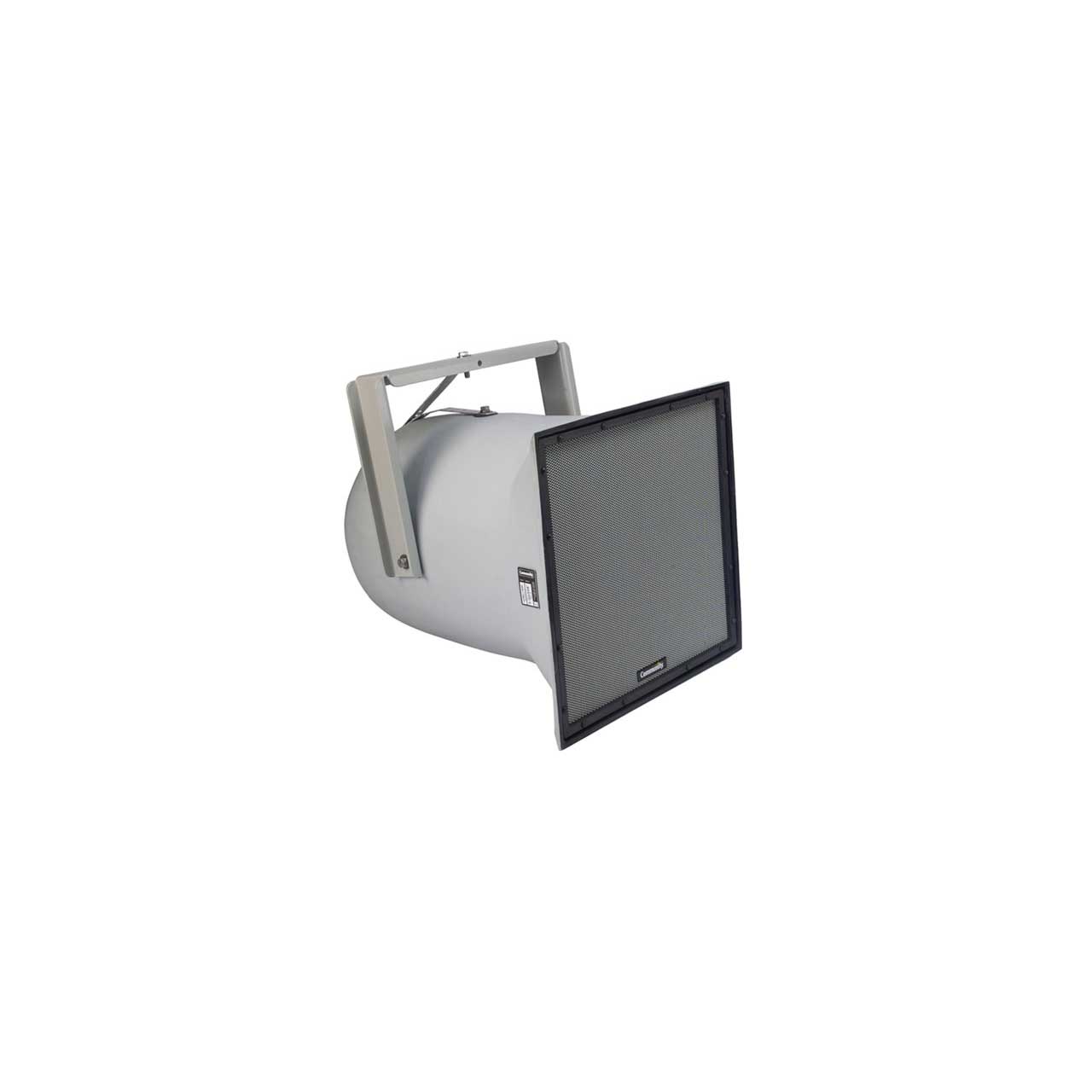

Community Pro Loudspeakers R2-77Z Full-Range 3-Way Dual 12 Inch 60 x 60 All-Weather - White

ITEM #: CMTY-R2-77Z MFG #: R2-77Z

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$4,180.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


R2-77Z - Overview

The Community Pro R2-77Z full-range loudspeaker system is engineered to provide quality, long throw fullrange sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion.

The R2-77Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass. The outer enclosure forms a double wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The mid/high frequency horn assembly is mounted in the mouth of the bass horn. A high quality passive crossover with dynamic driver protection is included. The result is a loudspeaker system that is extremely strong, non-resonant, weather-resistant, and easy to install.

  • Features:

    • High-fidelity, high efficiency, full-range reproduction of music and speech
    • Application-specific coverage pattern
    • 100% weather-resistant and corrosion-resistant construction
    • Included weather-resistant mounting yoke

  • Specifications:

    • Operating Mode Passive
    • Operating Environment Indoor / Continuous outdoor direct exposure
    • Operating Range: 70 Hz to 16.5 kHz
    • Nominal Beamwidth (H x V): 60°x 60°
    • Transducers: LF - 2 x 12" (305mm) weather-treated, Ferrofluid-cooled; MF - 1 x M200 2" exit, non-metallic diaphragm, Ferrofluid-cooled; HF - 1 x 1" exit, titanium diaphram
    • Continuous Power Handling: @ Nominal Impedance 40V 400W @ 4 ohms (1600W peak)
    • Nominal Sensitivity: @ 1W 103 dB; @ 2.83V 106 dB
    • Nominal Maximum SPL(Whole Space): Peak 135 dB; Continuous 129 dB
    • Equalized Sensitivity: @ 1W 103 dB; @ 2.83V 106 dB
    • Equalized Maximum SPL: Peak 135 dB; Continuous 129 dB
    • Recommended Amplifiers: 400W - 800W @ 4 ohms, (40V - 57V)
    • Input Connection: 12 ft (3.6m) SJOW #16 cable
    • Mounting Points: (5) 1/2"-13 threaded rigging points, Steel zinc-rich epoxy dual-layer powder-coated mounting yoke; Aluminum aiming straps to secure angle
    • Environmental: IP55 per IEC 60529, conforms with MIL-STD-810G
    • Dimensions (H x W x D): 24.75 inch x 24.75 inch x 30.75 inch (629 x 629 x 781 mm)
    • Weight: 73 lbs (33.1 kg) loudspeaker only; 96 lbs (43.5 kg) loudspeaker and yoke

  • Warranty:

    • 5 Year
