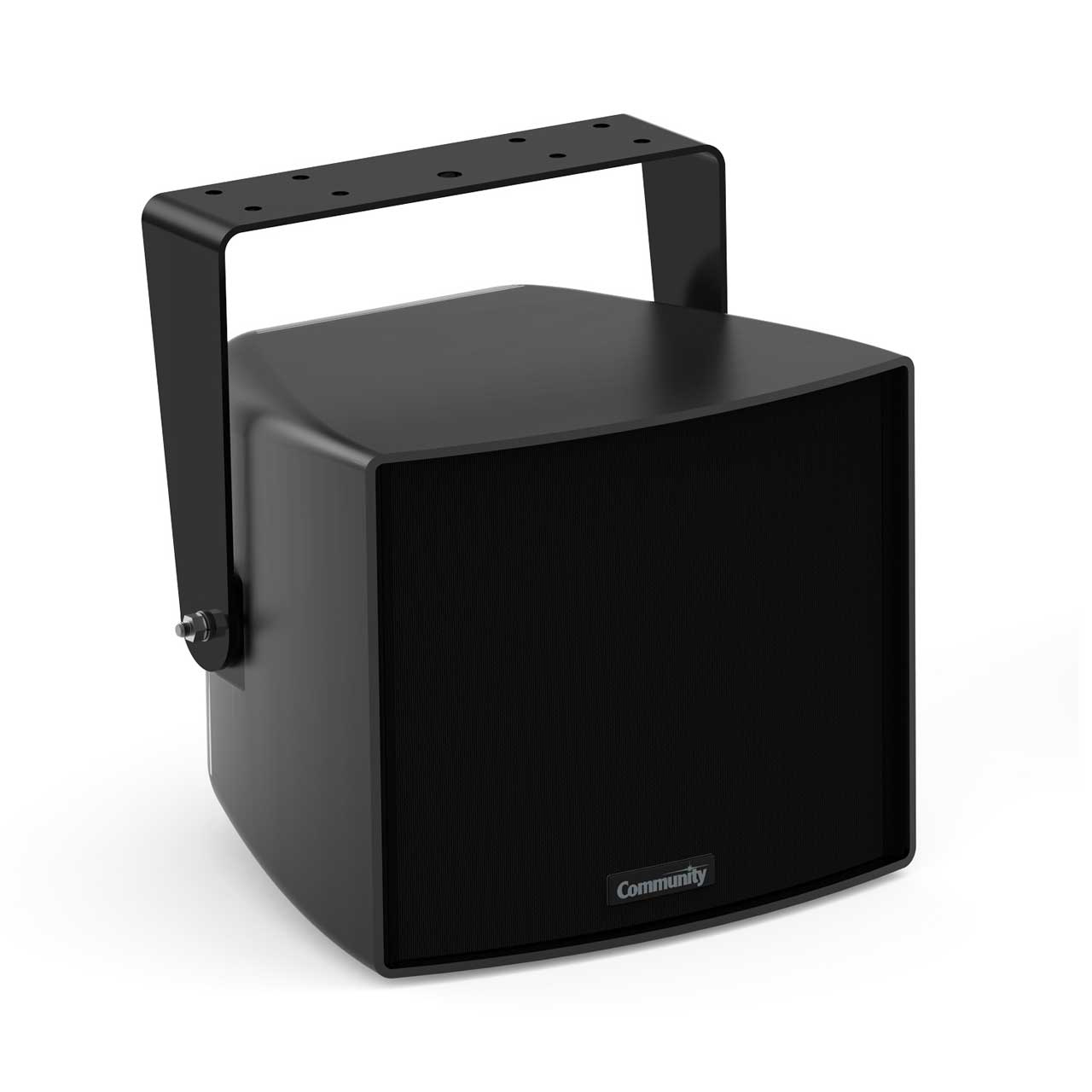

Community R.35COAX Full-Range 2-Way 10 Inch Coax Grey

ITEM #: CMTY-R35COAX MFG #: R.35COAX

Primary Image
Community Pro Loudspeakers
Free Shipping with $49 Minimum Order

Our Price:

$810.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

R.35COAX - Overview

Deep bass, flat musical response, compression driver clarity. Weather/UV-resistant paintable ABS plastic enclosure, two M8 rigging points, integral safety cable mounting point, selectable 8 ohm or 70V/100V operation, NL4-type connector and 2-position terminal strip, Music/Speech switch, three-layer Weather-Stop grille featuring NeverWet* protection, zinc-rich epoxy dual-layer powder-coated yoke mounting bracket included. Available in standard light grey, black, or white finish.

  • Specifications:

    • Operating Range: 70 Hz to 16 kHz (-10 dB)
    • Frequency Response: 110 Hz to 12.5 kHz (-3 dB)
    • Max Input Ratings: 200W RMS, 400W Program 40 volts RMS, 80 volts momentary peak
    • Autoformer Taps - 70V: 200W, 100W, 50W, 25W and low impedance
    • Maximum Output: 120 dB (126dB peak)
    • Sensitivity (1W / 1m) 97 dB (125 Hz - 10 kHz)
    • Crossover Frequency: 1.3 kHz
    • Recommended High Pass: 70 Hz 24 dB / Octave
    • Recommended Amplifier : 400W to 600W at 8 ohms
    • Mounting/Rigging Provisions: Two M8 rigging points, zinc-rich epoxy DLPC yoke, included integral safety cable mounting point


  • Item Includes:

    • Yoke Bracket


  • GTIN:

    0617174017279
