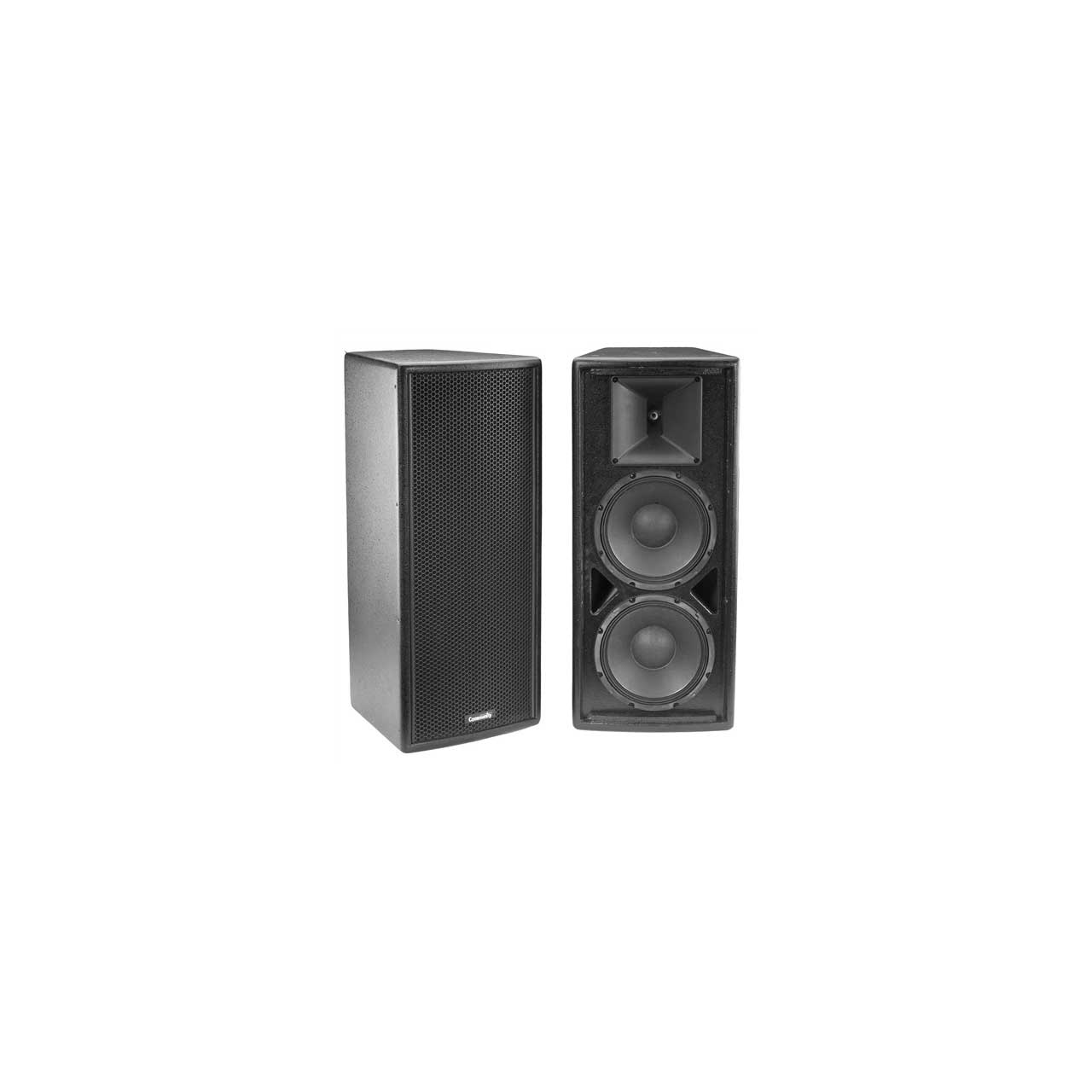

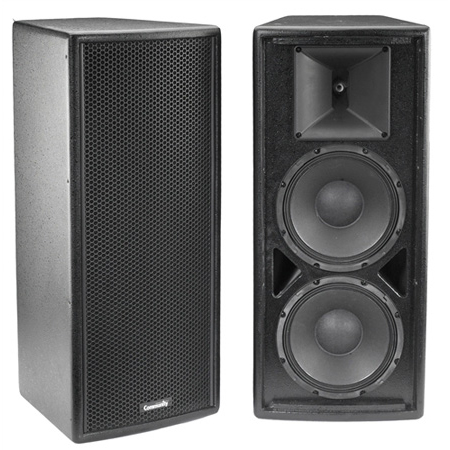

Veris 2 Full-Range 2-Way Dual 8 Inch Black 90 X 70 70V/100V

ITEM #: CMTY-V2-28BT MFG #: VERIS 2 V2-28BT

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$970.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VERIS 2 V2-28BT - Overview

The V2-28 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. This versatile unit is ideal for distributed systems such as those found in caf‚s, restaurants, shopping centers and airports. With its powerful dual cone drivers, the V2-28 provides additional low frequency and midrange output over that of its sister product, the V2-8. When paired with a subwoofer such as the V2-210S, a V2-28 system will produce high-fidelity, broad spectrum sound that belies its modest size. In addition to distributed systems, the V2-28 is an excellent choice for ancillary delay applications. When used to augment a front-of-house system in venues such as auditoria, theaters and houses of worship, delay loudspeakers can significantly even out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-28 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation. The V2-28 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

An optional model with a built-in 200W autoformer with taps at 200W, 100W, 50W and 25W (model V2-28T) is also available from the factory - please call your sales representative for further details.

  • Features:

    • DYNA-TECH driver protection circuitry
    • Ferrofluid-treated HF driver for improved heat dissipation
    • Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
    • Constant-directivity rotatable square horn
    • Frequency shaded woofers for smooth vertical pattern control
    • Terminal strip and NL4-compatible connectors
    • Available in standard black or white finishes
    • Mounting yoke included with 10° and 20° vertical standoffs
    • Optional V2-28T autoformer model for 70V/100V applications

  • Specifications:

    • Loudspeaker Type: Compact two-way, full-range, trapezoidal, vented bass, frequency shaded LF, user rotatable horn
    • Operating Range: 60 Hz to 18 kHz (-10 dB)
    • Frequency Response: 90 Hz to 16 kHz (±3 dB)
    • Max Input Ratings: 300W continuous, 750W program 34.6 volts RMS, 69.2 volts momentary peak
    • Sensitivity (1W/1m): 94 dB (100 Hz to 12.5 kHz) free space
    • Maximum Output: 119 dB SPL / 125 dB SPL (peak)
    • Nominal Impedance: 4 ohms
    • Minimum Impedance: 3.4 ohms @ 200 Hz
    • Nominal -6dB Beamwidth: 90° H x 70° V (in vertical position)
    • Crossover Frequency: 1.3 kHz
    • Recommended Signal Processing: 70 Hz, 24 dB/octave Butterworth high pass filter
    • Drivers: LF 2 x 8-inch cone HF 1 x 1-inch
    • Driver Protection: DYNA-TECH protection circuitry
    • Input Connection: NL4-compatible locking connector with terminal strip in parallel
    • Controls: None
    • Enclosure: Trapezoidal (22.5° included angle) 18mm, 11-ply cross-laminated birch
    • Mounting/Rigging Provisions: 9 x M6 threaded rigging fittings
    • Mounting/Rigging Provisions: 4 x M6 threaded fittings for V-HSS
    • Mounting/Rigging Provisions: 4 x M8 for third-party suspension products
    • Finish: Catalyzed polyester two-part paint, black or white
    • Grille: Powder coated steel, black or white finish
    • Required Accessories: None
    • Supplied Accessories: Yoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
    • Dimensions-Height: 25.5 inches (649 mm)
    • Width: 11.3 inches (287 mm)
    • Depth: 11.7 inches (298 mm)
    • Weight (incl. bracket): 36.7 lbs (16.7 kg)
    • 38.7 lbs (17.7 kg) with autoformer
    • Model Options:
    • V2-28B (low impedance, black finish)
    • V2-28W (low impedance, white finish)
    • V2-28BT (built-in autofomer for 70V100V applications, black finish)
    • V2-28WT (built-in autofomer for 70V100V applications, white finish)

  • GTIN:

    0617174016340
