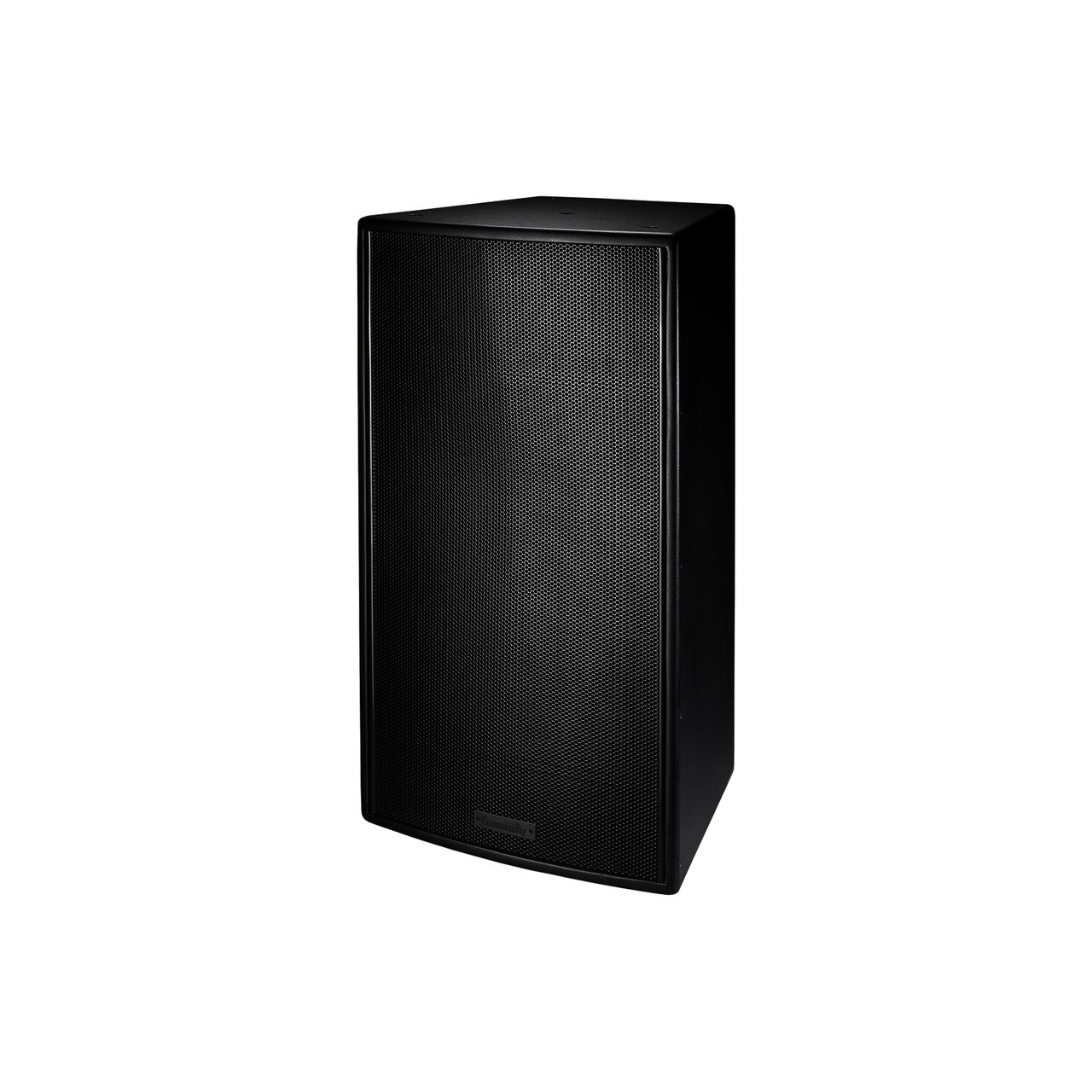

Community V2-3594B Veris 2 15 Inch 3-Way Full-Range Loudspeaker System - 90 Degree x 40 Degree - Black

ITEM #: CMTY-V2-3594B MFG #: V2-3594B

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,596.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


V2-3594B - Overview

Ideal for Applications such as Contemporary Worship Services, Music and Dance Clubs and Theatrical Sound Reinforcement

The Community V2-3594 is a three-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Featuring horn loaded midrange and high-frequency drivers, the V2-3594 provides improved pattern control over two-way designs, making it well suited when intelligibility and musical clarity prove challenging, such as in large, reverberant spaces. The 90° x 40° pattern provides controlled coverage, particularly useful in rooms that are wider than they are deep. Extremely powerful with exceptionally low distortion, the V2-3594 is ideal for applications such as contemporary worship services, music and dance clubs, theatrical sound reinforcement, and other demanding work.

Its trapezoidal design allows it to be clustered with like units, forming powerful arrays. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware available from Community, or it may be installed using a third-party mounting device. Featuring extended high frequency response, low distortion output, a tight, punchy bass response, and precise pattern control, the V2-3594 is a versatile performer for use in music and speech applications that require high quality, high power sound reinforcement at an affordable price. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

Applications:
Houses of worship
Clubs and discos
Theaters
Performing arts centers
Gymnasiums
Fitness centers

  • Features:

    • Discreet and aesthetic trapezoidal enclosure
    • Optimized voicing for full-range reproduction
    • DYNA-TECH™ driver protection circuitry
    • Ferrofluid-treated HF driver for improved heat dissipation
    • Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability in LF driver
    • Terminal strip and NL4-compatible connectors
    • User rotatable horn
    • Multiple bracket options offer affordable arraying solutions
    • Included in Community's Forecaster HD ceiling distributed system software
    • Available in standard black or white finishes

  • Specifications:

    • Loudspeaker Type: Three-way, full-range, trapezoidal, vented bass, user rotatable horn
    • Operating Range: 55Hz - 18kHz (-10dB)
    • Frequency Response: 70Hz - 16kHz (-3dB)
    • Max Input Ratings: 200W continuous, 500W program 40 volts RMS, 80 volts momentary peak
    • Sensitivity (1W/1m): 99dB (100Hz - 12.5kHz) free space
    • Maximum Output: 122dB SPL/128dB SPL (peak)
    • Nominal Impedance:
    • Minimum Impedance: 5.6Ω @ 1400Hz Nominal -6dB
    • Beamwidth: 90° H x 40° V (in vertical position)
    • Crossover Frequencies: 600Hz/3kHz
    • Recommended Signal Processing: 60Hz, 24dB/octave Butterworth high pass filter
    • Drivers:
      - LF 1 x 15" cone
      - MF 1 x 6.5"
      - HF 1 x 1"
    • Driver Protection: DYNA-TECH protection circuitry
    • Input Connection: NL4-compatible locking connector with terminal strip in parallel
    • Controls: None
    • Enclosure: Trapezoidal (22.5° included angle) 18mm, 11-ply cross-laminated birch
    • Mounting/Rigging Provisions:
      - 13x M10 threaded rigging fittings
      - 4x M8 threaded fittings for third-party suspension products
    • Finish: Catalyzed polyester two-part paint, black or white
    • Grille: Powder coated steel, black or white finish
    • Required Accessories: None
    • Supplied Accessories: None
    • Optional Accessories Sold Separately:
      - VB-Y35 U-shaped yoke bracket
      - VB-VY35 vertical yoke bracket
      - CMKIT ceiling mount kit
      - VB-TILT tilting bracket
      - VB-VST versatilt bracket
      - VFKIT vertical flying kit
      - M10EYBLTKIT 10mm eyebolt kit
      - STKIT seat track kit
    • Dimensions (HxWxD): 32.4" x 18.4" x 15.9" (823mm x 467mm x 404mm)
    • Weight: 59.5lbs (27kg)
    • Model Options:
      - V2-3594B (Black finish)
      - V2-3594W (White finish)

  • Item Includes:

    • 1x Community V2-3594B Loudspeaker with 13x M10 threaded rigging fittings and 4x M8 threaded fittings for third-party suspension products (Mounting Options sold separately)

  • Warranty:

    • 5-Years

  • GTIN:

    0617174016517
