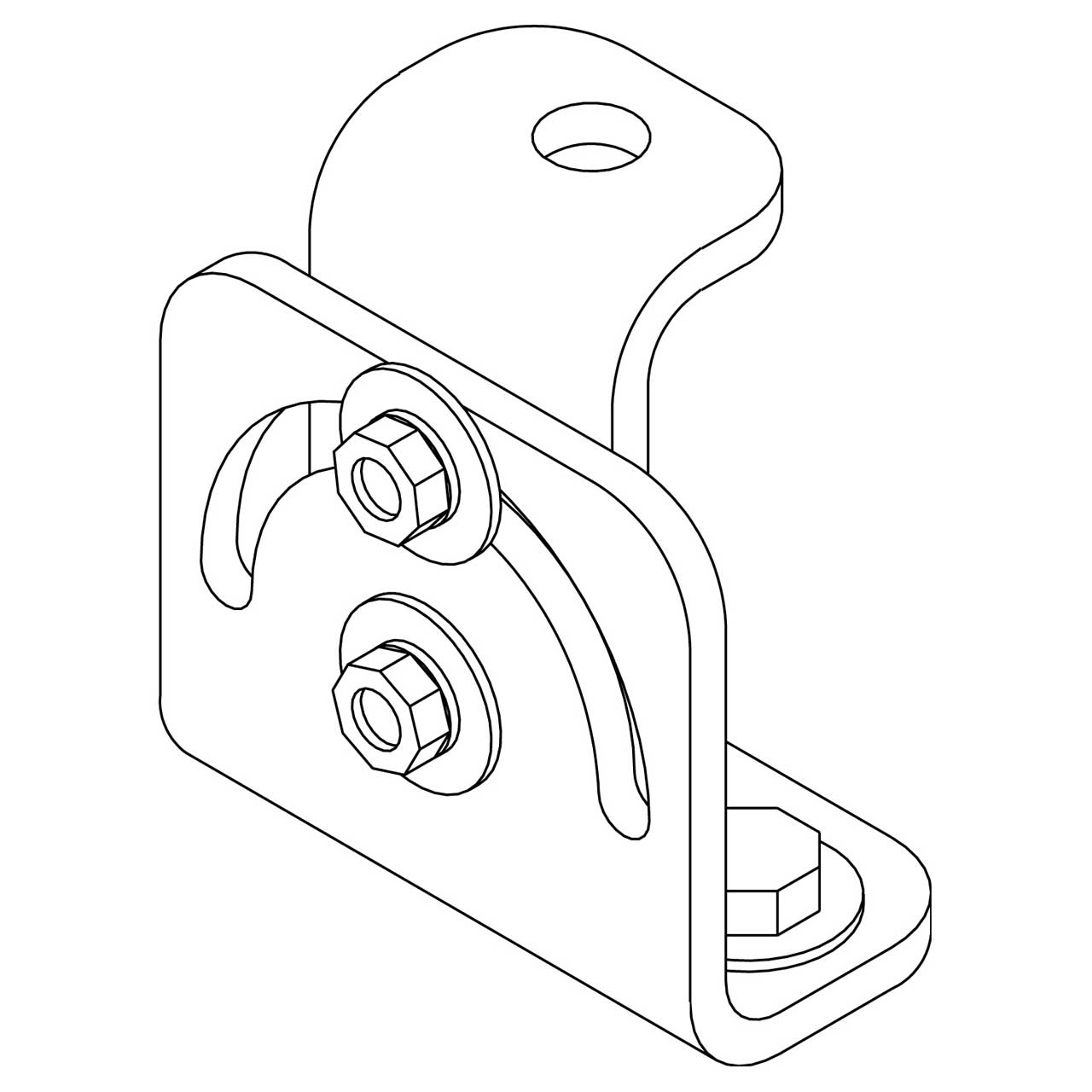

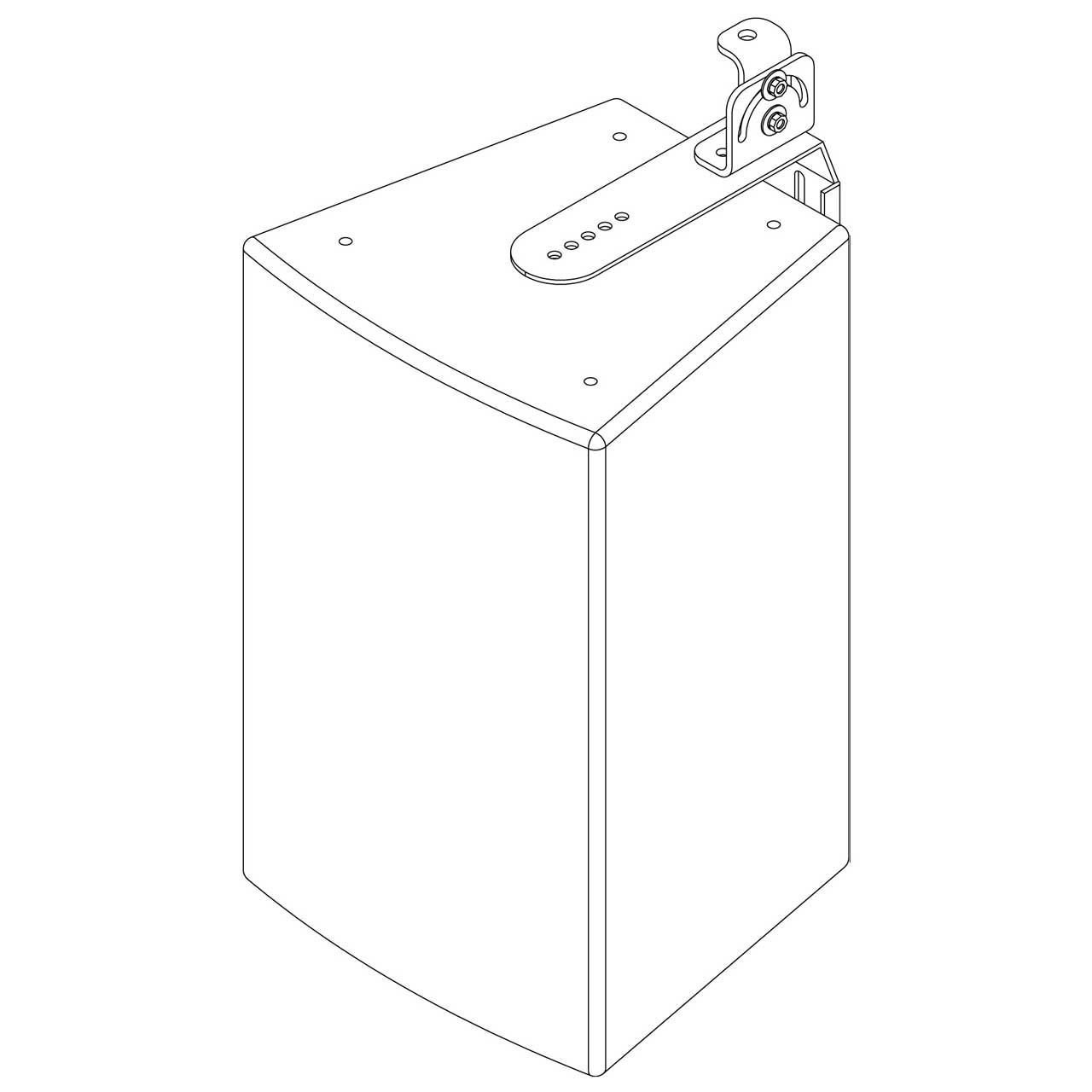

The VB-TILT Tilting bracket is specifically designed for use with the Community VERIS 2 Series of installation loudspeakers. It is a two-part rotational device that fastens to a yoke bracket or to other hardware, enabling precise angling of one VERIS 2 loudspeaker enclosure in relation to another. It can be used with all full-range VERIS 2 loudspeakers (models V2-6, V2-8, V2-26, V2-28, V2-12, V2-15, V2-32 and V2-35).
The VB-TILT is intended to be a versatile building block allowing the installer to develop and configure custom mounting solutions to suit the needs of varied applications. It can be used to hang and aim single cabinets from an overhead suspension point or to hang smaller downfill cabinets underneath main loudspeakers or loudspeaker clusters.

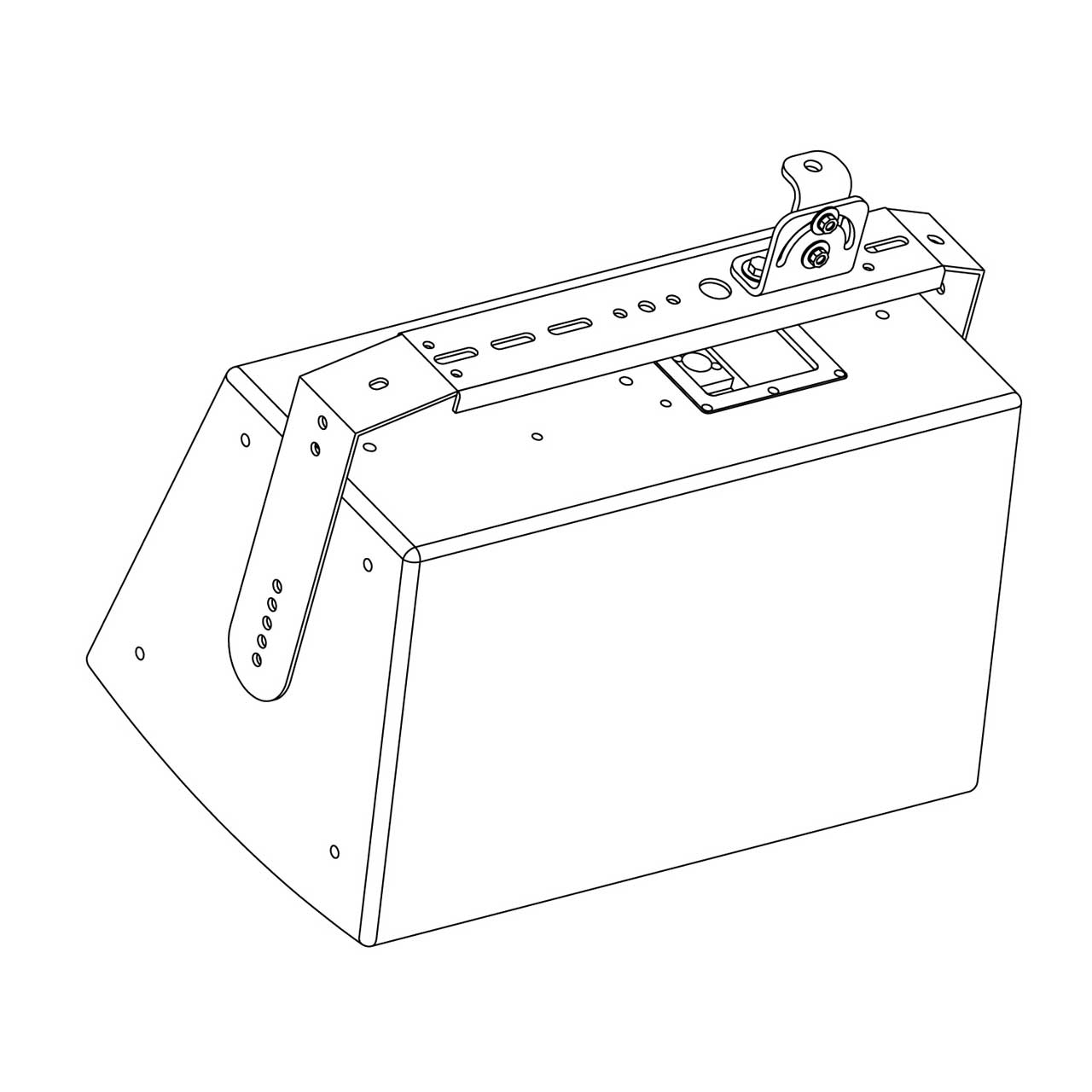

It is strongly recommended that the VB-TILT bracket be used in conjunction with a VERIS 2 horizontal mounting yoke or CMKIT ceiling mount kit as listed in Table 1. All VERIS 2 yokes are designed to accept the VB-TILT bracket and provide a wide range of aiming and tilting options. The VB-TILT bracket attaches directly to the yoke, permitting one loudspeaker enclosure to be angled in relation to another in two axes.
It is also possible to mount the VB-TILT bracket directly to an enclosure rigging point on large VERIS 2 models V2-12, V2-15, V2-32 and V2-35. However, caution must be taken not to place undue torque on the fitting or to exceed the single point working load limit. Each enclosure rigging point is rated at 100 lbs working load limit (WLL) with a 10:1 safety ratio.
