Community VB-Y15 Wall/Ceiling Yoke Bracket for V2-15 - Black

VB-Y15 - Overview

• Features:

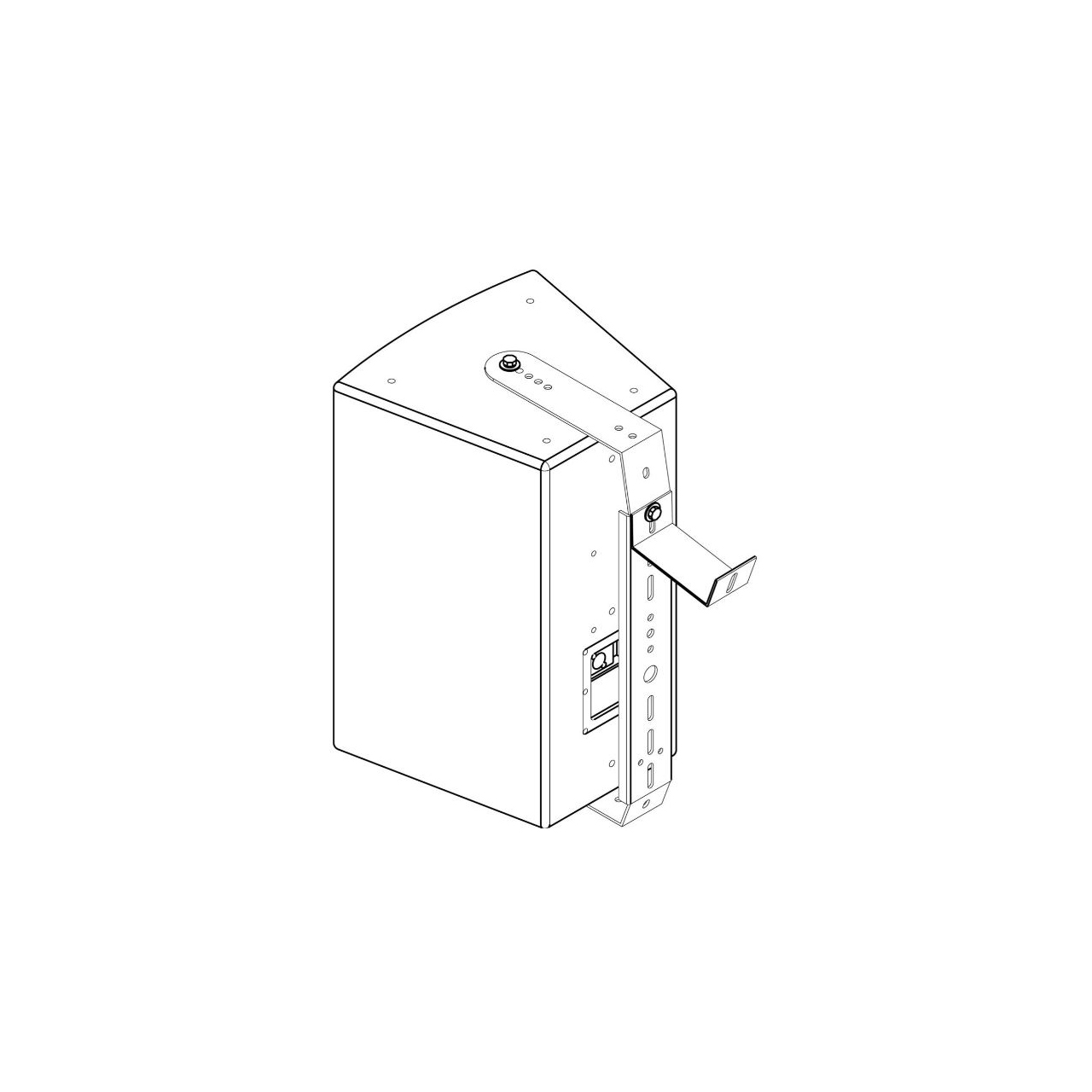

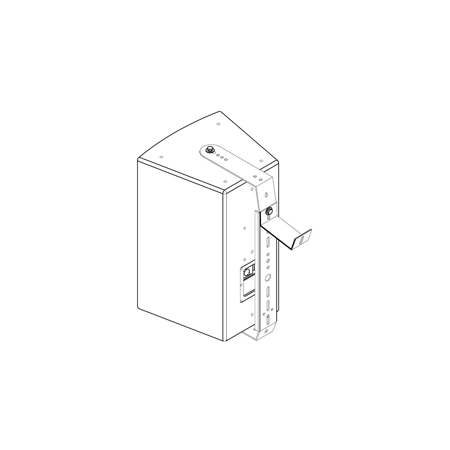

  • U-shaped yoke mounting brackets with optional 10° and 20° standoffs

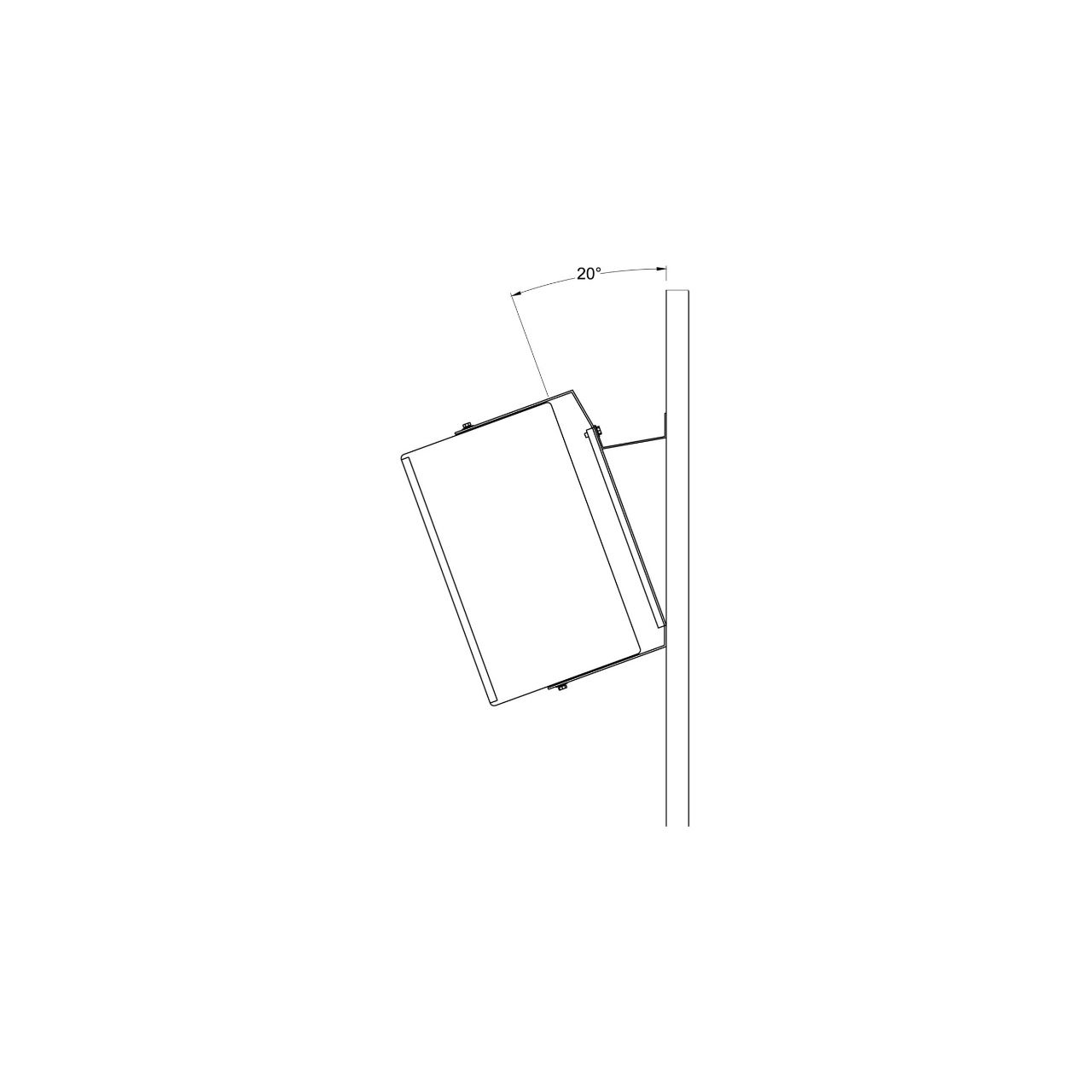

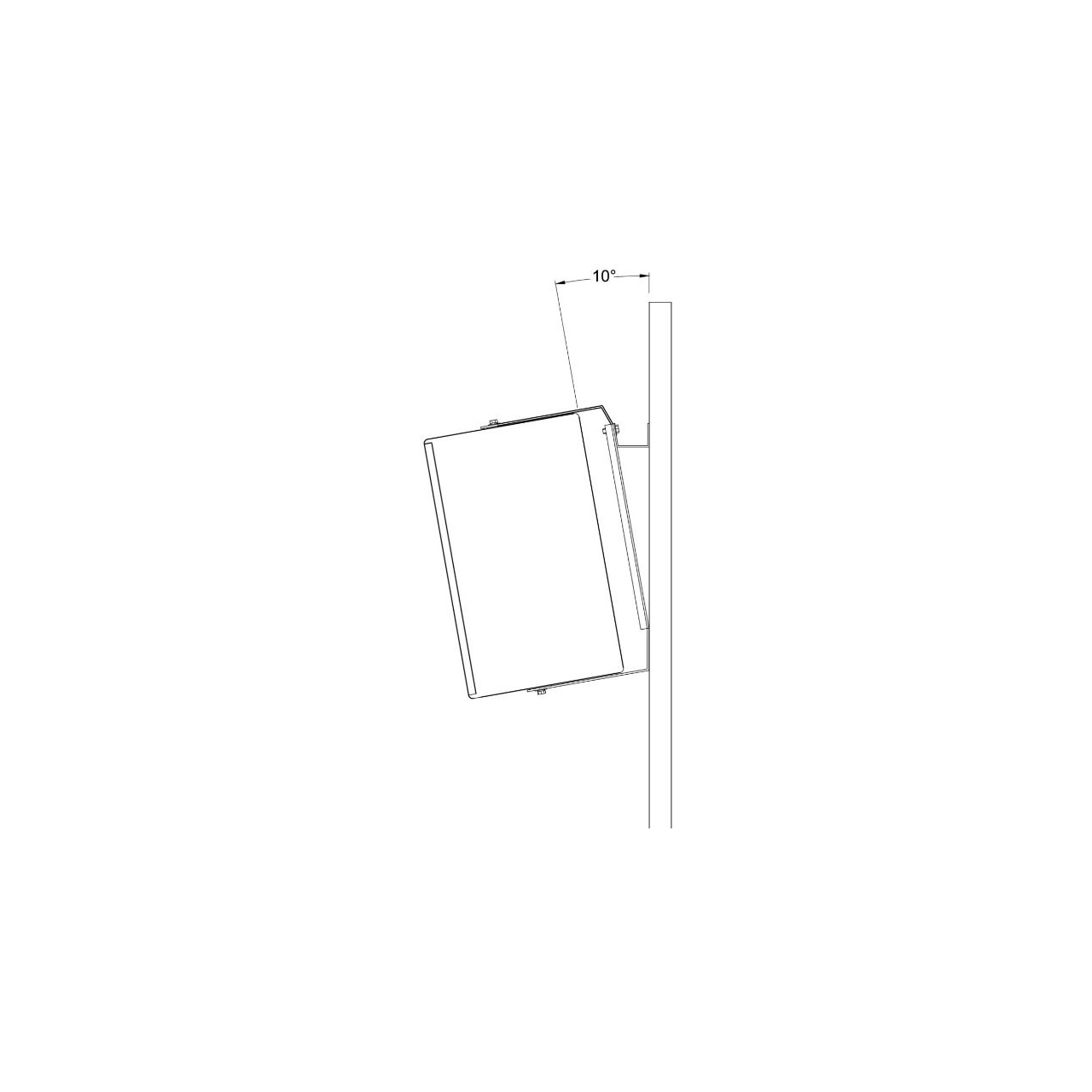

  • Allow direct horizontal and vertical (0°) mounting to a wall or ceiling, as well as a 10° or 20° downward or upward vertical tilt
  • Also used in conjunction with other VERIS 2 mounting accessories
  • Yoke Mounting Bracket is sold separately for large VERIS 2 models V2-12, V2-15, V2-32 and V2-35
  • Available in black or white finishes

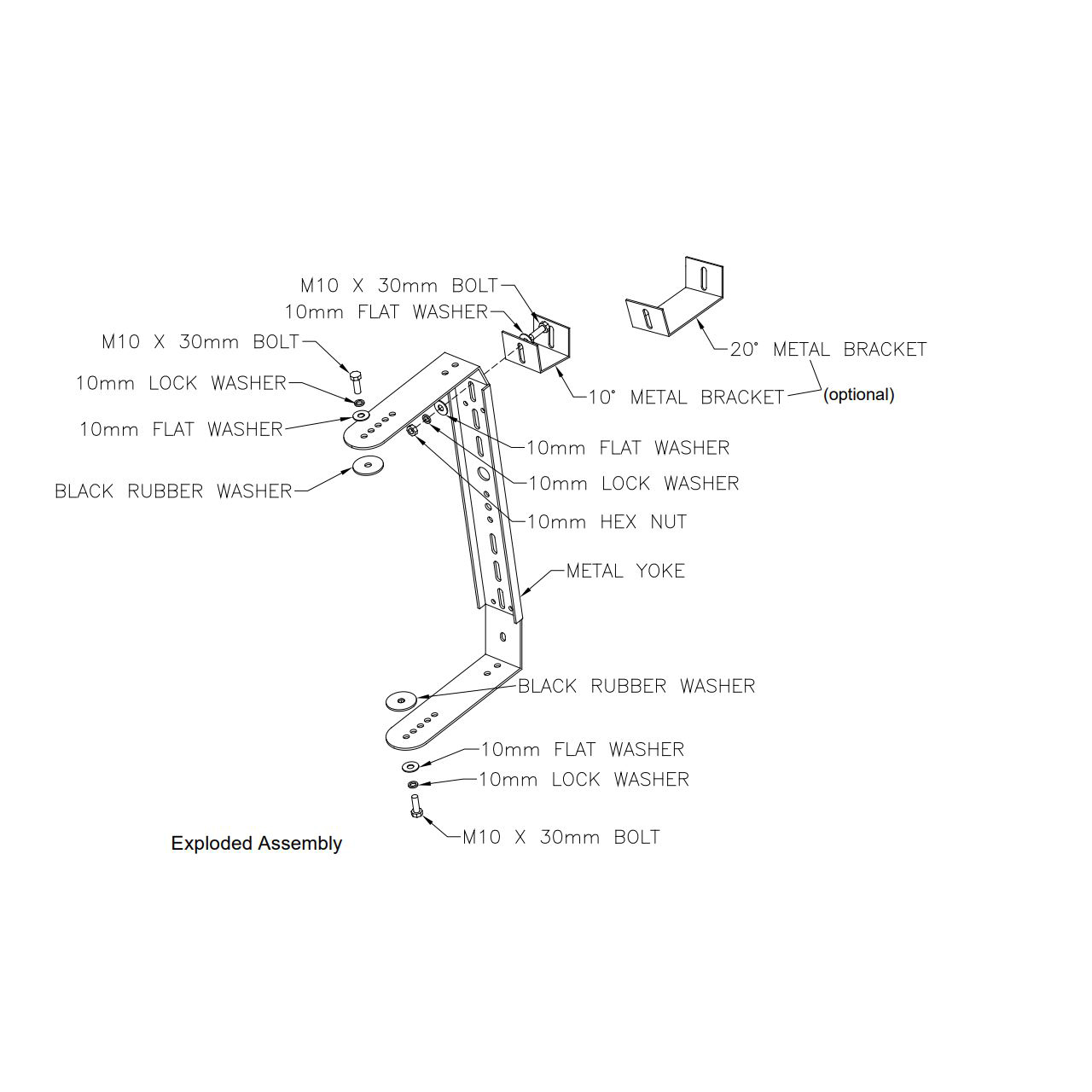

• Item Includes:

  • 1x Metal Yoke Veris (15 inch black)
  • 1x Metal Bracket Lg 10° Veris (color-matched)
  • 1x Metal Bracket Lg 20° Veris (color-matched)
  • 2x Washer 7/16" ID x 2" OD x 1/8"
  • 3x 10mm x 1.5mm x 30mm Hex Head Bolt
  • 4x Flat washer 10mm
  • 3x Lock washer 10mm
  • 1x 10mm x1.5mm Hex Nut Gr 5


• Warranty:

  • 5-years
