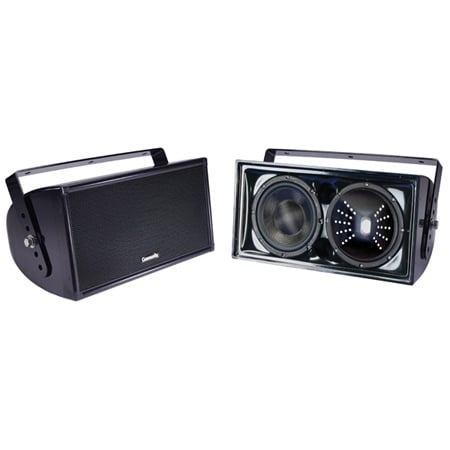

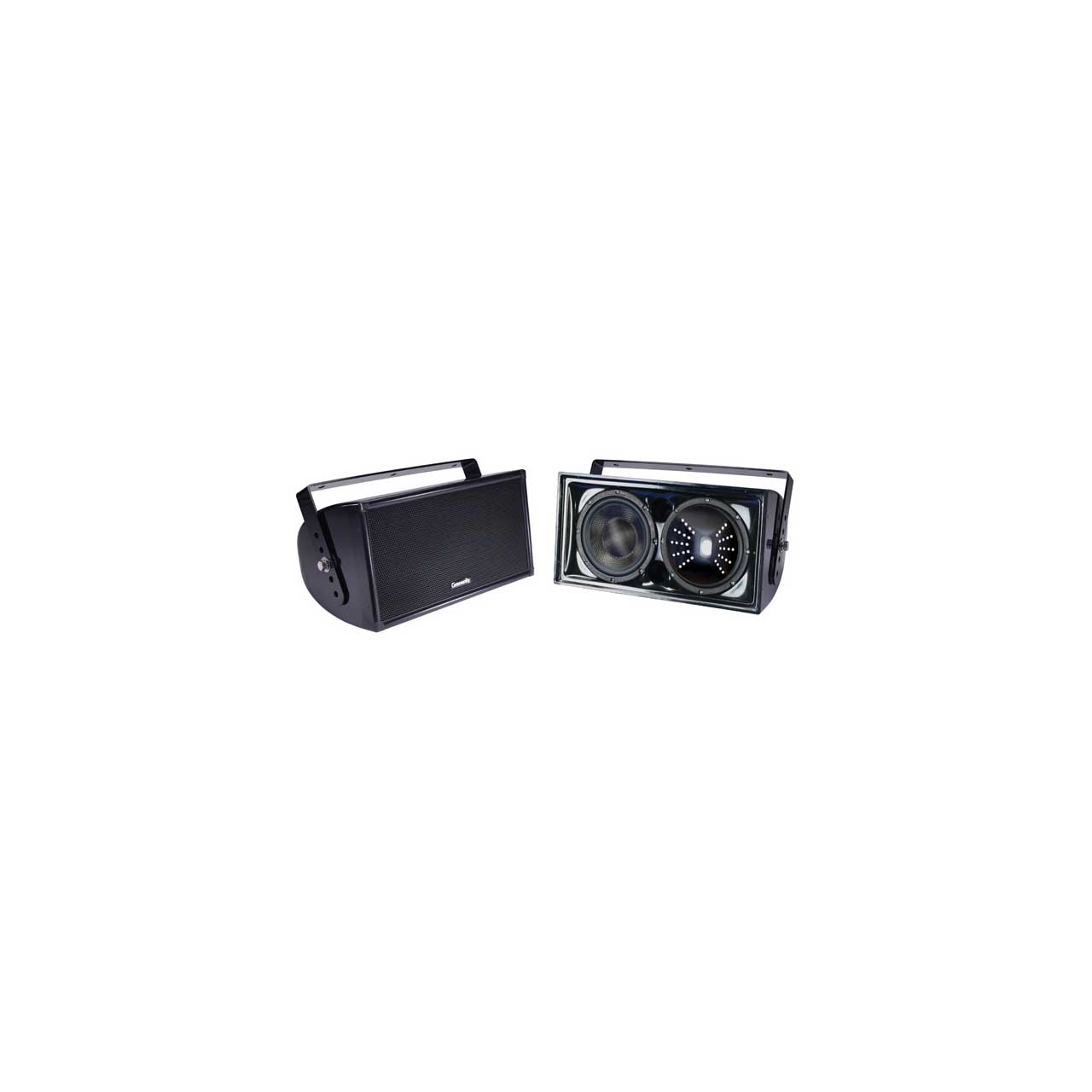

Community W2-228T All-Weather Outdoor Full-Range Quase 3-Way 8-Inch Black 85 x 85 70V/100V - Black

ITEM #: CMTY-W2-228T MFG #: W2-228T

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,600.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


W2-228T - Overview

As a quasi three-way, full-range loudspeaker system, the W2-228 provides three-way performance in a compact form-factor. It includes 8" LF and 8" MF / LF cones made of carbon fiber. The coaxially mounted 1" HF driver has weather-resistant, non-metallic, non-resonant polyimide diaphragm Drivers are Ferrofluid-cooled to improve heat transfer, resulting in higher power handling and reduced distortion. The W2-228 is ideal for short throw applications where both full-range reproduction and high weatherresistance are needed, providing an uncompromised musical system in a compact, attractive package.Engineered for permanent installation, the loudspeaker enclosure and faceplate are constructed of multi-layer glass composite, resulting in extreme structural strength. A three-layer Weather-StopT grille provides weather-resistance to the internal components, while all exposed hardware is stainless steel or powder-coated aluminum extrusion. A weather-resistant stainless steel mounting yoke is included. An optional "autoformer" version(model W2-228T) is available, with a built-in 200-watt autoformer for 70V/100V lines with selectable taps at 200W, 100W, 50W and 25W. The W2-228 is backed by a five year product warranty plus a fifteen-year enclosure warranty.

Please Note: this is the optional "autoformer" version (model W2-228T) with a built-in 200-watt autoformer for 70V/100V lines with selectable taps at 200W, 100W, 50W and 25W.Applications:
Theme and Amusement Parks
Outdoor Entertainment Centers Cruise Ships
Stadium Fill
Music Pavilions
Musical Fountains
Water Parks

  • Features:

    • All-Weather, Multilayer Glass Composite Enclosure
    • Weather Inert Driver Diaphragms
    • Stainless Steel Hardware
    • Integral Mounting Points
    • High Power Passive Crossover
    • Ferrofluid-Cooling
    • Dual-layer Powder Coated Weather-Resistant
    • Stainless Steel Grille and Yoke
    • Mounting Yoke Included

  • Specifications:

    • Format: Quasi three-way, wide angle,
    • full-range
    • Operating Range: 70 Hz - 18 kHz
    • Frequency Response: 80 Hz - 15 kHz (_}3 dB)
    • Dispersion (-6 dB): 85o H x 85o V
    • Maximum SPL @1m: 120 dB continuous / 127 dB peak
    • Crossover Frequency: 2 kHz
    • Sensitivity in SPL:
    • (1W/1m, free space)
    • 96 dB (100 Hz - 13 kHz, 1/3 octave)
    • 96 dB (250 Hz - 4 kHz, speech range)
    • Max Power Handling:
    • Autoformer Version:
    • 70V Taps
    • 100V Taps:
    • 250W RMS
    • 600W Program
    • 200W, 100W, 50W and 25W
    • 200W, 100W and 50W
    • Impedance: Nominal 4Ÿ / 3.2Ÿ at 180Hz
    • TRANSDUCERS
    • Low Frequency: 8" Carbon Fiber (203 mm)
    • Low/Mid-Frequency: 8_h Carbon Fiber (203 mm)
    • High Frequency: 1" Non-Metallic (25.4 mm)
    • MECHANICAL
    • Enclosure: Hand-laminated fiberglass
    • Finish: Black or white gelcoat
    • Rigging Provisions: Two 1/2-13 rigging points;
    • yoke bracket included
    • Input Connection: 16-2 SJOW (12 ft / 4m)
    • 18-5 SJOW T-Version
    • Grille: Three-layer Weather-StopTM
    • Dimensions:
    • H x W x D
    • 10.13" (257 mm) x 20" (508 mm) x
    • 11.5" (292 mm)
    • Net Weight: 36 lbs / 16.3 kg

  • GTIN:

    0617174011284
