Clark CN426C5TFS-1000 Ultra Flexible Rugged Shielded Tactical Cat 5E STP 4-pair Cable - Black - 1000 Foot

ITEM #: CN426C5TFS-1000 MFG #: CN426C5TFS-1000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Clark Wire & Cable
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

CN426C5TFS-1000 - Overview

Ultra-Flexible Tactical Category 5E Shielded STP Cable

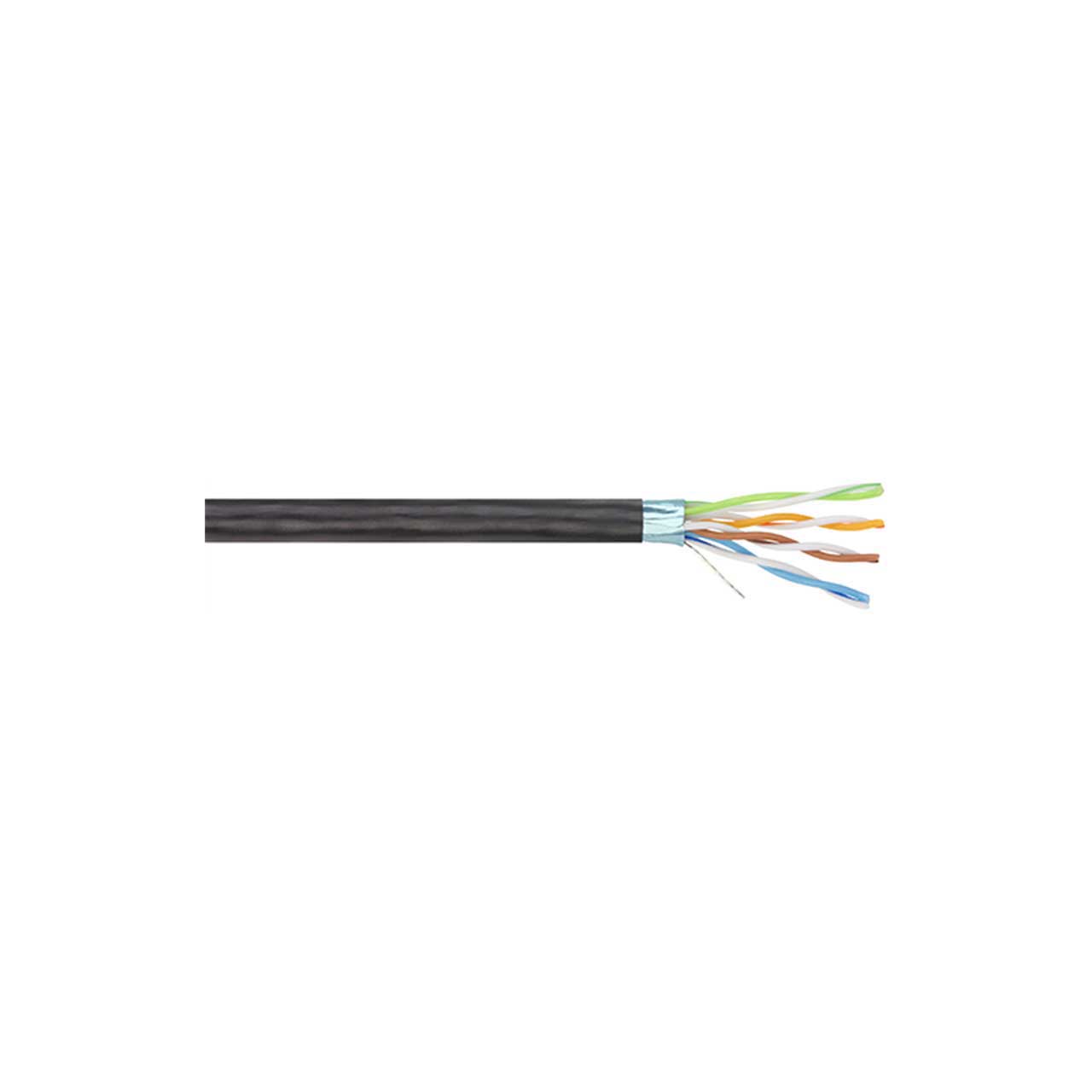

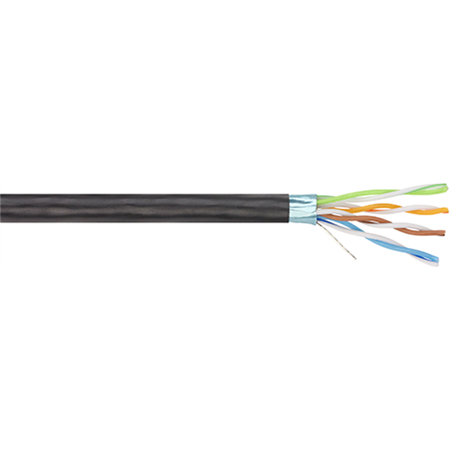

The Clark Wire CN426C5TFS-1000 is a 1000 foot reel of Ultra Flexible, Ruggedized, Shielded Tactical Cat 5E STP Cable in Black.

A shielded, extra-flexible and rugged Category 5E cable is VITAL for networking and data applications. Constructed from four precision twisted pairs, the CN426C5TFS is tested to meet or exceed ISO 11801 class D and TIA-568-C.2 screened patch cable specifications. Built with a polyurethane outer jacket and 26 AWG stranded conductors, the CN426C5TFS has exceptional flexibility and flex-life characteristics.

  • Features:

    • Flexible and Rugged
    • Polyurethane Outer Jacket
    • Stranded and Shielded
    • ISO 11801 Class D Patch Cable
    • TIA-568-C.2 Cat5e Screened Patch Cable


  • Specifications:

    • Materials and Dimensions
    • Conductors: (8) 24AWG (7x32) Stranded TC (four pairs)
    • Shield: 100% Foil w/ 26AWG (7x34) Stranded TC Drain Wire
    • Insulation: Polyolefin .010" wall
    • Jacket: Polyurethane .217" O.D.

      Insulation Color Code:
    • Pair 1: Blue & White w/ Blue Stripe
    • Pair 2: Orange & White w/ Orange Stripe
    • Pair 3: Green & White w/ Green Stripe
    • Pair 4: Brown & White w/ Brown Stripe

      Performance Characteristics
    • Skew: 25 ms/100m (max.)
    • Capacitance: 13.5 pF/ft (mutual)
    • DC Resistance | DCR (Unbalanced): 42.6 Ω/100m
    • Characteristic Impedance: 100 Ω (+/-15)


  • Item Includes:

    • 1x CN426C5TFS Tactical Cat 5E 4-pair Cable - Black - 1000 foot reel
