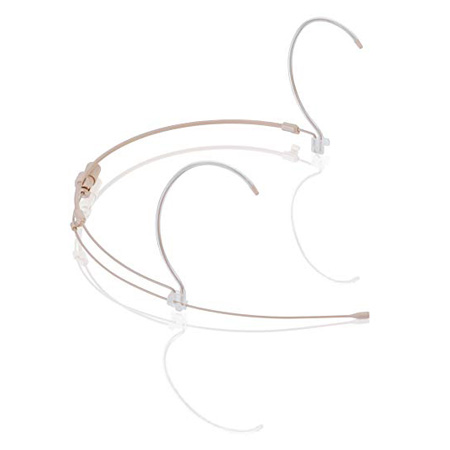

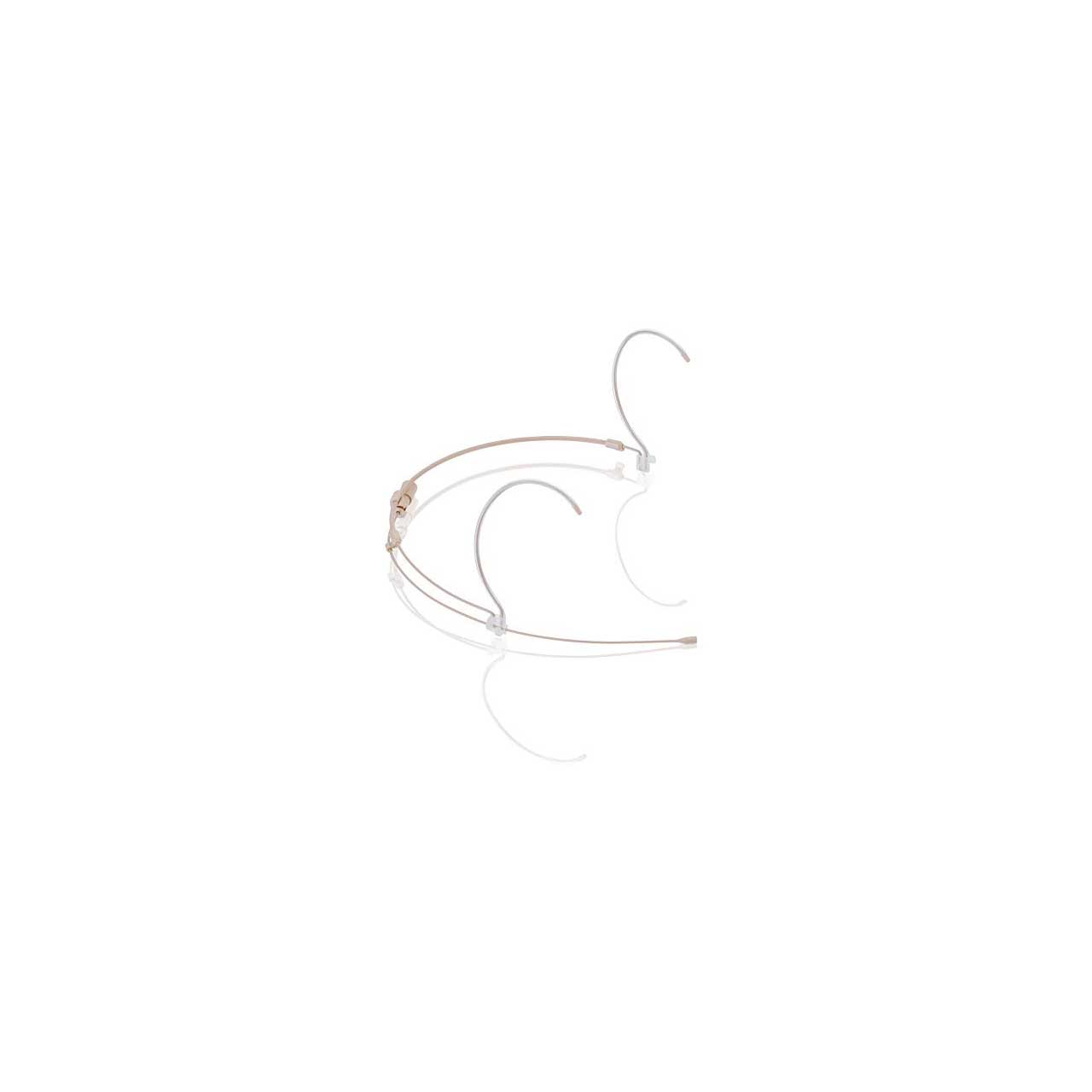

Countryman H6OW6LSL H6 Omnidirectional Headset for Speaking and Vocals for Shure - Beige

H6OW6LSL - Overview

• Features:

  • Nearly invisible - with a diameter of only 0.1" (2.5 mm) - the size of a No. 2 pencil lead - the mic capsule virtually disappears when worn.
  • Rugged cable - aramid strength members and engineered alloys ensure that our cables provide extreme tensile and flex strength.
  • Our colors are precision-matched to theatre makeup shades to blend with a wide range of skin tones and clothing.
  • Sweat - resistant connector - the mic detaches from the cable using a new connector with a tight seal against moisture

    Compatible with Shure: AXT100+, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, QLXD1, SLX1, UC1, ULX1, ULXD1, UR1, UR1M


• Specifications:

  • Frequency Response: Omnidirectional: 20 Hz to 20 kHz
  • Directional: 30 Hz to 15 kHz
  • Operating Current: 500 uA
  • Operating Voltage: 1 to 2 Volts
  • Power Supply Voltage: +3V with 2.7 kOhm load
  • +5V with 6.8 kOhm load, +9V with 15 kOhm load
  • Weight: 0.07 oz (2 grams)
  • Sensitivity: Omnidirectional W5 (no band): 7.0 mV/Pascal
  • Omnidirectional W6 (blue band): 2.0 mV/Pascal
  • Omnidirectional W7 (purple band): 0.7 mV/Pascal
  • Directional W5 (no band): 6.0 mV/Pascal
  • Directional W6 (blue band): 1.9 mV/Pascal
  • Directional W7 (purple band): 0.6 mV/Pascal
  • Equivalent Acoustic Noise: W5: 24 dBA
  • W6: 29 dBA
  • W7: 39 dBA
  • Overload Sound Level:
  • Omnidirectional W5: 120 dB SPL
  • Omnidirectional W6: 130 dBA SPL
  • Omnidirectional W7: 140 dBA SPL
  • Directional W5: 125 dBA SPL
  • Directional W6: 135 dBA SPL
  • Directional W7: 145 dBA SPL
