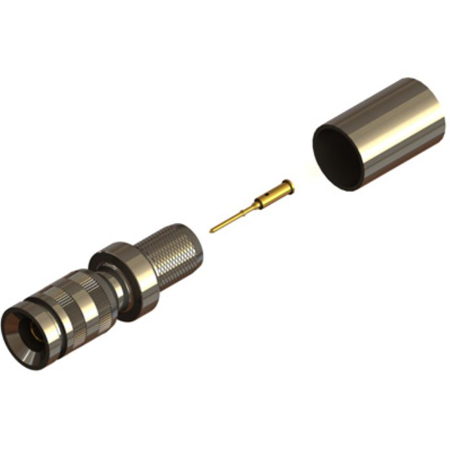

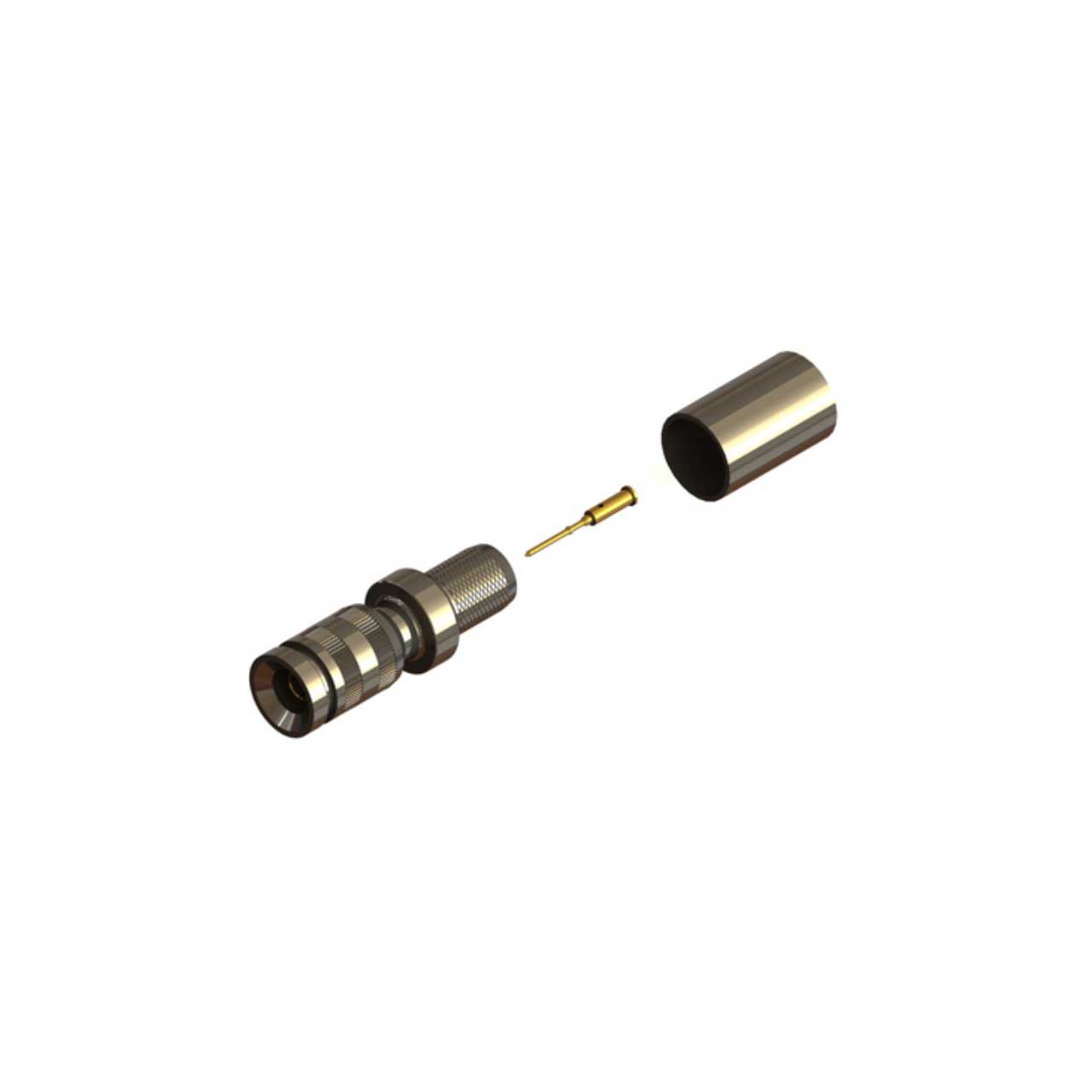

1.0/2.3 straight full crimp plug with gold plated centre and outer contact. Centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with Belden 1694A & 1694F and similar cable in group FC. But using standard US crimp sizes Bulk pack of 100.
Coax Connectors 52-005-B6-FC1 is a 1.0/2.3 straight full crimp plug with gold plated center and outer contact. Center contact and crimp sleeve are annealed for enhanced performance. Suitable for use with Belden 1694A & 1694F and similar cable in group FC. But using standard US crimp sizes Bulk pack of 100.
DIN 1.0/2.3 series of RF connectors are available in 50 ohm and 75 ohm versions. These micro miniature connectors are designed to meet the standards IEC 61169-29, CECC 22230 & DIN 47297 and feature a push-pull coupling. 1.0/2.3 are widely used for digital telecommunications and due to their small size, our true 75 ohm versions are increasingly being used in broadcast, as an alternative to BNC.
