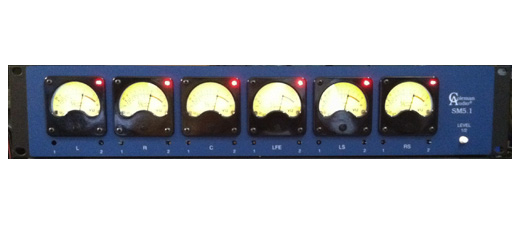

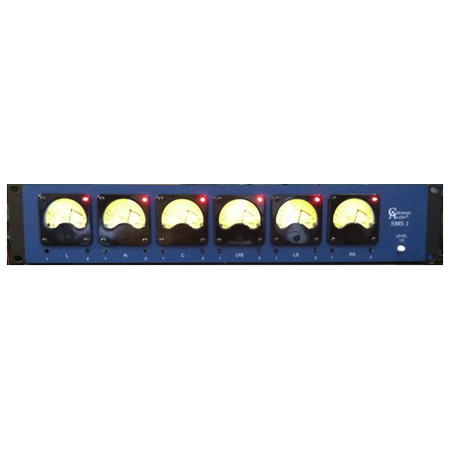

Coleman Audio SMP5.1 Surround VU Meter System w/ Peak LED Indicator

ITEM #: COL-SMP51 MFG #: SMP5.1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the COL-SMP51

SMP5.1 - Overview

SMP5.1 Provides precise measurement of audio levels in a surround environment, the SM5.1 allows easy alignment of the surround system as well as monitoring levels at a glance. Coleman Audio has assembled the finest movements and combined all the necessary features in it's line of analog metering systems to satisfy the most discerning engineers. The Coleman VU meter line has been updated to have an adjustable peak indication as well as the factory alignment. The new operating levels are +10db and +4 db to make the VU respond in a useable scale with the hot digital levels coming from DAW's. The Peak level is set at +18db which equals 0Dbfs in the DAW's. This can be readjusted to another level if desired.

  • Features:

    • Peak LED indicator that is adjustable to the user's need
    • Ships aligned for: level #1 +10db = 0VU level #2 +4db = 0VU This allows the meters to be used with digital signals that are much to hot for a +4db meter.

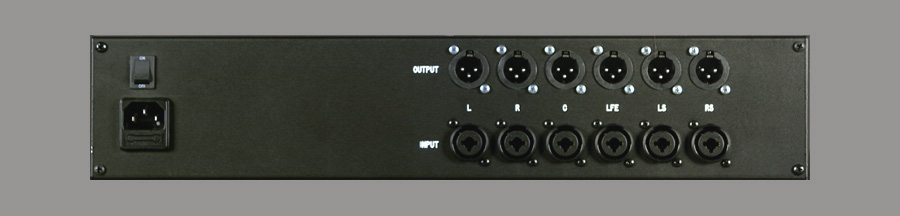

    • Thru jacks on XLR's
    • Balanced bridging inputs on combo jacks
    • Two switchable operating levels
    • Trim controls accessible on the front panel
    • Meters meet ANSI specifications
    • Two space rack mount enclosure 10" deep
    • Internal Power Suppy
