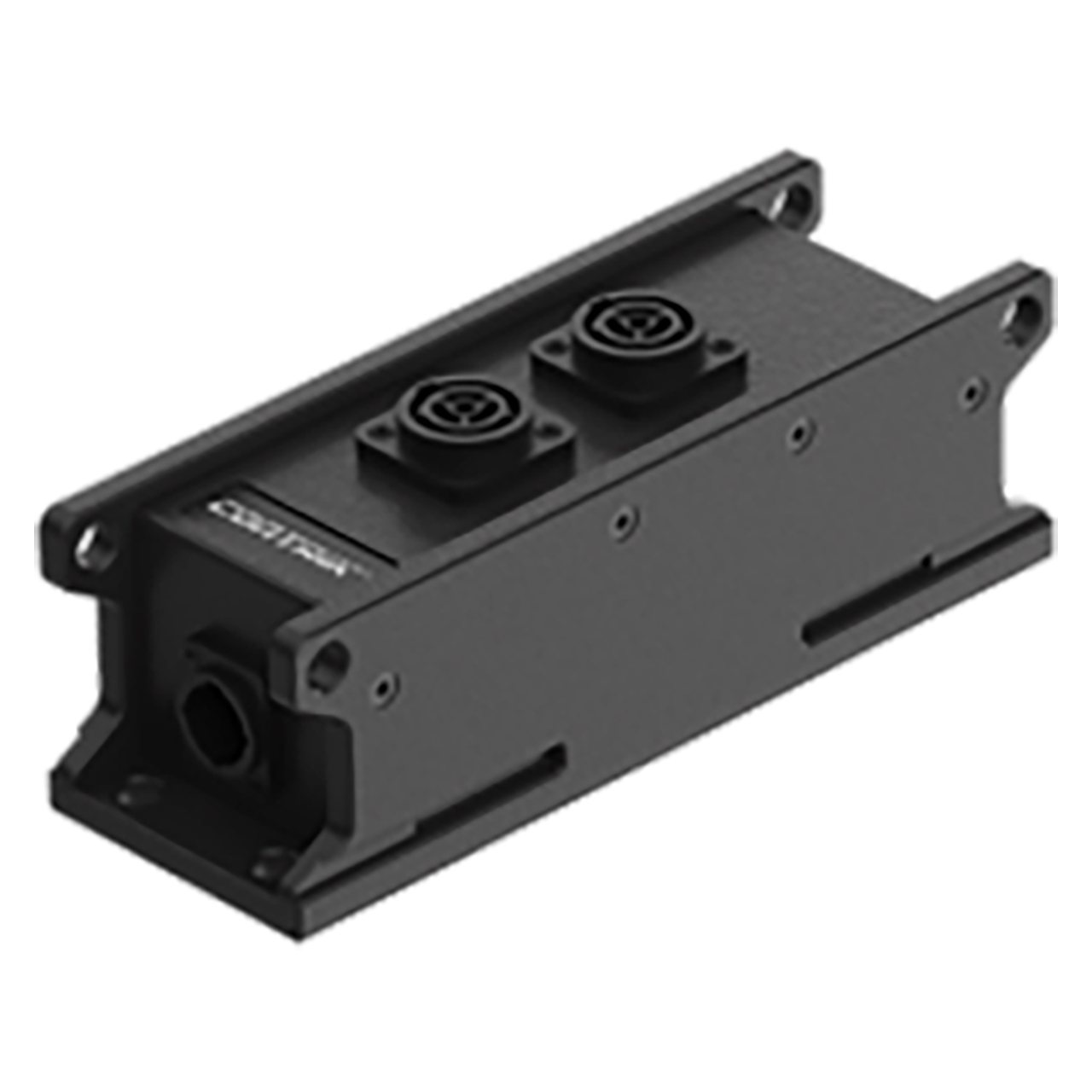

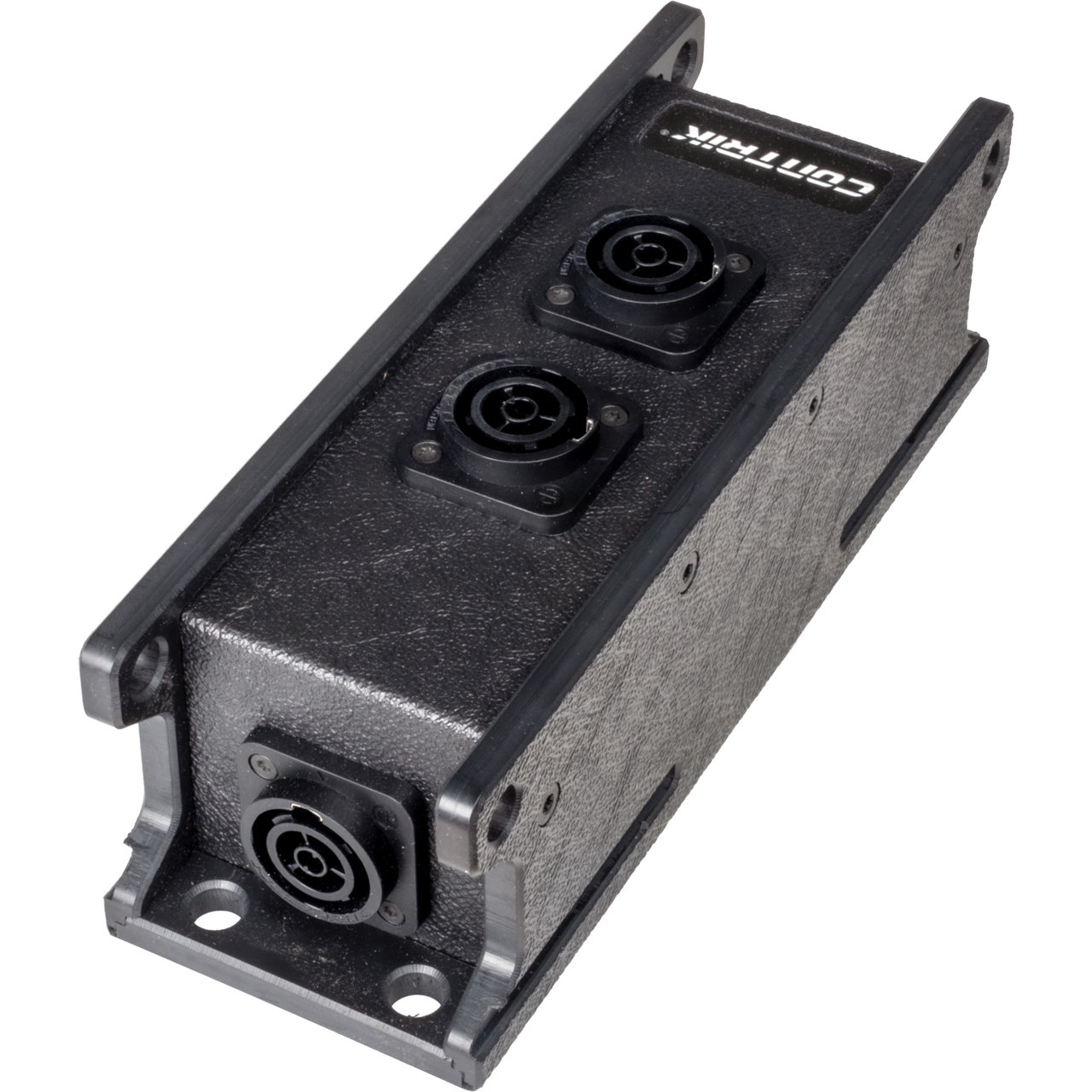

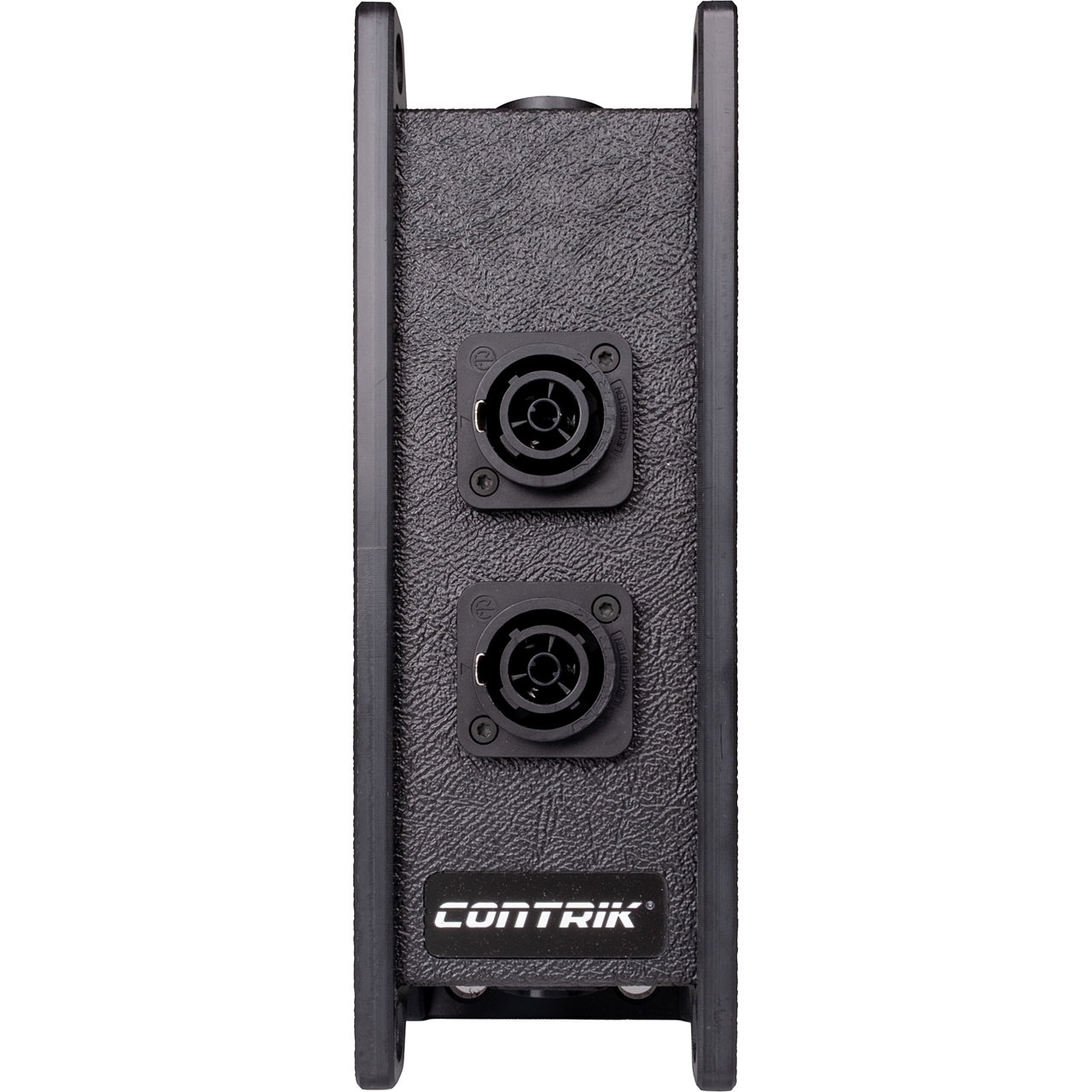

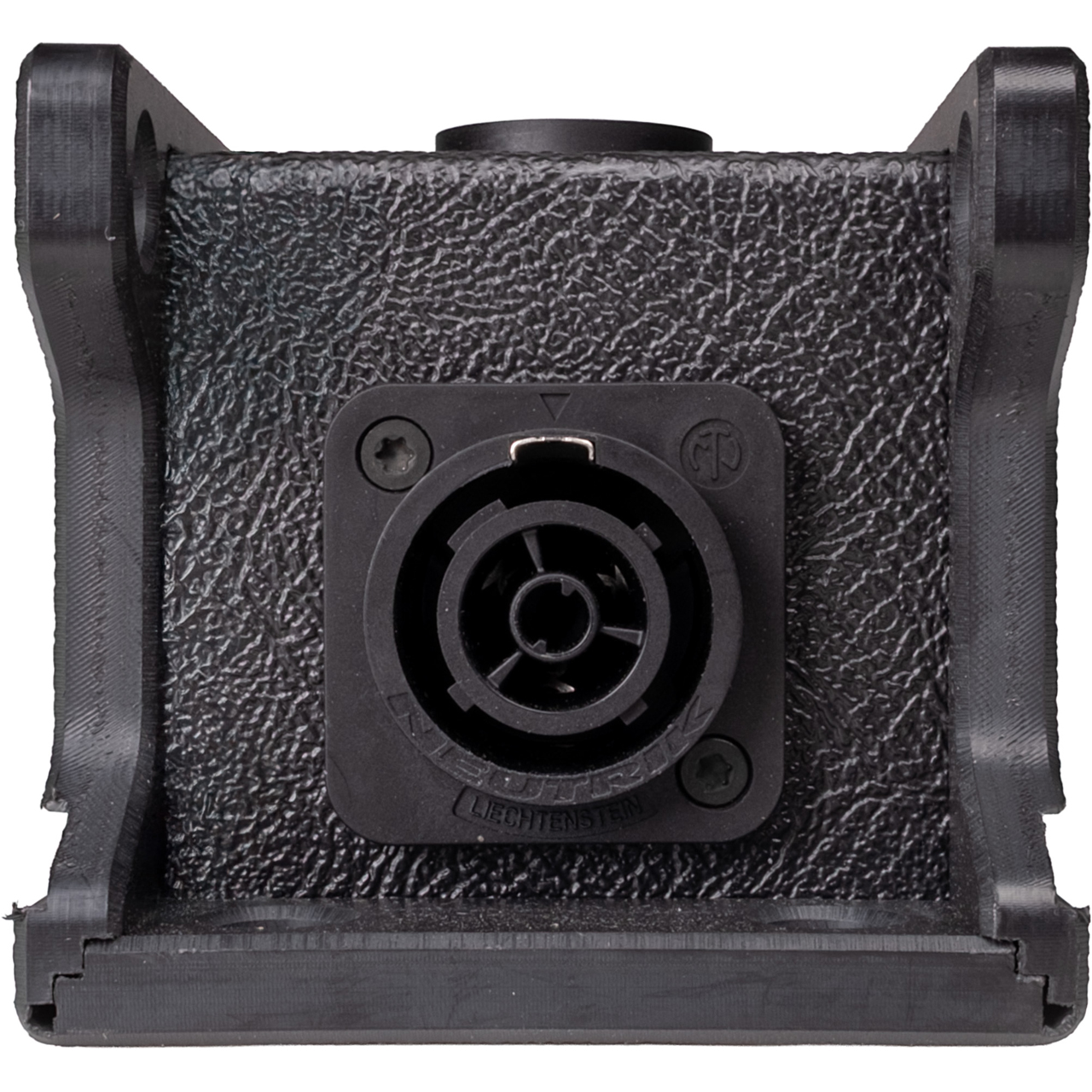

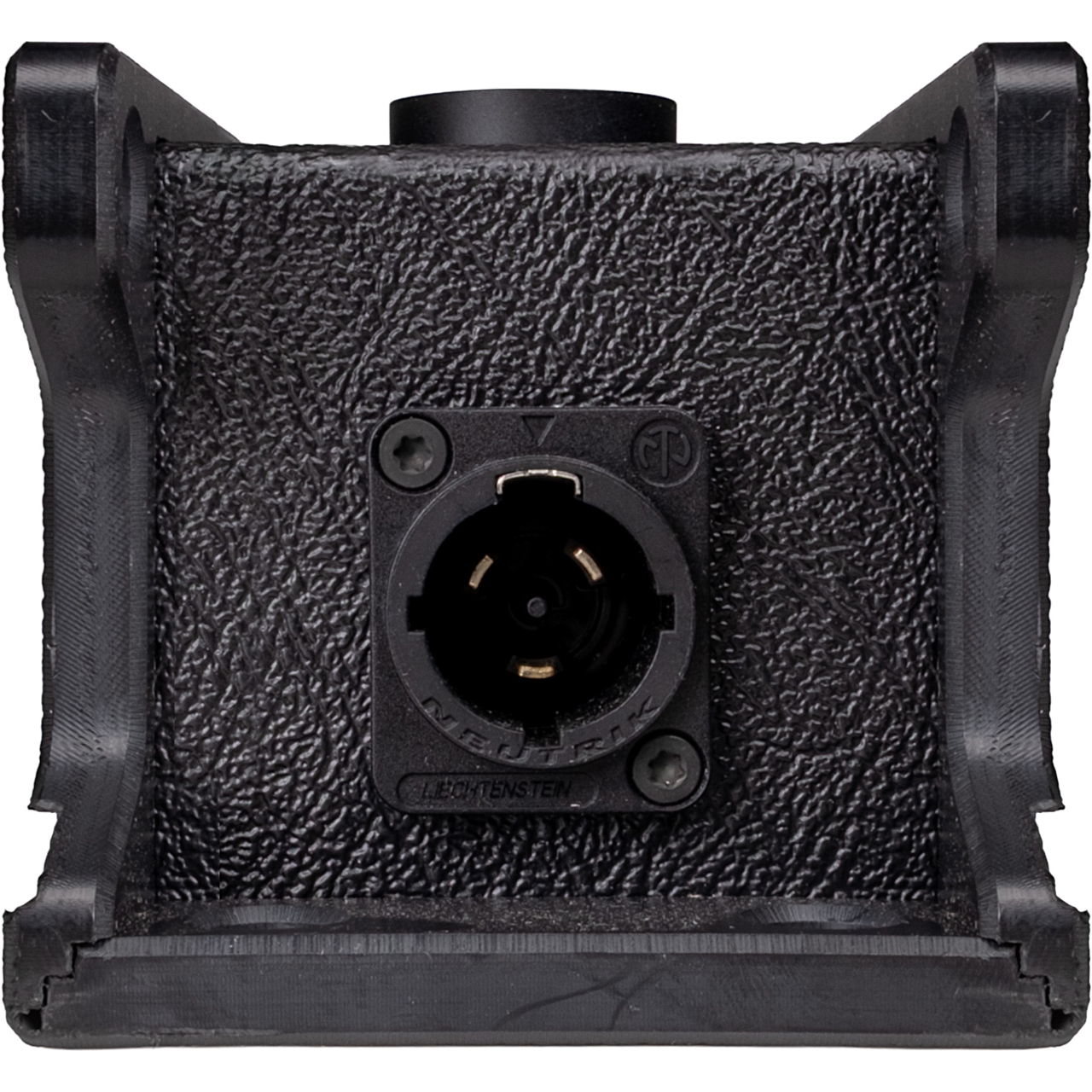

Contrik CPSSX-T1-T3 Indoor Power Strip Xtreme - One powerCON TRUE1 In/Three powerCON True1 TOP Out

CPSSX-T1-T3 - Overview

• Features:

  • Extreme robust and safe EASYLEN® housing with leather grain texture
  • Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
  • Flame retardant (UL94-V0) and non-conductive housing material
  • High mechanical protection (high IK)
  • Light weight, compact
  • Versatile mounting options


• Specifications:

  • Input Device: 1x powerCON® TRUE1® TOP
  • Output Device: 3x powerCON® TRUE1® TOP
  • Daisy Chaining: 1x powerCON® TRUE1® TOP
  • Contact Resistance/Protection Class: Protection class II
  • Dielectric Strength: 0.5kV/mm
  • Rated Voltage: 120V AC
  • Rated Current: 20A
  • Number of Electrical Contacts: 2 + PE
  • Phases: Single-phase
  • Lifetime: > 5000 Mating cycles per connector
  • Dimensions: 8.66" x 3.59" x 3.02" (220mm x 91.2mm x 76.7mm)
  • Conductor Cross Section: AWG12
  • Weight: 1.21lbs (0.55kg)
  • Mounting Options: Truss clip, mounting holes for pegging or suspension
  • Housing: Easylen
  • Color: black
  • Standards Compatibility: UL94-V0
  • Protection Class: NEMA1 listed. IP20.
  • Temperature Range: -13°F - 158°F (-25°C - 70°C)
