Lex DB160NP-ADDMS1 Rubber Enclosure 160A Panel Mount Cam Inlet (12) L620 Locking Receptacles Paralleled to (2) LSC19

ITEM #: DB160NP-ADDMS1 MFG #: DB160NP-ADDMS1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
LEX Products Corp
Free Shipping with $49 Minimum Order

List Price:

$4,572.25

Our Price:

$3,347.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DB160NP-ADDMS1 - Overview

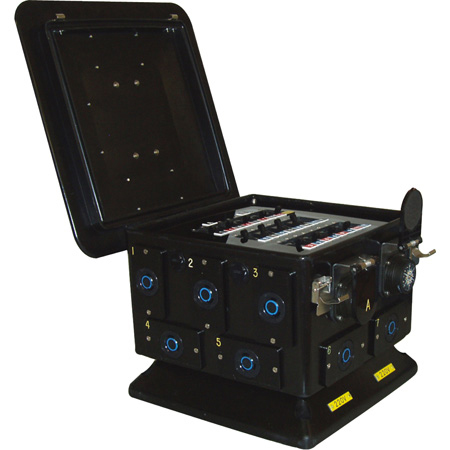

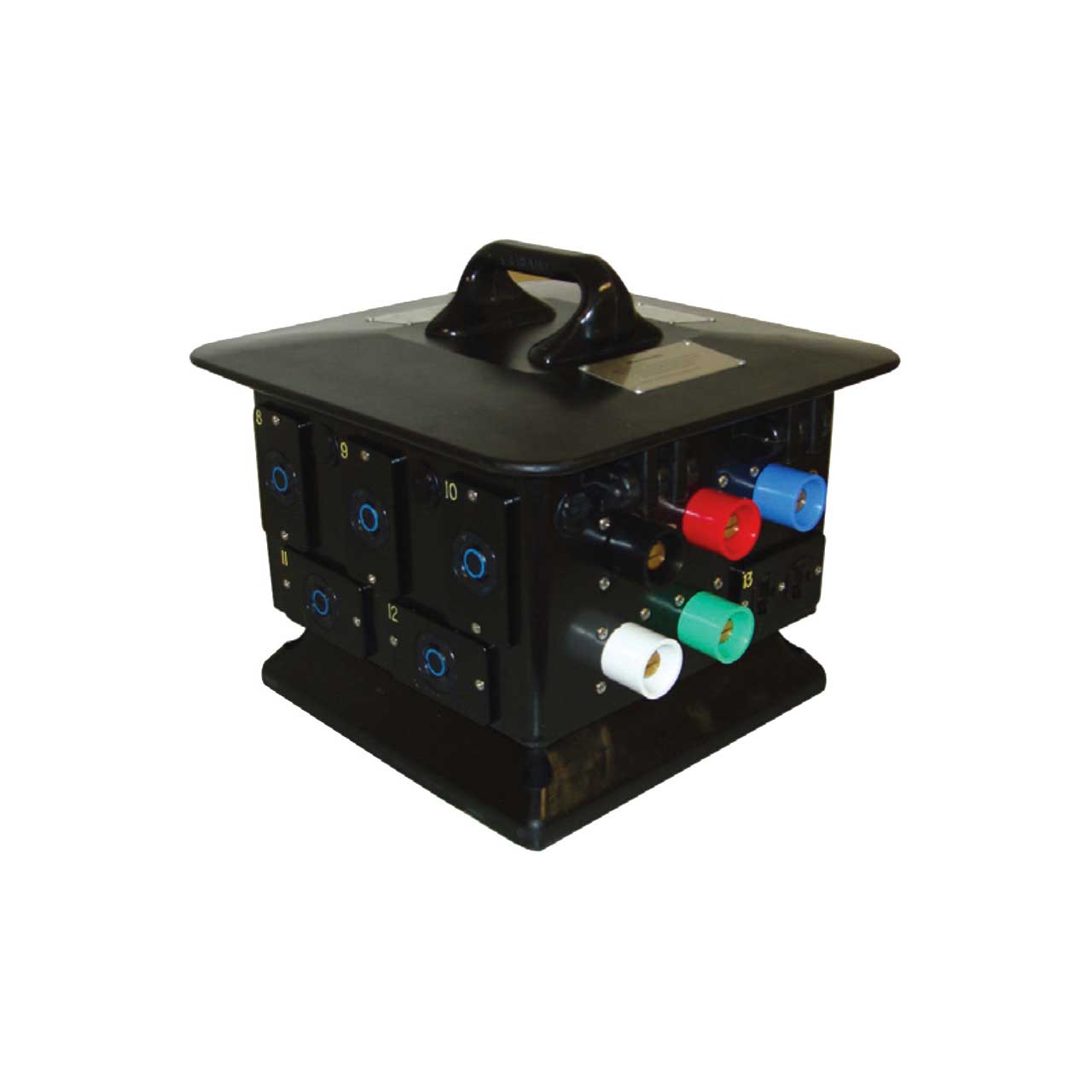

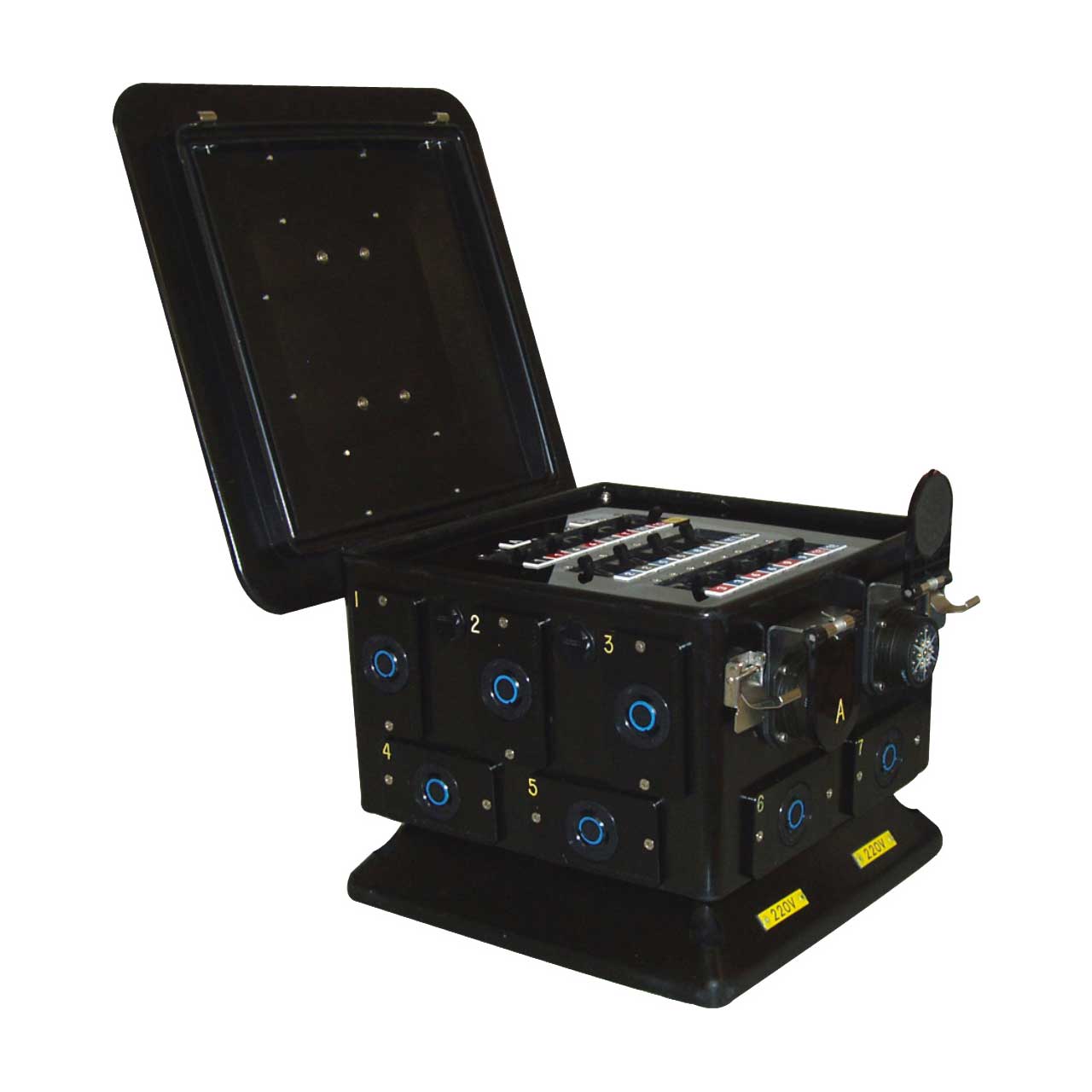

The DB160NP-ADDMS1 is a 200 amp 3 phase moving light box. This box powers 12 moving lights at a remote location with (12) NEMA L6-20 plugs or (2) 6-circuit, 220 VAC multi-cables. The two types of receptacles are wired in parallel.

  • Features:

    • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
    • Breakers mounted under hinged lid for enhanced safety
    • Stackable and compact for easy storage and convenient portability
    • Elevated base keeps receptacles above ground level


  • Specifications:

    • Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 220 VAC
    • Environmental Rating: NEMA 1 Indoor
    • Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
    • Output: (12) NEMA L6-20, 20 Amp, 2 Pole, 3 Wire, 220 VAC, locking receptacle wired in parallel with (2) 20 Amps per circuit, 6-circuit, 220 VAC, LSC19 female panel mount receptacles, (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacle
    • Feed Thru: None
    • Overcurrent Protection: (12) 20 Amp, 2 Pole branch-rated circuit breakers, (1) 20 Amp, Single Pole branch-rated circuit breaker
    • Overall Dimensions: 14.25" L x 14.25" W x 14.15" H
    • Approximate Weight: 32 lbs
