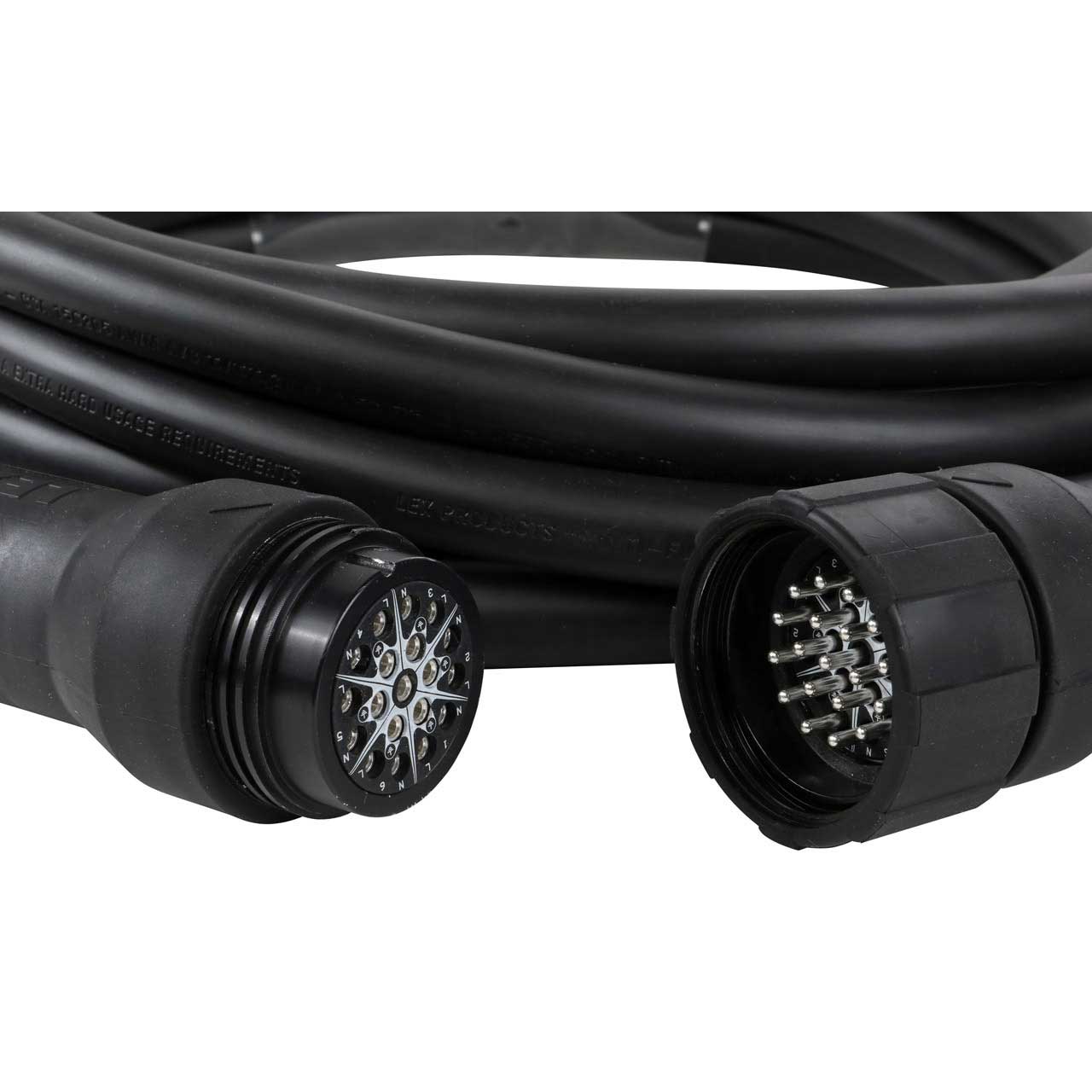

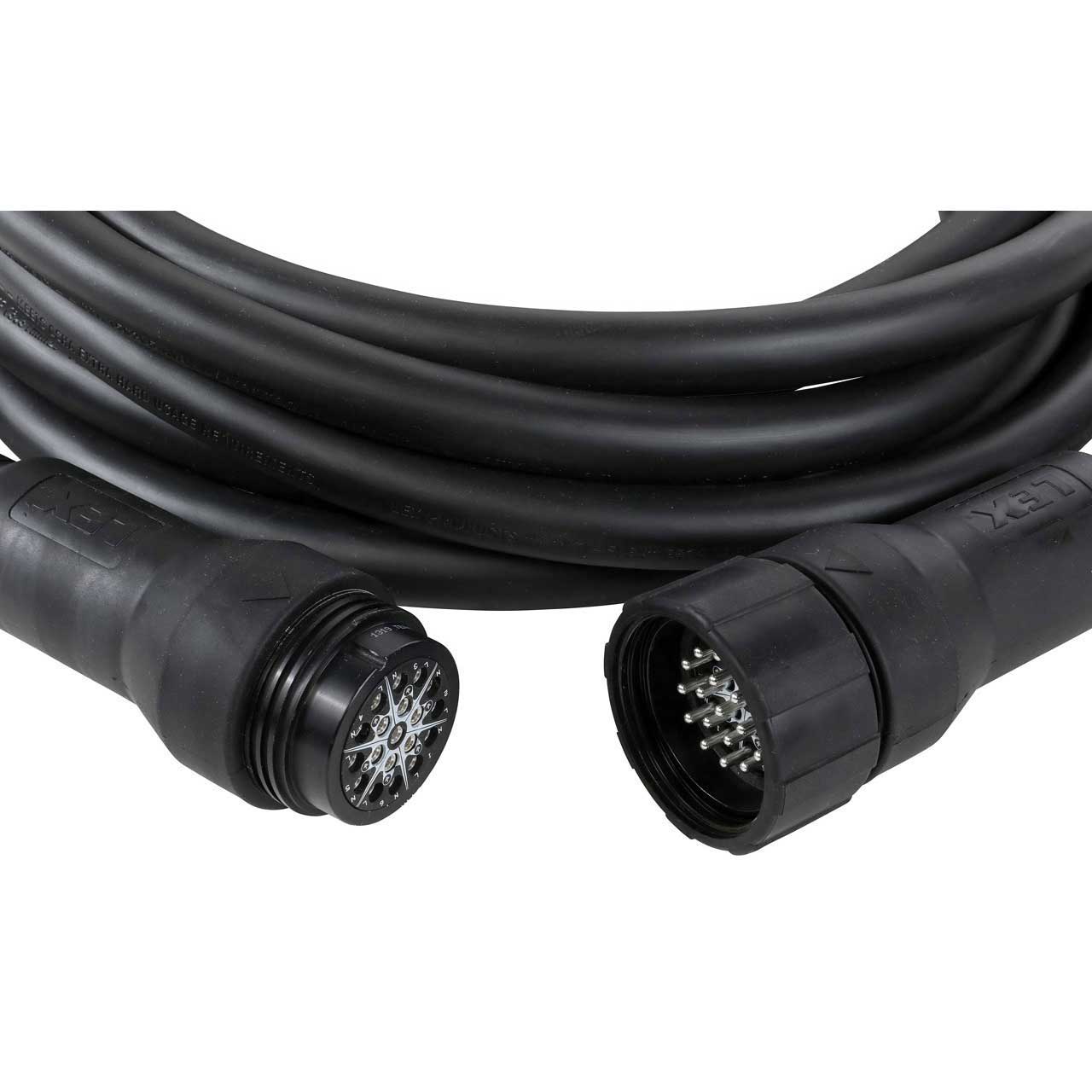

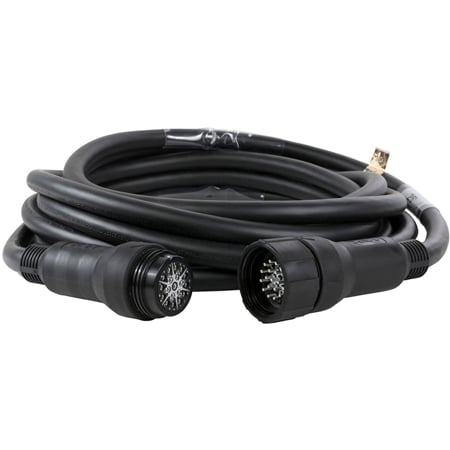

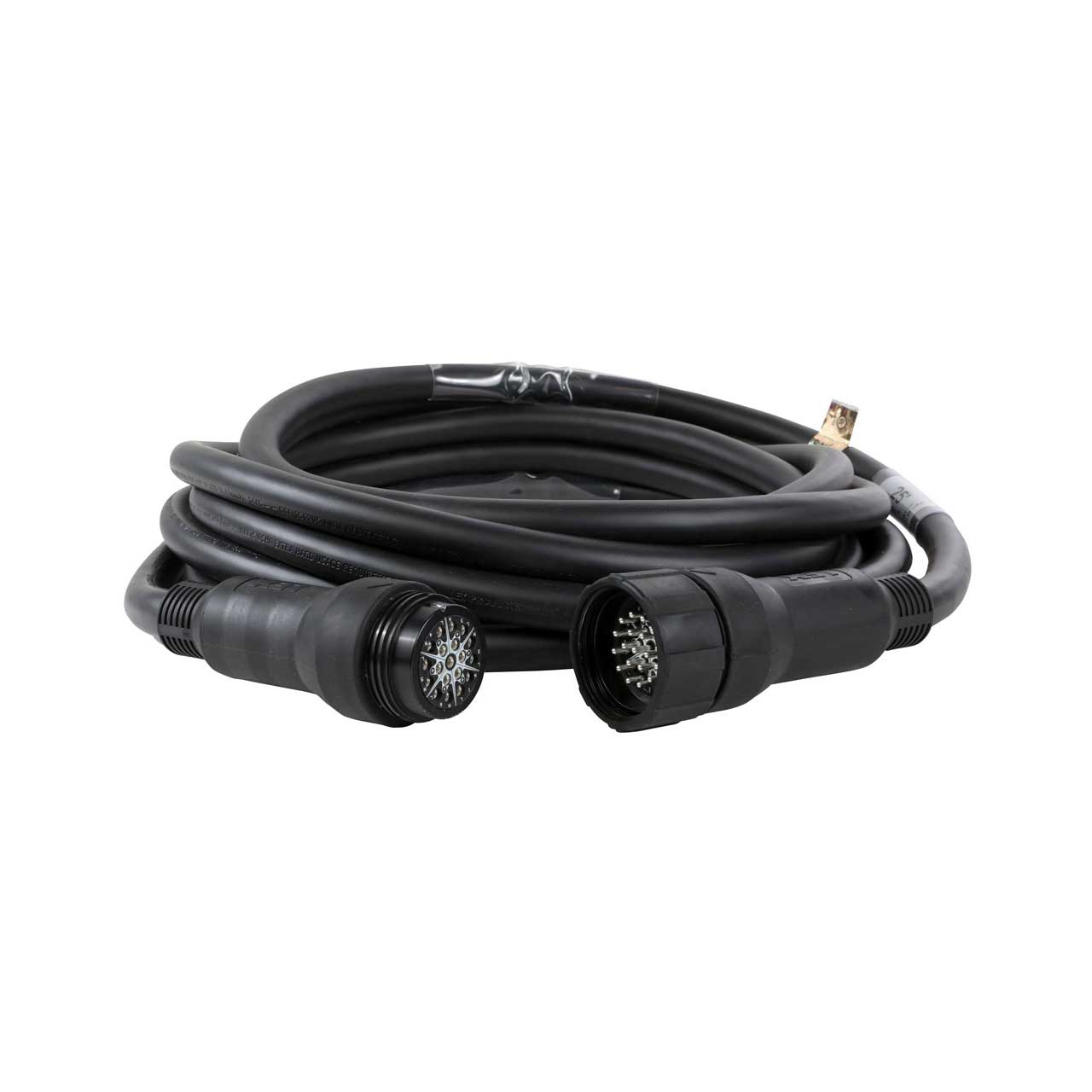

LEX EGME-1214-25 EverGrip LSC19 Molded 20 Amp 6-Circuit 300 VAC 12 AWG 18 Conductor Power Extension Cable - 25 Foot

EGME-1214-25 - Overview

• Features:

  • Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
  • Pins and sockets cannot push back, extending life of the connector
  • Rugged construction helps prevent broken conductors and loose or damaged ground rings
  • Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
  • Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
  • Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
  • Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
  • Available in 12, 14 and 16 AWG to meet specific requirements
  • 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
  • Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections
  • Silver-plated brass contacts for high conductivity
  • All black construction blends into scenery and is ideal for stage or studio lighting applications


• Specifications:

  • Rating: 20 Amp, 125 VAC, Single Pole, 2-Pole, 3-Wire
    Note: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)

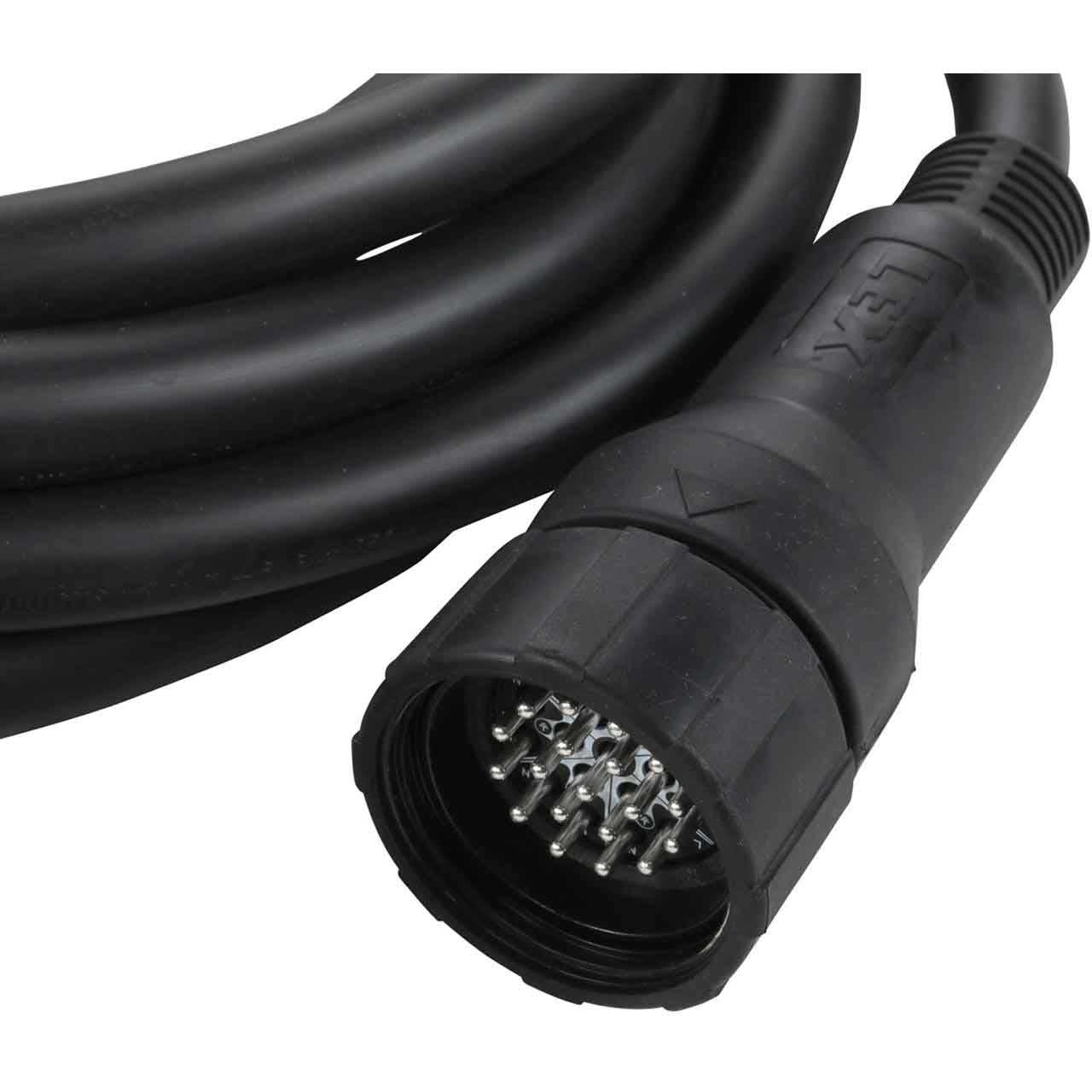

  • Male Plug: 1x Molded 20A 19-Pin Male (Plug), Black
    Note: Six ground contacts are combined through the use of a ground ring to two ground conductors
  • Cable/Cord: #12/14 Type TPR, Black
  • Length: xxx = Length; 10', 25', 50', 75', 100', 125' Stock Lengths

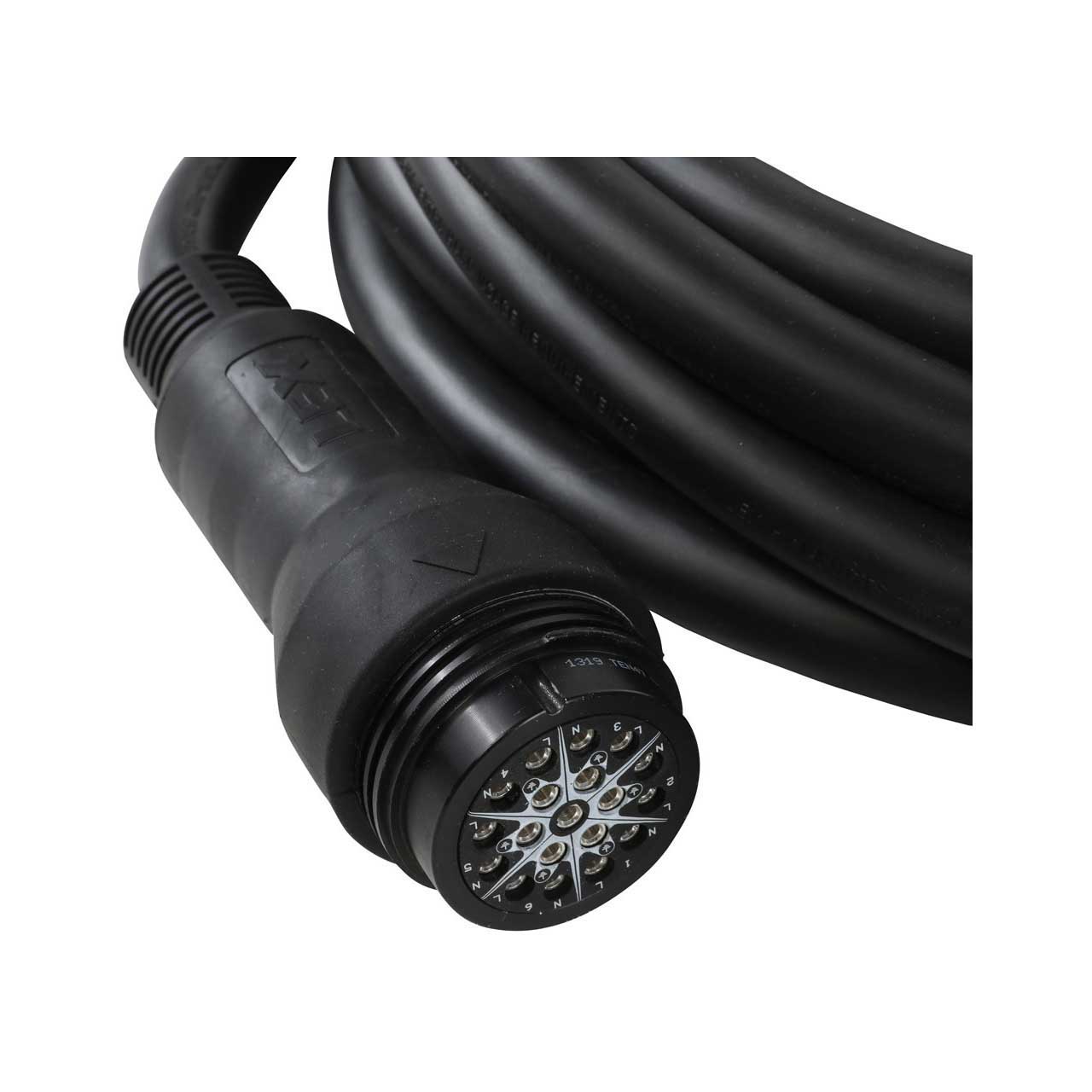

  • Female Connector: 1x Molded 20A 19-Pin Female (Connector), Black
    Note: Six ground contacts are combined through the use of a ground ring to two ground conductors
  • Agency Approval: UL Listed
