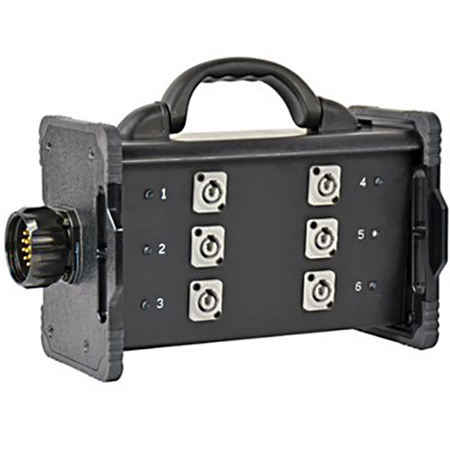

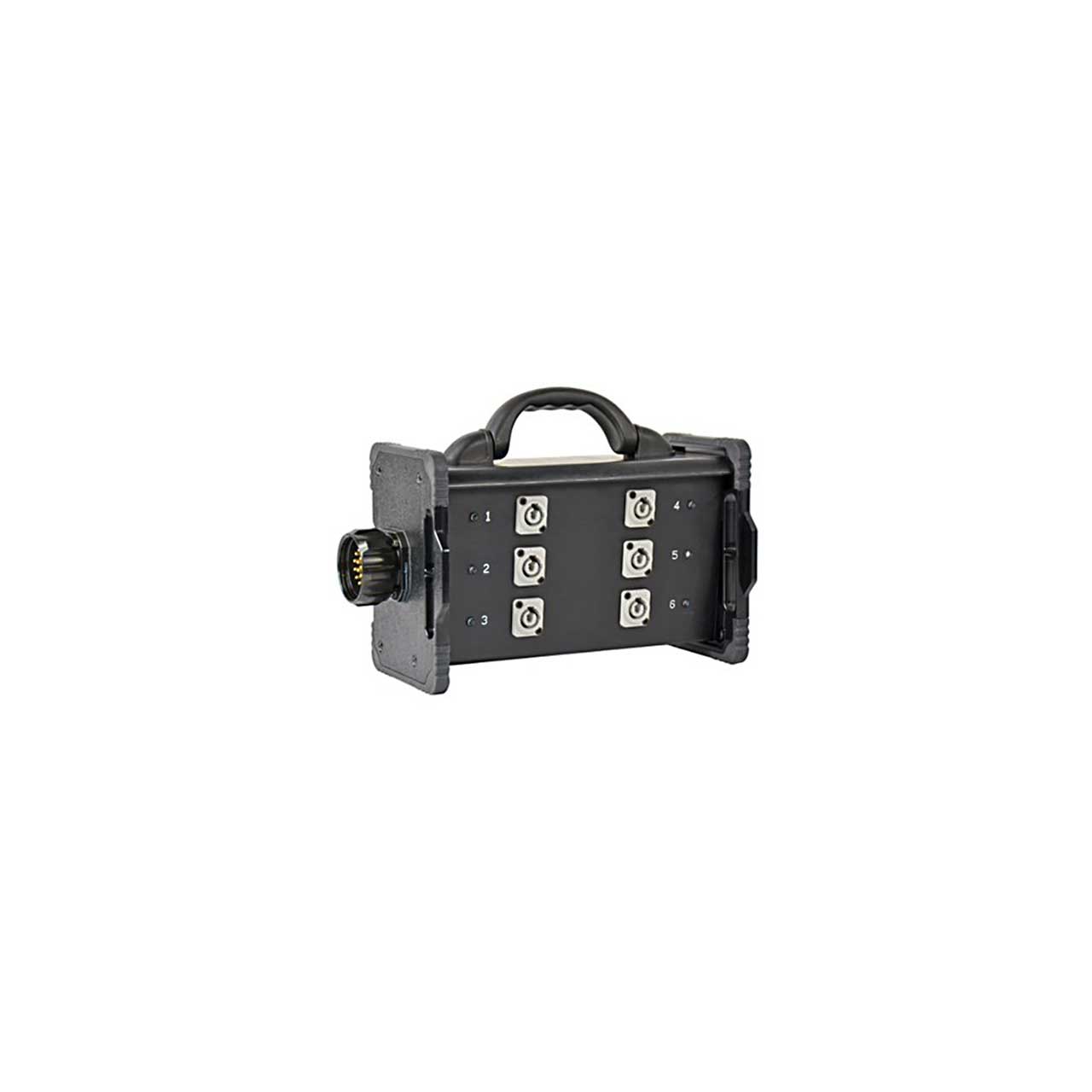

Lex BNZJ2-6M-CLP Bento Enclosure LSC19 Panel Mount Inlet with Feed Thru (6) 20A Neutrik PowerCon C-Clamp Mountable Type1

BNZJ2-6M-CLP - Overview

• Features:

  • Provides power for LED lights using powerCON outlets

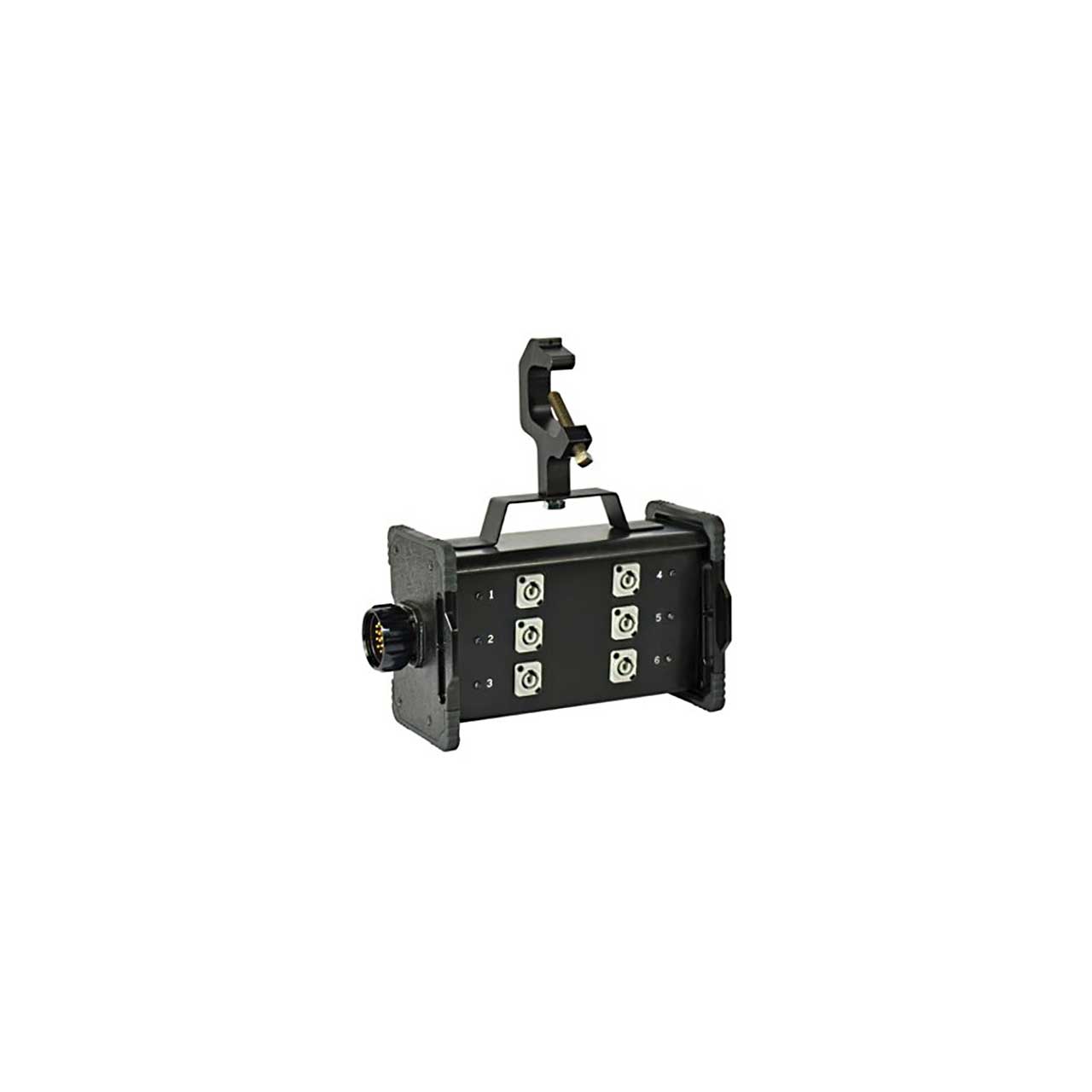

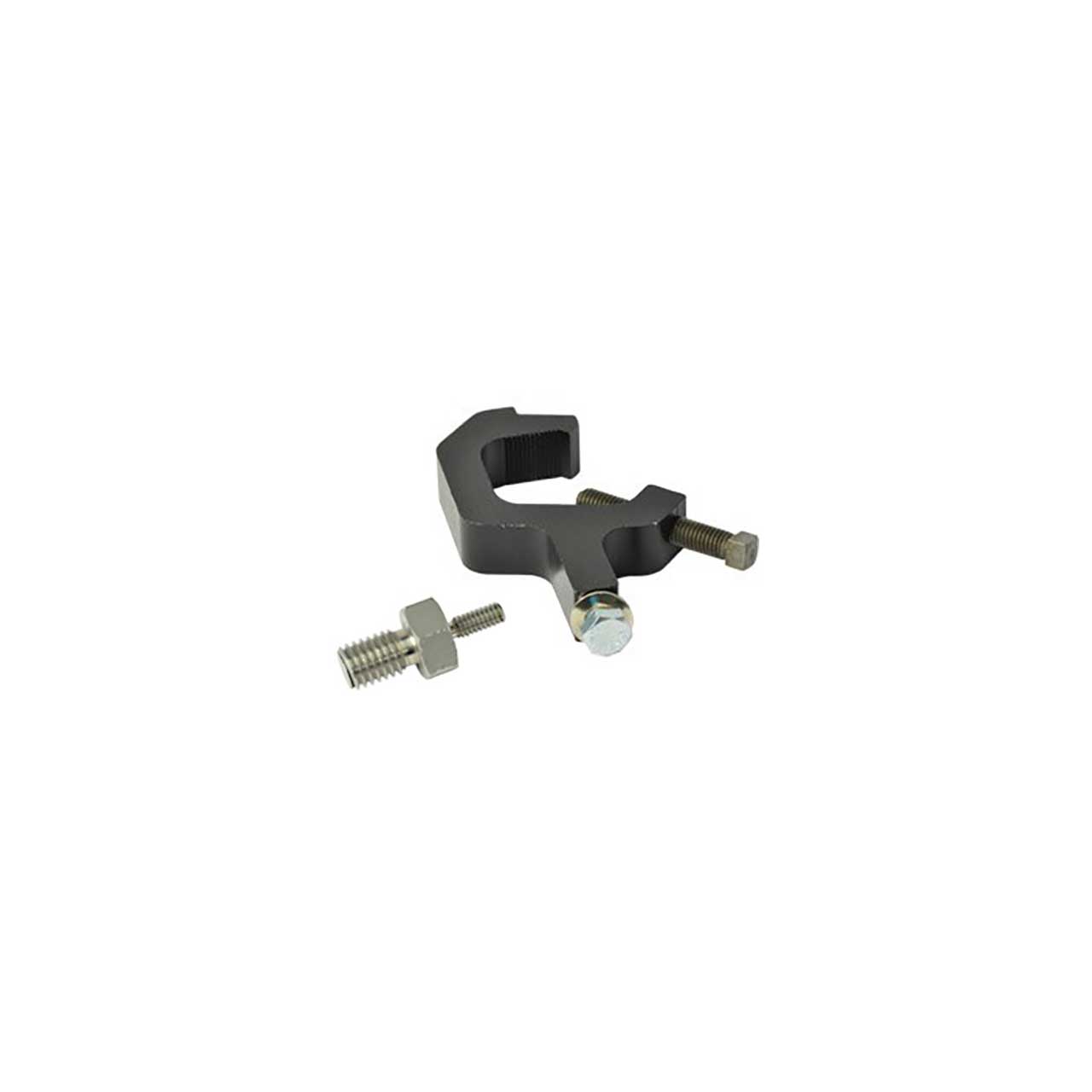

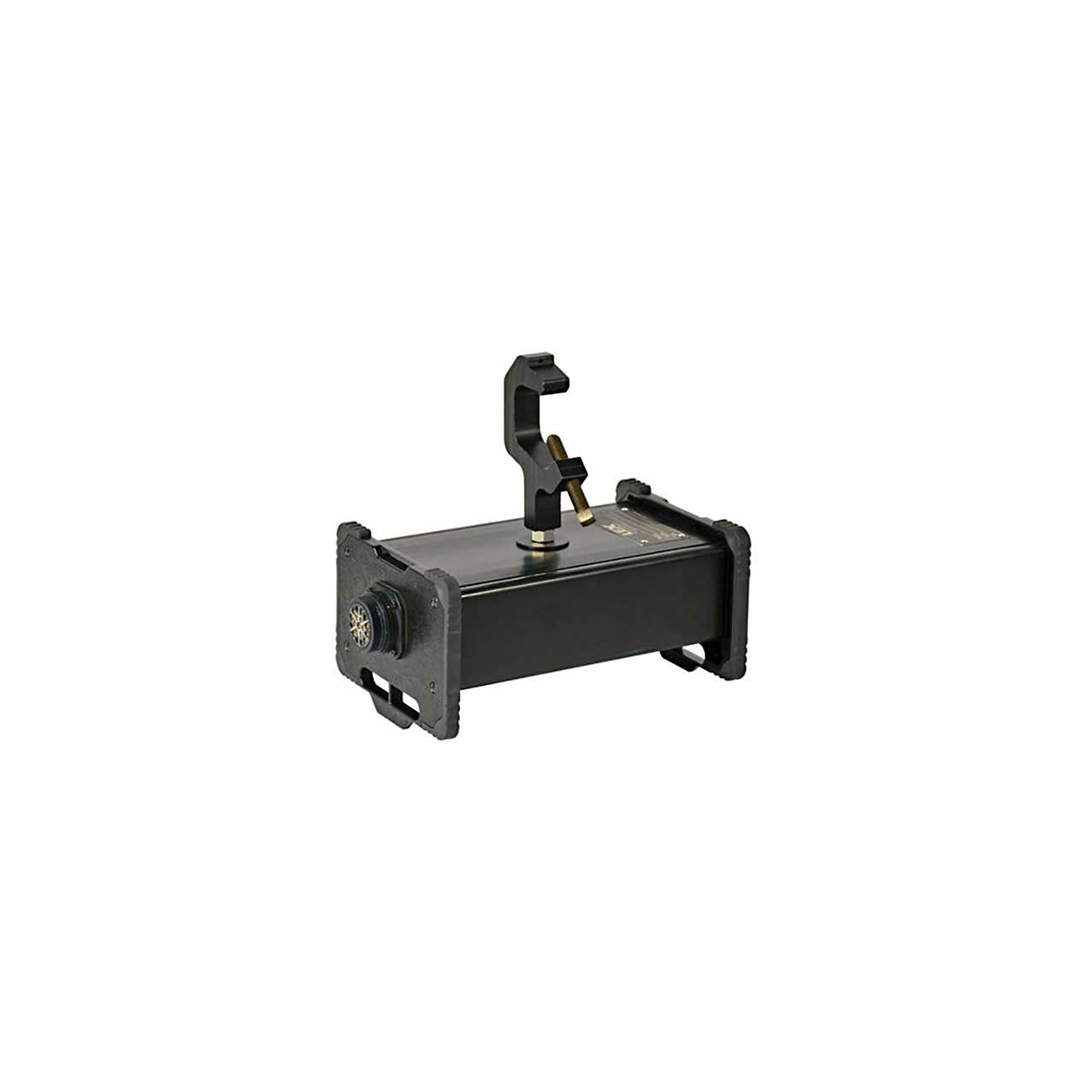

  • Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp (sold separately)Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Feed-thru option allows multiple boxes to be placed along the same feed
  • End plate grips for easy handling in tight spaces
  • Stackable and compact for easy storage


• Specifications:

  • Rating: 20 Amp, 6-circuit, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount male
  • Output: (6) 20 Amp PowerCON receptacles
  • Feed Thru: (1) 20 Amps per circuit, 6-circuit, 120VAC, LSC19 panel mount female
  • Overcurrent Protection: None
  • Dimensions(L x W x H): 11.5 inch x 5.9 inch x 7.6 inch
  • Approximate Weight: 6.7 lbs
