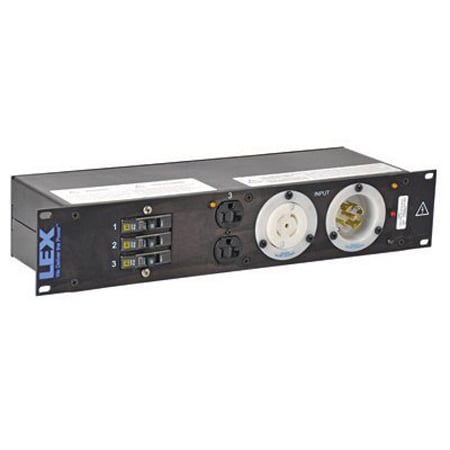

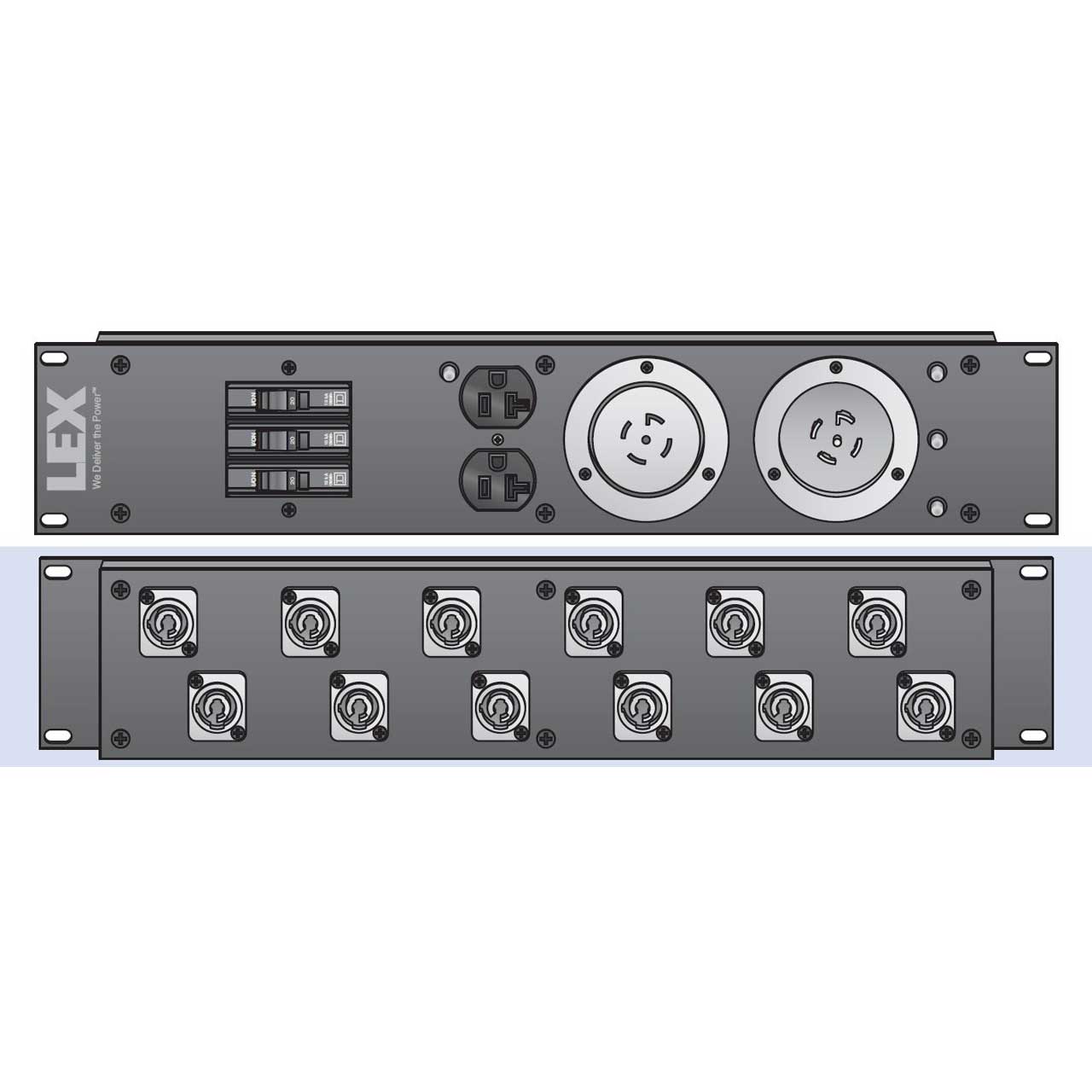

Lex PRM2IN-1CC12GN Rack Mount Power Distribution/ 2RU/ L21-30 In/Thru Front/ (12) 20A Neutrik PowerCon Outlets (Grey)

Name: Lex PRM2IN-1CC12GN Rack Mount Power Distribution/ 2RU/ L21-30 In/Thru Front/ (12) 20A Neutrik PowerCon Outlets (Grey)
Brand: LEX Products Corp
SKU: LEX-PRM2IN1CC12G
Price: 1307.00 USD
Availability: InStock

ITEM #: LEX-PRM2IN1CC12G MFG #: PRM2IN-1CC12GN

LEX Products Corp

List Price:

$1,671.55

Our Price:

$1,307.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PRM2IN-1CC12GN - Overview

Rack mount power distribution modules are a convenient method for adding power receptacles to any standard 19" rack - permanent and portable. PowerCON connectors are used to power LED lights.

Features:
- Design features Neutrik powerCON connectors
- Modules mount in standard 19" permanent and rolling racks
- Modules are fully enclosed making them portable
- Easy to install for range of needs
- Branch-rated circuit protection
- Indicator lights included for clear presence of power
- Laser etched numbers for easy circuit identification
- Anodized black metal construction is lightweight and durable to withstand years of use
- ETL Listed to UL Standards
- *The ETL Mark is an accepted demonstration of product compliance in both the United States and Canada.
Specifications:
- Size: 2RU
- Environmental Rating: NEMA 1 Indoor
- Input: Front: (1) NEMA L21-30, 30 Amp locking inlet
- Output: Rear: (12) 20 Amp PowerCON connectors
- Front: (1) NEMA 5-20, 20 Amp duplex receptacle
- Feed Thru: Front: (1) NEMA L21-30, 30 Amp locking receptacle
- Overcurrent Protection: (4) 20 Amp thermal magnetic circuit breakers
- Number of Circuits: 4
- Dimensions: 19" W x 3.5" H x 5.5" D
