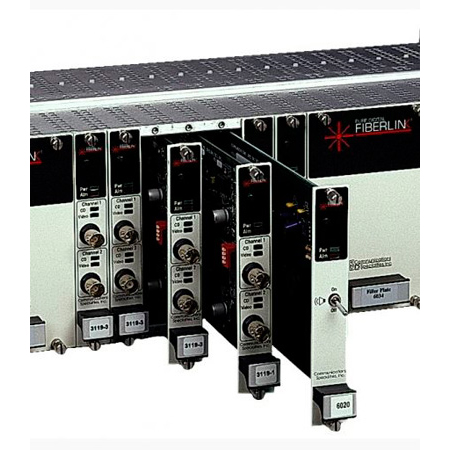

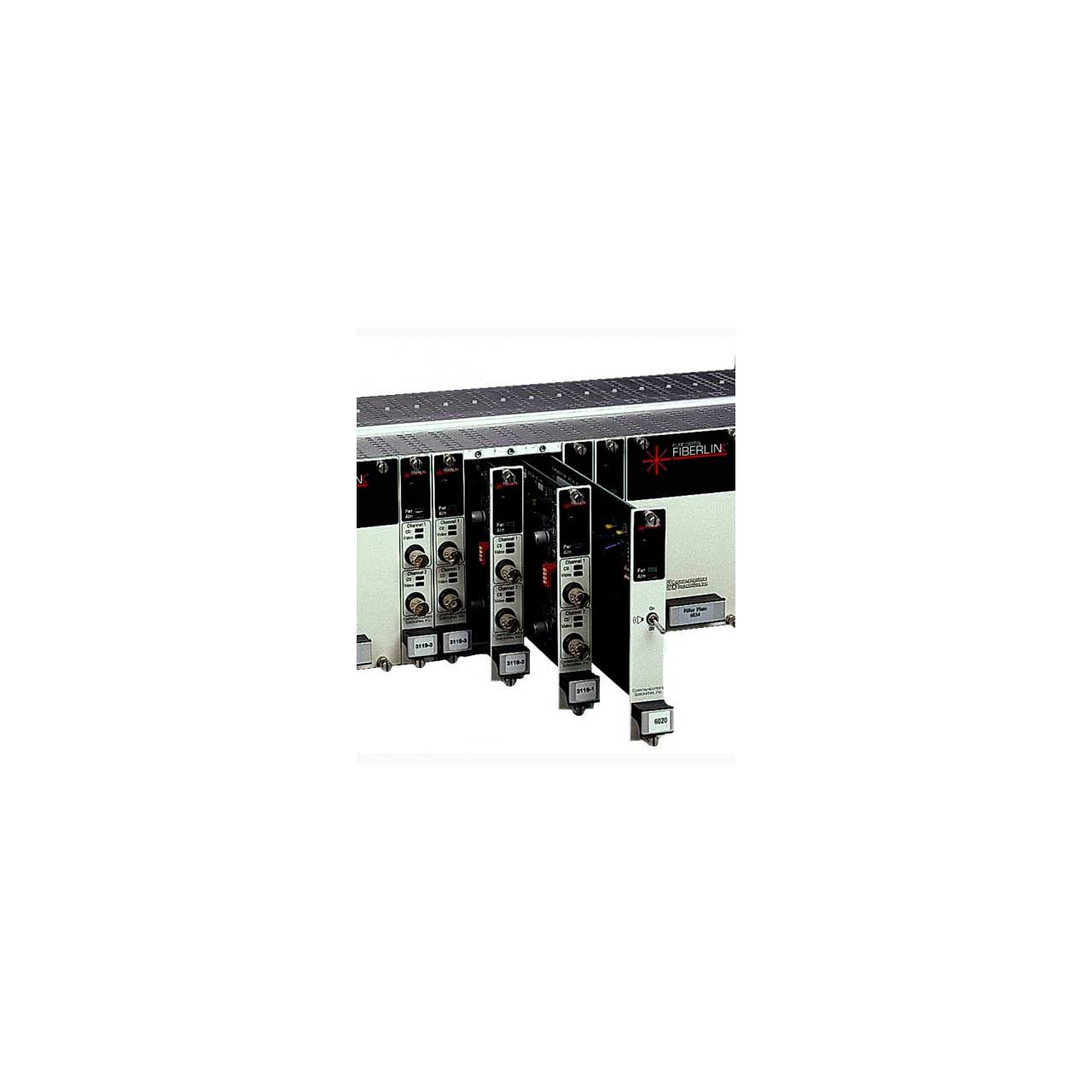

Artel FiberLink 3371-C7S 3G/HD/SD-SDI Ethernet & 2 Channels RS-Type Data over Fiber Card - Singlemode - ST - Receiver

ITEM #: CSI-3371-C7S MFG #: 3370-C7S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,777.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


3370-C7S - Overview

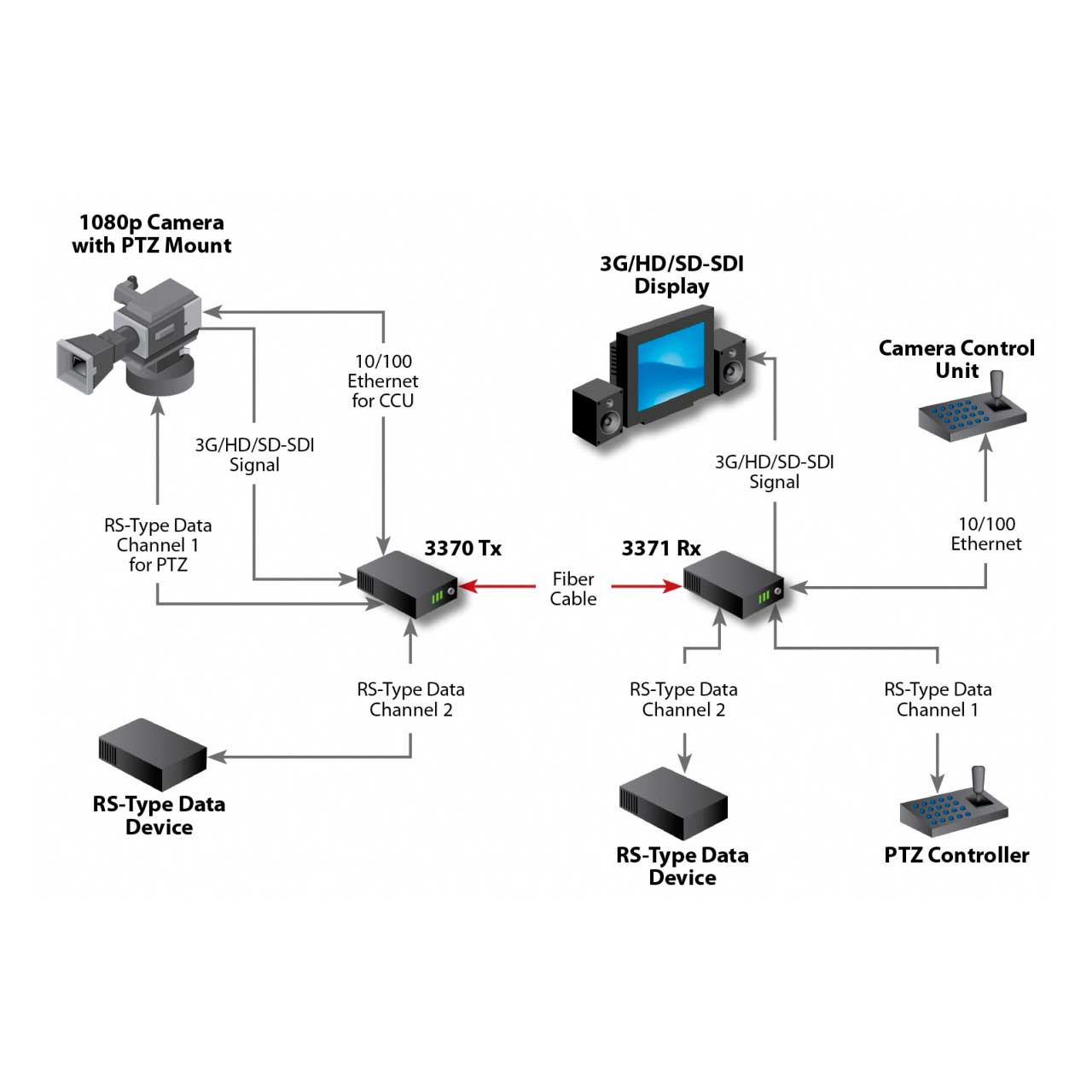

The Fiberlink® 3370 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to transmit 10/100 Base-T Ethernet and two channels of RS-Type data over one single mode or two multimode fibers. All data channels are available simultaneously and convenient switches on the 3370 Series transmitter allow the operator to configure each of the two pairs of data independently. Data signals are not required to operate the Fiberlink® 3370 link and it can be used as a stand-alone 3G/HD/SD-SDI optical link. Previously serialized audio that is present SDI stream is left intact throughout the entire transmission process. The 3370 Series is immune to pathological signals over the entire budget link and operating temperature range. Signals are equalized and re-clocked prior to fiber optic transmission and the 3371 receiver features a re-clocked SDI output. The 3370 model operates with one single mode fiber. Available in card versions and a small footprint box version, it is ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more.

  • Features:

    • Transmit up to 2 channels of bi-directional RS-Type data.
    • Transmit 10/100 Base-T Ethernet.
    • All data and ethernet channels available simultaneously.
    • SDI signal is equalized and re-clocked prior to fiber optic transmission.
    • Receiver features a re-clocked SDI output.
    • Immunity to pathological patterns over entire link budget and operating
    • temperature range.
    • Compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 276M.
    • Supports one single mode fiber or two multimode fibers.
    • Supports 3G/HD/SD-SDI inputs with or without embedded audio and data.
    • 14 dB Optical Link Budget @ 2.97 Gbps.

  • Specifications:

    • Fiberlink 3370 Series General Specifications:
    • Number of Fibers Required: 1 fiber for single mode fiber, 2 fibers for multimode fiber.
    • Indicators: Power, Data Rate lock (3G, HD, SD), Alarm (card version only), RS-Data Channel 1, RS-Data Channel 2 & Ethernet LEDs on RJ-45 Connector.
    • Box Version Dimensions: 6.5 W x 1.15 H x 8 L (inches).
    • Weight: approx. 1 lb.; 0.45 kg.
    • Power: 9-24 volts, AC or DC, 3370: 4.8 watts, 16.4 BTU/Hr, 3371: 4.65 watt s, 15.87 BTU/Hr.
    • Operating Temperature: -10§ C to +50§ C.
    • MTBF: 36,000 Hours.
      Ethernet Specs:
    • Port: 10/100 Base-T, RJ-45 connector, Configured as MDI.
    • Speed: 10 Mbps & 100 Mbps Ethernet, Switch Selectable.
      Data Specifications:
    • Data Channels: 2 Channels, Bi-Directional.
    • Data Bandwidth: DC to 115 Kb/sec, max.
    • Control Format: Switch selectable RS-232, RS-422 & RS-485 (4 wire or 2 wire).
    • Protocols: NRZ, NRZI, RZ, Manchester, Bi-phase.
    • Signal Connectors: Removable terminal block.
    • Fiberlink 3371 Receiver Specifications:
      Fiber Optic Input:
    • Connector: LC or ST.
    • Wavelength: 1100 - 1620 nm.
    • Minimum Input Sensitivity -17 dBm at 2.97 Gbps, -20 dBm at 1.485 Gbps, -21 dBm at 270 Mbps.
    • Maximum Input Power: 0 dBm.
      Serial Video BNC Output:
    • Number of Outputs: 1.
    • Signal Level: 800mV ± 10%.
    • DC Offset: 0V ± 0.5V.
    • Rise/Fall Time: < 135 ps at 2.97 Gbps per SMPTE 424M-2006, < 270 ps at 1.485 Gbps per SMPTE 292, 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M.
    • Overshoot: < 10% of amplitude.
    • Timing Jitter: < 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal.
    • Alignment Jitter: < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal.
    • Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps.
