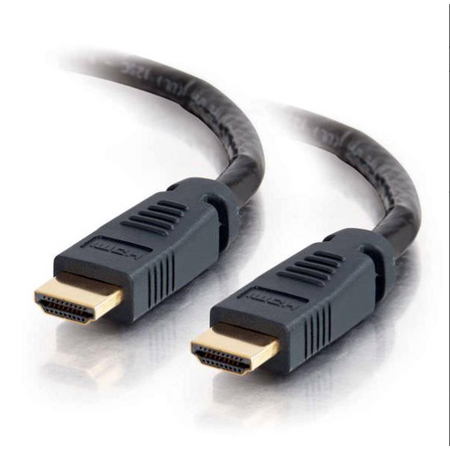

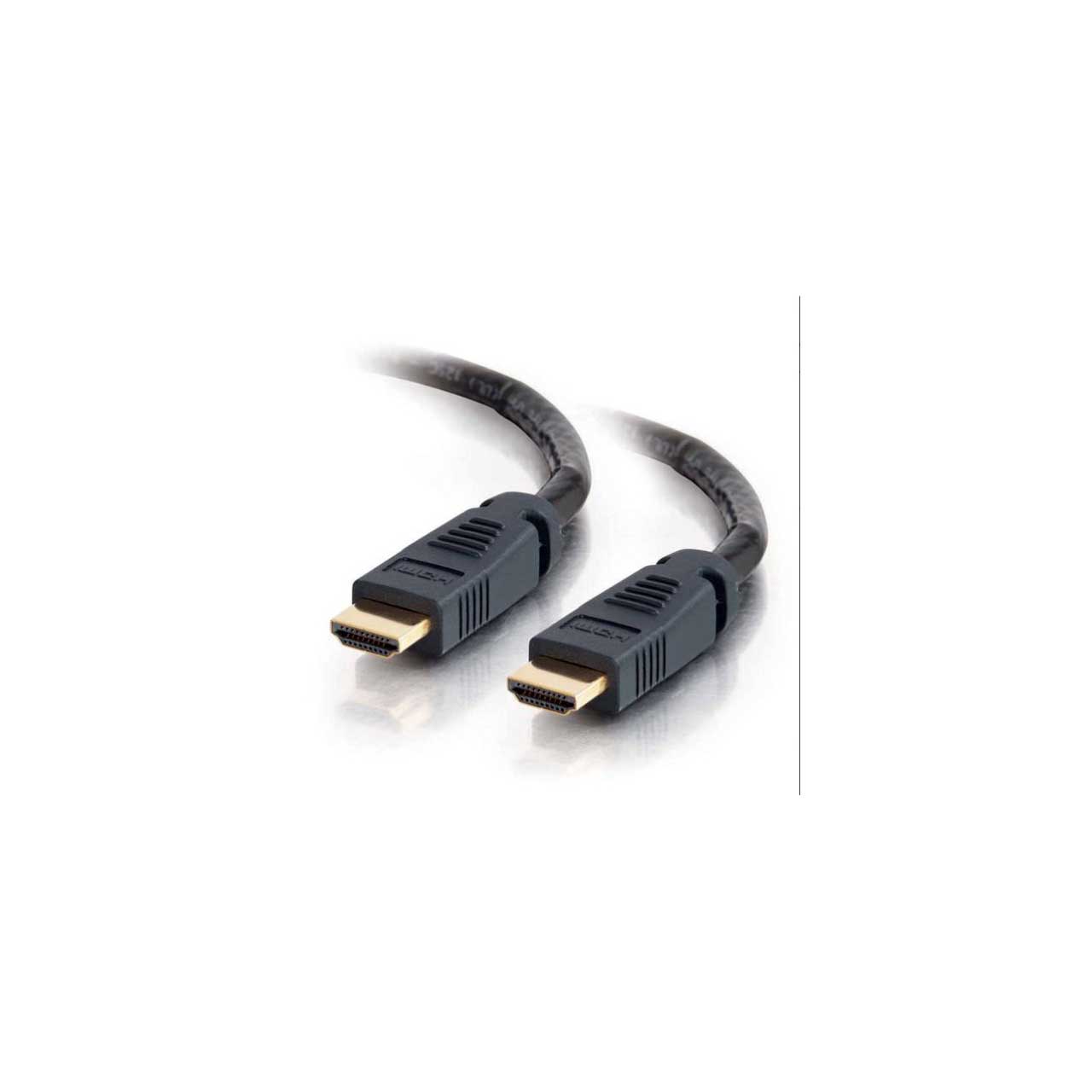

Cables To Go 41193 50 ft Plenum HDMI Cable

41193 - Overview

• Features:

  • Plenum CMP rated;Supports up to a 1080p resolution;Gold plated connectors;24 AWG conductor construction


• Specifications:

  • Color: Black
  • UPC: 757120411932
  • Warranty: Lifetime
  • Vendor: Cables To Go
  • Weight: 4.450 LB
  • Length: 50.00 Foot
  • Electrical Characteristics
  • Impedance - 100 ± 5O
  • DC Resistance - 0.084O/m at 20° C
  • Dielectric Strength - 750VAC/minute
  • Insulation Resistance (50 0V) - 100MO/KM at 20°C
  • IPS (with-in pair skew) - 15ps/m max
  • PtPS (pair-to-pair skew) - 50ps/m max
  • Attenuation (nominal) -
  • Frequency dB/100 ft
  • 100 MHz 0.26
  • 340 MHz 0.48
  • 500 MHz 0.62
  • 800 MHz 0.84
  • 1000 MHz 0.97
  • Physical Characteristics
  • Voltage Rating - 300V
  • Temperature Rating - 125°C
  • Approvals - RoHS Compliant
  • Package Type - Polybag
  • Conductor 1 (4 pair)
  • Conductor Type - 24AWG (7/32), Tinned Copper
  • Insulation - Minimum Avg. Thickness: 0.4mm Cellular-PE, 1.5 mm O.D., (1) white & brown, (1) white & red, (1) white & green, (1) white & blue
  • Shield - Aluminum/Polyester Tape 100% 25% overlap (min.),
  • Drain Wire - 24AWG (7/32), Tinned Copper
  • Conductor 2 (1 pair & 5 conductors)
  • Conductor Type - 24AWG (7/32) Tinned Copper
  • Insulation - Minimum Avg. Thickness: 0.17mm FEP, 0.96mm O.D., (1 pair) orange & yellow, (1) red, (1) violet, (1) white, (1) gray, (1) pink
  • HDMI Connector
  • Connector Type - HDMI Type A
  • Gender - Male
  • Contact Material - Brass, 15æm Gold Plating
  • Insulation - PET
  • Dimensions (LxWxH) - 42.75 x 18.00 x 10.50mm
  • Overall Cable
  • AL/Polyester Tape - 100% Coverage, 25% overlap (min.)
  • Braided Shield - 85% Coverage (9/36AWG), Tinned Copper
  • Jacket - Kynar (PVDF Copolymer) Black CMP Rated, Minimum Avg. Thickness: 0.4mm (min.), O.D.: 8.35 ± 0.15 m
