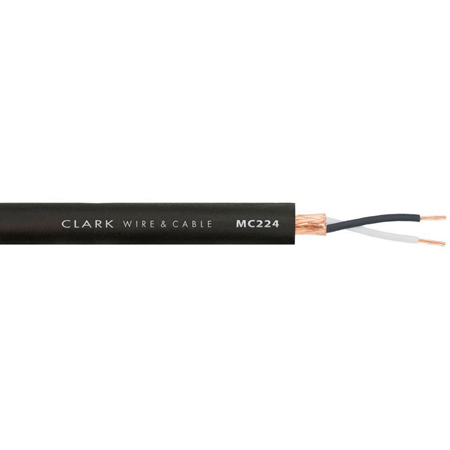

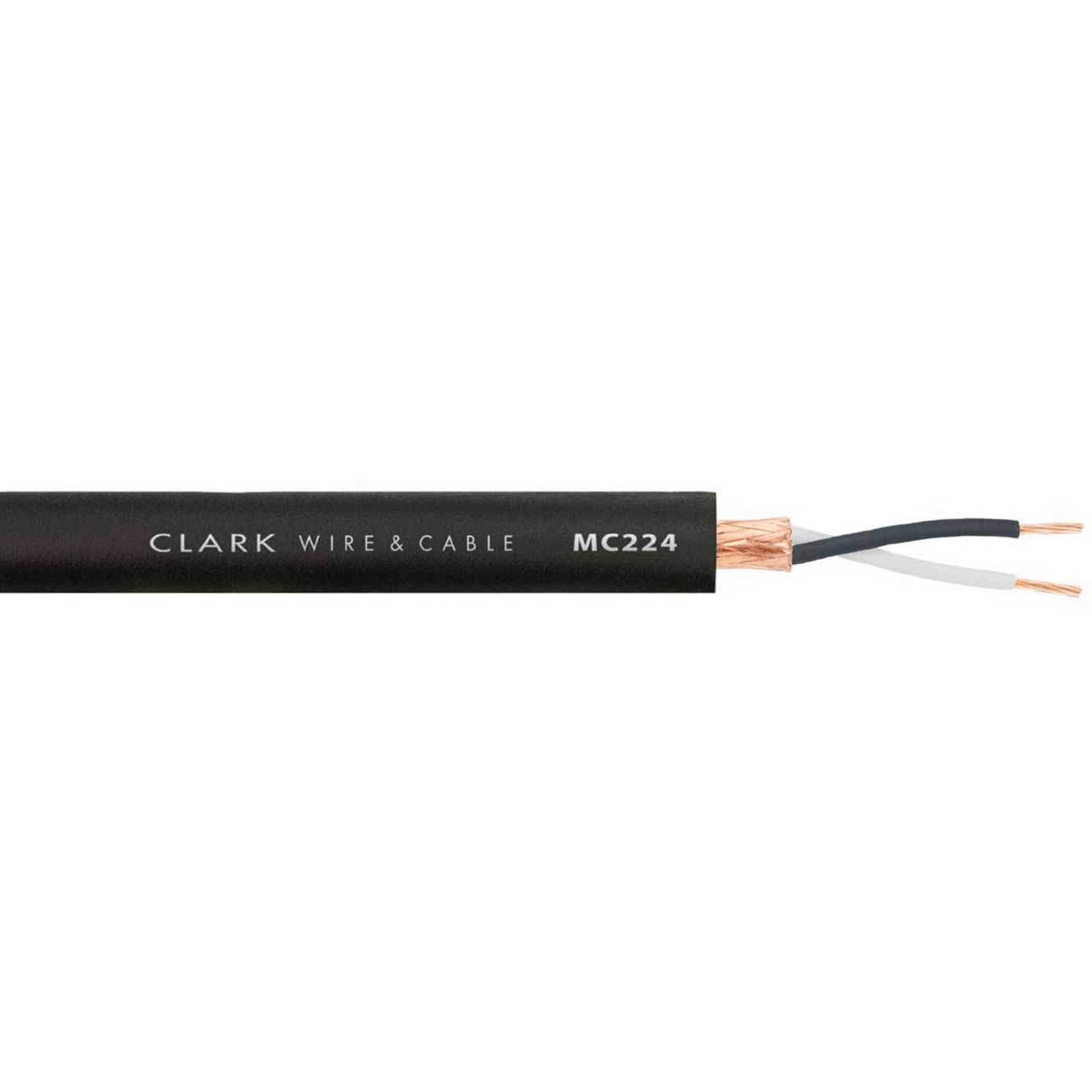

Clark Wire & Cable MC224 Low-Loss 24AWG Microphone Cable - 500 Foot Spool

ITEM #: CWC-MC224-500 MFG #: MC224-500 FT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MC224-500 FT - Overview

Clark's MC224 is a low-loss, ultra-flexible microphone cable for portable audio applications. The high strand 24AWG conductors have exceptional flexibility and flex-life. For enhanced common-mode and RF/EMI rejection, the MC224 features tightly-twisted balanced pairs that are shielded with a bare copper braid. The outer jacket is extruded from a flexible matte PVC compound that is both flexible and abrasion resistant.

  • Features:

    • Ultra-Flexible PVC Jacket - exceptional flexibility and abrasion resistant.
    • Exceptional Flex-Life - finely stranded conductors provide high flex-life.
    • Thin Profile 24 AWG Conductors- light weight and reduced diameter for patching applications.
    • Excellent Noise Rejection- precision pair twisting maximizes RF/EMI rejection.
    • 95% Braid - full coverage shielding and easy termination.

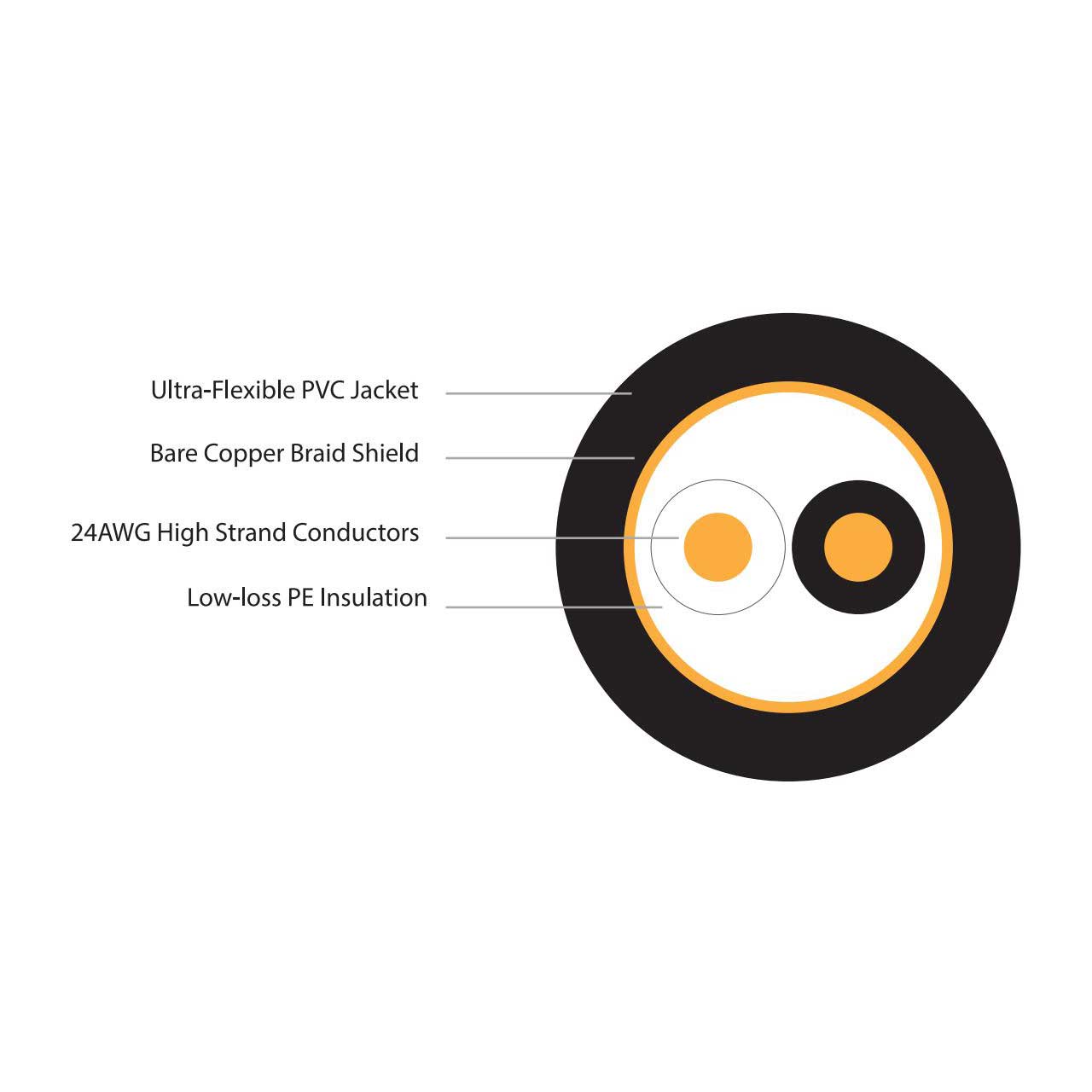

  • Specifications:

    • Conductors: (2) 24AWG (41x40) Stranded BC, .023" O.D.
    • Insulation: Polyethylene .013" wall, (one black, one white)
    • Shield: 95% BC Braid.
    • Jacket: Ultra-Flexible Matte PVC, .236" O.D.


MC224-500 FT - Required Accessories
