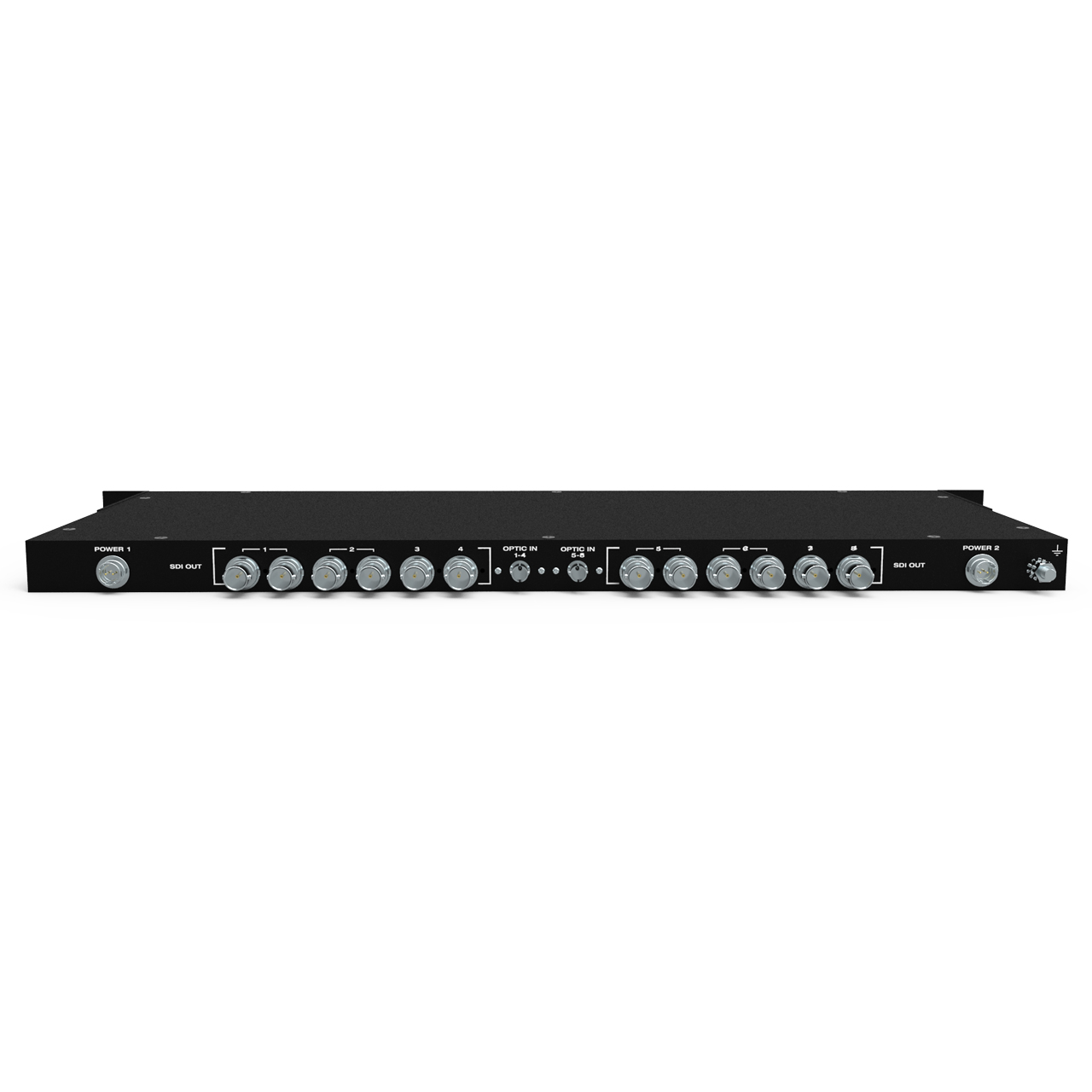

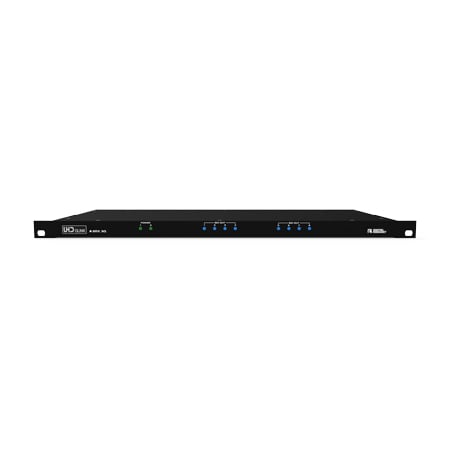

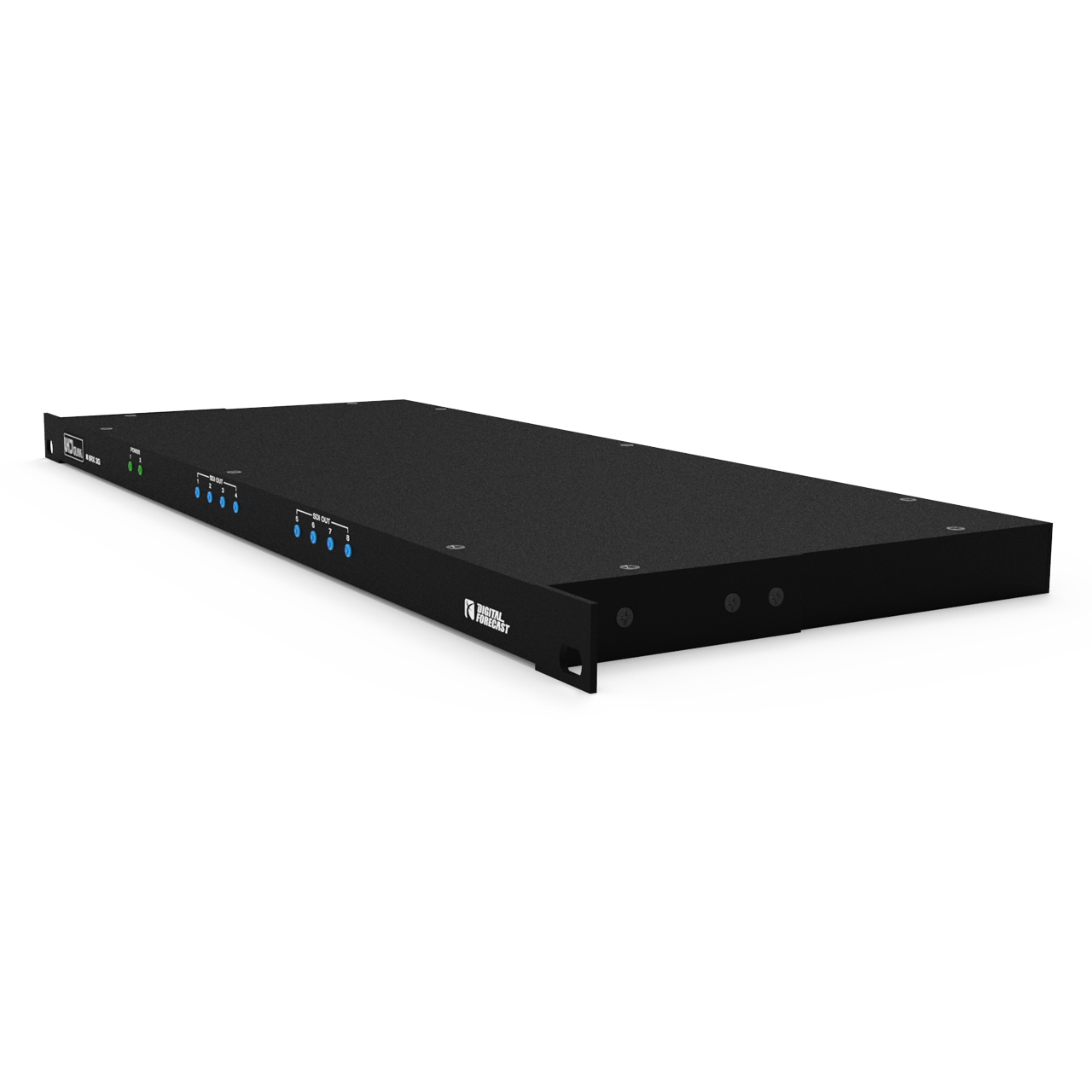

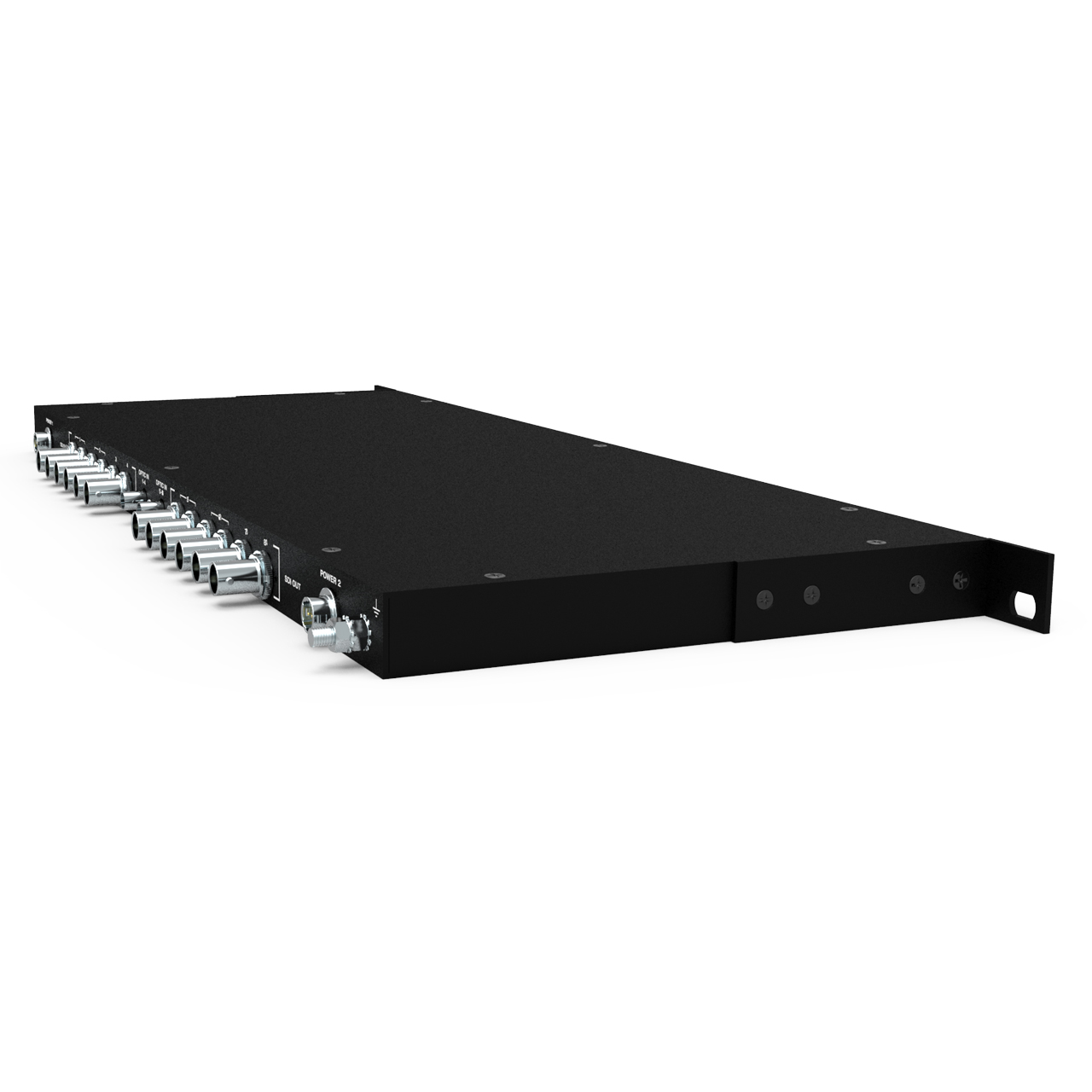

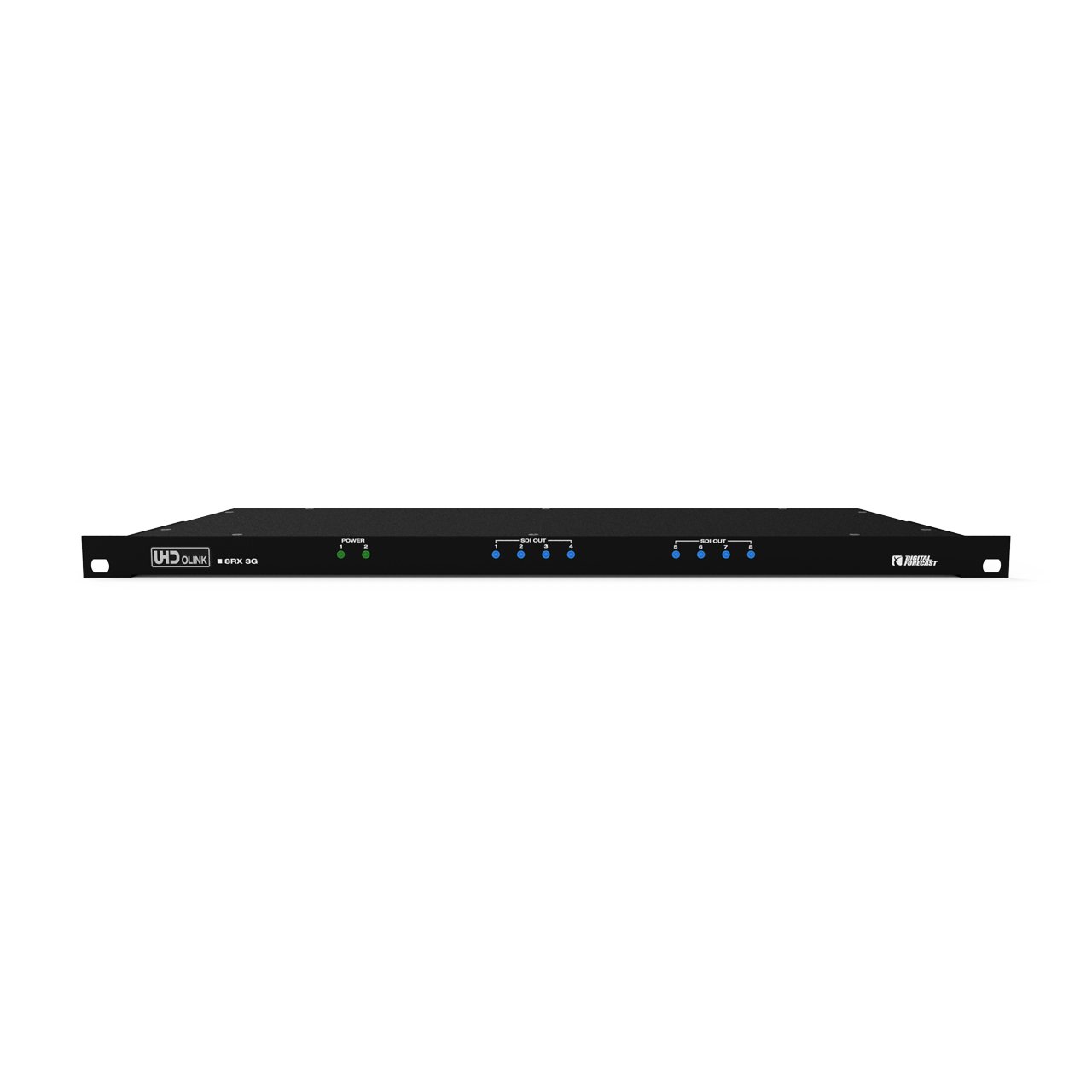

Digital Forecast UHD OLINK 8RX 3G 0.5RU 8-Channel 3G to ST Duplex Singlemode Fiber Optic Receiver with Loop Out

OLINK 8RX 3G - Overview

• Features:

  • Standard SDI (SD,HD,3G ) format supported
  • Uni-direction Receiver 8RX
  • Signal transmission possible up to 10km using dual core
  • Use of dual single mode cable (ST type optical connector)
  • +12V Dual Power.


• Specifications:

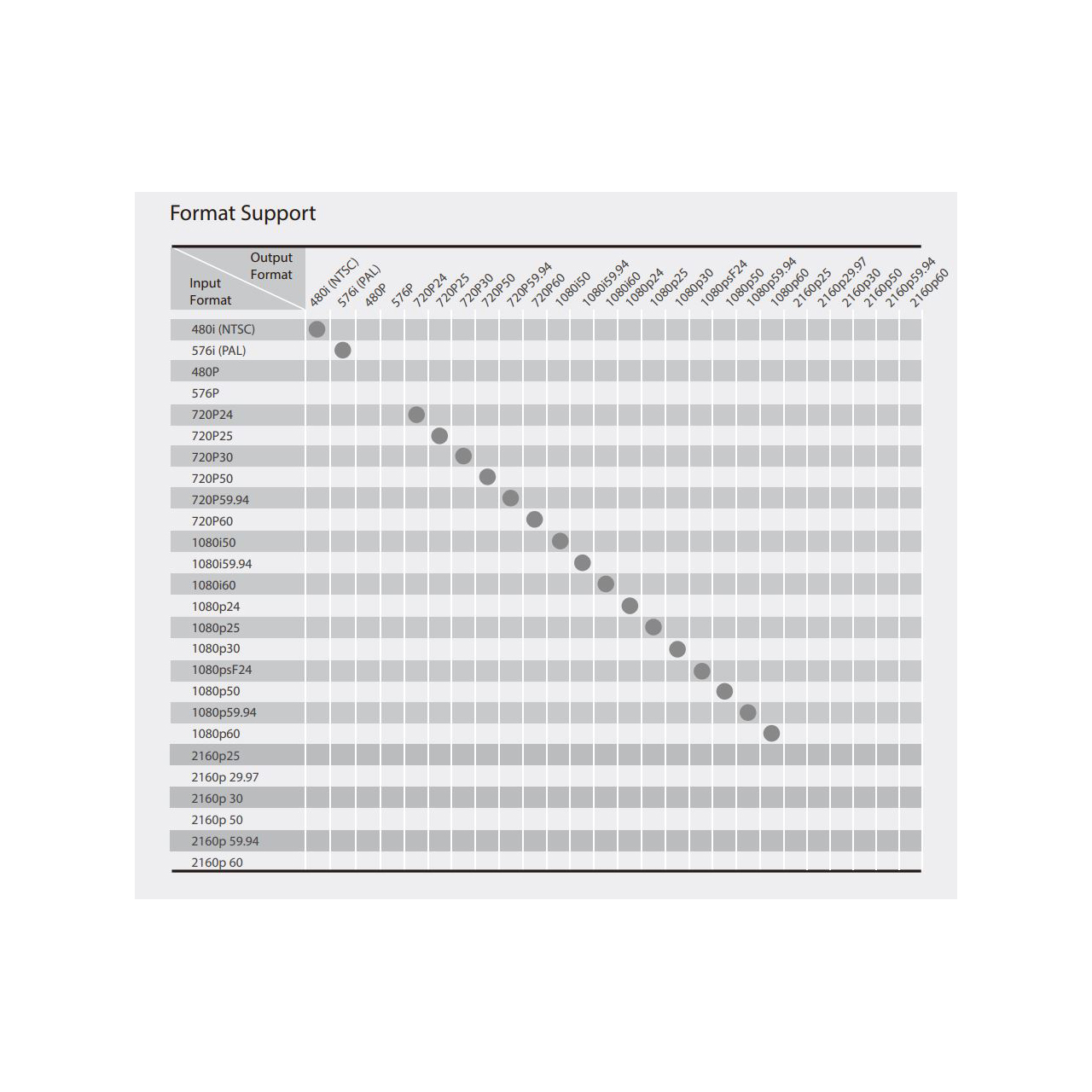

  • Digital Video Specs
  • SMPTE-296M: 720p (60/59.94/50)
  • SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50), 1080p (23.98/24/25/29.97/30/23.98PSF/24PSF)
  • SMPTE-424M: 1080p (60/59.94/50) 3G

    Operating Environment
  • Power Level: 7V - 16V DC
  • Power Consumption: 12 Watts (Max 15 Watts)
  • Operating Temperature: 32°F - 131°F (0°C - 55°C)
  • Humidity: 0% - 95% RH, Non-condensing
  • Data Rate: 3G
  • Signal Level: 800mVp-p ±80mV


• Item Includes:

  • 1x Digital Forecast UHD OLINK 8RX 3G 0.5RU 8-Channel 3G to ST Duplex Singlemode Fiber Optic Receiver with Loop Out
