OLINK 8TX 3G - Overview

3G Optic Transmitter - UHD Multi-Channel SDI Over Fiber Transmitter with Loop Out
The Digital Forecast Bridge UHD OLINK 8TX 3G system is a rack-mount type system that can convert 8 Channel SDI signals into optical signal and transmit them. It is a unidirectional model and transmits 8CH SDI signals simultaneously

The compact-sized UHD OLINK system for long-distance transmission of a large number of SDI signals enables the construction of a stable transmission system in a variety of environments.

Features:
- Standard SDI (SD,HD,3G) format supported
- Uni-direction transmission 8TX
- Signal transmission possible up to 10km using dual core
- Use of dual single mode cable (ST type optical connector)
- +12V Dual Power.
Specifications:

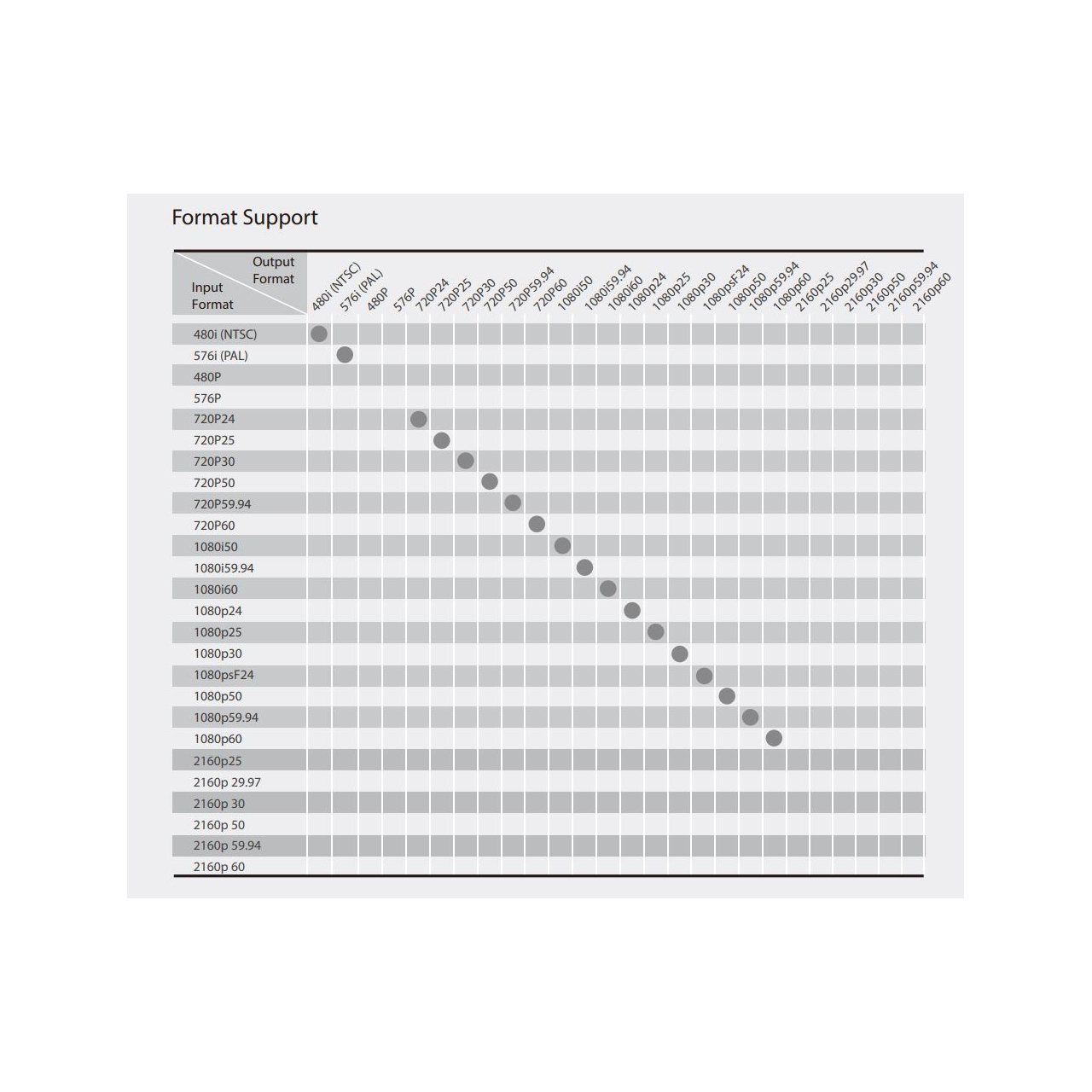

- Digital Video Specs
- SMPTE-296M: 720p (60/59.94/50)
- SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50), 1080p (23.98/24/25/29.97/30/23.98PSF/24PSF)
- SMPTE-424M: 1080p (60/59.94/50) 3G

  Operating Environment
- Power Level: 7V - 16V DC
- Power Consumption: 12 Watts (Max 15 Watts)
- Operating Temperature: 32°F - 131°F (0°C - 55°C)
- Humidity: 0% - 95% RH, Non-condensing
- Data Rate: 3G
- Signal Level 800mVp-p ±80mV
Item Includes:
- 1x Digital Forecast UHD OLINK 8TX 3G 0.5RU 8-Channel 3G to ST Duplex Singlemode Fiber Optic Transmitter with Loop Out
